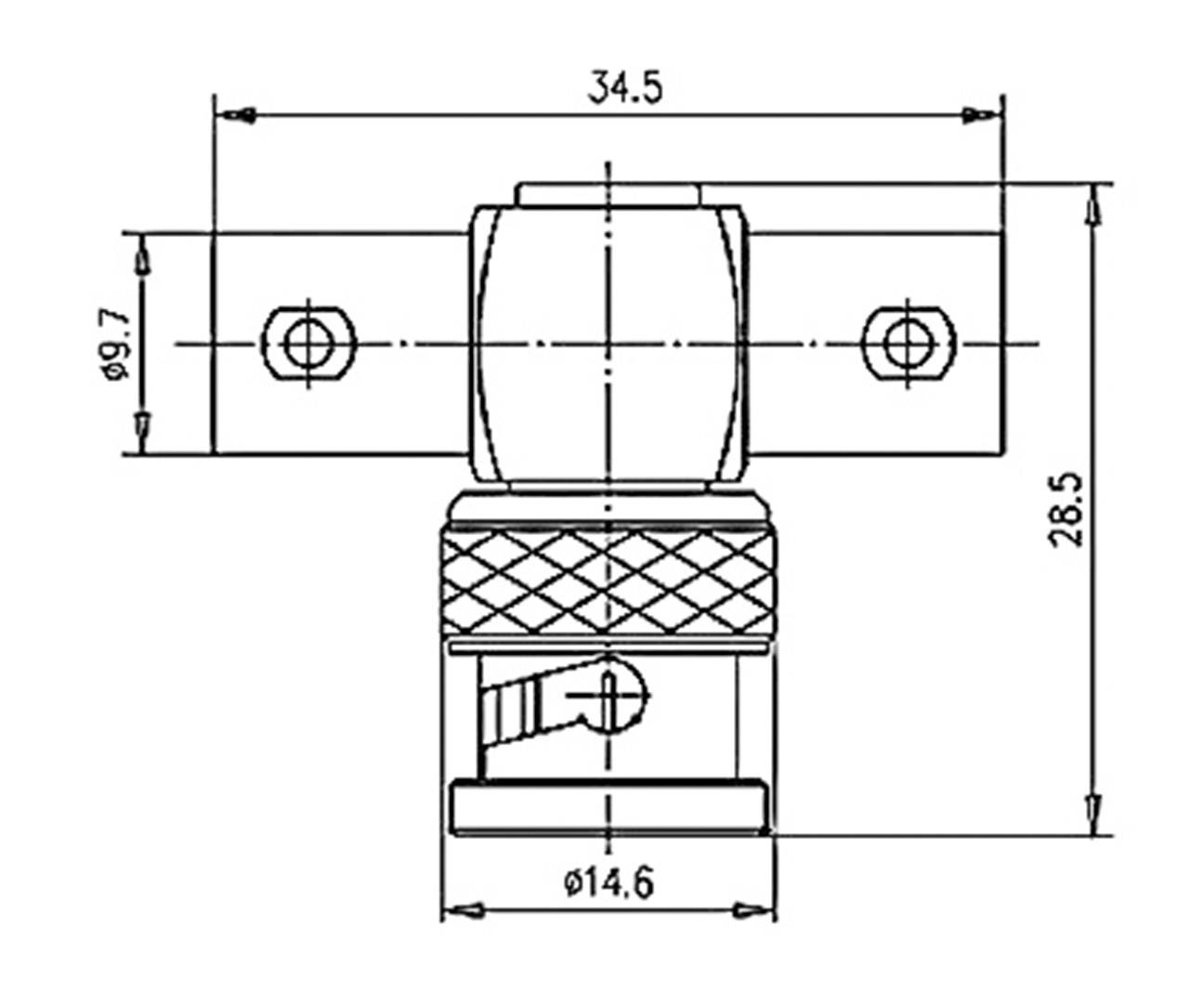

Telegärtner 100023596 100023596 BNC adapter BNC plug - BNC socket, BNC socket 1 pc(s)
EAN:
Part number:
Item no:
Product type
BNC adapter
Type A
BNC plug
Type B
BNC socket
BNC socket
Connector type
Adapter, T-shaped
Impedance
50 Ω
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
Highlights & Details
BNC T-adapter
- BNC plug - BNC socket, BNC socket
Our service for you
Technical specifications
- Product type
BNC adapter
- Type A
BNC plug
- Type B
BNC socket
BNC socket
- Connector type
Adapter, T-shaped
- Impedance
50 Ω
- Content
1 pc(s)
- Max. frequency
4 GHz
- Case material
Brass nickel plated
- Manufacturer part #
100023596
- Insulation material
PTFE
- RoHS-compliant
Yes
- Type
100023596
Documents & Downloads
Datasheet
Datasheet 1366051 Telegärtner 100023596 100023596 BNC adapter BNC plug - BNC socket, BNC socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366051 Telegärtner 100023596 100023596 BNC adapter BNC plug - BNC socket, BNC socket 1 pc(s)
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
