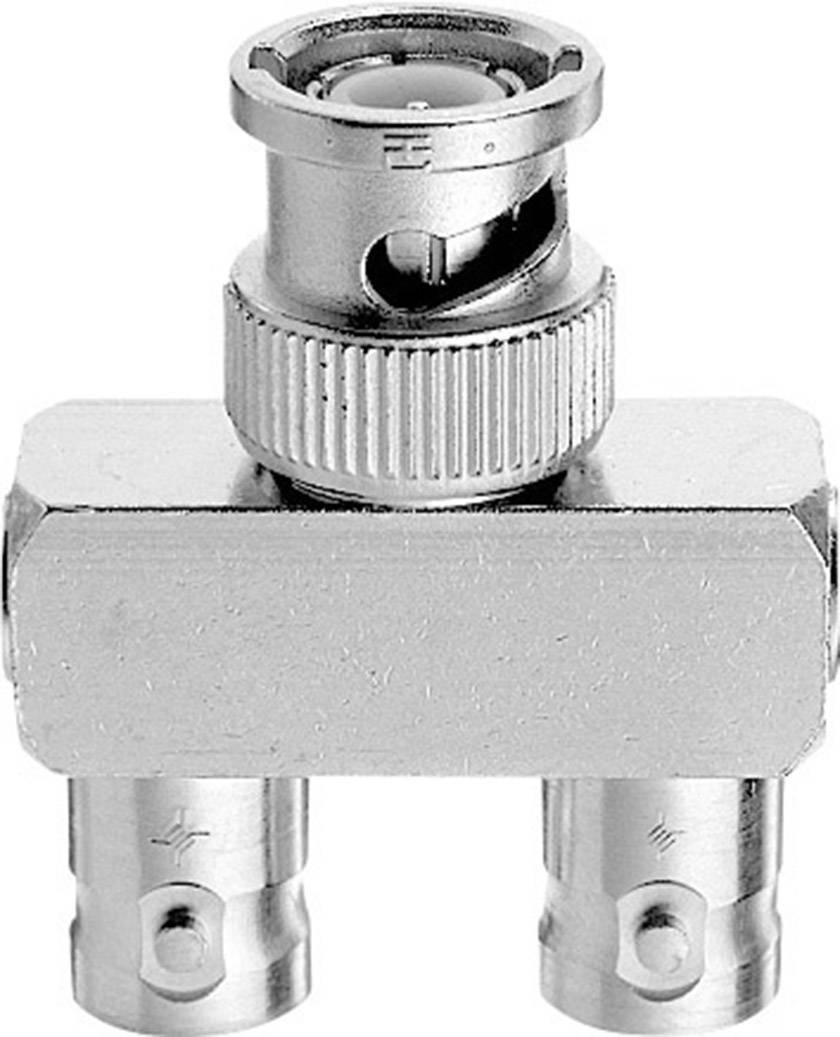

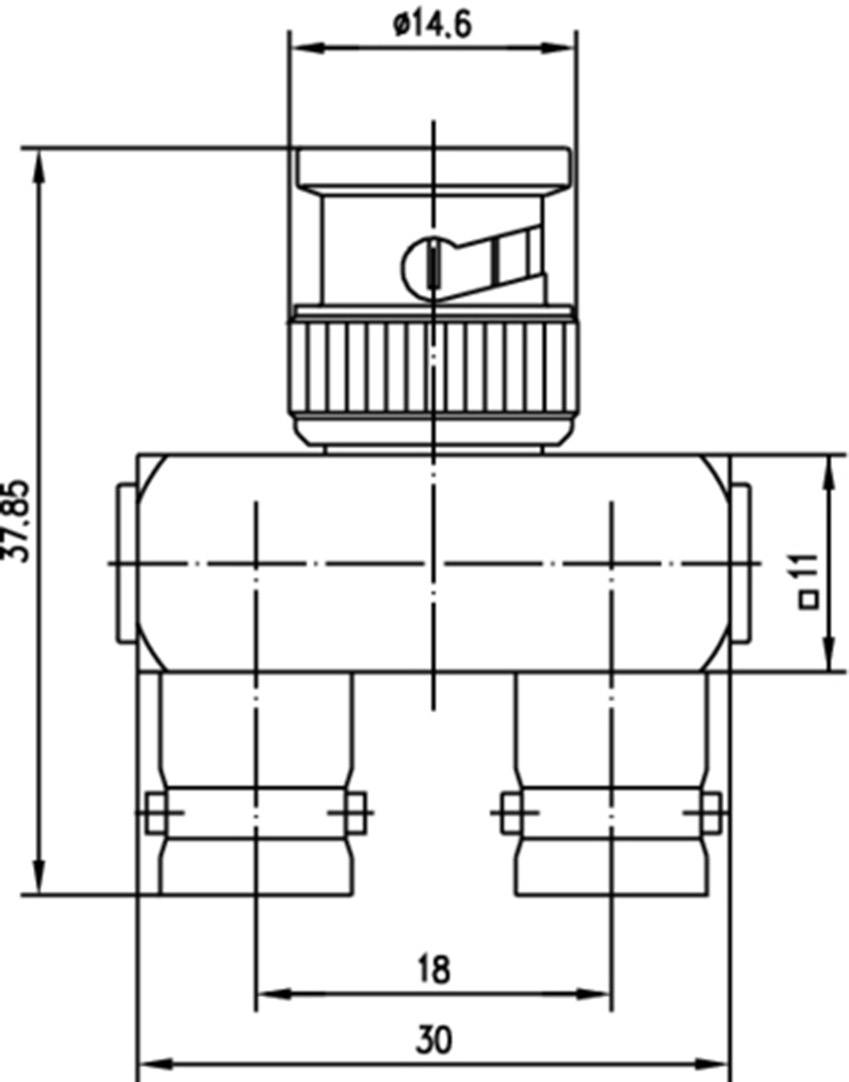

Telegärtner J01005A0005 BNC adapter BNC socket - BNC plug, BNC socket 1 pc(s)
EAN:
Part number:
Item no:
Product type
BNC adapter
Type A
BNC socket
Type B
BNC plug
BNC socket
Connector type
Adapter, Y-shaped
Impedance
75 Ω
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
BNC Y-adapter
Highlights & Details
- BNC socket - BNC plug, BNC socket
Our service for you
Technical specifications
- Product type
BNC adapter
- Type A
BNC socket
- Type B
BNC plug
BNC socket
- Connector type
Adapter, Y-shaped
- Impedance
75 Ω
- Content
1 pc(s)
- Max. frequency
4 GHz
- Case material
Brass nickel plated
- Manufacturer part #
J01005A0005
- Insulation material
PTFE
- RoHS-compliant
Yes
- Type
J01005A0005
Documents & Downloads
Datasheet
Datasheet 1366373 Telegärtner J01005A0005 BNC adapter BNC socket - BNC plug, BNC socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366373 Telegärtner J01005A0005 BNC adapter BNC socket - BNC plug, BNC socket 1 pc(s)
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
