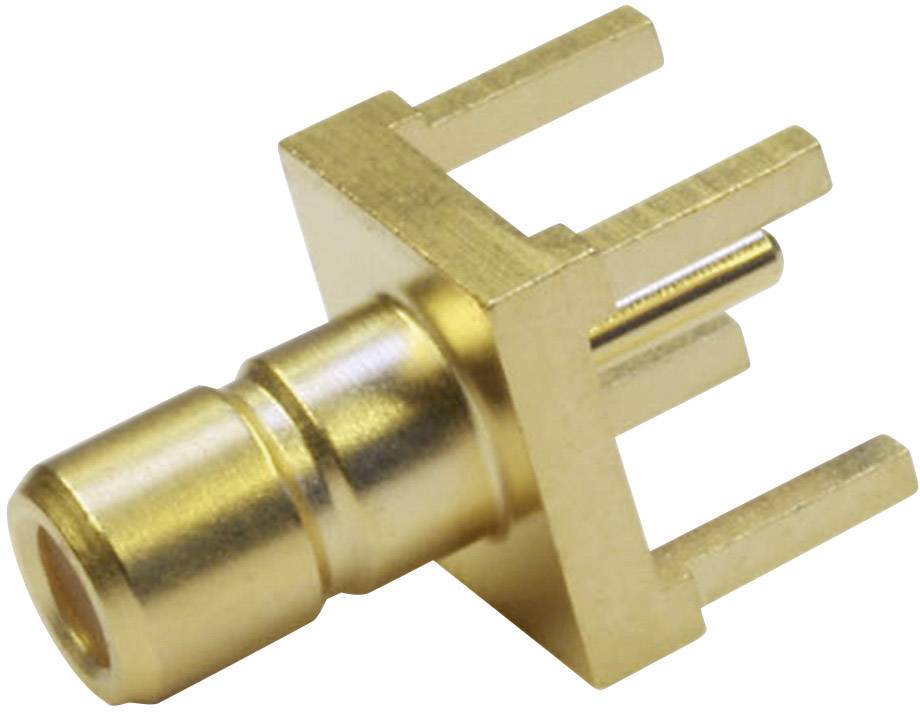

Telegärtner 100024844 100024844 SMB connector Plug, vertical mount 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMB connector
Connector type
Plug, vertical mount
Impedance
50 Ω
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Highlights & Details
SMB connectors
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Mounting dimensions: Z25
- Product type
SMB connector
- Connector type
Plug, vertical mount
- Impedance
50 Ω
- Connection
Soldering
- Content
1 pc(s)
- Max. frequency
4 GHz
- Case material
Brass gold plated
- Manufacturer part #
100024844
- Insulation resistance
≥ 1 GΩ
- Insulation material
PTFE
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Temperature range
-55 - 155 °C
- Type
100024844
- Seal type
Push-Pull
Documents & Downloads
Datasheet
Datasheet 1090955 Telegärtner 100024844 100024844 SMB connector Plug, vertical mount 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1090955 Telegärtner 100024844 100024844 SMB connector Plug, vertical mount 50 Ω 1 pc(s)
Description
These connector series offer three different coupling mechanisms: SMB has a snap-on coupling allowing quick but secure connection, and is usable up to 4 GHz. SMC has a threaded coupling for vibration proof installation, and is usable up to 10 GHz. SMS has a slide coupling which is suitable for rack and panel systems, and is usable up to 4 GHz.
The impedance is controlled at 50 Ω for all types. Connector styles are available for flexible, conformable and semi-rigid cables. Versions of these series connectors are available for mounting to printed circuit boards using both thru-hole soldered and thru-hole press-fit techniques, as well as surface mount technology (SMD). Solder and crimp techniques are used to terminate these series to cables. SMB/SMC/SMS connectors find applications in all types of electronic equipment.
The impedance is controlled at 50 Ω for all types. Connector styles are available for flexible, conformable and semi-rigid cables. Versions of these series connectors are available for mounting to printed circuit boards using both thru-hole soldered and thru-hole press-fit techniques, as well as surface mount technology (SMD). Solder and crimp techniques are used to terminate these series to cables. SMB/SMC/SMS connectors find applications in all types of electronic equipment.
