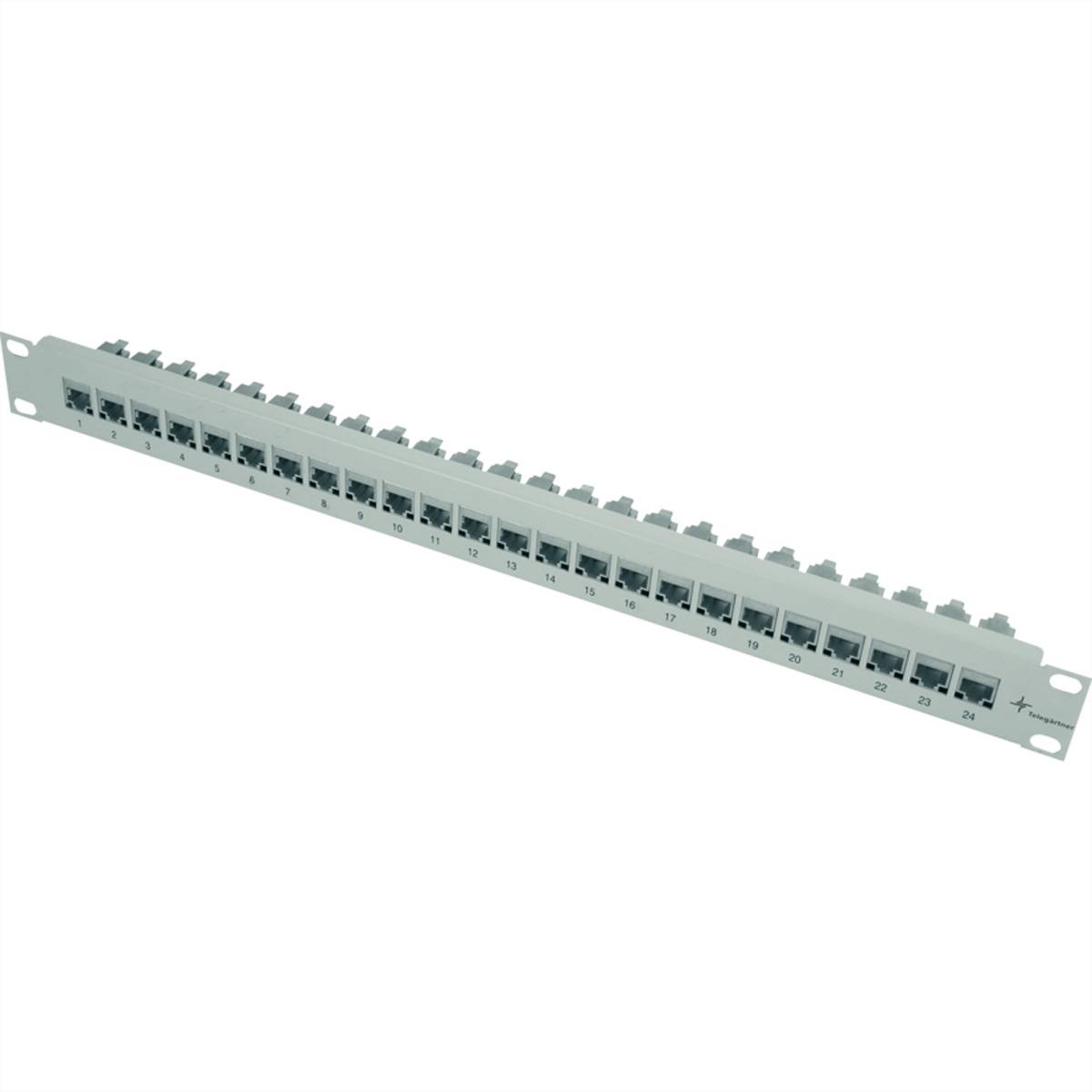

Telegärtner J02023K0025 483 mm (19") CAT 5e 1 U Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
19" module carrier 1 HE including 24xAMJ coupling K CAT.5...
- 10 Gigabit Ethernet compliant
- Contact over-bending protection ≥750 mating cycles
- Integrated cable traps for cable diameters of up to 9 mm
- Visually monitored test of the RJ45 contact heights
- With integrated protection against damage of the contacts
Technical specifications
- Product group: Connection technology TP
- Product type: Patch panel CAT.6A / class EA
- Colour: grey
- Material (casing): Zinc die-cast, nickel-plated

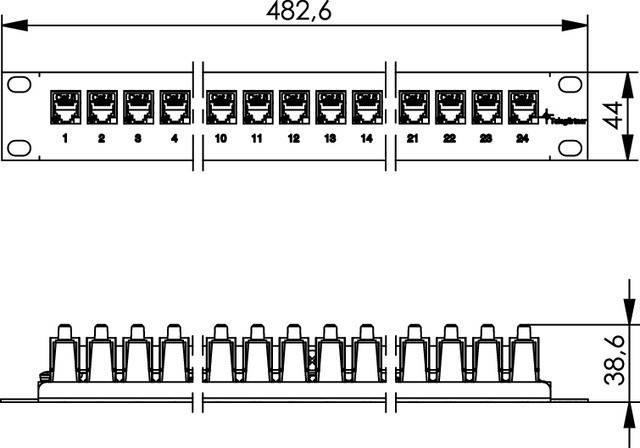

- Dimensions (HxWxD) 44 x 482.6 x 38.6 mm
- RAL color: Light gray RAL 7035
- Min. Operating temperature -40 °C
- Max. operating temperature: 85 °C
- Height: 44 mm
- Width 482.6 mm
- Depth: 38.6 mm
- Weight: 1125 g
- Packaging height 60 mm
- Package width 70 mm
- Packaging depth 540 mm
- Package weight: 1,078 kg
- Gross weight: 1.078
- Rack size
483 mm (19")
CAT 5e
- Rack unit
1 U
- Transfer rate
10 GBit/s
- Connections
24 AMJ-couplings K CAT.5
- Width
482.6 mm
- Height
44 mm
- Depth
38.6 mm
- Factory colour
Grey
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3799362 Telegärtner J02023K0025 483 mm (19") CAT 5e 1 U Grey
User & Safety Instructions
User & Safety Instructions 3799362 Telegärtner J02023K0025 483 mm (19") CAT 5e 1 U Grey
Description
19" module carrier 1 HE incl. 248xAMJ coupling K CAT .5 CAT.6A (ISO/IEC) according to IEC 60603-7-51. CAT.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100. Link certification: Class EA (ISO/IEC) according to ISO/IEC 11801. 10 Gigabit-Ethernet compliant (IEEE 802.3an). ≥750 mating cycles with RJ45/RJ11/RJ12 plugs. Suitable for PoE+ according to IEEE 802.3at. With design-capable module mounting AMJ-S Up/0 Flex combined with covers Diverser switch program manufacturer. Integrated cable traps for cable diameters of up to 9 mm. Universal, world wide available installation for mounting cutouts of 19.3 x 14.7 mm Visually monitored test of the RJ45 contact heights. AMJ-S DD: With integrated protection against damage to the contacts by automatically loosening the plug connection. Design: Incl. 24 AMJ couplings K CAT.5, potential connection set, without cable interception. Colour: Light gray RAL 7035
This text is machine translated.
Features
- Features: Grey
Scope of delivery
- Telegärtner 19" module carrier 1 HE
