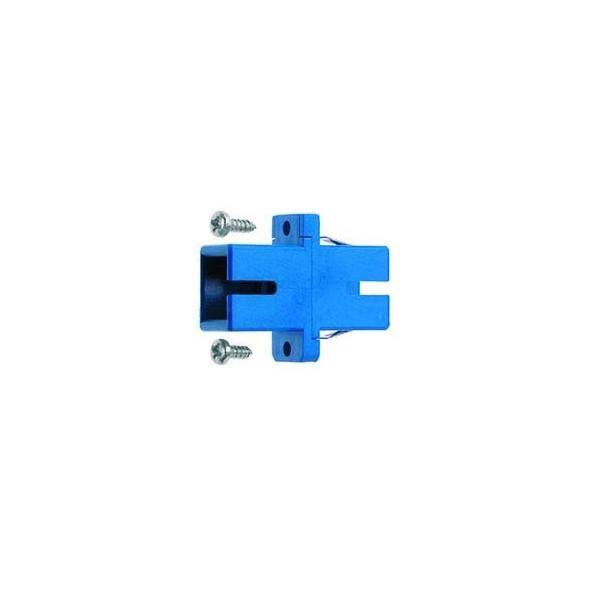

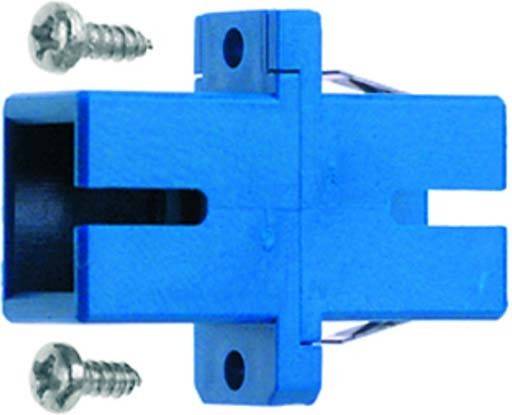

Telegärtner J08081A0000 FO adapter Blue 1 pc(s)

Telegärtner fiber optic connectors are equipped with ceramic pins and slotted sleeves for a long service life; the assembly on cables or fibers can be done quickly and easily on site with the help of the offered tools and aids. The preformed convex front surface on the pin ensures short polishing times and excellent optical properties. All fiber optic cable connectors meet the applicable international standards.

The design ST3 has an internal strain relief, which prevents a signal interruption with tensile load of the cable. For use with plastic fibers (POF) with 1 mm fiber diameter, a low-cost metal plug is available, which can be connected to the cable with the simplest of tools and without adhesive.

The requirement to achieve a packing density for fiber optic applications as for RJ45 connectors has led to the development of new fiber optic connector systems called SFF (= small form factor). Telegärtner offers MT-RJ and LC designs for this purpose. The space required in front panels or connection sockets is only about half the size of conventional connectors such as ST or SC.

We offer a complete range of network installation for this system: Plugs, sockets for direct fiber connection in the field, couplings, patch cords, adapter cables to other plug systems, sockets suitable for standard switch programs and with guaranteed bending radii, marshaling fields with and without drawer extension as well as wall distributors in various sizes and for DIN rail mounting.

The SC/APC (Angled Physical Contact) series, with an angular ground of the connector face of 8°, has been developed for routes requiring particularly high reflection attenuation better than 60 dB. These plugs are supplied as pigtail or patch cable, the housings of the plugs and couplings are easily identified by the green color.

This text is machine translated.
