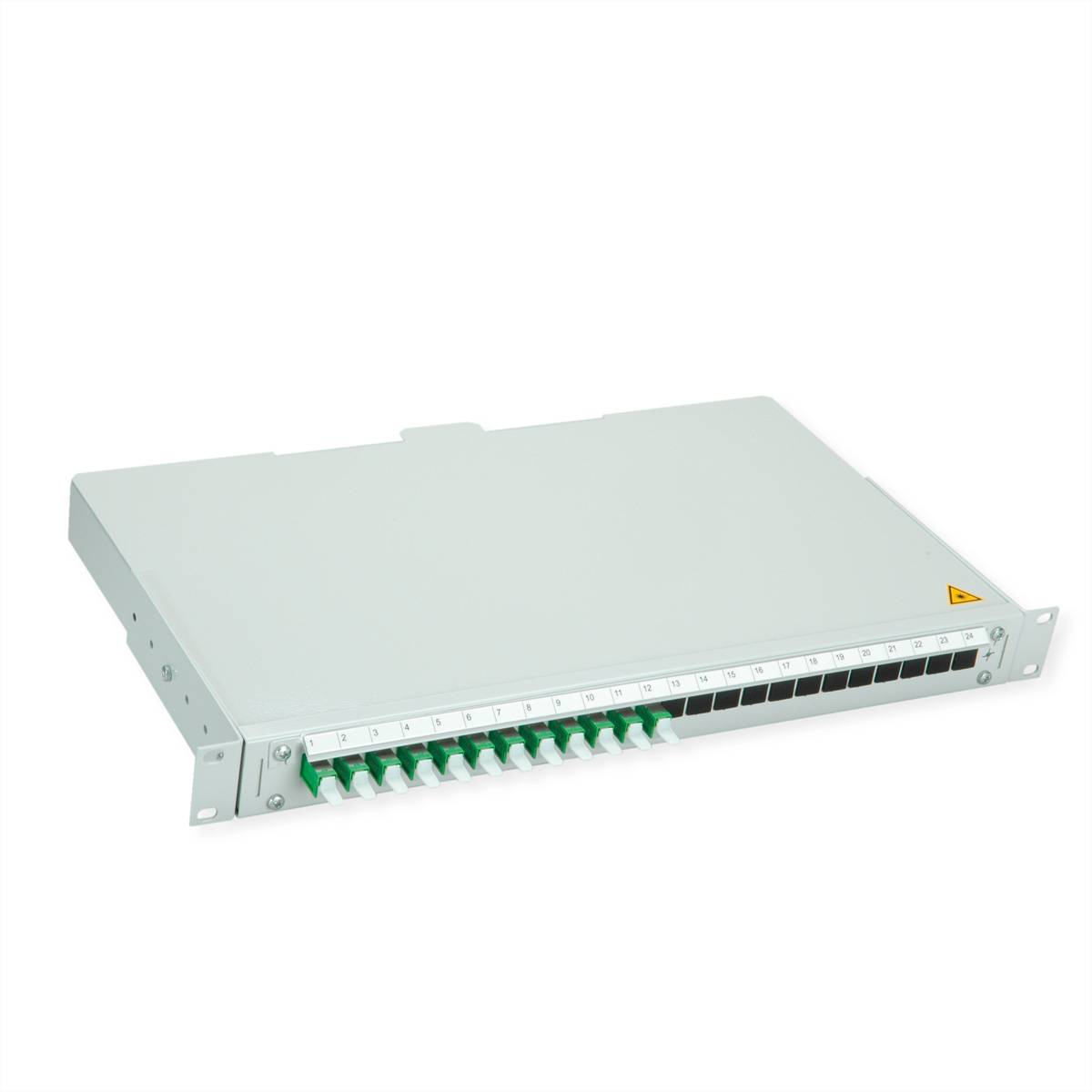

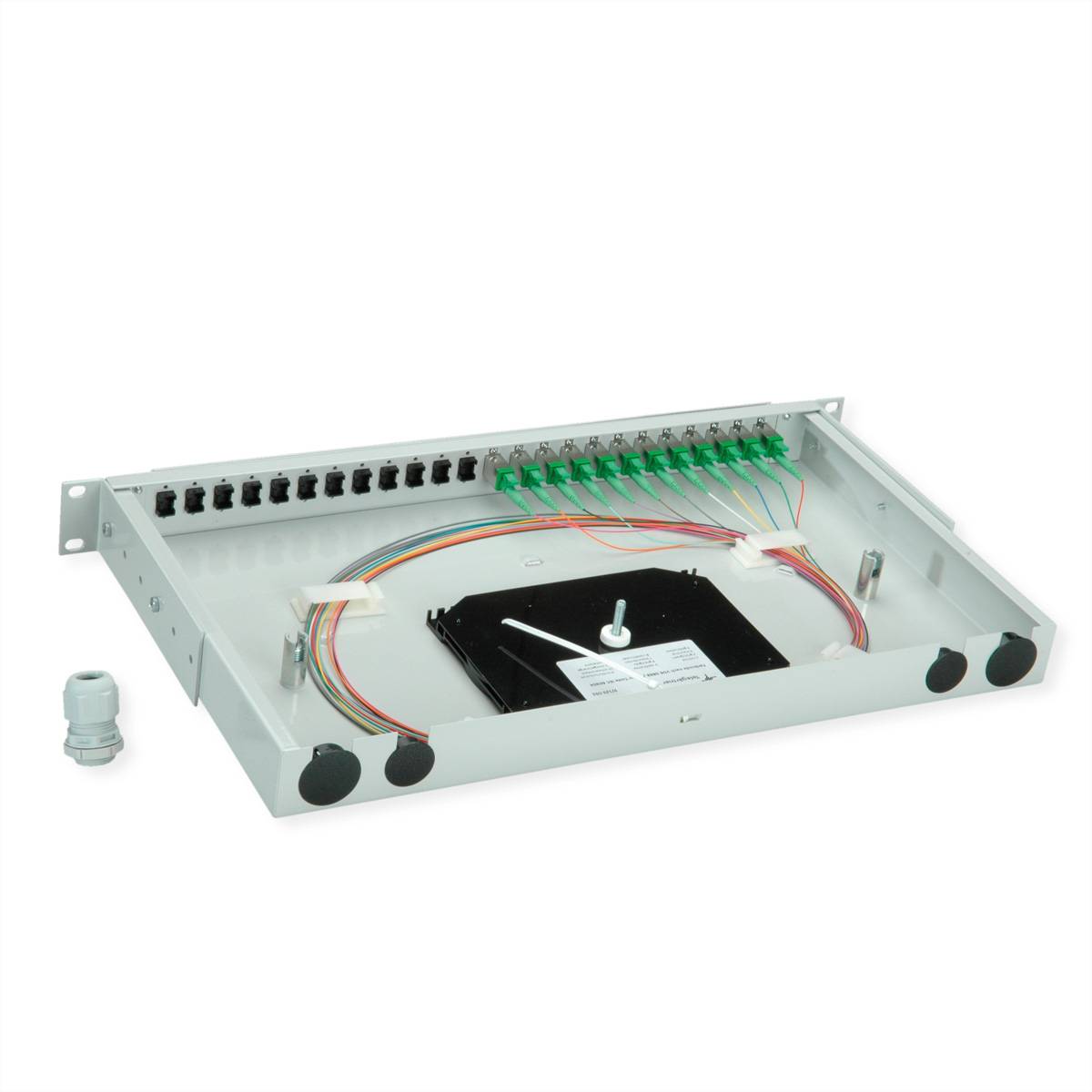

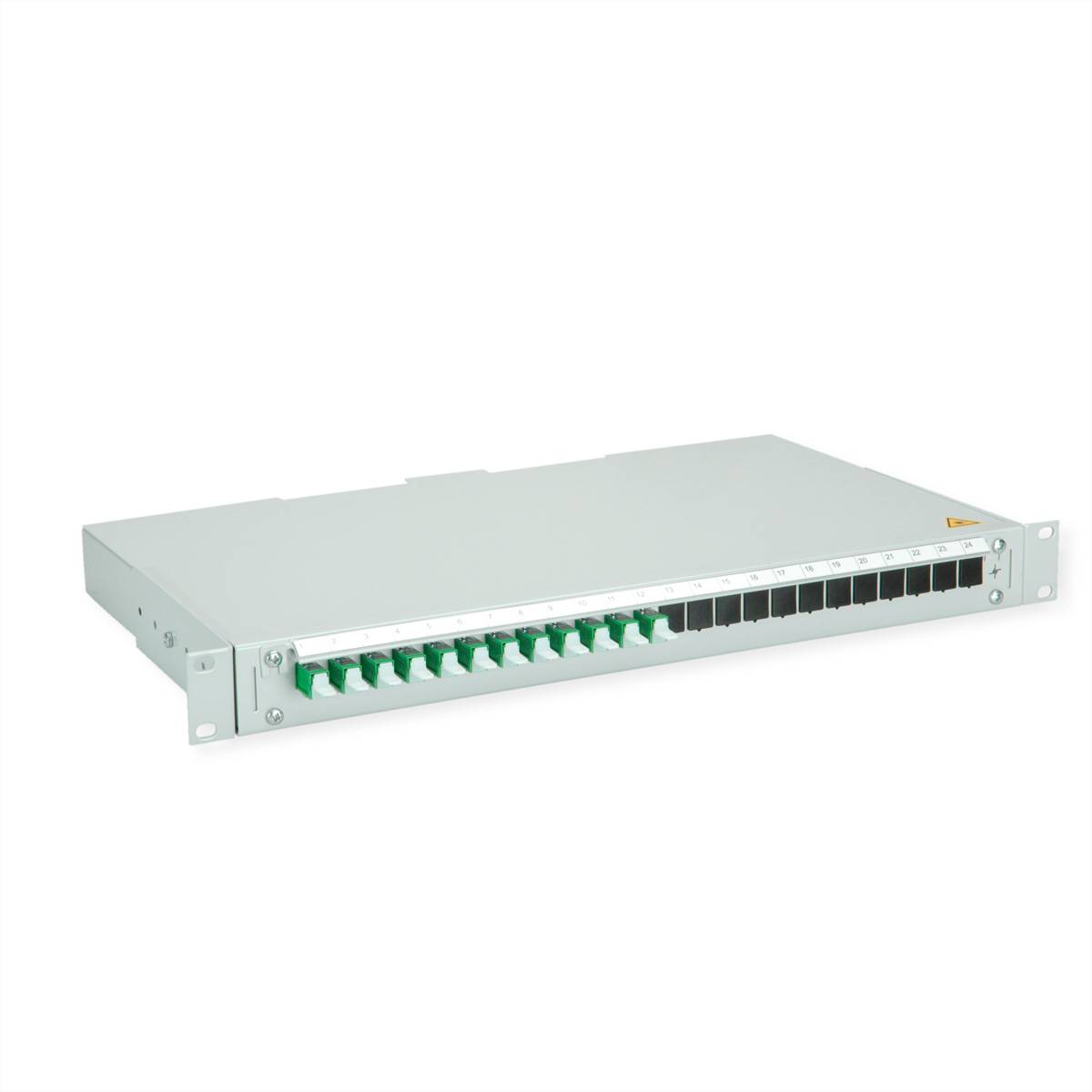

Telegärtner TELEGÄRTNER BASIS V LWL-Panel mit Kupplu Optical fiber 1 U Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Basic V Patch distributor 1HE, fixed installation/movable, with 12 built-in couplers Type E2000/ceramic/plastic housing, green, fiber class O..
- Base-V switch distributor 1HE
- Fixed installation/repositionable with 12 in-built couplers
- Type E2000/ceramic/plastic housing
- Fibre class OS2/A
- Splice ready/with pigtails, grade B
Technical specifications
- Product group: Fibre optic cable accessories
- Product type: Patch panel fiber optic
- Colour: grey
- Fibre cross-section: Single-mode 9/125µm OS2
- Cabinet system: 19" technology
- Number of ports: 12
- Page 1 Type of connection: E2000APC
- Protection class (IP code) IP20
- Height units 1 HE
- RAL color: Light gray RAL 7035
- Height: 44 mm
- Width 482 mm
- Depth: 265 mm
- Packaging height 90 mm
- Package width 330 mm
- Packaging depth 530 mm
- Package weight: 2,696 kg
- Gross weight: 2.696
Optical fiber
- Rack unit
1 U
- Factory colour
Grey
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Connection
E2000
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3799472 Telegärtner TELEGÄRTNER BASIS V LWL-Panel mit Kupplu Optical fiber 1 U Grey
User & Safety Instructions
User & Safety Instructions 3799472 Telegärtner TELEGÄRTNER BASIS V LWL-Panel mit Kupplu Optical fiber 1 U Grey
Description
Base-V Patch distributor 1HE, fixed installation/movable, with 12 in-built clutches Type E2000/ceramic/plastic casing, green, fiber class OS2/A, ready for Splice/with Pigtails, Grade B, PVP LEVEL 2 PRODUCT DESIGNATION FO-PP BAS-V 1U 12 E2K OS2/A PT. Notes: Successor of 100021936. Number of couplings 12. Coupling: Colour green. E2000/ceramic/plastic housing. Pigtails: Pigtails inserted/discontinued, color tempered VDE / IEC 0888
This text is machine translated.
Features
- Equipment: Other
Scope of delivery
- Telegärtner BASIC V fiber optic panel with couplings & pigtail
