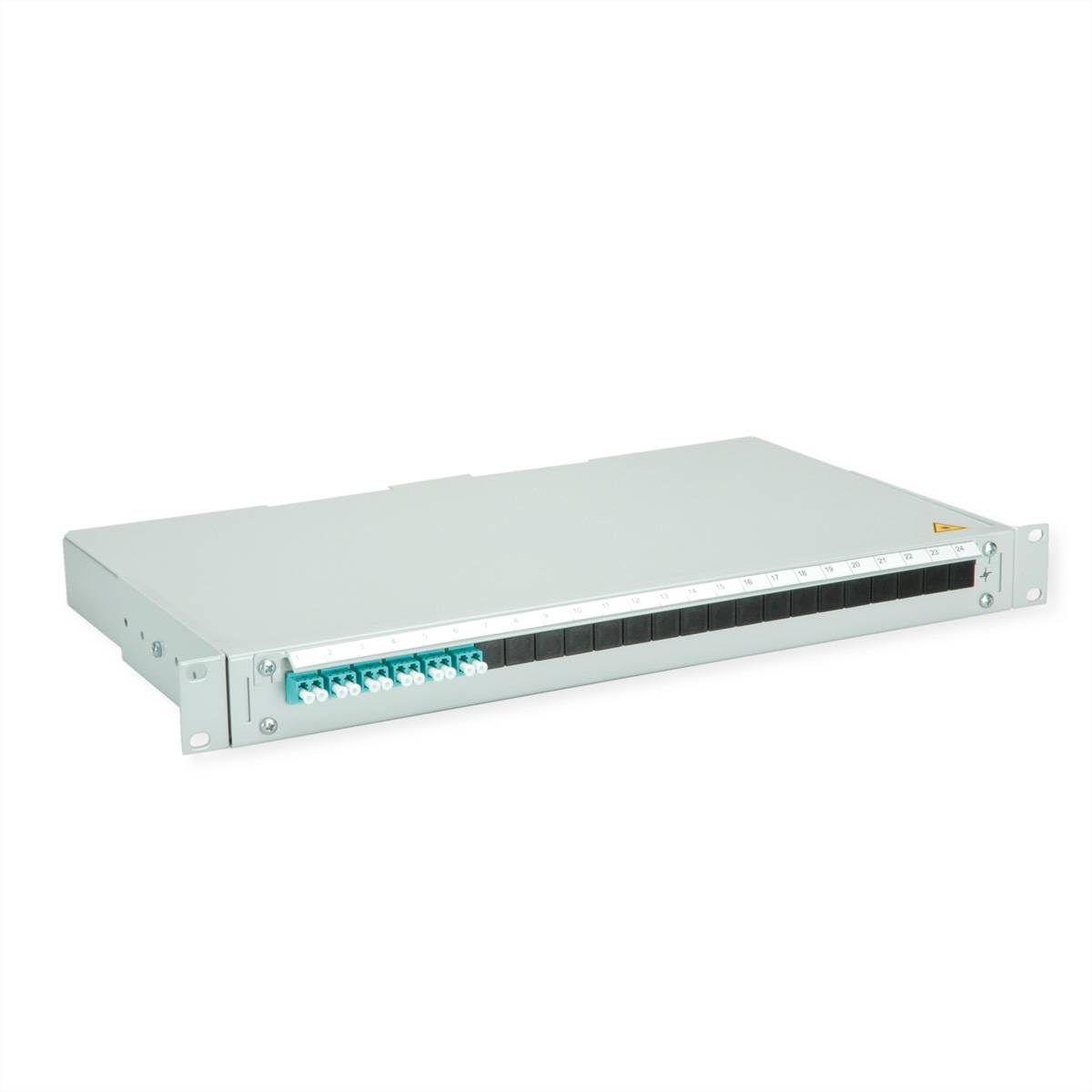

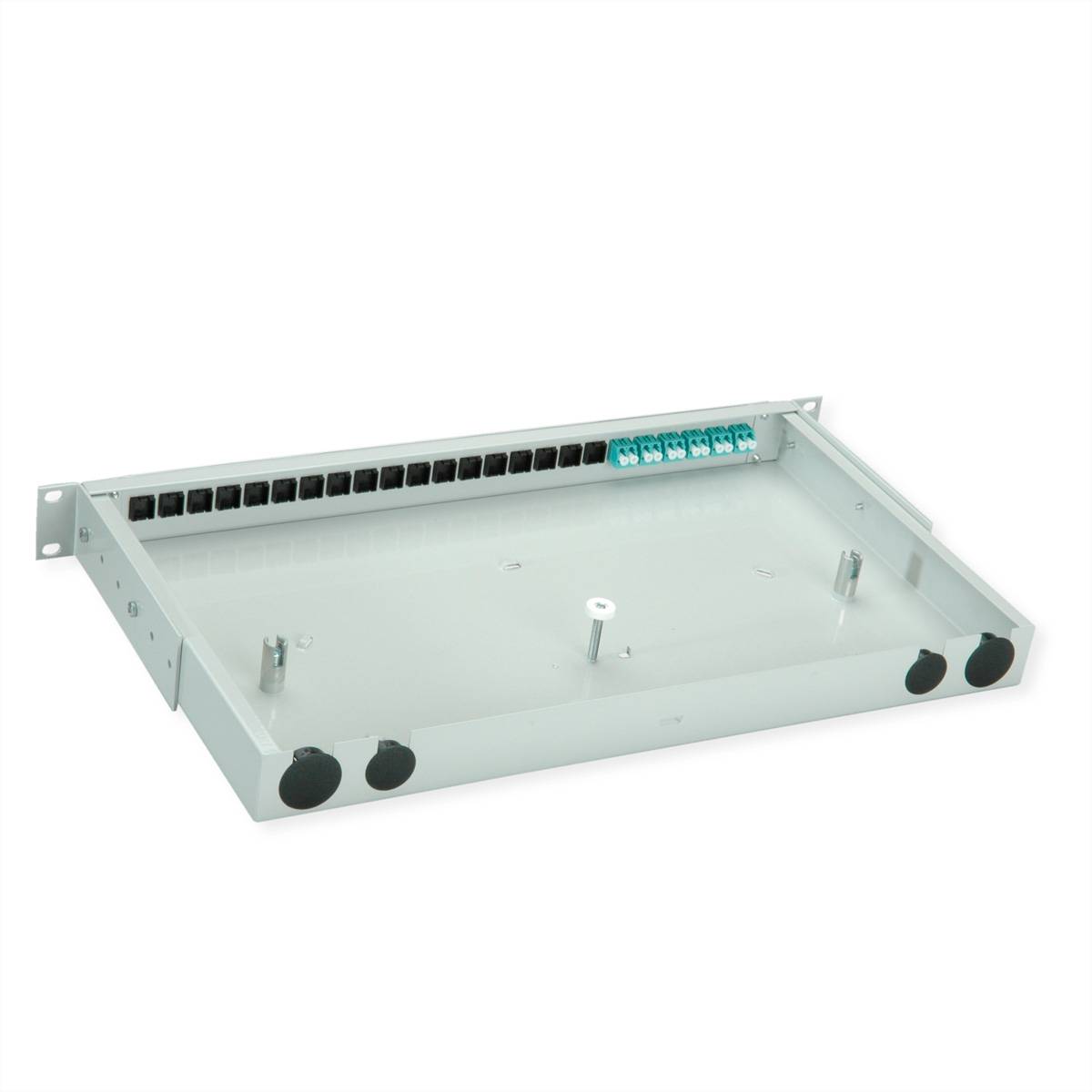

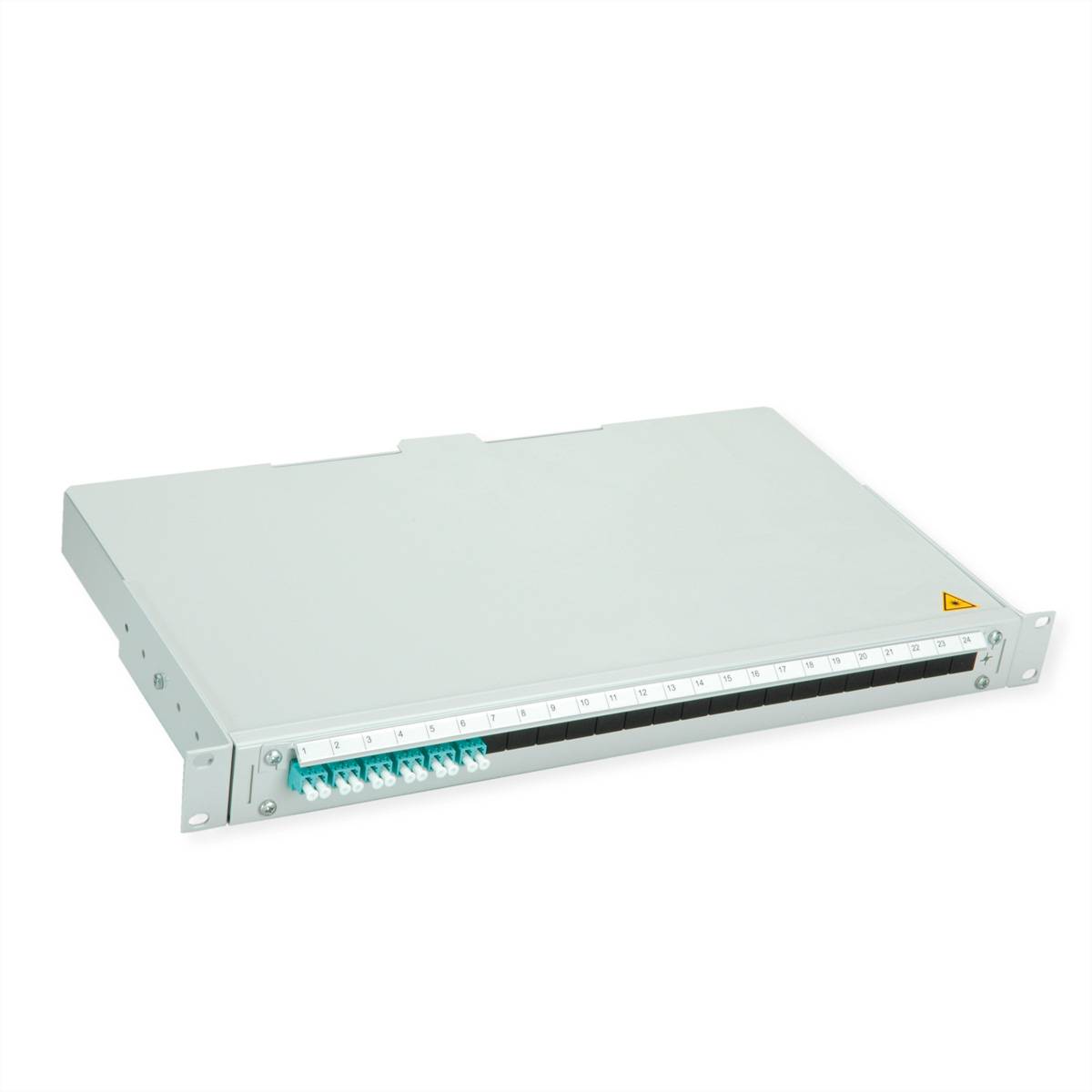

Telegärtner TELEGÄRTNER BASIS V LWL-Panel mit Kupplu Optical fiber 1 U Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Base-V Patch distributor 1HE, fixed installation/movable, with 6 in-built couplers Type LCD/ceramic/plastic casing, turquoise, fiber class OM...
- Base-V switch distributor 1HE
- Fixed installation/repositionable with 6 in-built couplers
- Type LCD/ceramic/plastic housing
- Fibre class OM3
- Without pigtail
Technical specifications
- Product group: Fibre optic cable accessories
- Product type: Patch panel fiber optic
- Colour: grey
- Fibre cross-section: Multimode 50/125µm OM3
- Cabinet system: 19" technology
- Number of ports: 6
- Page 1 Type of connection: LC
- Protection class (IP code) IP20
- Height units 1 HE
- RAL color: Light gray RAL 7035
- Height: 44 mm
- Width 482 mm
- Depth: 265 mm
- Packaging height 90 mm
- Package width 330 mm
- Packaging depth 530 mm
- Package weight: 2,493 kg
- Gross weight: 2.493
Optical fiber
- Rack unit
1 U
- Factory colour
Grey
- Length
265 mm
- Connection
LC
- Material (details)
Plastic housing
- Insulation material
Plastic
- Contact material
Ceramic
- Case material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3799496 Telegärtner TELEGÄRTNER BASIS V LWL-Panel mit Kupplu Optical fiber 1 U Grey
User & Safety Instructions
User & Safety Instructions 3799496 Telegärtner TELEGÄRTNER BASIS V LWL-Panel mit Kupplu Optical fiber 1 U Grey
Description
Base-V switch distributor 1HE, fixed installation/movable, with 6 integrated couplers Type LCD/ceramic/plastic casing, turquoise, fiber class OM3, without pigtail Article name: FO-PP BAS-V 1U 6 LCD OM3 NPT. Notes: Successor of 100022130. Number of couplings 6. Coupling: Colour turquoise. Coupler: LCD / ceramic / plastic housing Pigtails: Without pigtails/without pigtails
This text is machine translated.
Features
- Equipment: Other
Scope of delivery
- Telegärtner BASIC V fiber optic panel with couplings
