Telegärtner TELEGÄRTNER TS-Verteiler 6xLC-D Spleißka Optical fiber Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

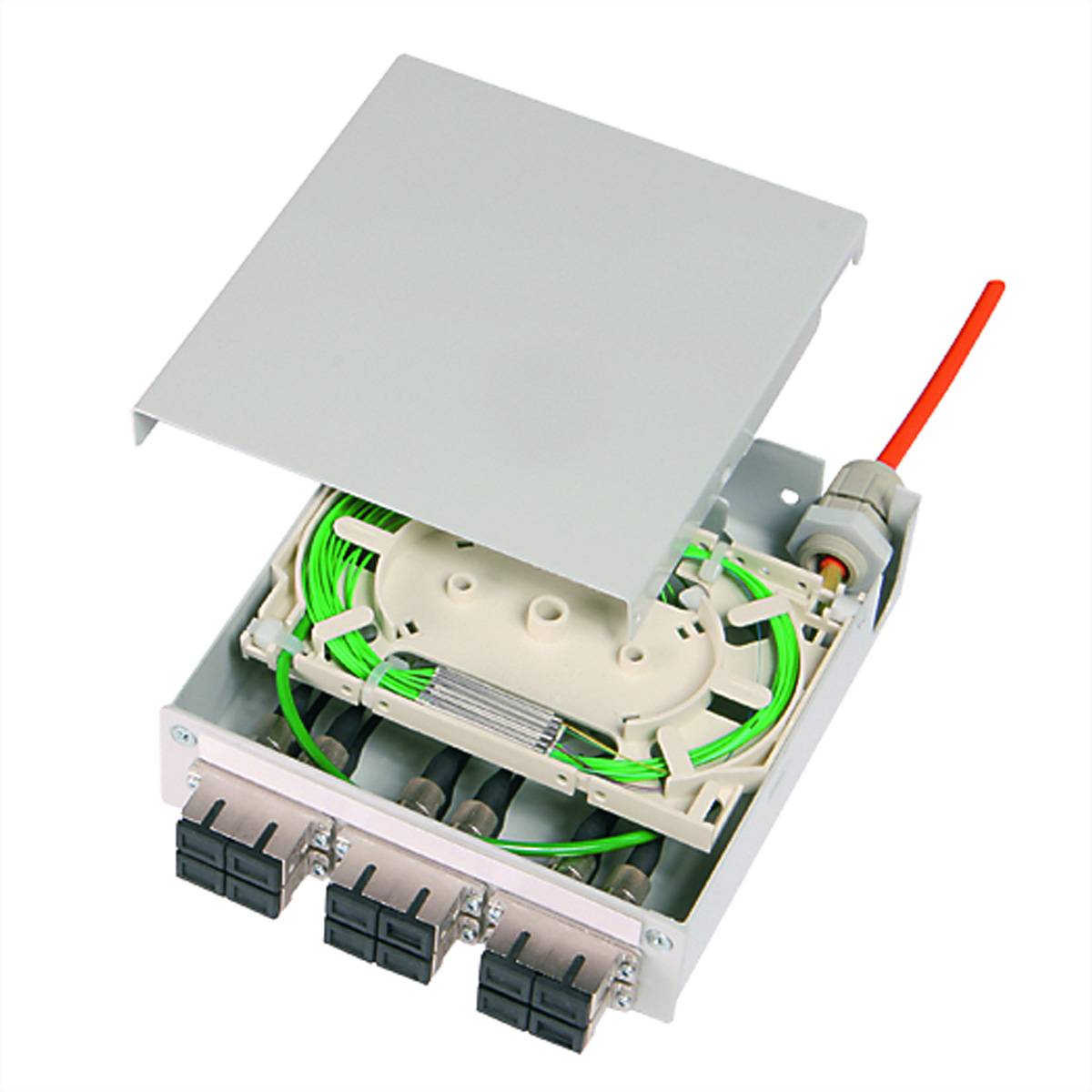

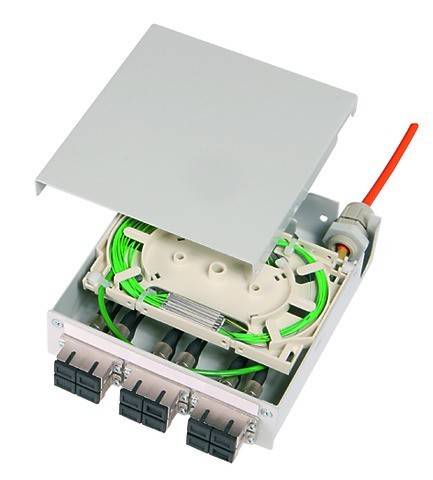

STX mounting rail distributor with 6xLC duplex, multimode, splice box, Pigtails OM2, 12x G50/125 OM2, LC (colored and ready to splice)...
- For up to 24 fibers
- 3 individual cable inputs
- Mounting rail fixing in 3 different possible
- colored, splice-proof
Technical specifications
- Product group: Connection technology FO
- Product type: Patch panel fiber optic
- Colour: grey
- Protection class (IP code) IP20
- RAL color: Light gray RAL 7035
- Min. Operating temperature -40 °C
- Max. operating temperature: 70 °C
- Height: 125 mm
- Width 35 mm
- Depth: 140 mm
- Weight 1050 g
- Packaging height 60 mm
- Package width 210 mm
- Packaging depth 270 mm
- Package weight: 0,718 kg
- Gross weight: 0.718
Optical fiber
- Factory colour
Grey
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3798573 Telegärtner TELEGÄRTNER TS-Verteiler 6xLC-D Spleißka Optical fiber Grey
User & Safety Instructions
User & Safety Instructions 3798573 Telegärtner TELEGÄRTNER TS-Verteiler 6xLC-D Spleißka Optical fiber Grey
Description
STX mounting rail distributor with 6xLC duplex, multimode, splice box, Pigtails OM2, 12x G50/125 OM2, LC (colored and ready to splice) For up to 24 fibers. 3 individual cable inputs (top/bottom/rear). Mounting rail fixing in 3 different possible positions. Fibre pigtail: 12x G50/125 OM2, LC. Protection class: IP20 Name: STX mounting rail distributor with 6xLC duplex, splice box, pigtails, cable strain relief. Comments: Coloured, ready to splice
This text is machine translated.
Features
- Features: Grey
Scope of delivery
- Telegärtner TS distributor 6xLC-D splice box
