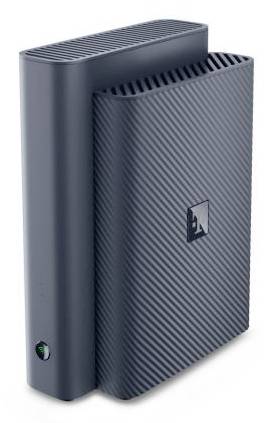

Telekom Speedport 7, Atlantic Blue Router
EAN:
Part number:
Item no:
Telekom Speedport 7 WLAN router Gigabit Ethernet Dual band (2.4 GHz/5 GHz) blue
Highlights & Details
- Blue tablet router
- Dual band (2.4 GHz/5 GHz) Wi-Fi 7 (802.11be) 6760 Mbit/s.
- Gigabit Ethernet
- ETHERNET WAN DSL WAN
- Number of Ethernet LAN connections (RJ-45): 3
- USB connection
- This text is machine translated.
Technical specifications
- Wi-Fi band Dual (2.4 GHz/5 GHz)
- WLAN standards: Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 7 (802.11b)
- Product type: Tabletop router
- Desktop model
- Application area home networks
- Connections network RJ-45 4x (of which: 1x 10/100/1000, 1x 100/1000/2500)
- WAN / Internet RJ-45 (Annex-B) 1x
- Analogue RJ-11 2x
- Features Auto MDI/MDIX
- Other 1x USB-A 3.2 Gen 1 (5 Gbps)
- PowerDelivery The name USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 and USB 3.0.
- WLAN standards Wi-Fi 3 (802.11a), Wi-Fi 3 (802.11b), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) - (2.4 GHz, 5 GHz)
- ENCRYPTION WPA2-PSK, WPA2-PSK
- Transfer rate 1000 Mbps (WLAN 2.4 GHz), 5760 Mbps (WLAN 5 GHz)
- Mesh features
- DSL modem type VDSL2, ADSL, ADSL2, ADSL2+
- Power supply mains adapter connection
- Feature NAT, firewall, DECT, WLAN
- Product type
Router
- Type
Speedport 7, Atlantic Blue
- Wi-Fi standard
IEEE 802.11be
IEEE802.11b
IEEE802.11a
IEEE802.11g
IEEE802.11n
IEEE802.11ac
- 10/100/1000 Mbps ports
3 x
- Width
81 mm
- Height
188 mm
- Depth
245 mm
- Weight
1.2 kg
- Factory colour
Blue
- No. of USB A 2.0 ports
1 x
- Material (details)
Plastic
- Safety
WPA2
WPA2
- Internal modem
yes
- Ethernet LAN
yes
- Firewall
yes
- Guest access
yes
- DC-in jack
yes
- USB port
yes
- DSL WAN
yes
- Ethernet WAN
yes
- ADSL
yes
- ADSL2+
yes
- VDSL
yes
- WLAN data transfer rate (max)
6760 Mbit/s
- Power over Ethernet (PoE)
no
- Reset button
yes
- On/off switch
yes
- Package weight
1.76 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818229 Telekom Speedport 7, Atlantic Blue Router
Description
Features
- For the IP-based Telekom-connection with connection speeds of up to 1000 MBit/s (2000 MBit/s with ext. XGSPON Modem), supports the standards glass fiber FTTH, ADSL, ADSL 2+, VDSL incl. Vectoring and Super Vectoring
- Setup and control via the MeinMagenta APP (MMA)
- Integrated fiber optic modem (GPON) for direct operation on the fiber optic connector
- Integrated Smart home function for more security, comfort and energy-efficiency at home
- Basis for WLAN-mesh - best speed in all rooms through WLAN-technology, expandable with up to five mesh points (e.g. Speed port 7 WLAN-amplifier, Speed Home WLAN)
- Gigabit WLAN with up to 6,760 MBit/s – 100 possible WLAN clients, latest WLAN technology Wi-Fi 7 gem IEEE 802.11 be (backwards compatible)
- Best equipped for MagentaTV, it supports several high-resolution streams in Ultra HD and 4K
- Integrated DECT base station with CAT-IQ (HD-voice) for up to five DECT handsets
- Wi-Fi for guests with wireless guest access, turn on the guest WLAN in the MeinMagenta APP and then connect by scanning the QR code
Scope of delivery
- 1x Router
- 1 x glass-fiber cables - 2.5 m
- 1 x network cable - 1.5 m
- 1 x adapter RJ-11 to TAE
- 1 x DSL cable - 2.5 m
