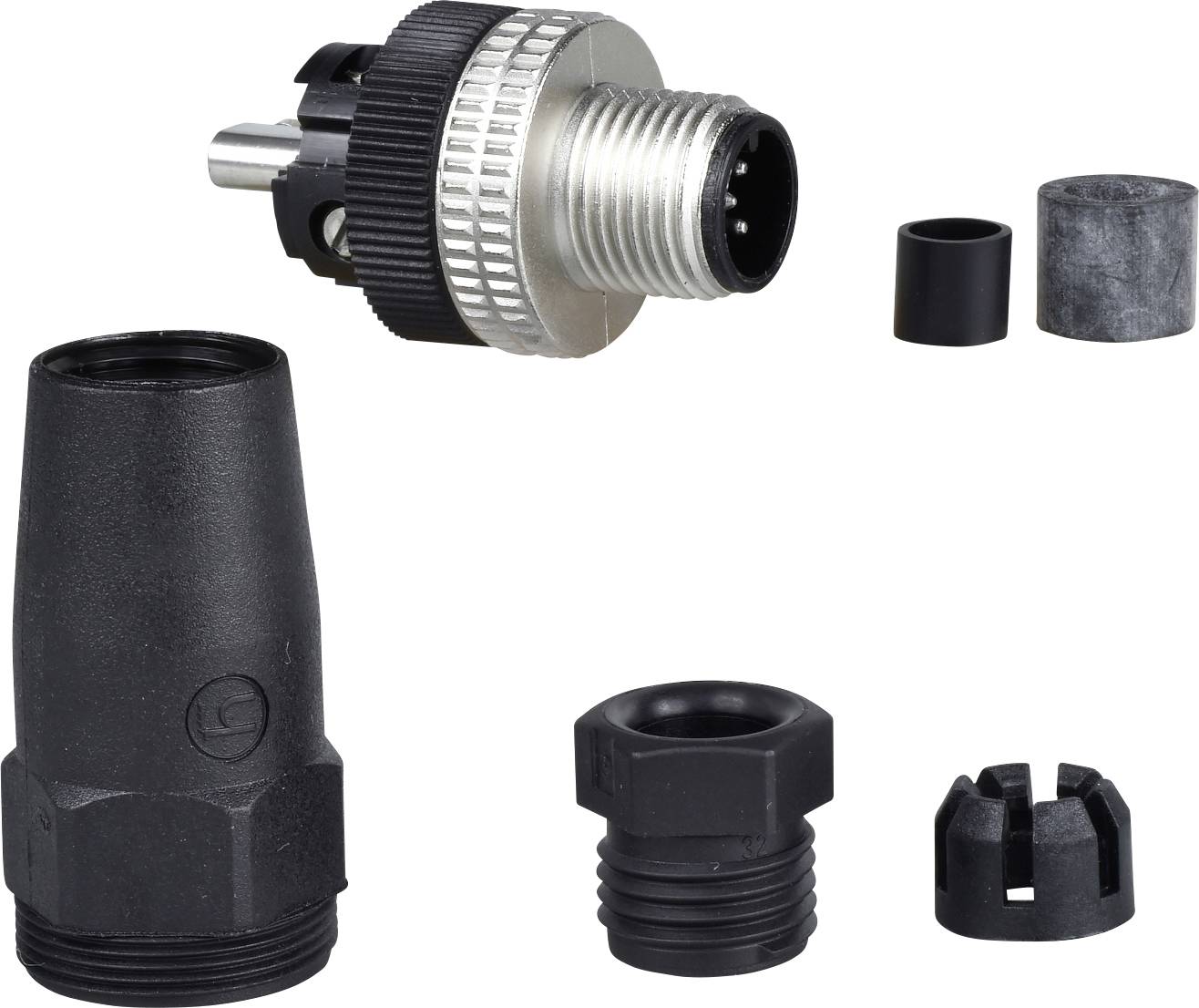

Telemecanique XZCC12MDM50B Sensor/actuator connector PG7 Plug, straight No. of pins (RJ): 5 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, straight
No. of pins
5
Nominal voltage
30 V AC
36 V DC
Nominal current
3 A
Technical specifications
- Cable gland type: PG7
- Cuff material: Metal
- Housing material: Plastic
- Contact resistance 8000 µOhm
- Packaging type
Piece
- Type
XZCC12MDM50B
- Product type
Sensor/actuator connector
- Connector type
Plug, straight
- No. of pins
5
- Nominal voltage
30 V AC
36 V DC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Cross-section (sensor/actuator wiring)
0.75 mm²
- Connection
Screws
- Thread type connection side
PG7
- Thread type (wiring and installation)
M12
IP67
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
XZCC12MDM50B
- Content
1 pc(s)
- Cable Ø (max.)
6 mm
- Cable Ø up to
3 mm
- Cable Ø range
3 - 6 mm
