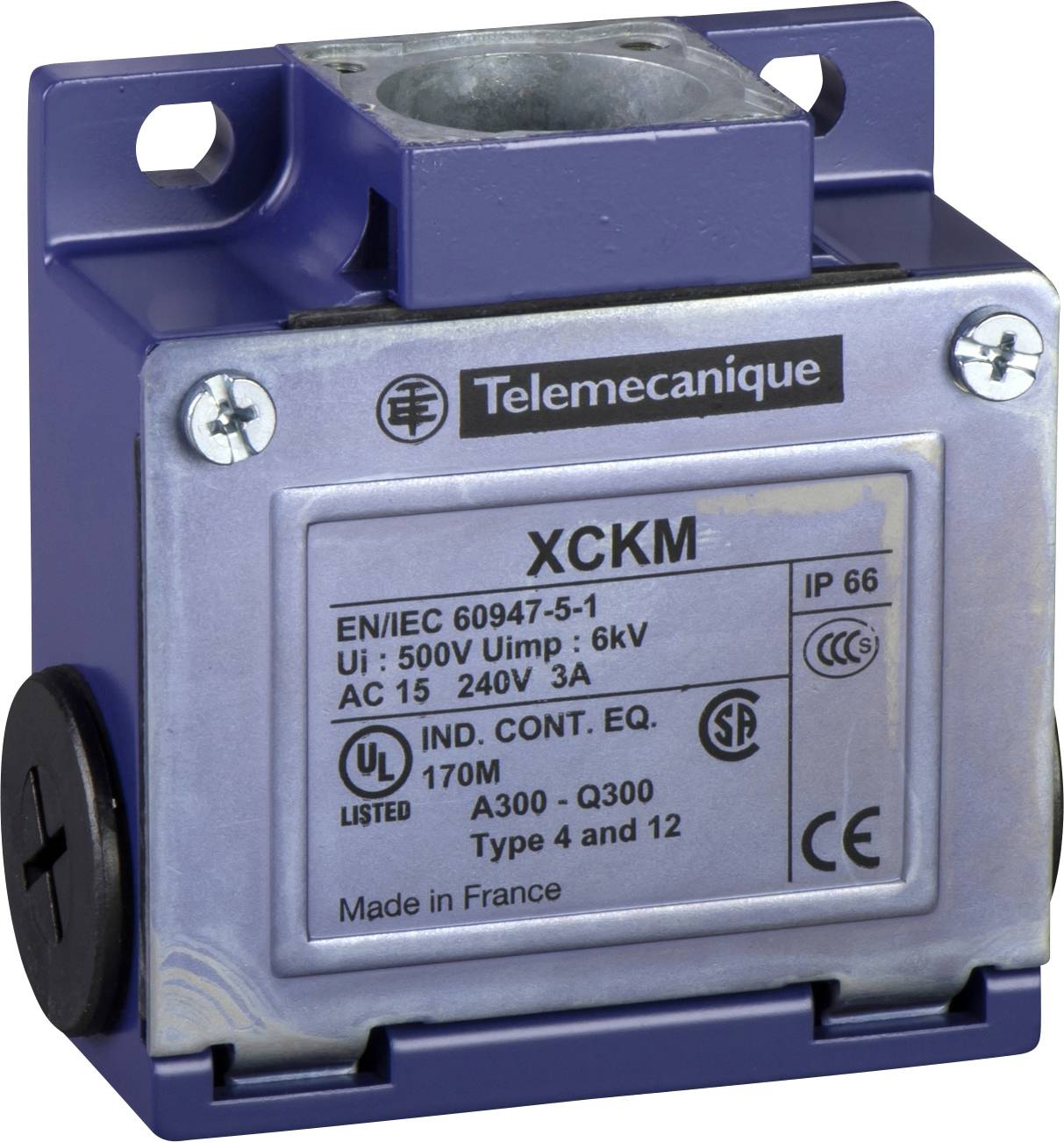

Telemecanique ZCKM1H29 ZCKM1H29 Door-operated switch enclosure 3 A IP66 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 2
- Rated insulation voltage UI: 500 V (pollution degree 3) corresponds to IEC 60947-1 for contact block; 300 V corresponds to CSA C22.2 No 14 for contact block; 300 V corresponds to UL 508 for contact block
- Short circuit protection: 10 A cartridge fuse, type GG
- Minimum actuation speed 0.01 m/min.
- Electrical connection: Screw terminal connection, terminal capacity: 1 x 0.34-2 x 1.5 mm²
- Thermal current [Ithe]: 10 A.
- Packaging type
Piece
- Product type
Door-operated switch enclosure
- Connection
Screw terminal
- Switching current (max.)
3 A
- Contact type
1 breaker
1 maker
- Contact material
Silver plated
- Contact opening
With jump function
- Weight
210 g
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP66
- Thread size
M20
- Electrical lifespan
5000000 cycles
- Material
Metal
- Compatible with (details)
XCKM
- Width
64 mm
- Type
ZCKM1H29
- Content
1 pc(s)
- Dim
(L x W x H) 30 x 64 x 64 mm
- Height
64 mm
- Length
30 mm
- Depth
30 mm
- UKCA
yes
