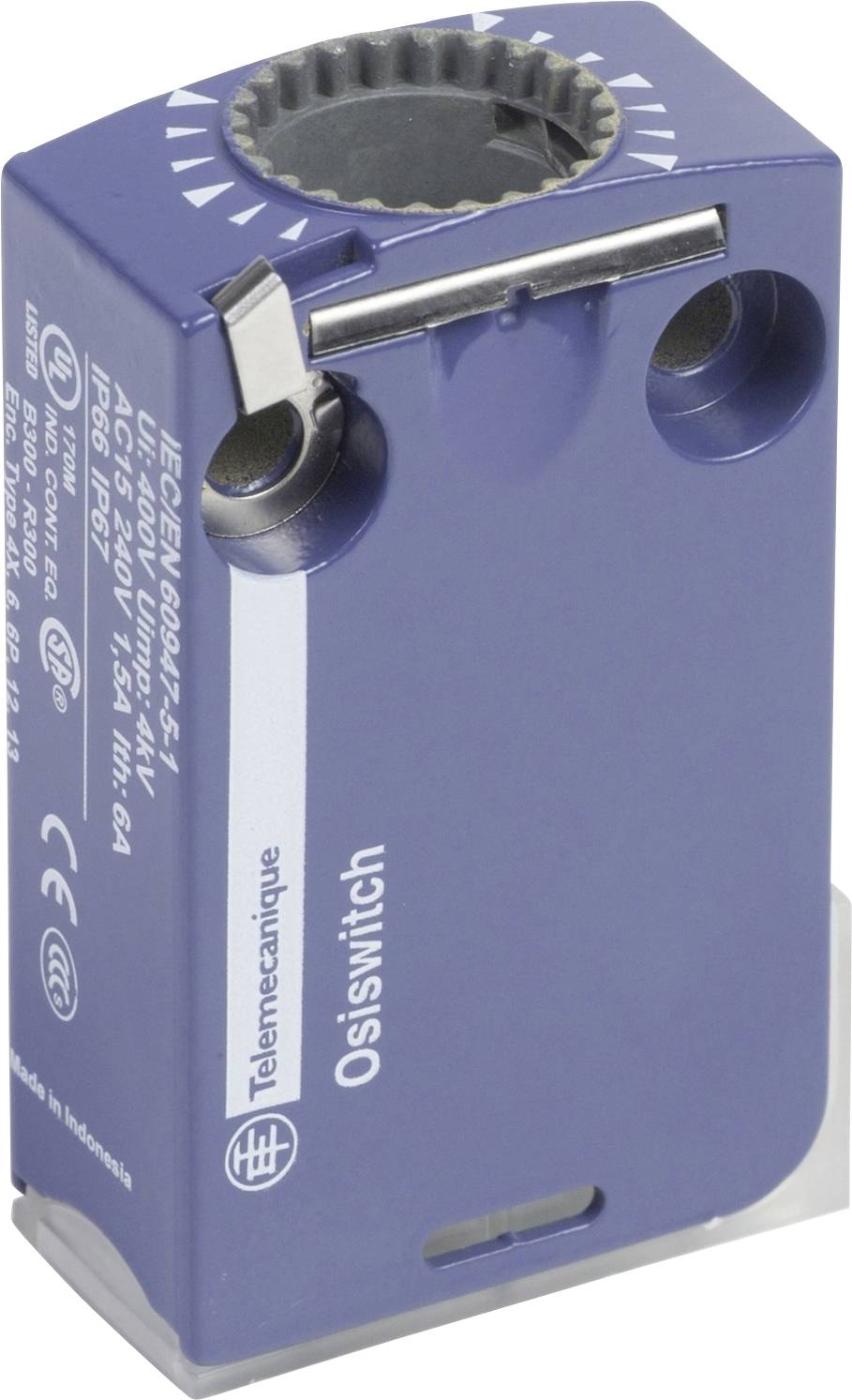

Telemecanique ZCMD21 ZCMD21 Door-operated switch enclosure momentary 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Sensor design: Miniature
- Number of poles: 2
- Rated insulation voltage UI: 300 V (pollution degree 3) corresponds to UL 508; 400 V (pollution degree 3) corresponds to IEC 60947-5-1; 300 V (pollution degree 3) corresponds to CSA C22.2 No. 14
- Short circuit protection: 6 A cartridge fuse, type GG
- Minimum actuation speed 0.01 m/min.
- Electrical connection: Plug-in without pre-wired connection
- Packaging type
Piece
- Product type
Door-operated switch enclosure
- Connection
Jack connector
- Contact type
1 breaker
1 maker
- Contact material
Silver plated
- Contact opening
With jump function
- Functions
momentary
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Electrical lifespan
5000000 cycles
- Material
Zamak
- Compatible with (details)
XCMD
- Width
30 mm
- Type
ZCMD21
- Content
1 pc(s)
- Dim
(L x W x H) 16 x 30 x 50 mm
- RoHS-compliant
Yes
- Height
50 mm
- Length
16 mm
- Depth
16 mm
- UKCA
yes
