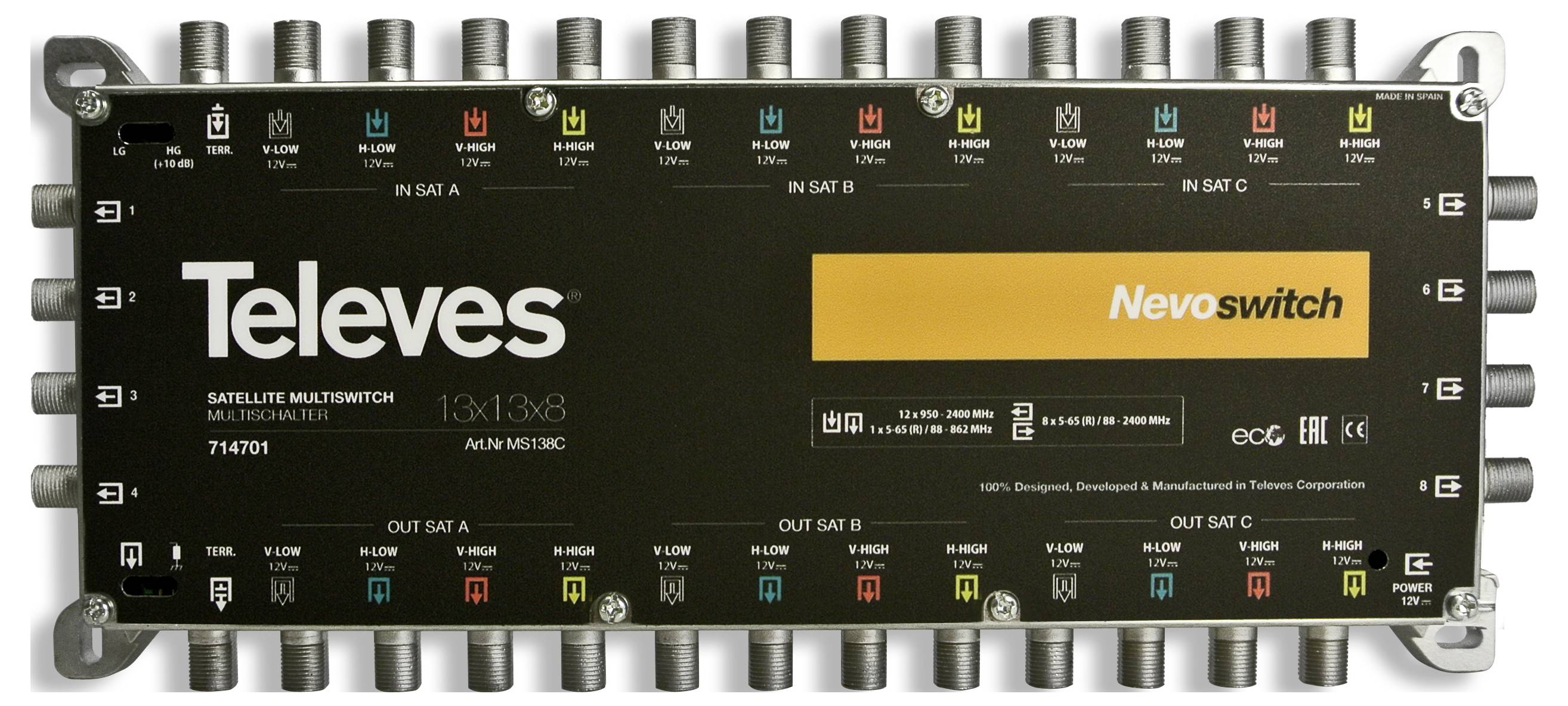

Televes MS138C SAT multiswitch
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 13
- Cascadable: Yes
- Power supply: Without
- 22 kHz generator: No.
- Subscriber connections: 8
- Terrestrial input: Active
- Max current consumption: 155 mA
- Control signal 14/18 V, DiSEqC, 0/22 kHz
- LNB supply 12 V
- Number of base outputs: 13
- Product type
SAT multiswitch
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552186 Televes MS138C SAT multiswitch
Description
Nevo multi-switch 13in8 in cast housing, cascadable, selectable terminating resistors in each single and cascading switch, switch 10dB input amplifier for all SAT-inputs can be switched on/off. Transmission loss SAT: 3dB / Terr.: 2dB, SAT TN-attenuation 1-8/9-16/17-24/25-32 = 950 MHz 8/-/- and 2400MHz 3/-/-/-/- dB, Terr. TN attenuation 1-8/9-16/17-24/25-32 = 2/-/- RK TN attenuation 40dB, DC outlet to vertical low and terr., max. Input level Sat 102 / Terr. 104 dBµV. Power supply required (MS-NT1228), power consumption, power supply unit 155mA, SAT receiver 33mA, dimensions (WxHxD) = 280x120x30mm
