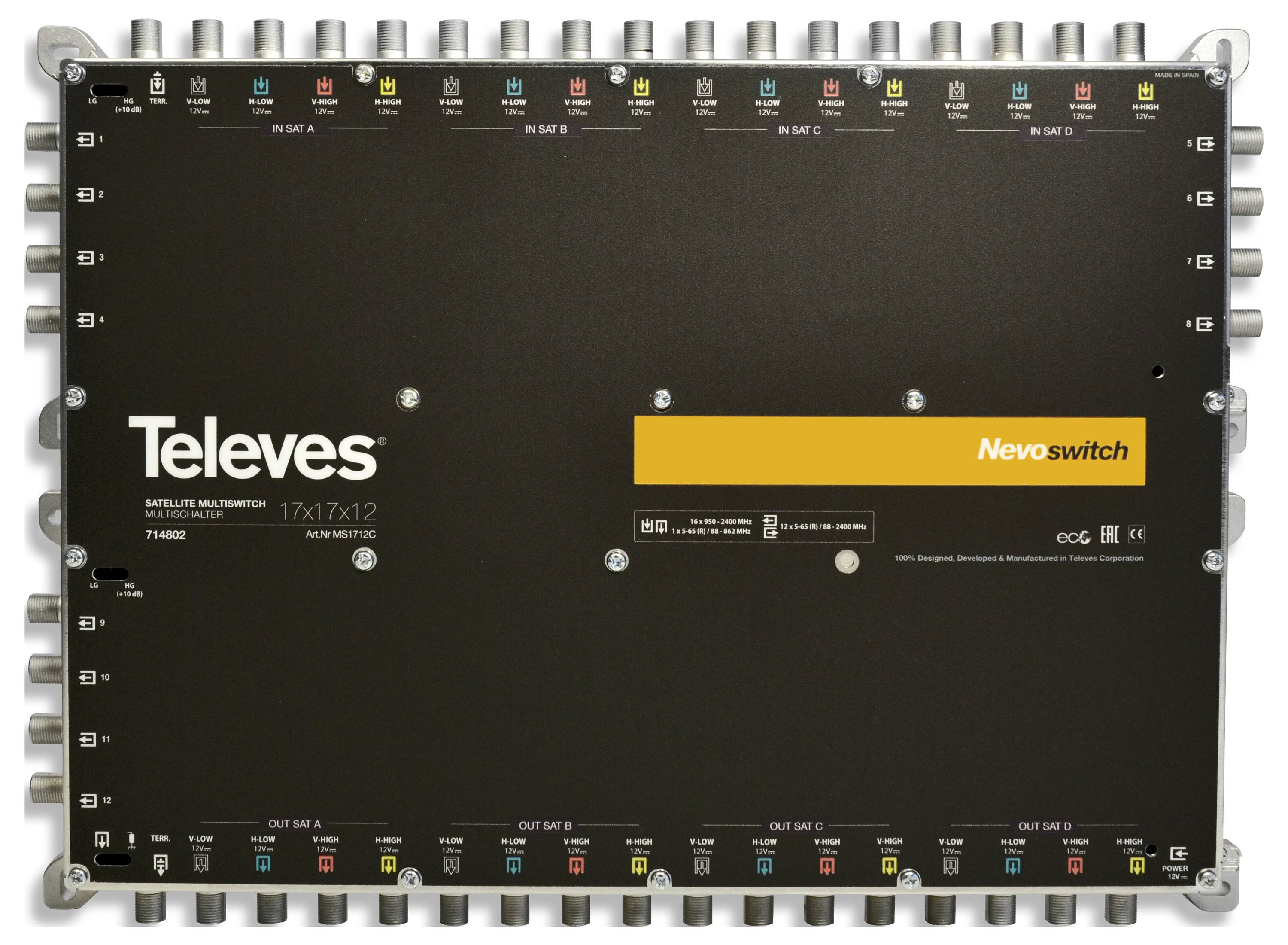

Televes MS1712C SAT multiswitch
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 17
- Cascadable: Yes
- Power supply: Without
- 22 kHz generator: No.
- Subscriber connections: 12
- Terrestrial input: Active
- Max current consumption: 230 mA
- Control signal 14/18 V, DiSEqC, 0/22 kHz
- LNB supply 12 V
- Number of base outputs: 17
- Product type
SAT multiswitch
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552708 Televes MS1712C SAT multiswitch
Description
Nevo multi-switch 17in12 in cast housing, receiver-powered, cascading, load resistor in each individual and cascading switch, switch 10dB input amplification for all SAT-inputs can be switched on/off. Transmission loss SAT: 6dB / Terr.: 3dBu-attenuation 1-8/24-16/17-9/25-32 = 950 MHz 9/12/- and 2400MHz 4/7/-/- dB, Terr. TN attenuation 1-8/9-16/17-24/25-32 = 3/5/-/- RK TN attenuation 40dB, DC channel to vertical low and terr., max. Input level Sat 102 / Terr. 104 dBµV. Power supply necessary (MS-NT1228), power consumption power supply unit 230mA, Sat-receiver 33mA. Dimensions (WxHxD) = 350x253x30mm
