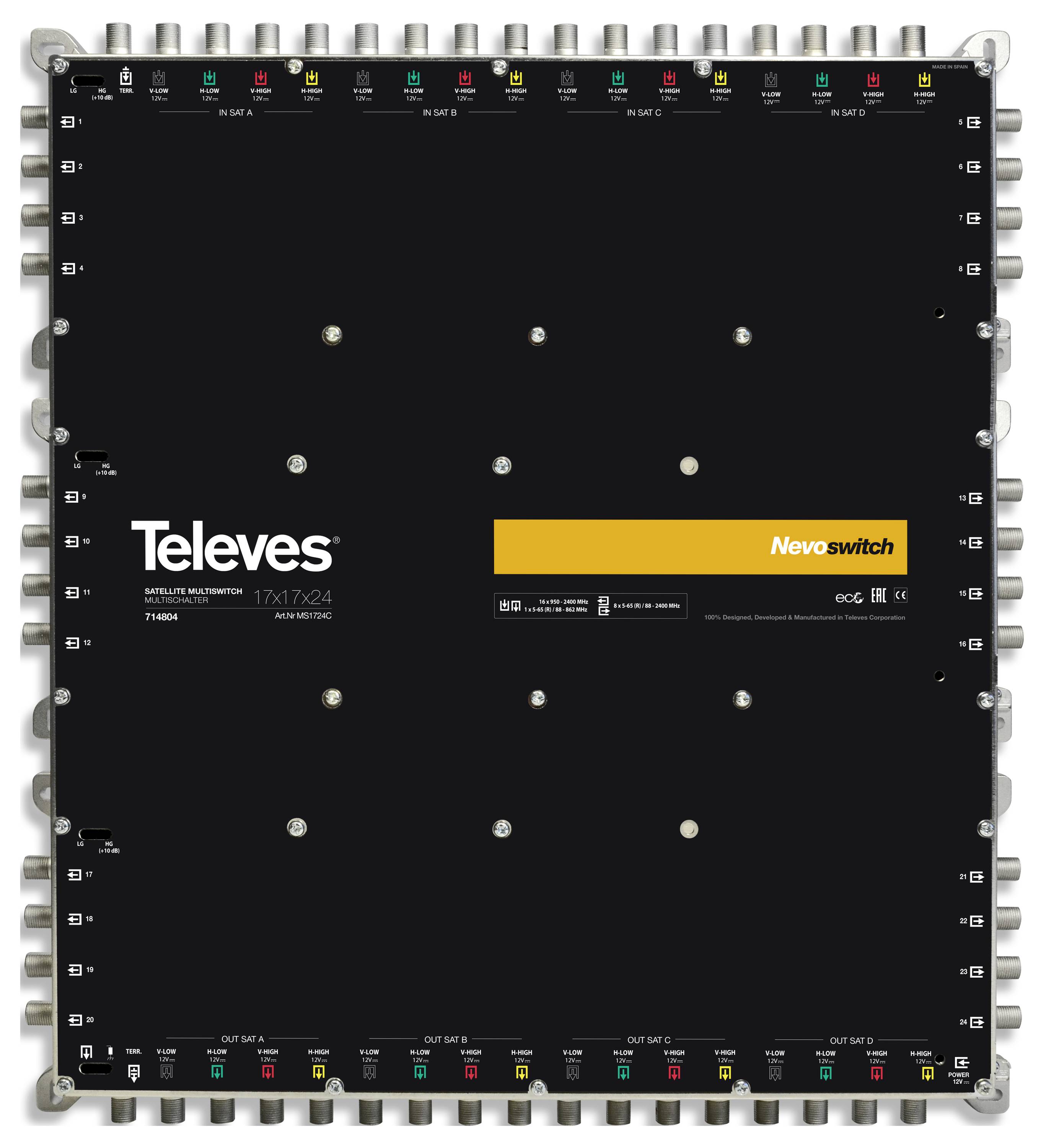

Televes MS1724C SAT multiswitch
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 17
- Cascadable: Yes
- Power supply: Without
- 22 kHz generator: No.
- Subscriber connections: 24
- Terrestrial input: Active
- Max current consumption: 310 mA
- Control signal 14/18 V, DiSEqC, 0/22 kHz
- LNB supply 12 V
- Number of base outputs: 17
- Product type
SAT multiswitch
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548678 Televes MS1724C SAT multiswitch
Description
Nevo multi-switch 17in24 in cast housing, cascadable, selectable terminating resistors in each single and cascade switch 10dB input amplification for all SAT inputs on/off switching. Transmission loss SAT: 9dB / Terr.: 6dB,SAT TN-Damping 1-8/9-16/15-24/12 = 950 MHz 9/25-32/17/- and 2400MHz 4/7/10/- dB, Terr. TN attenuation 1-8/9-16/17-24/25-32 = 3/5/8/- RK TN attenuation 40dB, DC channel to vertical low and terr., max. Input level Sat 102 / Terr. 104 dBµV. Power supply required (MS-NT1228), power consumption 310mA, Sat receiver 33mA. Dimensions (WxHxD) = 350x386x30mm
