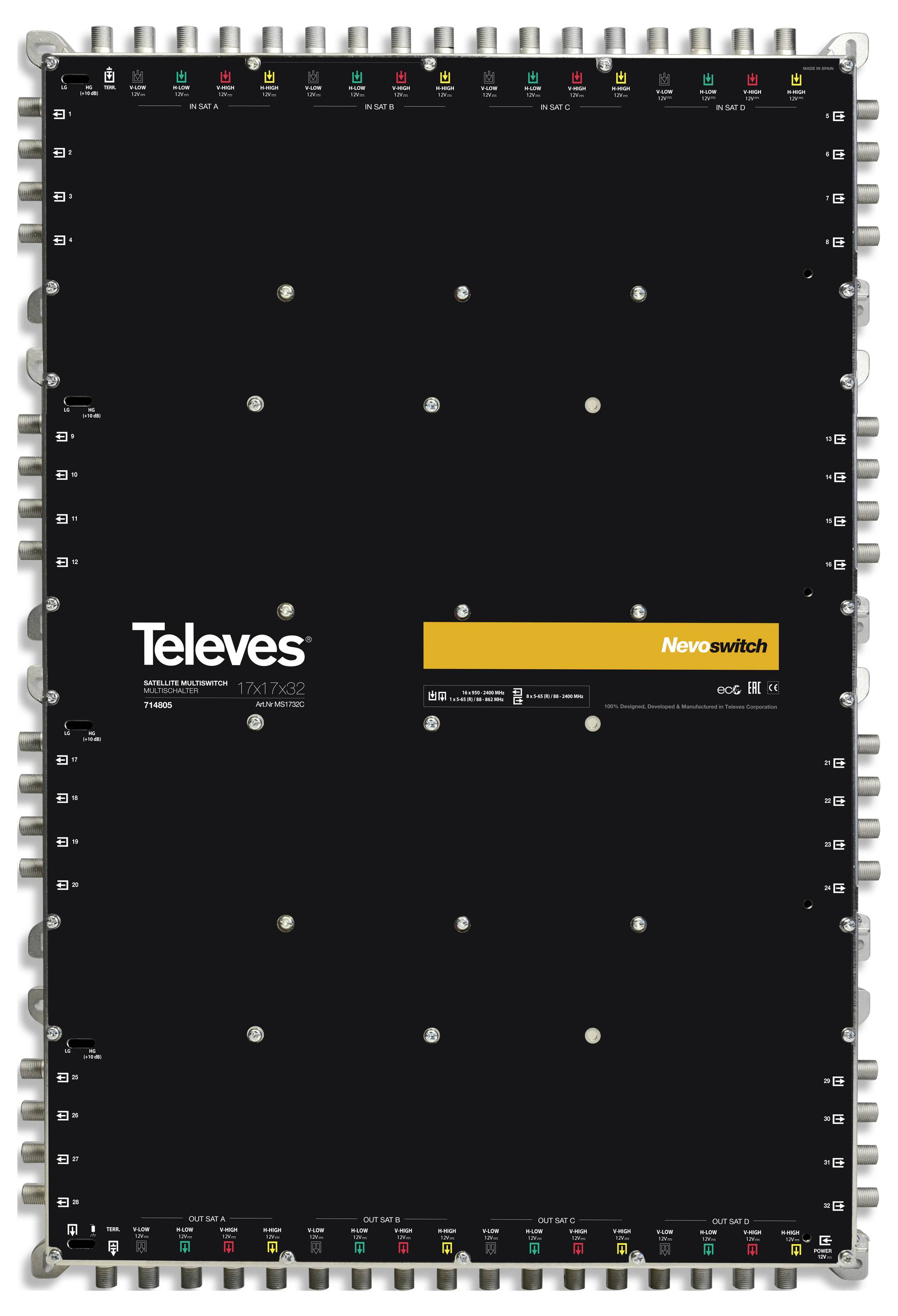

Televes MS1732C SAT multiswitch
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 17
- Cascadable: Yes
- Power supply: Without
- 22 kHz generator: No.
- Subscriber connections: 32
- Terrestrial input: Active
- Max current consumption: 430 mA
- Control signal 14/18 V, DiSEqC, 0/22 kHz
- LNB supply 12 V
- Number of base outputs: 17
- Product type
SAT multiswitch
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549704 Televes MS1732C SAT multiswitch
Description
Nevo multi-switch 17in32 in cast housing, cascadable, selectable terminating resistors in each single and cascade switch 10dB input amplifier for all SAT inputs can be switched on or off. Transmission loss SAT: 12dB / Terr.: 8dB, SAT TN-attenuation 1-8/9-16/17-24/12 = 950 MHz 9/25-32/15/18 and 2400MHz 4/7/10/13 dB, Terr. TN attenuation 1-8/9-16/17-24/25-32 = 3/5/8/10, DC transmission to vertical low and terr., max. Input level Sat 102 / Terr. 104 dBµV. Power supply required (MS-NT1228), power consumption of power supply unit 430mA, Sat receiver 33mA. Dimensions (WxHxD) = 350x519x30mm
