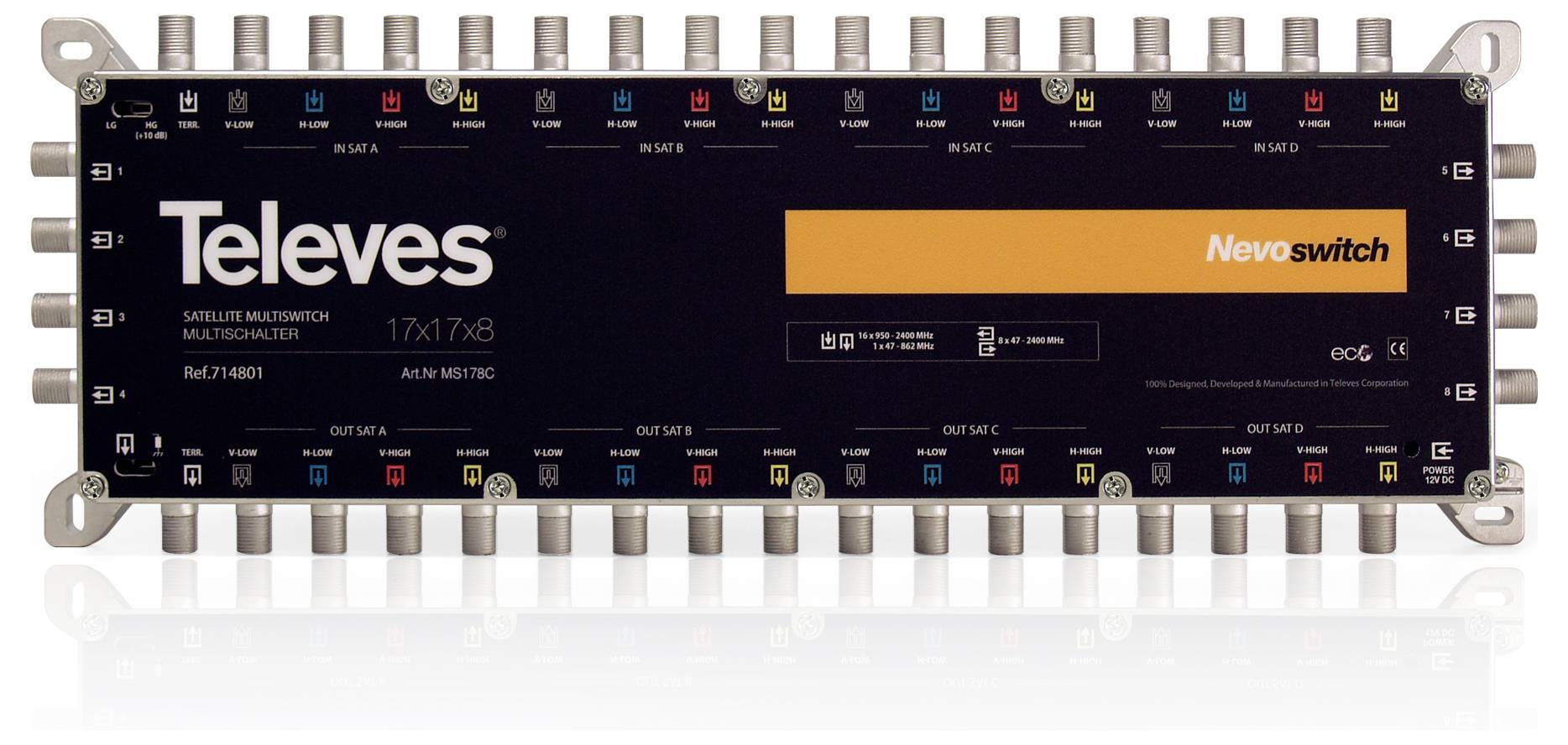

Televes MS178C SAT multiswitch
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 17
- Cascadable: Yes
- Power supply: Without
- 22 kHz generator: No.
- Subscriber connections: 8
- Terrestrial input: Active
- Max current consumption: 175 mA
- Control signal 14/18 V, DiSEqC, 0/22 kHz
- LNB supply 12 V
- Number of base outputs: 17
- Product type
SAT multiswitch
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550220 Televes MS178C SAT multiswitch
Description
Nevo multi-switch 17in8 in cast housing, cascadable, selectable terminating resistors in each single and cascade switch 10dB input amplifier for all SAT inputs can be switched on or off. Transmission loss SAT: 3dB / Terr.: 2dB SAT TN-attenuation 1-8/9-16/17-24/25-32 = 950 MHz 9/-/- and 2400MHz 4/-/-/-/- dB Terr. TN attenuation 1-8/9-16/17-24/25-32 = 3/-/- RK TN attenuation 40dB, DC outlet to vertical low and terr., max. Input level Sat 102 / Terr. 104 dBµV. Power supply necessary (MS-NT1228), power consumption of power supply unit 175mA, SAT receiver 33m, dimensions (WxHxD) = 350x120x30mm
