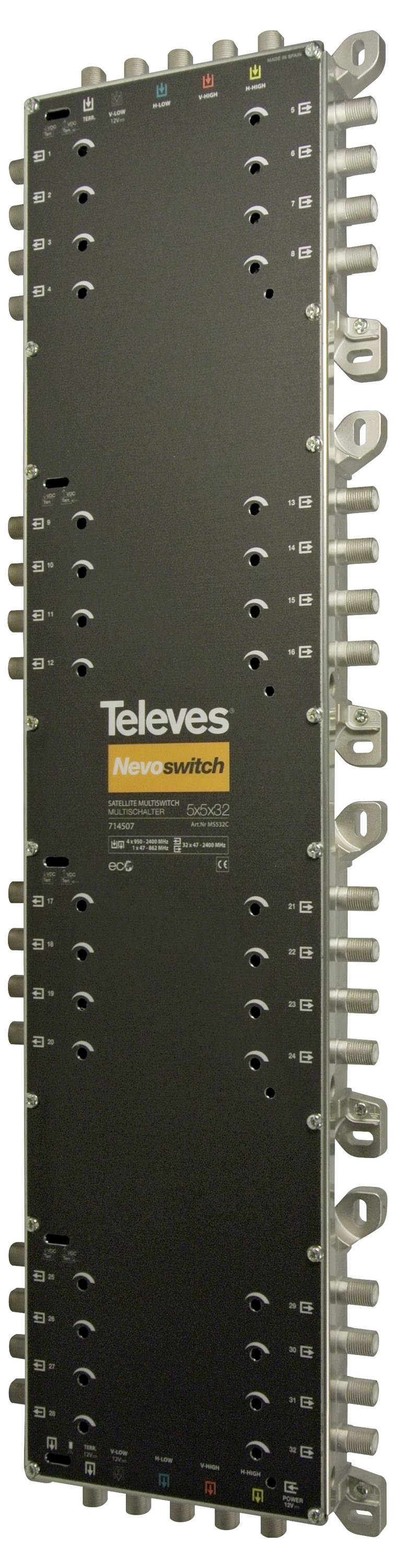

Televes MS532C SAT multiswitch
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 5
- Cascadable: Yes
- Power supply: Without
- 22 kHz generator: No.
- Subscriber connections: 32
- Terrestrial input: Active
- Max current consumption: 235 mA
- Control signal 14/18 V, DiSEqC, 0/22 kHz
- LNB supply 12 V
- Number of base outputs: 5
- Product type
SAT multiswitch
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549200 Televes MS532C SAT multiswitch
Description
Nevo 5in32 multi-switch in cast housing, receiver-powered, cascadable, terminating resistors in each individual and cascade switch, level adjuster 12dB per subscriber. Transmission loss SAT: 16dB / Terr.: 12dB, SAT TN-attenuation 1-8/9-16/17-24/9 = 950 MHz 5/25-32/13/17 and 2400MHz 0/4/9/12 dB, Terr. TN attenuation 1-8/9-16/17-24/25-32 = 2.5/5.5/8.5/11, DC transmission to vertical low and terr., max. Input level Sat 105 / Terr. 95 dBµV. Power consumption mains adapter 200mA, SAT receiver 33mA. Suitable mains adapter MS-NT1208N, dimensions (WxHxD) = 137x386x30mm
