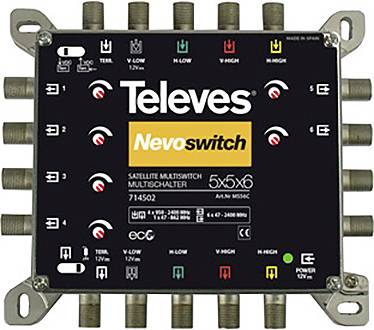

Televes MS56C SAT multiswitch
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 5
- Cascadable: Yes
- Power supply: Without
- 22 kHz generator: No.
- 6 subscriber's outlet
- Terrestrial input: Active
- Max current consumption: 65 mA
- Control signal 14/18 V, DiSEqC, 0/22 kHz
- LNB supply 12 V
- Number of base outputs: 5
- Product type
SAT multiswitch
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550221 Televes MS56C SAT multiswitch
Description
Nevo 5in6 multi-switch in cast housing, receiver-powered, cascadable, terminating resistors in each individual and cascade switch, level adjuster 12dB per subscriber. Transmission loss SAT: 4dB / Terr.: 3dB, subscriber damping SAT: 2400MHz 0dB,950MHz 5dB / Terr.: 2.5dB, DC-passage on vertical low and terr., max. Input level Sat 105 / Terr. 95 dBµV. Power consumption Power supply 65mA, SAT-receiver 33mA Suitable power supply MS-NT1208N, dimensions (WxHxD) = 137x120x30 mm
