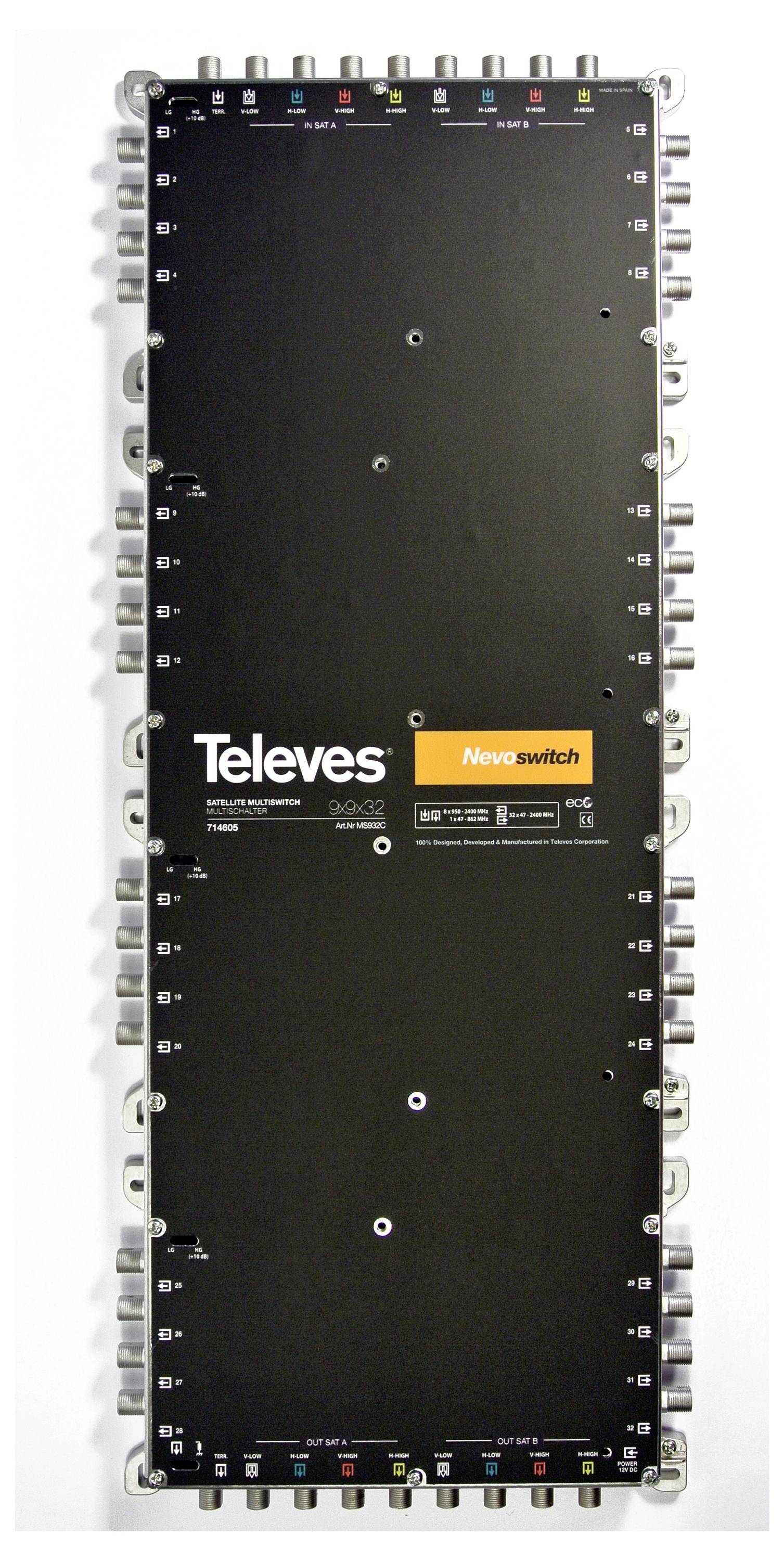

Televes MS932C SAT multiswitch
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 9
- Cascadable: Yes
- Power supply: Without
- 22 kHz generator: No.
- Subscriber connections: 32
- Terrestrial input: Active
- Max current consumption: 335 mA
- Control signal 14/18 V, DiSEqC, 0/22 kHz
- LNB supply 12 V
- Number of base outputs: 9
- Product type
SAT multiswitch
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549201 Televes MS932C SAT multiswitch
Description
Nevo multi-switch 9in32 in cast housing, cascadable, selectable terminating resistors in each single and cascade switch 10dB input amplification for all SAT inputs up / down switching. Transmission loss SAT: 12dB / Terr.: 8dB,SAT TN-attenuation 2 10-950/24 25-32 7-11/17-9/25-32 = 9 MHz 3/6/9/13 and 2400MHz 8/17/14/18 dB, Terr. TN-attenuation 16-8/5-24/1 = 16/8/1, DC pass-through to vertical low and terr., max. Input level Sat 102 / Terr. 104 dBµV. Power supply required (MS-NT1208N), power consumption 335mA, SAT receiver 33mA. Dimensions (WxHxD) = 208x519x30mm
