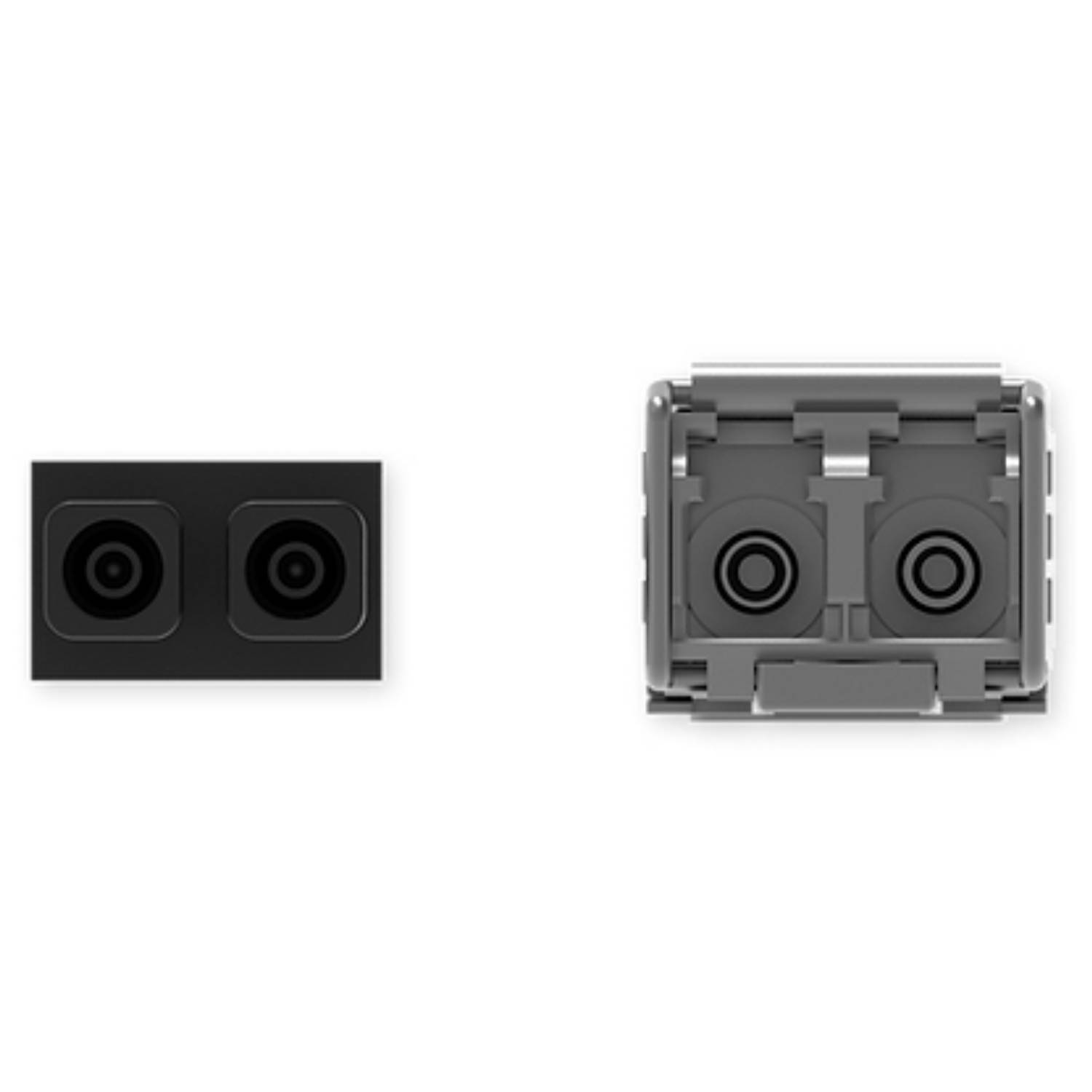

Teltonika PR4DU22K Teltonika - SFP (Mini-GBIC)-Transceiver-Modul Transceiver board 550 m Module type SR
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Teltonika PR4DU22K network transceiver module fiber optics 1250 Mbit/s SFP 850 nm
- 1.25 GB/s SR SFP TX TRANSCEIVER
- Connection: Duplex LC
- Up to 550 m range via 50/125 μm multimode fiber
Technical specifications
- Maximum data transfer rate of 1250 Mbit/s.
- SFP interface
- Product type
Transceiver board
- Interfaces
SFP
- Module type
SR
- Distances up to
550 m
- Factory colour
Grey
- Material (details)
Metal
LC
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Quantity per pack
1 Stück(e)
- Wavelength
850 nm
- Multi-mode fiber (MMF) supported
yes
- Operating relative humidity (H-H)
5 - 85 %
- Maximum transfer distance
550 m
Documents & Downloads
Datasheet
Datasheet 3798857 Teltonika PR4DU22K Teltonika - SFP (Mini-GBIC)-Transceiver-Modul Transceiver board 550 m Module type SR
User & Safety Instructions
User & Safety Instructions 3798857 Teltonika PR4DU22K Teltonika - SFP (Mini-GBIC)-Transceiver-Modul Transceiver board 550 m Module type SR
Description
1.25 GB/s SR SFP TX TRANSCEIVER connection: Duplex-LC. Supported media: Multimode fiber. Data rate: 1.25 GB/s. Max. Power consumption: < 1 W. Cable length: Up to 550 m range over 50/125 μm Multimode fiber. Operating humidity 5 to 85%. TX wavelength 850 nm Temperature range: --40°C to +85°C. Housing: Full metal housing for low electromagnetic interference
This text is machine translated.
Features
- Teltonika - SFP (Mini-GBIC) transceiver module - 1.25GbE
- Device Type : SFP (Mini-GBIC) transceiver module - LC Single mode
- Form factor : Plug-in module
- Wiring type : 1.25GBase-SR
- Data transfer rate : 1.25 Gbps
- Optical wavelength : 850 nm
- Data Link Protocol : 1.25GbE
- Maximum transmission range : 550 m.
- Dimensions (width x depth x height): 1,368 cm x 5,633 cm
Scope of delivery
- TELTONIKA PR4DU22K 1.25G SFP GBIC MM 550M
