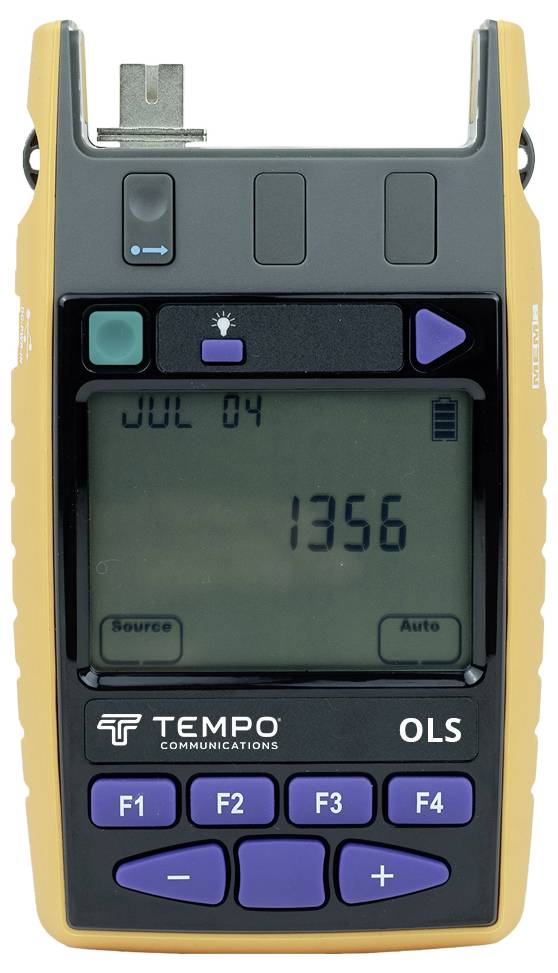

Tempo Communications T2803 Optical LED light source Location
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,273.11 / piece)
€ 2,273.11
plus VAT.
14-day return policy included
Highlights & Details
Optical LED source 850-1300
- Dual LED source T2803
Technical specifications
- Output wavelength port 2: 850, 1300 nm LED
- Short-term stability: (For 15 min., typical ±2 °C, after warm-up, ORL less than -25 dB) 0.01 dB
- Temperature stability: 0.35 dB (typical)
- Wavelength drift: 0.4 nm /°C (typical)
- Automatic shutdown: Selectable
- Housing: Polycarbonate / rubber (edges and corners)
- Operating temperature: -15 °C to + +55 °C.
- Relative humidity 0 - 95%
- Product type
Optical LED light source
- Function
Location
- Optical display
Yes
- Display
LED
- Dim
(L x W x H) 35 x 105 x 190 mm
- Weight
420 g
- Width
105 mm
- Height
190 mm
- Length
35 mm
- Type
T2803
Documents & Downloads
Datasheet
Datasheet 3338192 Tempo Communications T2803 Optical LED light source Location
User & Safety Instructions
User & Safety Instructions 3338192 Tempo Communications T2803 Optical LED light source Location
Description
This dual LED source is a general-purpose test source for multimode systems at 850/1300 nm. Typical applications are fiber attenuation measurement, polarity test, and fiber identification in critical systems.
This text is machine translated.
This text is machine translated.
Features
- Encoded Flux-compatible
- Easy to use, robust and versatile
- Long battery life, micro USB power supply/charger
- Exchangeable connections with dust protection cap and tilt bar
- Excellent repeat accuracy when reconnecting, less than 0.1 dB
- Excellent stability
- Autotest and multi-fiber ID tone generator
- Complete quality assurance and test reports traceable to ISO/IEC 17025
Scope of delivery
- Mandrel Wrap Filters, 50 & 62.5 around OPT701
- SC/SC ADAPTER OPT046
