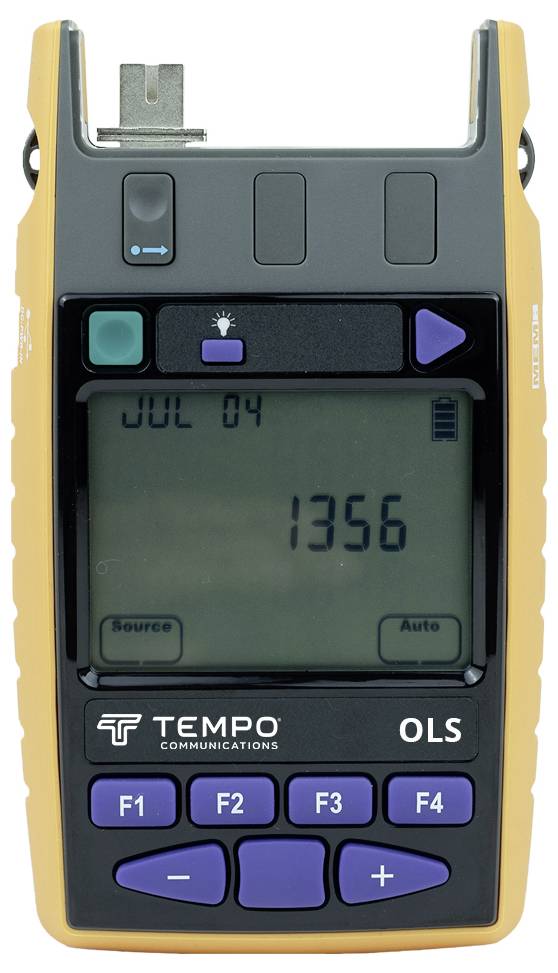

Tempo Communications T2822 Optical laser light source Polarity
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,247.90 / piece)
€ 2,247.90
plus VAT.
14-day return policy included
Highlights & Details
Optical laser source 1310-1550
- Dual optical laser source T2822
Technical specifications
- Class 1 laser
- Output wavelength port 1: 1310, 1550 nm laser
- Short-term stability: (For 15 min, typical ±2 °C, after warm-up, ORL less than -25 dB) 0.04 dB
- Temperature stability: 0.6 dB (typical)
- Initial wavelength tolerance (@ 25 °C) 20 nm
- Spectrum width (FWHM) 3 nm (typical)
- Wavelength drift: 0.4 nm/°C (typical)
- 270 Hz, 1 kHz, 2 kHz ± 2%, 12 multi-fiber ID tones
- Automatic shutdown: Selectable
- Housing: Polycarbonate / rubber (edges and corners)
- Operating temperature: -15 °C to + +55 °C.
- Relative humidity 0 - 95%
- Product type
Optical laser light source
- Function
Polarity
- Optical display
Yes
- Acoustic signal
Yes
- Dim
(L x W x H) 35 x 105 x 190 mm
- Weight
420 g
- Width
105 mm
- Height
190 mm
- Length
35 mm
- Type
T2822
Documents & Downloads
Datasheet
Datasheet 3338191 Tempo Communications T2822 Optical laser light source Polarity
User & Safety Instructions
User & Safety Instructions 3338191 Tempo Communications T2822 Optical laser light source Polarity
Description
This dual optical laser source is a general-purpose test source for singlemode systems at 1310-1550 nm. Typical applications are the measurement of fiber optic cable attenuation, polarity test and fiber identification in critical systems.
This text is machine translated.
This text is machine translated.
Features
- Easy to use, robust and versatile
- Exchangeable connections with dust protection cap and tilt bar
- Excellent repeat accuracy when reconnecting, less than 0.1 dB
- Excellent stability
- Autotest and multi-fiber ID tone generator
- Complete quality assurance and test reports traceable to ISO/IEC 17025
Scope of delivery
- SC/SC ADAPTER OPT046
