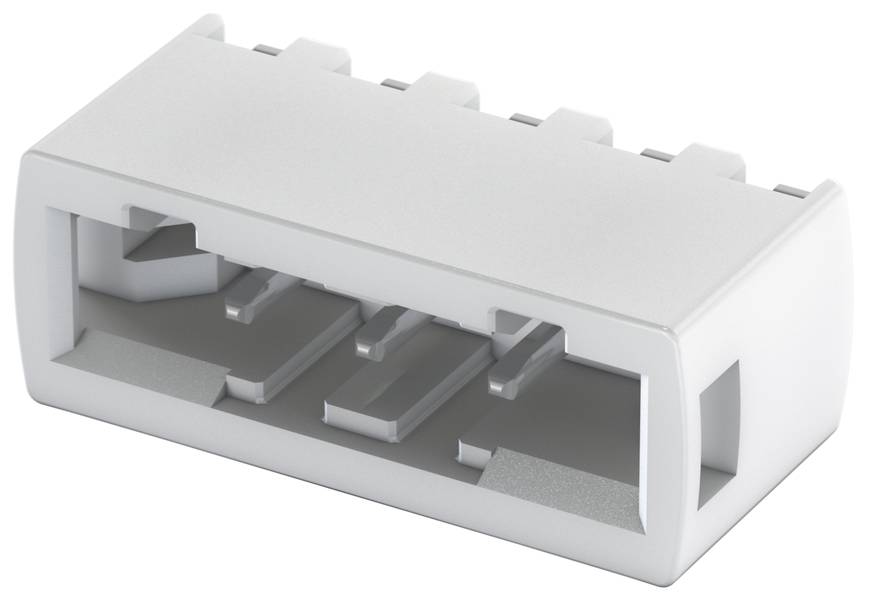

Terminal strip 14110213002334 HARTING Content: 1 pc(s) Terminal strip
EAN:
Part number:
Item no:
Product type
Terminal strip
Number of pins
2
Type
14 11 021 3002 334
Manufacturer part #
14110213002334
Factory colour
White
Datasheet (PDF)
Technical specifications
- Range: Har-flexicon®
- Component: Baseboard
- Connection type: Reflow soldering connection (SMT)
- Type of connection: Circuit board to cable
- Number of contacts: 2
- Plug contact series 1
- Pitch, connection side 2.54 mm
- Rated current 6 A
- Insulation resistance >109 Ω
- Continuous resistance ≤ 20 mΩ
- Temperature limit: -40 ... +125 °C
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Liquid-crystal polymer (LCP)
- Colour insert: White
- Material contacts: Copper alloy; spring steel
- Contact surface: Sn over Ni connectors side; Sn over Ni connection side
- Material flammability class acc. To UL 94: V-0
- Net weight: 1.5 g
- Airway: 1.5 mm
- Creepage distance 1.6 mm
- Rated voltage: 160 V
- Dimensioning surge voltage: 2.5 kV
- Pollution level 3
- Plug-in force ≤ 10 N
- Pull force ≥ 2 N
- Description: Horizontal;with guide pin
- Vibration resistance 5-150 Hz, 5 g, 0.35 mm, 2h/axis
- Type
14 11 021 3002 334
- Product type
Terminal strip
- Manufacturer part #
14110213002334
- Factory colour
White
- Number of pins
2
- Connection
SMT
- Total no. of pins
2
- Content
1 pc(s)
Printed circuit board to cable
Other
160 V
2
Other
-40-125 °C
Other
2.5 kV
Soldering connection
Tin
2.54 mm
1
Liquid crystal polymer
Other
Other
6 A
Documents & Downloads
Datasheet
Datasheet 3008203 Terminal strip 14110213002334 HARTING Content: 1 pc(s) Terminal strip
User & Safety Instructions
User & Safety Instructions 3008203 Terminal strip 14110213002334 HARTING Content: 1 pc(s) Terminal strip
Description
Basic panel, horizontal, with guide pin, rated current: 6 A, contacts: 2, copper alloy, spring steel
