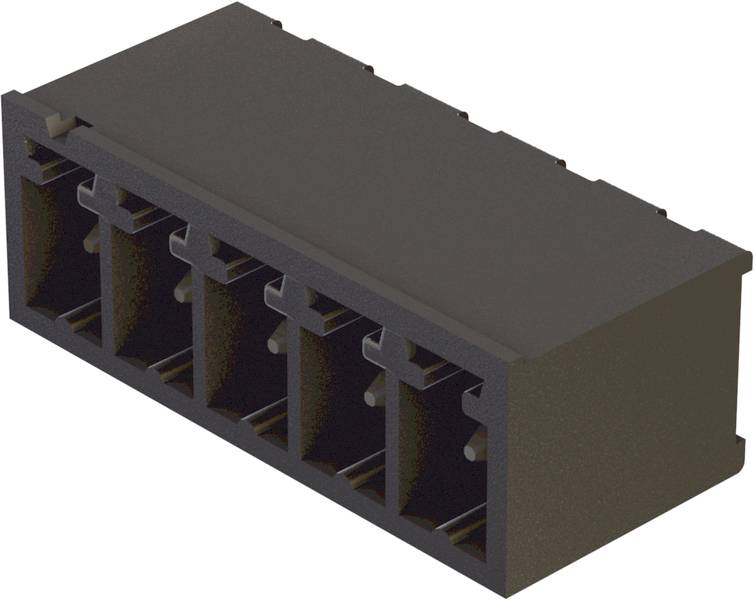

Terminal strip 14120315002000 HARTING Content: 1 pc(s) Terminal strip
EAN:
Part number:
Item no:
Product type
Terminal strip
Number of pins
3
Type
14 12 031 5002 000
Manufacturer part #
14120315002000
Factory colour
Black
Datasheet (PDF)
Technical specifications
- Range: Har-flexicon®
- Component: Baseboard
- Connection type: Reflow soldering connection (THR)
- Type of connection: Circuit board to cable
- Number of contacts: 3
- Plug contact series 1
- Pitch, connection side 3.81 mm
- Rated current 11 A
- Insulation resistance >109 Ω
- Constant resistance: 15 mΩ
- Temperature limit: -40 ... +110 °C
- Insulation material group I (600 ≤ CTI)
- Material application: Polyamide (PA);polyphthalamide (PPA)
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface: Sn over Ni connectors side; Sn over Ni connection side
- Material flammability class acc. To UL 94: V-0
- Net weight: 0.5 g
- Rated voltage: 150 V
- Dimensioning surge voltage: 2.5 kV
- Pollution level 3
- Coding: Code pins ordered separately.
- Plug-in force ≤ 9 N
- Pull force ≥ 4.5 N
- Description: Horizontal
- UKCA approved
- Type
14 12 031 5002 000
- Product type
Terminal strip
- Manufacturer part #
14120315002000
- Factory colour
Black
- Number of pins
3
- Connection
THR
- Total no. of pins
3
- Content
1 pc(s)
Printed circuit board to cable
Other
150 V
3
Other
-40-110 °C
Other
2.5 kV
Soldering connection
Tin
3.81 mm
1
Polyamide (PA)
Other
Other
11 A
Documents & Downloads
Datasheet
Datasheet 3008192 Terminal strip 14120315002000 HARTING Content: 1 pc(s) Terminal strip
User & Safety Instructions
User & Safety Instructions 3008192 Terminal strip 14120315002000 HARTING Content: 1 pc(s) Terminal strip
Description
Base panel, horizontal, rated current: 11 A, contacts: 3, copper alloy, Sn via Ni versatile side, Sn via Ni connection side
