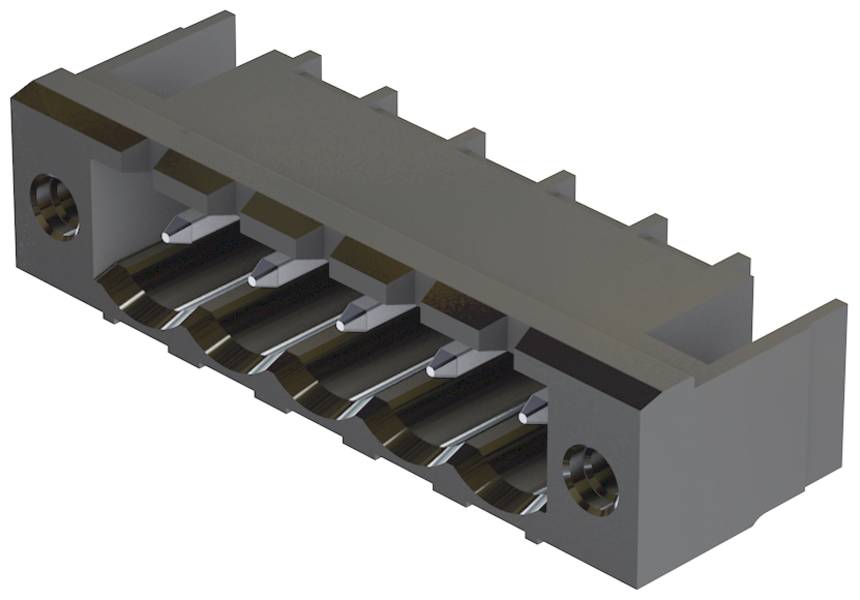

Terminal strip 14120517006000 HARTING Content: 1 pc(s) Terminal strip
EAN:
Part number:
Item no:
Product type
Terminal strip
Number of pins
5
Type
14 12 051 7006 000
Manufacturer part #
14120517006000
Factory colour
Black
Datasheet (PDF)
Technical specifications
- Range: Har-flexicon®
- Component: Baseboard
- Connection type: Reflow soldering connection (THR)
- Type of connection: Circuit board to cable
- Number of contacts: 5
- Plug contact series 1
- Pitch, connection side 5.08 mm
- Rated current 15 A
- Insulation resistance >109 Ω
- Constant resistance: 15 mΩ
- Temperature limit: -40 ... +110 °C
- Insulation material group I (600 ≤ CTI)
- Material application: Polyamide (PA);polyphthalamide (PPA)
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface: Sn over Ni connectors side; Sn over Ni connection side
- Material flammability class acc. To UL 94: V-0
- Rated voltage: 250 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- PCB mounting: With threaded flange
- Coding: Code pins ordered separately.
- Plug-in force ≤ 15 N
- Pull force ≥ 7.5 N
- Description: Horizontal
- UKCA approved
- Type
14 12 051 7006 000
- Product type
Terminal strip
- Manufacturer part #
14120517006000
- Factory colour
Black
- Number of pins
5
- Connection
THR
- Total no. of pins
5
- Content
1 pc(s)
Printed circuit board to cable
Other
250 V
5
Other
-40-110 °C
Other
4 kV
Soldering connection
Tin
5.08 mm
1
Polyamide (PA)
Other
Flange
15 A
Documents & Downloads
Datasheet
Datasheet 3008200 Terminal strip 14120517006000 HARTING Content: 1 pc(s) Terminal strip
User & Safety Instructions
User & Safety Instructions 3008200 Terminal strip 14120517006000 HARTING Content: 1 pc(s) Terminal strip
Description
Base panel, horizontal, rated current: 15 A, contacts: 5, copper alloy, Sn via Ni versatile side, Sn via Ni connection side
