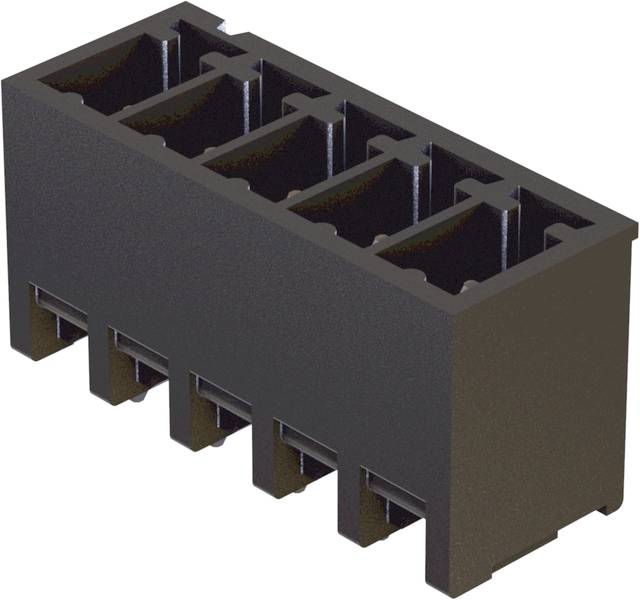

Terminal strip 14120714001000 HARTING Content: 1 pc(s) Terminal strip
EAN:
Part number:
Item no:
Product type
Terminal strip
Number of pins
7
Type
14 12 071 4001 000
Manufacturer part #
14120714001000
Factory colour
Black
Datasheet (PDF)
Technical specifications
- Range: Har-flexicon®
- Component: Baseboard
- Connection type: Reflow soldering connection (THR)
- Type of connection: Circuit board to cable
- Number of contacts: 7
- Plug contact series 1
- Pitch, connection side 3.5 mm
- Rated current 11 A
- Insulation resistance >109 Ω
- Constant resistance: 15 mΩ
- Temperature limit: -40 ... +110 °C
- Insulation material group I (600 ≤ CTI)
- Material application: Polyamide (PA);polyphthalamide (PPA)
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface: Sn over Ni connectors side; Sn over Ni connection side
- Material flammability class acc. To UL 94: V-0
- Net weight: 1 g
- Rated voltage: 150 V
- Dimensioning surge voltage: 2.5 kV
- Pollution level 3
- Coding: Code pins ordered separately.
- Plug-in force ≤ 21 N
- Pull force ≥ 10.5 N
- Description: Vertical
- UKCA approved
- Type
14 12 071 4001 000
- Product type
Terminal strip
- Manufacturer part #
14120714001000
- Factory colour
Black
- Number of pins
7
- Connection
THR
- Total no. of pins
7
- Content
1 pc(s)
Printed circuit board to cable
Other
150 V
7
Other
-40-110 °C
Other
2.5 kV
Soldering connection
Tin
3.5 mm
1
Polyamide (PA)
Other
Other
11 A
Documents & Downloads
Datasheet
Datasheet 3008211 Terminal strip 14120714001000 HARTING Content: 1 pc(s) Terminal strip
User & Safety Instructions
User & Safety Instructions 3008211 Terminal strip 14120714001000 HARTING Content: 1 pc(s) Terminal strip
Description
Vertical baseboard, rated current 11 A, contacts 7, copper alloy, Sn via Ni versatile side, Sn via Ni connection side
