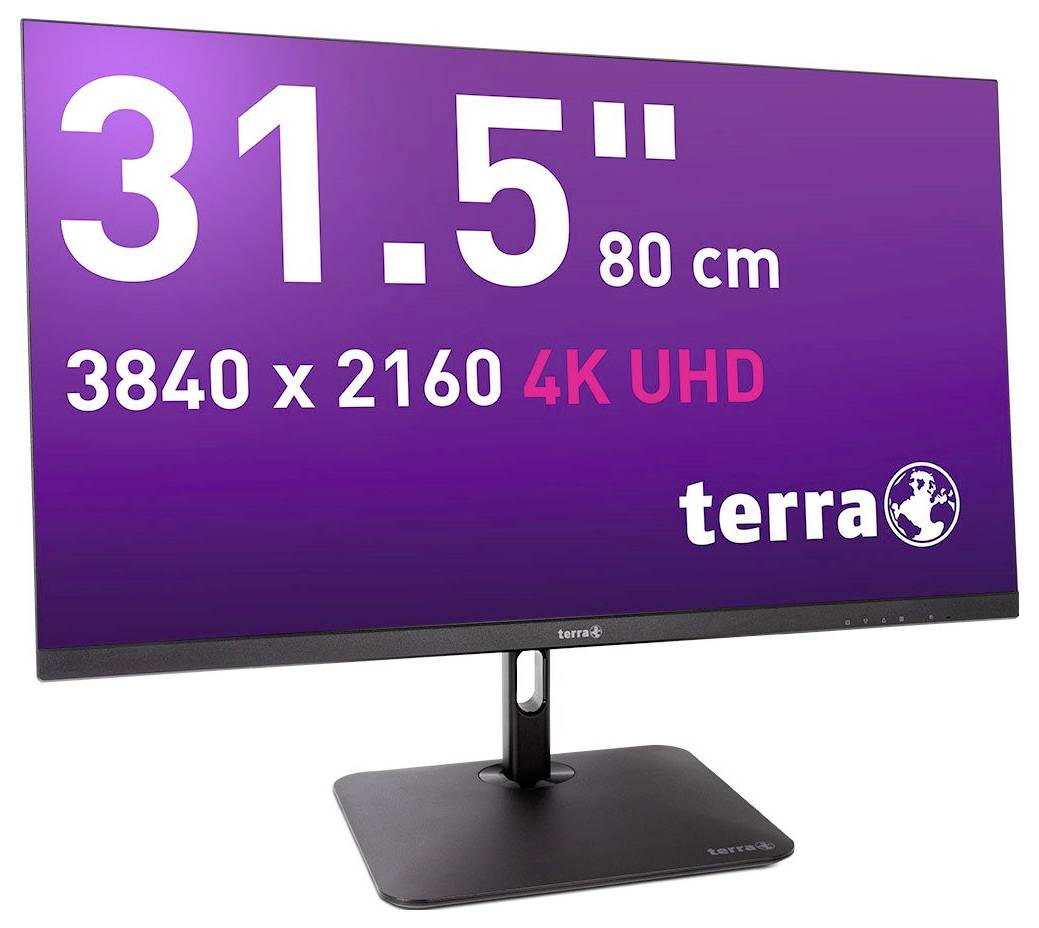

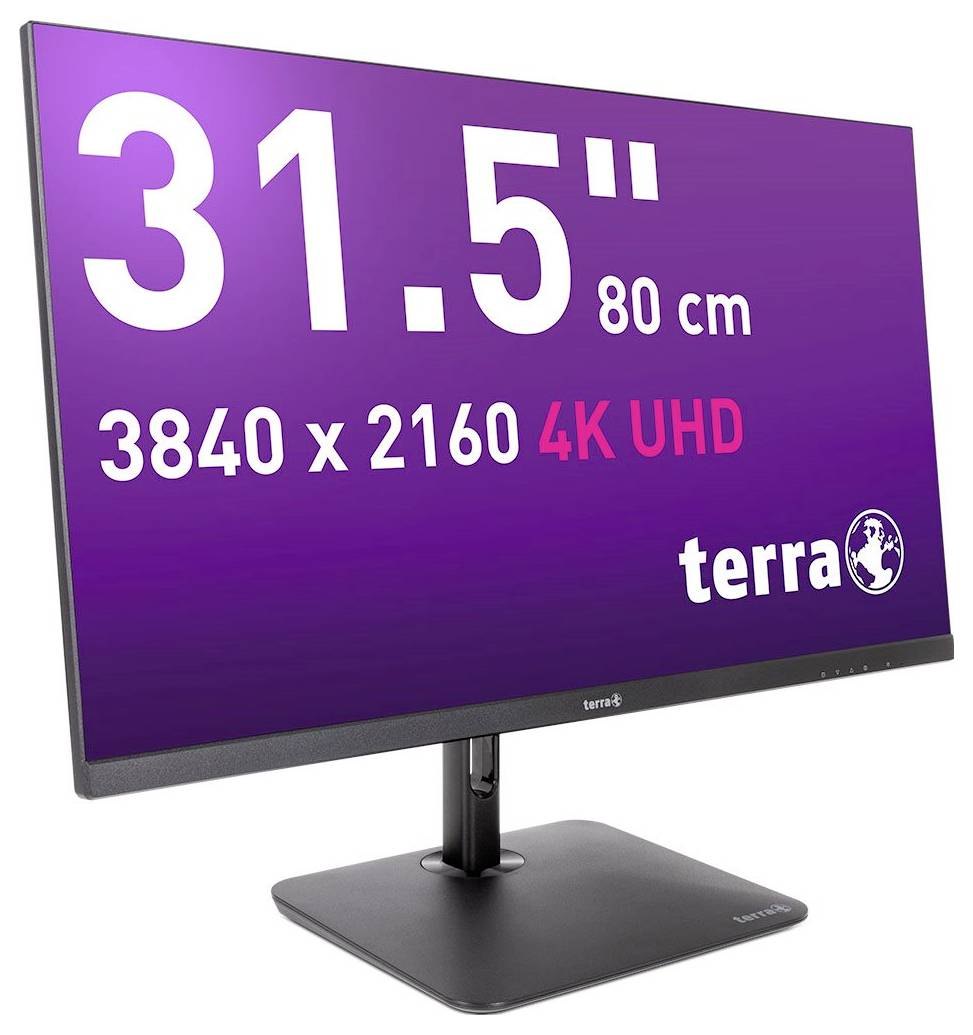

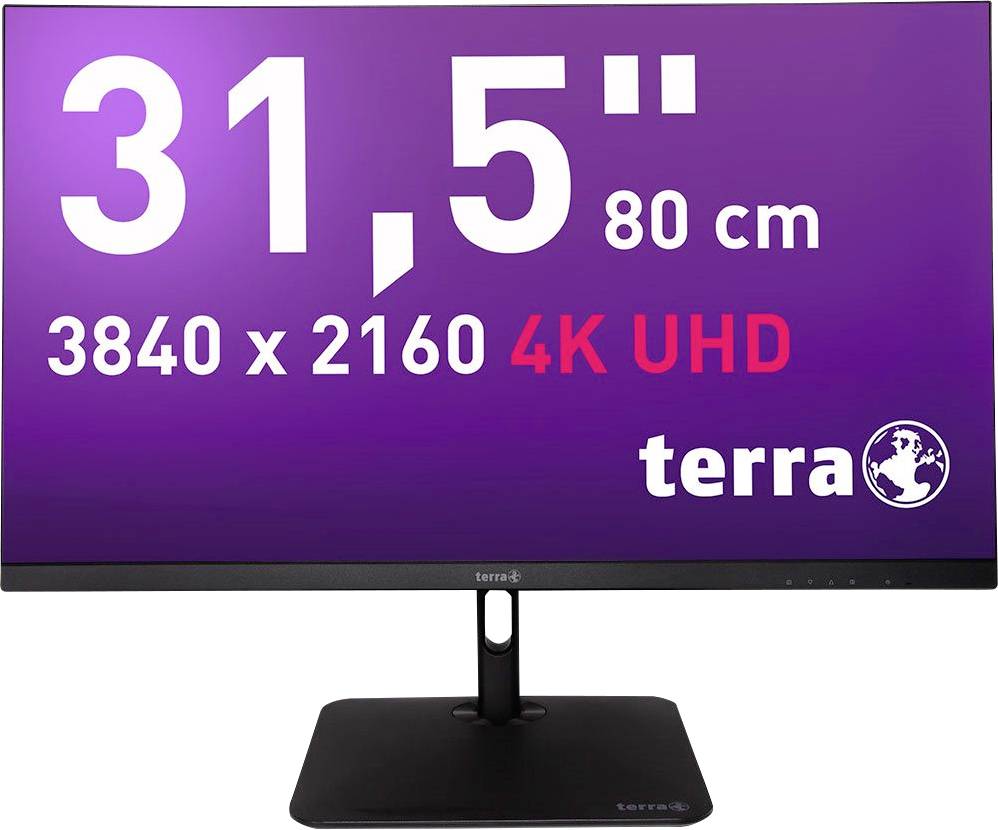

Terra 3295W LCD EEC F (A - G) 80 cm (31.5 inch) 3840 x 2160 p 16:9 5 ms HDMI™, DisplayPort, Headphone input, USB C®, RJ4

The multifunctional USB-C connector is becoming the standard in high-speed data transmission between devices in IT. In addition to the high transfer rate, it also provides video and audio transmission to the display and power supply to a connected notebook or tablet from compatible signal sources. As such, only one cable is lying on the table and the small, anti-twist plug is connected at lightning speed. All peripheral devices connected to the display's USB hub, such as mouse, keyboard, printer, webcam, USB stick etc., are immediately available again. By means of the separately available USB-hubs the number of USB-devices can be connected can be extended without any problem.

The video and audio transmission to the display is an extension of the USB-C standard and uses the DisplayPort protocol. For notebooks or PCs that do not support this video transmission, the Terra LCD/LED 3295W PV also has an original DisplayPort as well as an HDMI-connection. These can alternatively be used for connecting further signal sources in parallel, between which can be switched with a simple key combination on the display.
Suitable smartphones or tablets can be directly connected to the USB-C for spontaneous viewing of images, videos or data.

In multi-monitor mode, another display can be connected to the DisplayPort output and supplied with signal (daisy-chain). The RJ45 LAN-connection represents a gigabit-connection to the network HER.

The highly efficient display power supply provides a connected notebook or tablet with up to 90 watt power for operation and charging the battery. The actual transmitted performance is permanently negotiated between the devices via "USB Power Delivery". Even when the notebook or tablet is shut down and the display is in standby mode, the battery continues to charge.

The Terra's 4K UHD resolution LCD/LED 3295W PV offers superior sharpness and detail accuracy. The display is thus especially suitable for graphical applications, the CAD/CAM-area as well as for the clear display of extensive information in the business world. Due to the extremely small side edges, the device is also ideal for multi-screen solutions. There is only a small distance between the desktops.

The IPS technology of the LCD panel provides high color fidelity, high contrast values and particularly wide viewing angles for the highest level of image quality. An extremely large color, brightness and contrast range can be represented by a color depth of 10 bits (1.07 billion colors) and HDR support.

The high brightness of 350 cd/m² is achieved by a very effective and flicker-free LED background lighting, which also enables extremely high dynamic contrast values of up to 30,000,000:1. A multi-level adjustable anti-blue light function can reduce the blue light content of the picture and thus ensure eye-friendly operation even when used intensively. The overdrive technology speeds up the image build-up and prevents the disturbing effects with moving images, videos or games.

The integrated loudspeakers are controlled digitally via USB-C, HDMI or DisplayPort for optimum audio transmission. For an undisturbed hearing pleasure a headphone connection is available, to which alternatively active loudspeakers can also be connected.

The easy-care, matte black housing as well as the non-reflective display surface offer maximum flexibility during installation and prevents interfering reflections even in unfavorable light conditions.

The multi-functional pedestal with height adjustment and inclination as well as swivel and pivot function permits the fast ergonomic adjustment at every work place. With its VESA mount, the device can also be mounted on various wall, table or ceiling brackets. The display has a holder for mechanical locks for protection against theft (Kensington-lock).
