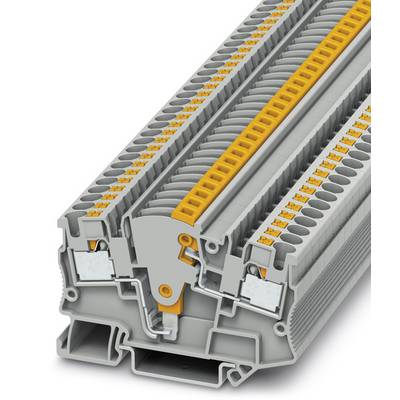

Test disconnect terminal block PTME 4 3212139 Phoenix Contact
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Quick-connect
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.53 / piece)
€ 176.46
plus VAT.
14-day return policy included
Technical specifications
- Product type
N terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3212139
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PTME 4
- Dim
(L x W x H) 70.5 x 6.2 x 48.8 mm
- Width
6.2 mm
- Height
48.8 mm
- Length
70.5 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 585627 Test disconnect terminal block PTME 4 3212139 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 585627 Test disconnect terminal block PTME 4 3212139 Phoenix Contact
Description
Test disconnect terminal block, Connection method: Push-in connection, Cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, Width: 6.2 mm, Height: 48.8 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
