Testboy TV 5300 4-channel thermometer -200 - +1372 °C
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Measuring range -328 °F to +2501 °F
- Accuracy: Greater than 100 °C +-1 °C (+-1 °F), less than 100 °C +-2 °C (+-3.6 °F)
- Resolution: Greater than 1000 °C 1 °C/ °F/K, less than 1000 °C 0.1 °C/ °F/K
- Product type
4-channel thermometer
- Max. temperature
+1372 °C
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 38 x 85 x 200 mm
- Display (details)
LCD with background lighting
- Weight
275 g
- Width
85 mm
- Height
200 mm
- Length
38 mm
- Power supply
9 V battery (1x)
- Min. temperature
-200 °C
- Type
TV 5300
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2858379 Testboy TV 5300 4-channel thermometer -200 - +1372 °C
User & Safety Instructions
User & Safety Instructions 2858379 Testboy TV 5300 4-channel thermometer -200 - +1372 °C
Description
The Testboy GmbH has launched the TV 5300 a handy four-channel temperature measuring instrument for heating construction on the market. A very well readable and large backlit LC-display shows a temperature range of -200 °C to 1372 °C. It supports measurements in Cel-SIUs, Kelvin and Fahrenheit and displays the data as minimum/maximum and on average. The TV 5300 has four connection options for K-type sensors to measure the feed and return flow of heating pipes. Testboy supplies two K-type sensors as well as two pipe contact sensors in the robust hard-shell case with the same. Handy and easy to use, so even Master Röhrich can take it with you.
This text is machine translated.
This text is machine translated.
Features
- Connection possibilities 4x K-type
- Data hold: Yes
- Min Max AVG: YES
- Temperature unit selectable °C, °F, K
- Auto-Power-Off: Yes, 10 min.
Scope of delivery
- 2 temperature sensors

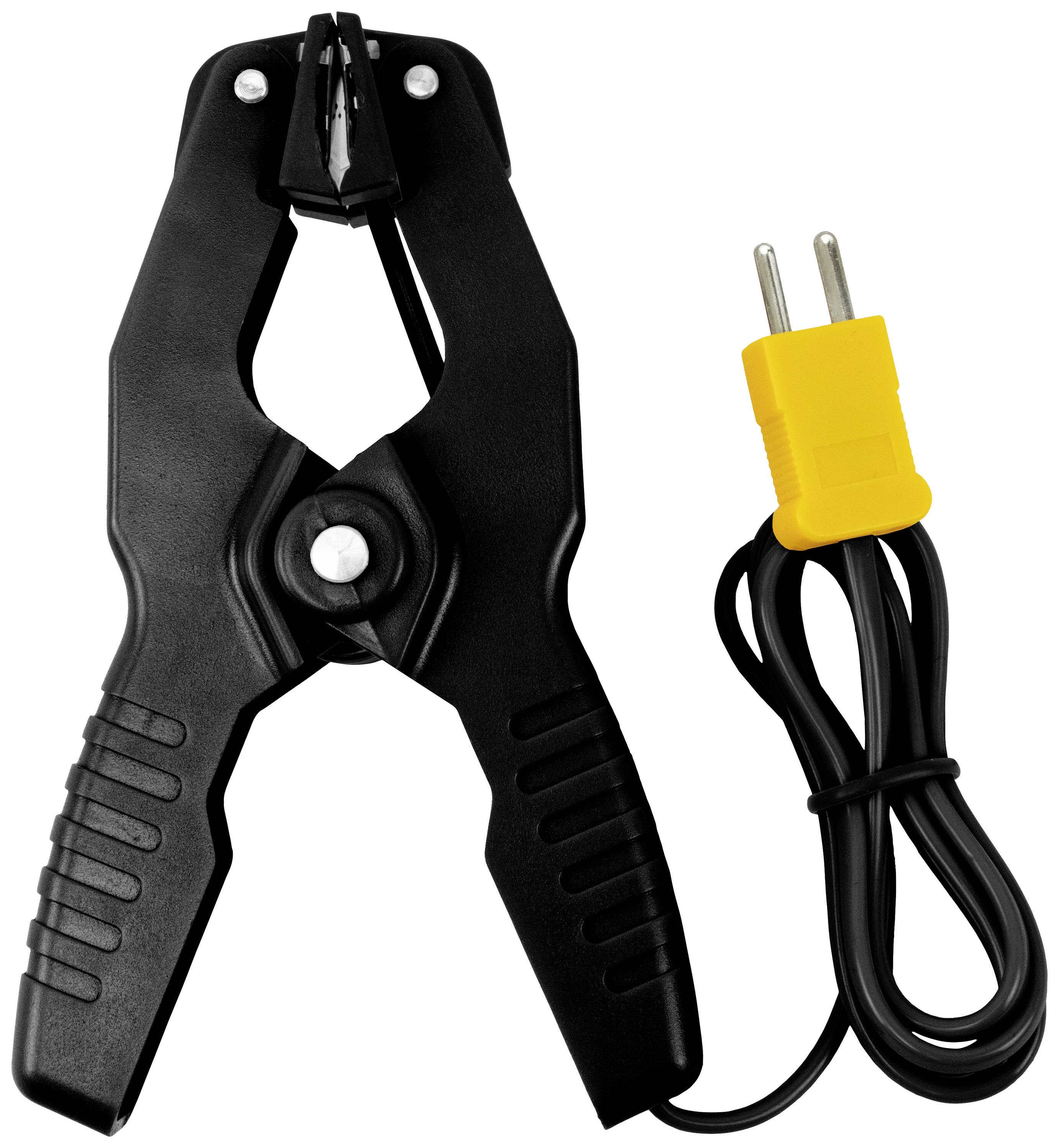

- 2 clamp sensors
- Bag
