Testec TT-HV 400 Probe 300 MHz 100:1 4000 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TT-HV 400 probe heads x100 - 4kV + 15-PCs Accessories
- 100:1
- Bandwidth 300 MHz
Technical specifications
- Slew rate
1.2 ns
- Input capacity
5 pF
- Input resistance
100 M Ω
- Cable length
1.20 m
- Divider voltage ratio
100:1
Manufacturer's standards (no certificate)
- Reading category
CAT II 1000 V
- Nominal voltage
4000 V
- Bandwidth
300 MHz
- Product type
Probe
Variants(All information is without VAT, plus shipping costs)
Bandwidth
Divider voltage ratio
Nominal voltage
300 MHz
100:1
4000 V
Minimum order quantity: 1
Multiple: 1
€ 53.77*

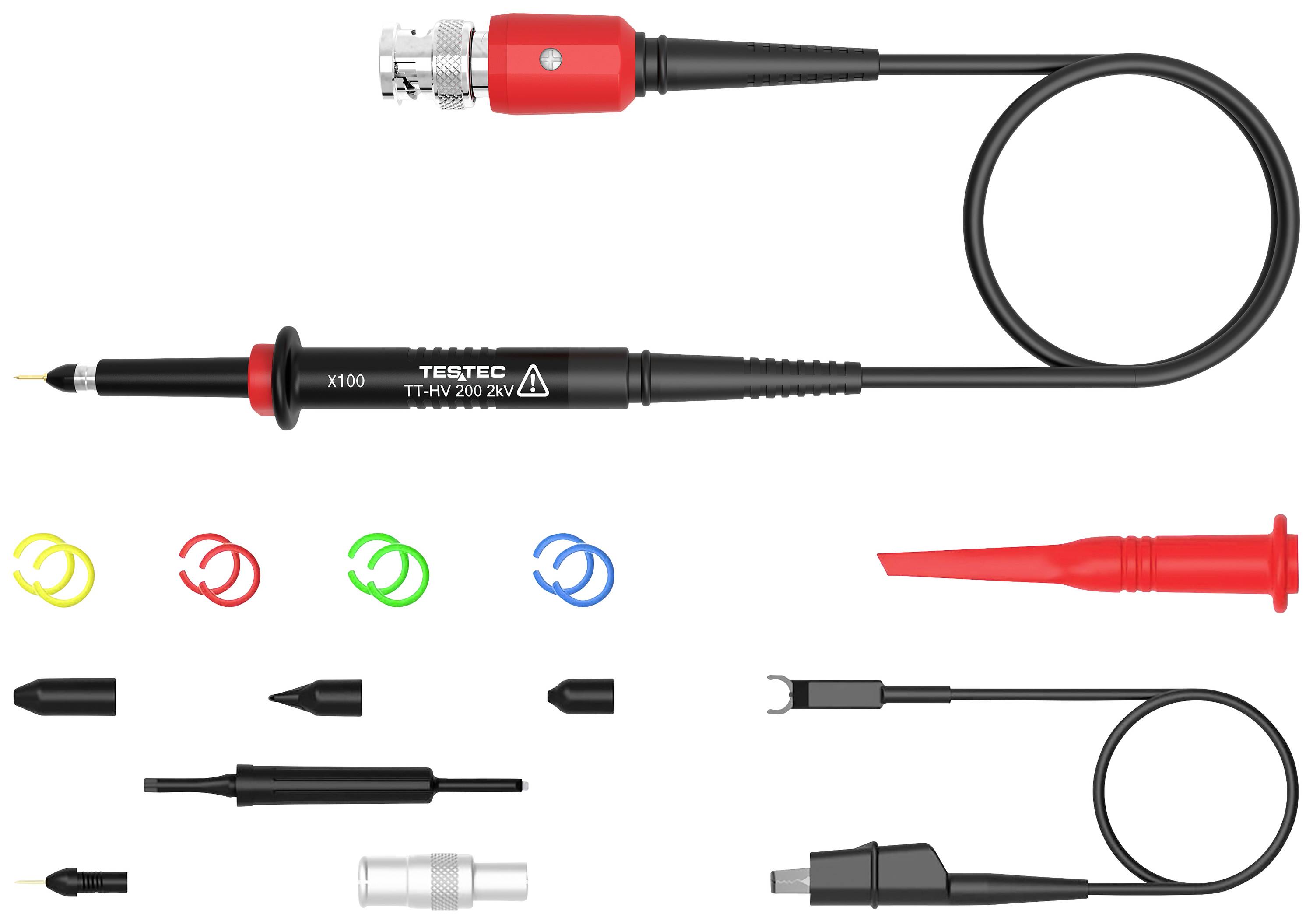

Testec TT-HV 200 Probe 300 MHz 100:1 2000 V
300 MHz
100:1
2000 V
Minimum order quantity: 1
Multiple: 1
€ 50.41*

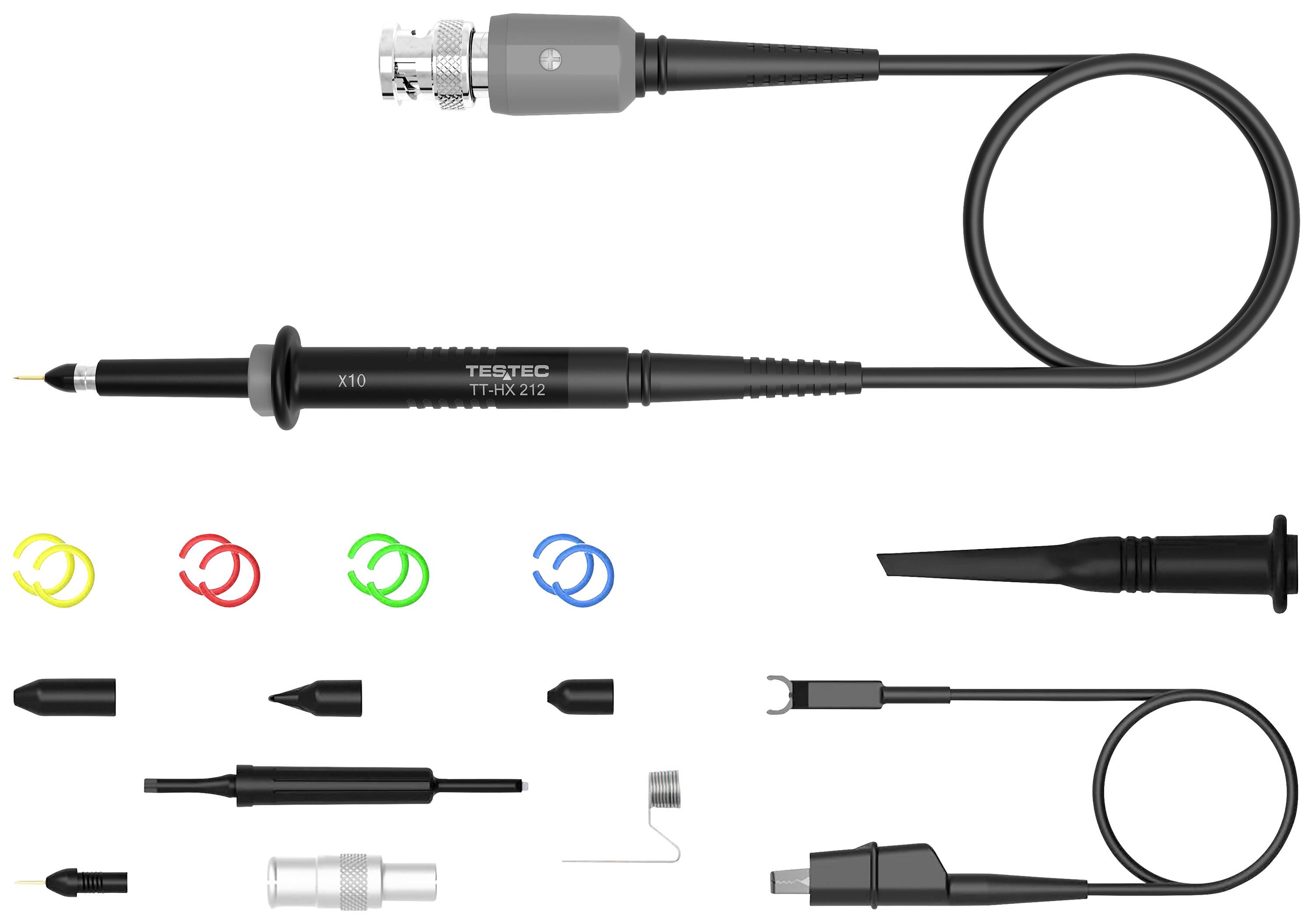

Testec TT-HX 212 Probe 350 MHz 10:1 1500 V
350 MHz
10:1
1500 V
Minimum order quantity: 1
Multiple: 1
€ 52.09*
Testec TT-HX 312 Probe 10 MHz, 350 MHz 1:1, 10:1 1500 V
10 MHz
1:1
1500 V
Minimum order quantity: 1
Multiple: 1
€ 55.45*
Testec TT-LX 112 Probe 25 MHz 1:1
25 MHz
1:1
Minimum order quantity: 1
Multiple: 1
€ 24.36*
Testec TT-MF 312 Probe 20 MHz, 250 MHz 1:1, 10:1 600 V
20 MHz
1:1
600 V
Minimum order quantity: 1
Multiple: 1
€ 31.92*
Testec TT-HF 212 Probe 300 MHz 10:1 600 V
300 MHz
10:1
600 V
Minimum order quantity: 1
Multiple: 1
€ 48.73*
Testec TT-LF 112 Probe 25 MHz 1:1 600 V
25 MHz
1:1
600 V
Minimum order quantity: 1
Multiple: 1
€ 16.80*
Testec TT-LF 212 Probe 150 MHz 10:1 600 V
150 MHz
10:1
600 V
Minimum order quantity: 1
Multiple: 1
€ 27.72*
Testec TT-LF 312 Probe 15 MHz, 150 MHz 1:1, 10:1 600 V
15 MHz
1:1
600 V
Minimum order quantity: 1
Multiple: 1
€ 15.96*
Documents & Downloads
Datasheet
Datasheet 3124326 Testec TT-HV 400 Probe 300 MHz 100:1 4000 V
User & Safety Instructions
User & Safety Instructions 3124326 Testec TT-HV 400 Probe 300 MHz 100:1 4000 V
Description
A professional probe with an ergonomic design and impressive specifications. The probe is suitable for all common oscilloscopes.
Scope of delivery
- Ground line
- Attachable hook clip
- Second gold-plated probe tip
- Insulated cap
- IC insulated cap
- BNC adapter
- Adjustment tool
