testo 0560 0460 Tachometer Optical 100 - 30000 U/min
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Highlights & Details
testo 460 rotation number measuring device
- Optical rotation number measurement with LED sighting
Technical specifications
- Protection class: IP40
- Response time 0.5s
- Temperature range: 0 - 50°C
- Power supply: 2 micro batteries (AAA)
- RPM accuracy
± 0,02 %
- Speed resolution
0.1
- Reading distance
10 - 40 cm
- Dim
(L x W x H) 119 x 46 x 25 mm
- Weight
85 g
- Height
25 mm
- Length
119 mm
- Width
46 mm
- Rotational speed (optical)
100 - 30000 U/min
Manufacturer's standards (no certificate)
- Display
LCD
- Measuring type
Optical
- Type
460
- Rotational speed, optical (max.)
30000 U/min
- Rotational speed, optical (min.)
100 U/min
- Pick-up time (details)
0.5 s
- Display (details)
LCD
- Power supply (details)
2 batteries (AAA)
- Type
testo 460
- Temperature range
0 - 50 °C
- UKCA
yes
- Product type
Tachometer
Documents & Downloads
Datasheet
Datasheet 101409 testo 0560 0460 Tachometer Optical 100 - 30000 U/min
User & Safety Instructions
User & Safety Instructions 101409 testo 0560 0460 Tachometer Optical 100 - 30000 U/min
Information
Information 101409 testo 0560 0460 Tachometer Optical 100 - 30000 U/min
Conformity certificate
Conformity certificate 101409 testo 0560 0460 Tachometer Optical 100 - 30000 U/min
Description

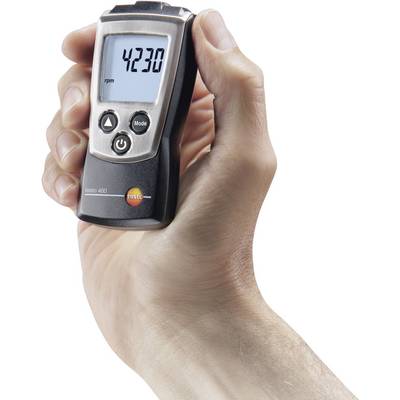

The testo 460 measuring the optical rotation, for example, that of fans and waves. The spot size is shown with an LED marking on the measurement object. Max and min values are displayed on pressing the key. The backlit display also allows a comfortable reading values for the measurement even in case of a bad visibility .
Features
- Display Lighting
- Hold function and Max-/Min-Worth
- Measurement sizes rpm, rps.
Scope of delivery
- Protective cap
- Leather-belt pouch
- 2 batteries
- Supporting loop
- Calibration protocol
- Instructions for use.
