Buy testo 0572 1740 02 174 T Mini-Temperatur- Datenlogger Temperature data logger -30 up to 70 °C

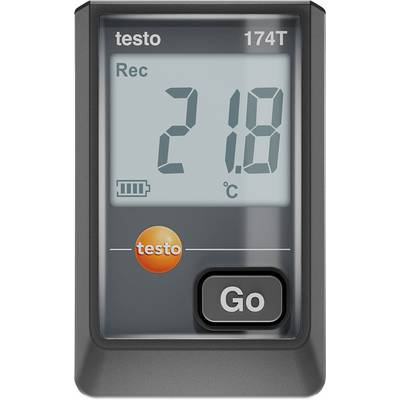

A digital thermometer displaying '21.8°C', with a battery indicator and buttons marked 'Testo' and 'Go'.

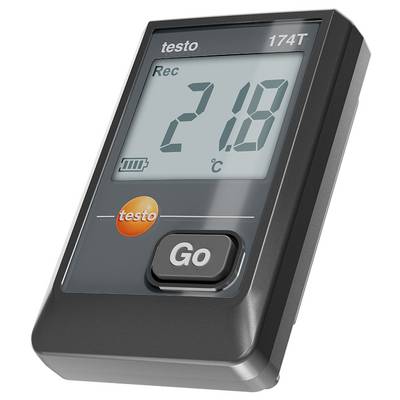

Temperature data logger with display shows '27.9 °C'. Button with 'Go' label for operation.

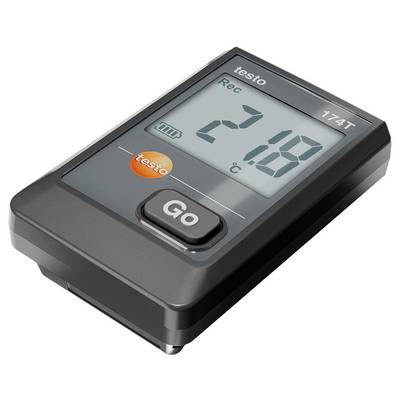

Temperature data logger with display shows measurement value '21.8 °C' and battery status. Large 'Go' button for function.

Black, rectangular electronic device viewed from the side with rounded edges, potentially a mobile phone or satellite navigation device.

Black, rectangular device with a glossy surface, side view. Visible edges and curves, no further details discernible.

Black electronic device with a rectangular, slim shape, photographed from the side. Top edge slightly rounded.

A black printer with a blue display can be seen.

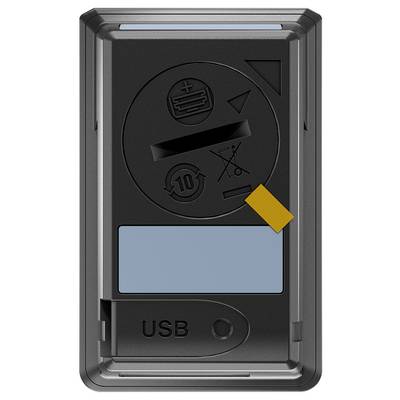

Black USB device with symbols for correct battery installation and warning notice, compatible with 10A batteries.

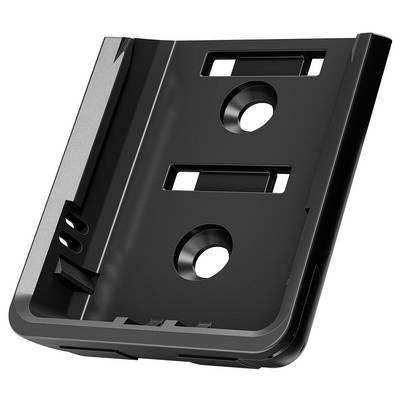

Black plastic component with multiple rectangular and circular openings, likely a mounting bracket or DIN rail.

A black, rectangular plastic mounting bracket with multiple slots and openings for attachment, viewed from an overhead perspective.

A plastic casing with a rectangular shape, featuring two round holes and two rectangular openings, presumably used for device mounting.

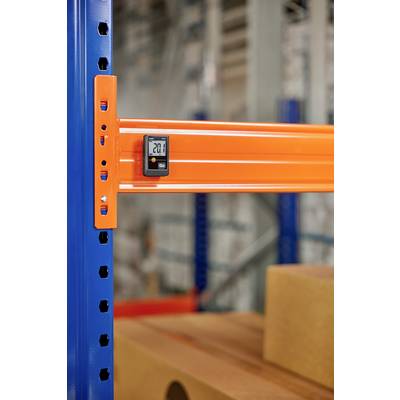

A digital thermometer displays 20 degrees Celsius, affixed to an orange shelf in a warehouse. Cardboard boxes are visible in the background.

1/12

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

93 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 78.98 / piece)

€ 78.98

plus VAT.

Report legal concerns

Highlights & Details

testo 0572 1740 02 174 T Mini-Temperatur- Datenlogger Temperature data logger -30 up to 70 °C

Time-saving and intuitive data read out via USB-C.
Professional software with Excel export function for programming the logger and for data analysis as well as logging in PDF-format
Large temperature measurement range from -30 °C to +70 °C.

Technical specifications

Temperature resolution: 0.1 °C

Sampling interval: 15 min

Memory: 16000 measured values

Battery life: 500 days

Weight: 35 g

Channels: 1

Temperature reading range: -30 up to 70 °C

: Manufacturer's standards (no certificate)

Type: 174 T Mini-Temperatur- Datenlogger

Reading accuracy temperature: 0.5 °C

Temperature reading range (max.): 70 °C

Temperature reading range (min.): -30 °C

Power supply: CR 2032 button cell (2x), included

Product type: Temperature data logger

Documents & Downloads

Datasheet

Datasheet 3389794 testo 0572 1740 02 174 T Mini-Temperatur- Datenlogger Temperature data logger -30 up to 70 °C

User & Safety Instructions

User & Safety Instructions 3389794 testo 0572 1740 02 174 T Mini-Temperatur- Datenlogger Temperature data logger -30 up to 70 °C

Description

Small but precise and reliable, the testo 174 T mini data logger enables precise temperature monitoring and documentation in all HVAC/R applications, with easy handling and extensive analysis functions.
The mini data logger testo 174 T is the ideal solution for the start-up, testing and maintenance of all HVAC/R systems. It monitors temperatures from -30 °C to +70 °C, enables easy data reading via USB-C and uses professional software for efficient analysis and Excel export for easier documentation.
