testo 0572 2155 Air probe -30 up to +70 °C 0 up to 100 RH Sensor type NTC
EAN:
Part number:
Item no:
Highlights & Details

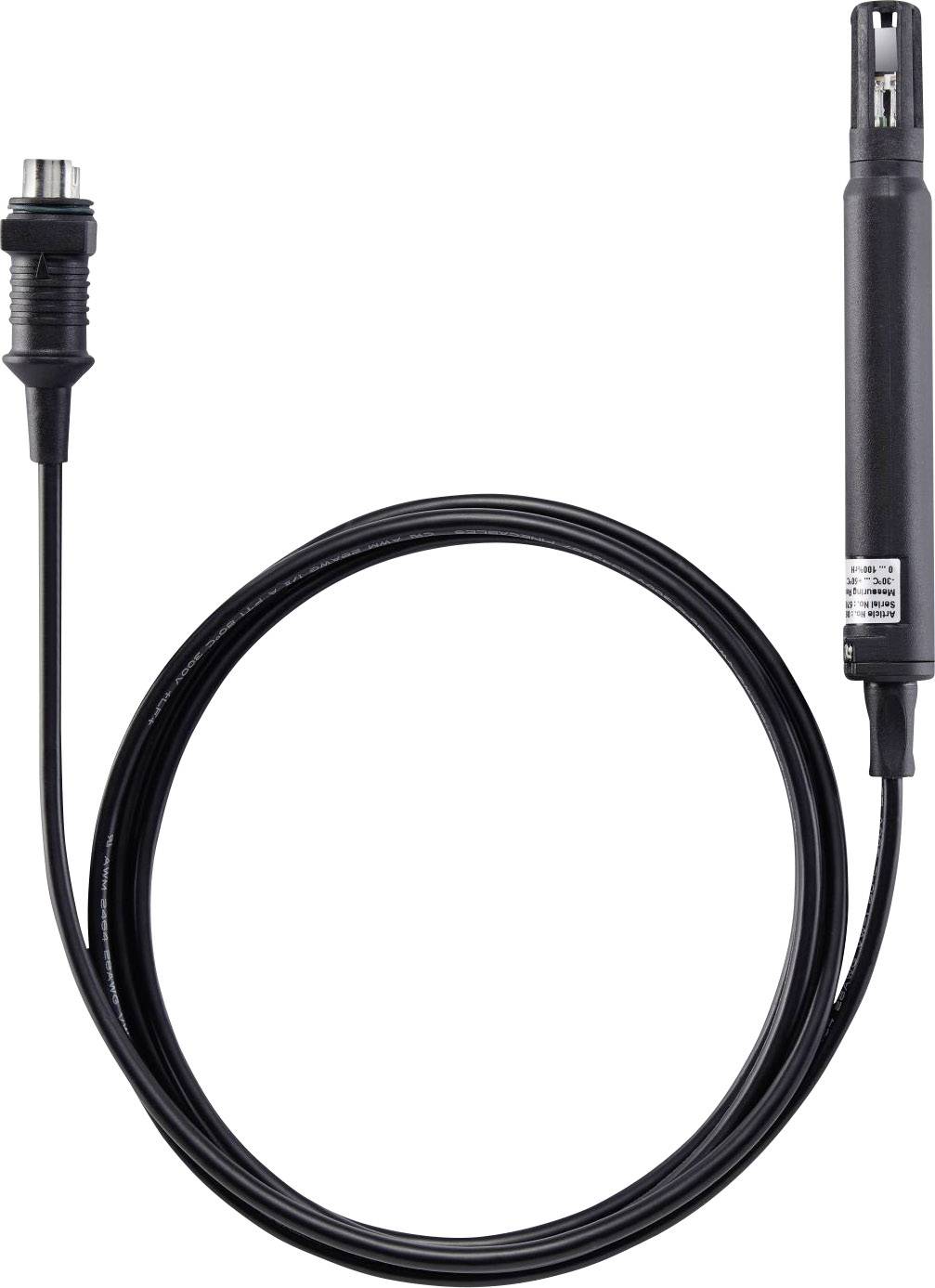

Digital humidity/temperature sensor with cable for testo Saveris2H2 New Generation
- Sensor type NTC
- -30 up to +70 °C
Technical specifications
- Diameter sensor tube tip: 12 mm
- Product type
Air probe
- Sensor type
NTC
- Temperature reading range (min.)
-30 °C
- Temperature reading range (max.)
+70 °C
- Dim
(Ø) 20 mm
- Probe length
105 mm
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range
-30 up to +70 °C
- Humidity reading accuracy
2 RH
- Temperature accuracy
0.3 °C
- Compatible with (details)
Testo Saveris 2 H2
- (Ø)
20 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1598237 testo 0572 2155 Air probe -30 up to +70 °C 0 up to 100 RH Sensor type NTC
Description
The humidity/temperature sensor is suitable for the measurement of temperature and relative humidity in storage, cooling and work rooms, or in the air-conditioning/ventilation channel.
The humidity/temperature sensor is connected by simply plugging with the device/data logger.
Applications Overview
You can use the high-precision humidity and temperature sensors (with suitable measuring device) for the following applications: Messung the relative humidity and temperature in storage, cooling and work rooms, or in the air-conditioning/ventilation channel
Bewertung of thermal comfort.
Sicherstellung of the process climate in the clean room
Uberprufen the correct ambient conditions in production facilities for compliance with quality standards
Always reliable measuring results
The humidity sensor for measuring the relative humidity shows through the good air flow around compared to a in the housing humidity sensor a significantly faster response time. Due to its high long-term stability you can also after years of reliable and accurate measurements.
Intelligent calibration concept
The humidity/temperature sensor offers the highest digital measuring security. The digital sensor enables a direct measurement value processing in the sensor. The device measurement uncertainty is removed by this technology. For calibration, the probe alone (without data logger) sent in.
This text is machine translated.
The humidity/temperature sensor is connected by simply plugging with the device/data logger.
Applications Overview
You can use the high-precision humidity and temperature sensors (with suitable measuring device) for the following applications: Messung the relative humidity and temperature in storage, cooling and work rooms, or in the air-conditioning/ventilation channel
Bewertung of thermal comfort.
Sicherstellung of the process climate in the clean room
Uberprufen the correct ambient conditions in production facilities for compliance with quality standards
Always reliable measuring results
The humidity sensor for measuring the relative humidity shows through the good air flow around compared to a in the housing humidity sensor a significantly faster response time. Due to its high long-term stability you can also after years of reliable and accurate measurements.
Intelligent calibration concept
The humidity/temperature sensor offers the highest digital measuring security. The digital sensor enables a direct measurement value processing in the sensor. The device measurement uncertainty is removed by this technology. For calibration, the probe alone (without data logger) sent in.
This text is machine translated.
Features
- Measures air temperature and humidity quickly and reliably
- Flexible at the point of measurement can be used thanks to cable connection to the data logger
- Intelligent calibration concept
- Measuring range: Humidity 0 to 100% relative humidity; temperature -30 … +70 °C
- Relative humidity and temperature extremely precise measurement: with the digital humidity and temperature sensor with a cable length of 1.3 m.
