testo 0613 5605 Rohranlegefühler, NTC - für Messungen an Rohren (Ø 5-65 mm) Temperature sensor; 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

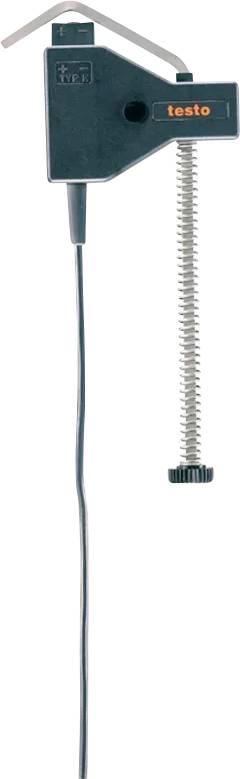

Piping sensor, NTC - for measurements at pipes (Ø 5-65 mm)
- Easy attachment of the sensor to pipes with diameter of 5 to 65 mm
- Measuring range: -50 ... +120 °C
- Automatic positioning of the sensor on the pipe
- NTC temperature sensor with 1.2 m long cable
Technical specifications
- Suitable for testo 400 , testo 440
- Diameter 5 mm; 65 mm
- Cable length 1.2 m
- Product color black
- Measurement range: -50 to +120 °C
- Accuracy ±0.2 °C (-25 to +80 °C)
- Product type
Temperature sensor;
- Compatible with
testo
- Type
Analogue temperature sensor (pipe contact sensor NTC)
- Weight
113 g
- Width
85.7 mm
- Height
21 mm
- Length
165 mm
- Type
Rohranlegefühler, NTC - für Messungen an Rohren (Ø 5-65 mm)
Manufacturer's standards (no certificate)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3557633 testo 0613 5605 Rohranlegefühler, NTC - für Messungen an Rohren (Ø 5-65 mm) Temperature sensor; 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3557633 testo 0613 5605 Rohranlegefühler, NTC - für Messungen an Rohren (Ø 5-65 mm) Temperature sensor; 1 pc(s)
Description
Use this temperature sensor with NTC sensor to measure surface temperatures on pipes with pipe diameters from 5 mm to 65 mm. You can use the sensor to determine, for example, the surface temperature of heating pipes.
For an optimum heat transfer between the surface sensor and the object to be measured, we recommend using our separately ordered silicone heat conductive paste
This text is machine translated.
For an optimum heat transfer between the surface sensor and the object to be measured, we recommend using our separately ordered silicone heat conductive paste
This text is machine translated.
Scope of delivery
- 1 x pipe-laying sensors (NTC) with permanently connected cable (cable length 1.2 m)
