testo 0614 1712 Präziser, robuster Luftfühler, NTC - eichfähig Temperature sensor; 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

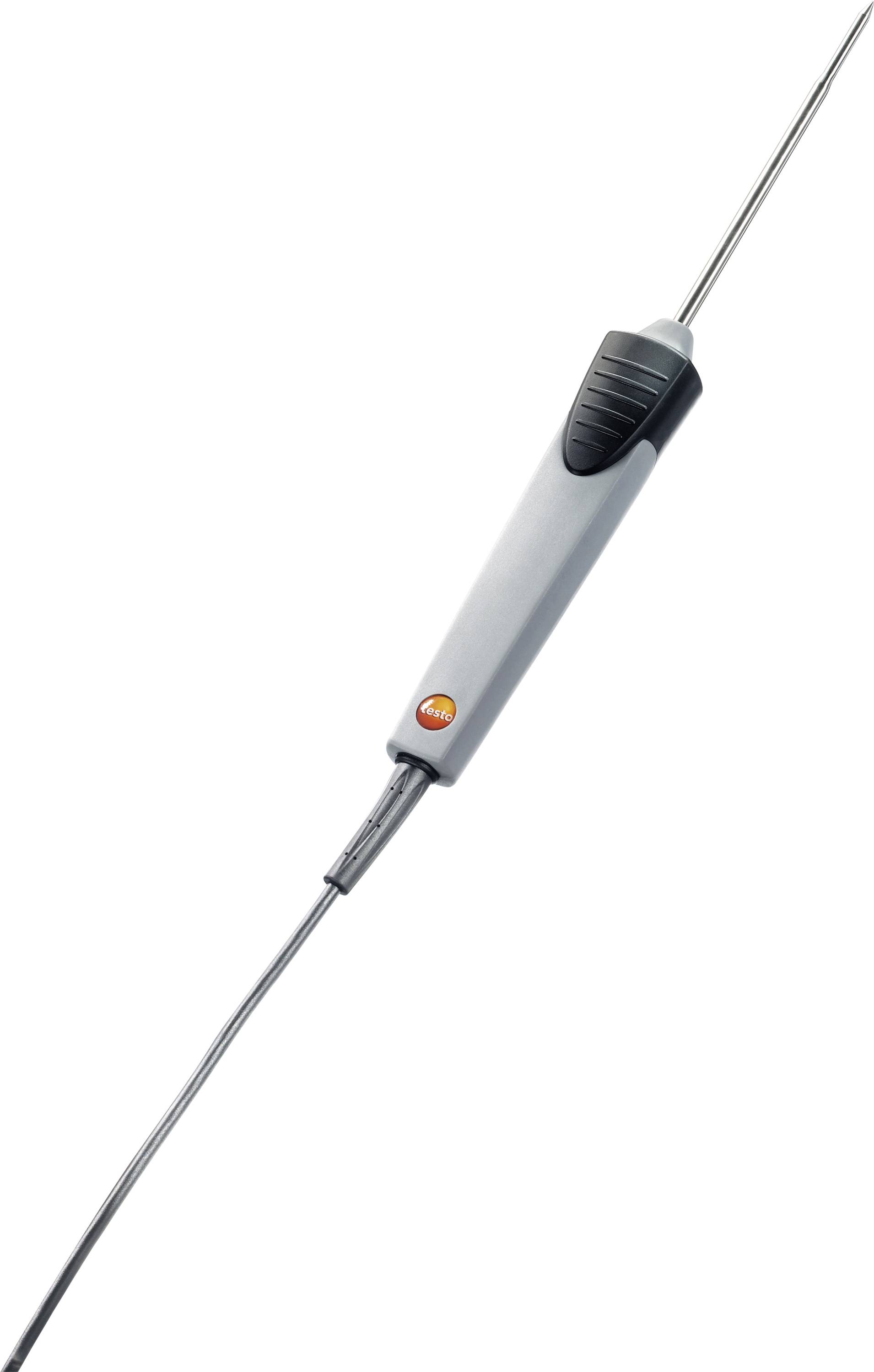

Precise, robust air sensor, NTC - capable of calibrating
- Short response time thanks to free-lying sensor
- Conformity assessment, with PTB approval
- To measure the air temperature, for example, in cold rooms, counters, freezer cabinets
- NTC temperature sensor
Technical specifications
- Suitable for testo 440, testo 400
- Measurement range -25 to +120 °C
- Accuracy:
- ±0.2 °C (-25 to +74.9 °C)
- ±0.4 °C (remaining measuring range)
- ±0.5 % from MW. (100° to 120 °C)
- Response time 60 s
- Product/casing material
- ABS / TPE / PUR
- Cable stretched yes
- Cable length 1.1 m.
- Diameter of probe/probe tip 4 mm
- Diameter of probe/sensor tube 5 mm
- Length of sensor tube tip 50 mm
- Product color: Grey, black, silver
- Product type
Temperature sensor;
- Type
Analogue temperature sensor (NTC)
- Weight
106 kg
- Width
5 mm
- Length
115 mm
- Depth
4 mm
- Type
Präziser, robuster Luftfühler, NTC - eichfähig
Manufacturer's standards (no certificate)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3557634 testo 0614 1712 Präziser, robuster Luftfühler, NTC - eichfähig Temperature sensor; 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3557634 testo 0614 1712 Präziser, robuster Luftfühler, NTC - eichfähig Temperature sensor; 1 pc(s)
Description
Conformity assessment and approved for official temperature measurements: The robust, short-response air probe (with the appropriate measuring instrument, e.g. testo 112 conformity assessment (stock no. 0560 1128 01)) is suitable for measuring air temperature.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x precision, robust air sensor, NTC, capable of calibration
