testo 0615 5605 Rohranlegefühler mit NTC-Temperatursensor - für Messungen an Rohren (Ø 5-65 mm) Temperature sensor; 1 pc
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

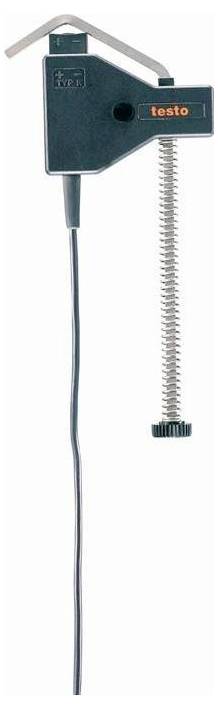

Pipe contact sensor with NTC temperature sensor - for measurements on pipes (Ø 5-65 mm)
- Measuring range from -50 to +120 °C
- Quick-connect fastening of the surface sensor to pipes
- Exchangeable measurement head
- Temperature sensor with precise NTC temperature sensor
Technical specifications
- Suitable for testo 440, testo 400
- Measurement range -50 to +120 °C
- Accuracy ±0.2 °C (-25 to +80 °C)
- Product type
Temperature sensor;
- Compatible with
testo
- Type
Analogue temperature sensor (pipe contact sensor) for pipe diameters from 5 to 65 mm
- Weight
140 g
- Width
190 mm
- Height
150 mm
- Length
35 mm
- Type
Rohranlegefühler mit NTC-Temperatursensor - für Messungen an Rohren (Ø 5-65 mm)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3557636 testo 0615 5605 Rohranlegefühler mit NTC-Temperatursensor - für Messungen an Rohren (Ø 5-65 mm) Temperature sensor; 1 pc
User & Safety Instructions
User & Safety Instructions 3557636 testo 0615 5605 Rohranlegefühler mit NTC-Temperatursensor - für Messungen an Rohren (Ø 5-65 mm) Temperature sensor; 1 pc
Description
The permanently attached cable including TUC plug can be used to connect the pipe laying sensor (NTC) with the suitable measuring device. The pipe contact sensor is equipped with a high-quality NTC sensor. If it is damaged, you can simply replace the probe.
The pipe contact sensor (NTC) is designed for the measurement of the surface temperature of pipes (pipe diameter of 5 to 65 mm) and offers numerous application possibilities. The quick-action lock makes it possible to quickly and easily attach the surface sensor to pipes. Thus, it is best suited for the measurement of forward and backward temperatures in heating systems or for the inspection of the temperature of refrigeration systems.
This text is machine translated.
The pipe contact sensor (NTC) is designed for the measurement of the surface temperature of pipes (pipe diameter of 5 to 65 mm) and offers numerous application possibilities. The quick-action lock makes it possible to quickly and easily attach the surface sensor to pipes. Thus, it is best suited for the measurement of forward and backward temperatures in heating systems or for the inspection of the temperature of refrigeration systems.
This text is machine translated.
Scope of delivery
- 1 x pipe contact sensors (NTC) for temperature measurements at pipes (Ø 5-65 mm) with permanently attached cable (cable length 1.4 m)
