testo 0618 0071 Flexibler Temperaturfühler (digital) - mit Pt100-Temperatursensor Temperature sensor; 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

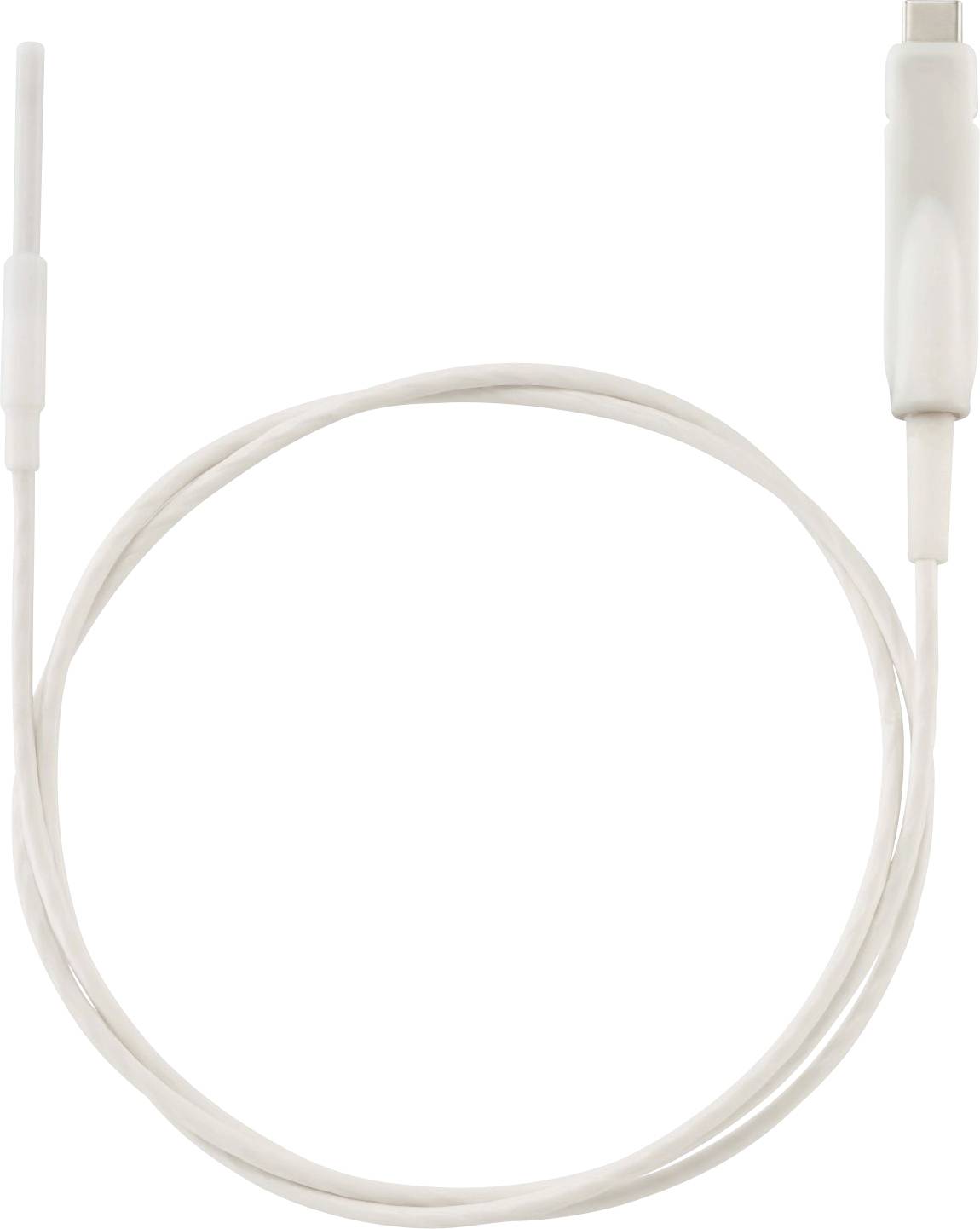

Flexible temperature sensor (digital) - with Pt100-temperature sensor
- Flexible sensor tube – for measurements in difficult to reach areas
- For use in the laboratory and in industry
- Pt100 sensor for precise measurement results
- Intelligent calibration concept with zero error display
Technical specifications
- Suitable for testo 400 , testo 440
- Measurement range -100 to +260 °C
- Accuracy ±(0.3 °C + 0.3 % from MW.)
- Resolution 0.01 °C
- Storage temperature: -20 to +60 °C
- Operating temperature -5 to +50 °C
- Diameter of probe/probe tip 4 mm
- Length of test lead 1,000 mm
- White product color
- Protection class: IP30
- Product type
Temperature sensor;
- Compatible with
testo
- Type
Flexible digital Pt100 temperature sensor for measurement in hard to reach places and for measurement in liquids
- Weight
29
- Width
288 mm
- Height
122 mm
- Length
53 mm
- Type
Flexibler Temperaturfühler (digital) - mit Pt100-Temperatursensor
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3557637 testo 0618 0071 Flexibler Temperaturfühler (digital) - mit Pt100-Temperatursensor Temperature sensor; 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3557637 testo 0618 0071 Flexibler Temperaturfühler (digital) - mit Pt100-Temperatursensor Temperature sensor; 1 pc(s)
Description
Flexible and precise for temperature measurements: The digital temperature sensor with flexible probe tube is (with the suitable measuring device) Ideal for measurements at places difficult to reach and in liquids.
The digital temperature sensor results in particularly precise measurements as the measuring instrument eliminates uncertainty. For calibration, only send in the sensor – thus the measuring device remains in use throughout. The calibration results can be stored on up to six measurement points thanks to the adjustment function in the measuring device. This provides for a zero error display.
This text is machine translated.
The digital temperature sensor results in particularly precise measurements as the measuring instrument eliminates uncertainty. For calibration, only send in the sensor – thus the measuring device remains in use throughout. The calibration results can be stored on up to six measurement points thanks to the adjustment function in the measuring device. This provides for a zero error display.
This text is machine translated.
Scope of delivery
- 1 x flexible temperature sensor (digital) with permanently attached cable (cable length 1.0 m)
- Calibration record
