testo 0618 0072 Robuster, reaktionsschneller Luftfühler (digital) - mit Pt100-Temperatursensor Temperature sensor; 1 pc(
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

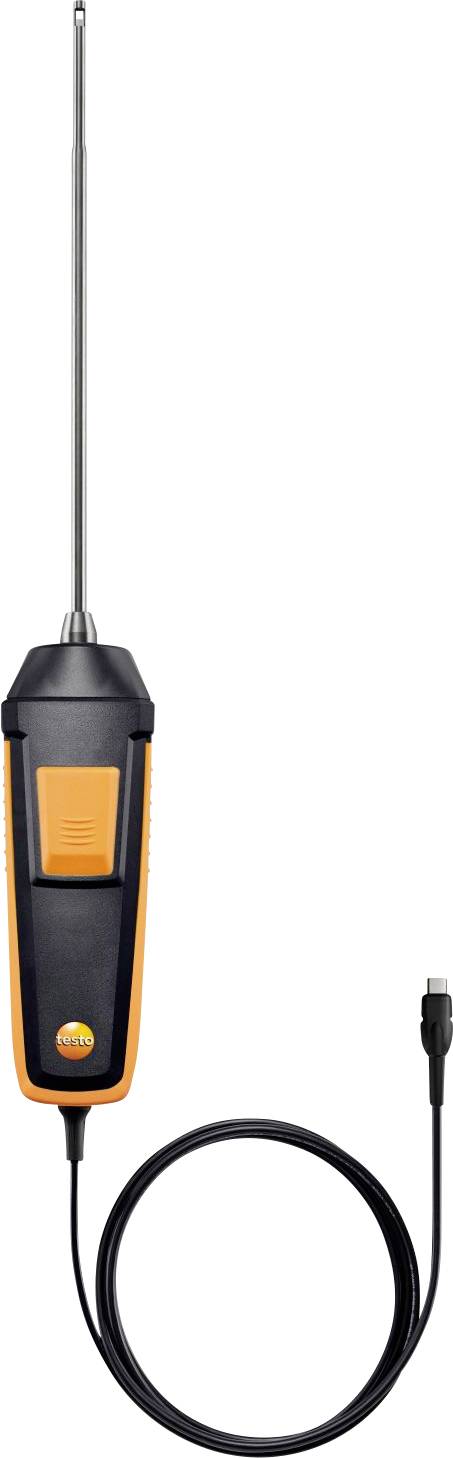

Robust, fast-reacting air probe (digital) - with Pt100 temperature sensor
- Quick response time thanks to free-lying sensor
- For a precise measurement of the air temperature
- Ideal for use in the laboratory, industry and in food control
- Intelligent calibration concept with zero error display
Technical specifications
- Suitable for testo 400, testo 440
- Measurement range -100 to +400 ° C
- Accuracy:
- ±(0.15 °C + 0.05 % from MW.) (0 to +100 °C)
- ±(0.5 °C + 0.5 % from MW.) (+350.01 to +400 °C)
- ±(0.15 °C + 0.2 % from MW.) (+100.01 to +350 °C)
- ±(0.15 °C + 0.2 % from MW.) (-100 to -0.01 °C)
- Resolution 0.01 °C
- Storage temperature: -20 to +60 °C
- Operating temperature -5 to +50 °C
- Diameter of probe/sensor tube 4 mm
- Diameter of probe/probe tip 4 mm
- Cable length 1.4 m.
- Product/casing material plastic
- Length of probe/sensor tube 200 mm
- Product color black/orange
- Product type
Temperature sensor;
- Compatible with
testo
- Weight
182 g
- Width
50 mm
- Height
40 mm
- Length
360 mm
- Type
Robuster, reaktionsschneller Luftfühler (digital) - mit Pt100-Temperatursensor
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3557638 testo 0618 0072 Robuster, reaktionsschneller Luftfühler (digital) - mit Pt100-Temperatursensor Temperature sensor; 1 pc(
User & Safety Instructions
User & Safety Instructions 3557638 testo 0618 0072 Robuster, reaktionsschneller Luftfühler (digital) - mit Pt100-Temperatursensor Temperature sensor; 1 pc(
Description
Short response time, precise temperature measurement: With the robust, digital air sensor you can quickly and precisely measure the air temperature (with the appropriate measuring device) The free-lying sensor enables temperature measurements with a short response time.
Particularly practical: Save individual readings directly to the meter (please order separately) by pressing the button on the probe. The measurement assistant in the measuring device allows intuitive operation and error-free measurement. Thanks to the comfortable input of measurement time and measurement cycle, measured values can be recorded reliably.
The digital temperature sensor results in particularly precise measurements as the measuring instrument eliminates uncertainty. For calibration, only send in the sensor – thus the measuring device remains in use throughout. The calibration results can be stored on up to six measurement points thanks to the adjustment function in the measuring device. This provides for a zero error display.
This text is machine translated.
Particularly practical: Save individual readings directly to the meter (please order separately) by pressing the button on the probe. The measurement assistant in the measuring device allows intuitive operation and error-free measurement. Thanks to the comfortable input of measurement time and measurement cycle, measured values can be recorded reliably.
The digital temperature sensor results in particularly precise measurements as the measuring instrument eliminates uncertainty. For calibration, only send in the sensor – thus the measuring device remains in use throughout. The calibration results can be stored on up to six measurement points thanks to the adjustment function in the measuring device. This provides for a zero error display.
This text is machine translated.
Scope of delivery
- 1 x robust, fast-reacting air probe (digital) with permanently attached cable (cable length 1.4 m)
- Calibration record
