testo 0618 0073 Tauch-/Einstechfühler (digital) - mit Pt100-Temperatursensor Temperature sensor; 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

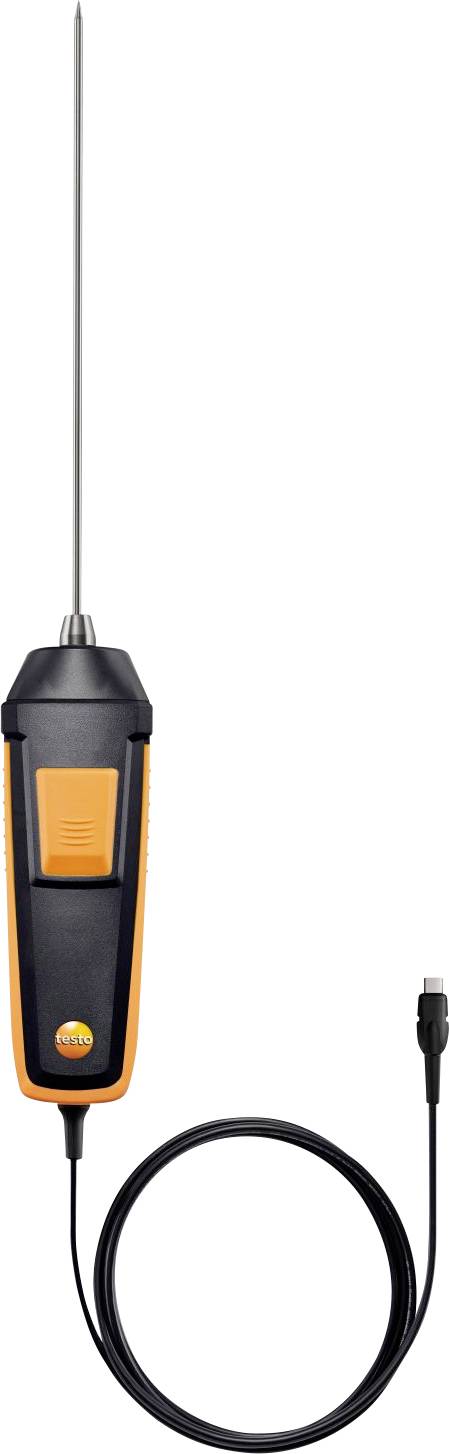

Immersion/insertion probe (digital) - with Pt100 temperature sensor
- Accuracy up to ±0.15 °C.
- For measurements in liquid and paste-type media
- Ideal for use in the laboratory, industry and in food control
- Intelligent calibration concept with zero error display
Technical specifications
- Suitable for testo 400 , testo 440
- Measurement range -100 to +400 ° C
- Accuracy:
- ±(0.15 °C + 0.05 % from MW.) (0 to +100 °C)
- ±(0.5 °C + 0.5 % from MW.) (+350.01 to +400 °C)
- ±(0.15 °C + 0.2 % from MW.) (+100.01 to +350 °C)
- ±(0.15 °C + 0.2 % from MW.) (-100 to -0.01 °C)
- Resolution 0.01 °C
- Response time t₉₀ less than 45 s
- Storage temperature -20 to +60 °C
- Operating temperature -5 to +50 °C
- Length of probe/sensor tube 200 mm
- Product/casing material PC - ABS
- Cable length 1.4 m.
- Diameter of probe/probe tip 3 mm
- Diameter of probe/sensor tube 3 mm
- Product color black/orange
- Product type
Temperature sensor;
- Compatible with
testo
- Weight
182 g
- Width
50 mm
- Height
40 mm
- Length
360 mm
- Type
Tauch-/Einstechfühler (digital) - mit Pt100-Temperatursensor
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3557639 testo 0618 0073 Tauch-/Einstechfühler (digital) - mit Pt100-Temperatursensor Temperature sensor; 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3557639 testo 0618 0073 Tauch-/Einstechfühler (digital) - mit Pt100-Temperatursensor Temperature sensor; 1 pc(s)
Description
Ideal for measurements in laboratories, industry and food control. The precise immersion/insertion probe with long-term stable Pt100 temperature sensor is particularly suitable for temperature measurements in liquids and soft media.
Particularly practical: Save individual readings directly to the meter (please order separately) by pressing the button on the probe. The measurement assistant in the measuring device allows intuitive operation and error-free measurement. Thanks to the comfortable input of measurement time and measurement cycle, measured values can be recorded reliably.
The digital temperature sensor results in particularly precise measurements as the measuring instrument eliminates uncertainty. For calibration, only send in the sensor – thus the measuring device remains in use throughout. The calibration results can be stored on up to six measurement points thanks to the adjustment function in the measuring device. This provides for a zero error display.
This text is machine translated.
Particularly practical: Save individual readings directly to the meter (please order separately) by pressing the button on the probe. The measurement assistant in the measuring device allows intuitive operation and error-free measurement. Thanks to the comfortable input of measurement time and measurement cycle, measured values can be recorded reliably.
The digital temperature sensor results in particularly precise measurements as the measuring instrument eliminates uncertainty. For calibration, only send in the sensor – thus the measuring device remains in use throughout. The calibration results can be stored on up to six measurement points thanks to the adjustment function in the measuring device. This provides for a zero error display.
This text is machine translated.
Scope of delivery
- 1 x immersion/insertion probe (digital) with permanently attached cable (cable length 1.4 m)
- Calibration record
