testo 0635 2143 Gerades Staurohr - zur Messung von Strömungsgeschwindigkeiten Temperature sensor; 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

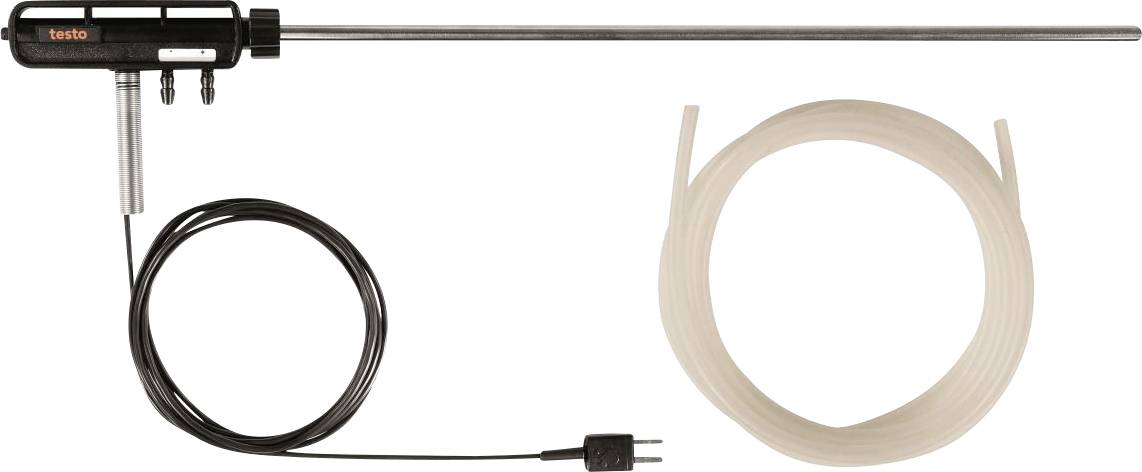

Straight contraction choke - for measuring flow speeds
- Integrated sensor for temperature compensation
- Length: 500 mm
- Measuring range: 1 … 30 m/s.
- Operating temperature 0 °C - +600 °C
Technical specifications
- Measurement range +1 to +30 m/s.
- Length 500 mm
- diameter 8 mm
- Minimum immersion depth 150 mm
- Contraction pipe factor 0.67
- Measuring range: Temperature: 0 to +600°C
- Product type
Temperature sensor;
- Compatible with
testo
- Type
Straight heat pipe with integrated temperature measurement, including connection hose
- Compatible with
testo 635
- Width
8 mm
- Height
500 mm
- Length
500 mm
- Type
Gerades Staurohr - zur Messung von Strömungsgeschwindigkeiten
Manufacturer's standards (no certificate)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3557643 testo 0635 2143 Gerades Staurohr - zur Messung von Strömungsgeschwindigkeiten Temperature sensor; 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3557643 testo 0635 2143 Gerades Staurohr - zur Messung von Strömungsgeschwindigkeiten Temperature sensor; 1 pc(s)
Description
Straight tailpipe (500mm)
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x straight storages
Hints
A connecting hose is required (supplied, but replacement tubes have order no. 0554 0440 or 0554 0453)
