testo 440 Set1 delta P Anemometer
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,696.64 / piece)
€ 1,696.64
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Testo 440 delta P Flow Combination Set 1 with Bluetooth ®
- Delta P Flow Combination Set 1 with Bluetooth ®
- Comfortable: wireless probes, internal data memory, as well as USB-interface for data export
- Space-saving: Combine the universal Bluetooth handle simply with the 100 mm vane or hot-wire probe head and the extendable telescope (1.0 m)
- As varied as their challenges: the testo 440 dP has an integrated differential pressure sensor and is expandable with a large portfolio of digital probes
- Intuitive: Clearly structured measurement menu for volume flow, as well as parallel determination of flow, differential pressure, humidity and temperature in the ventilation duct or ventilation outlets
Technical specifications
- Temperature measuring range -40 to +150°-NTC:
- Differential pressure sensor integrated) - Measuring range: -150 to +150 hPa; piezo-resistive; accuracy: ± 0.05 hPa (0 to 1.00 hPa) ±0.2 hPa + 1.5% of Mw. (1.01 up to +150 hPa); Resolution 0.01 hPa
- Product type
Anemometer
Manufacturer's standards (with certificate)
- Weight
250 g
- Basic accuracy
0.1 %
- Accuracy ± °C
0.3 °C
- Max. temperature
+1370 °C
- Min. temperature
-200 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1661226 testo 440 Set1 delta P Anemometer
User & Safety Instructions
User & Safety Instructions 1661226 testo 440 Set1 delta P Anemometer
Description

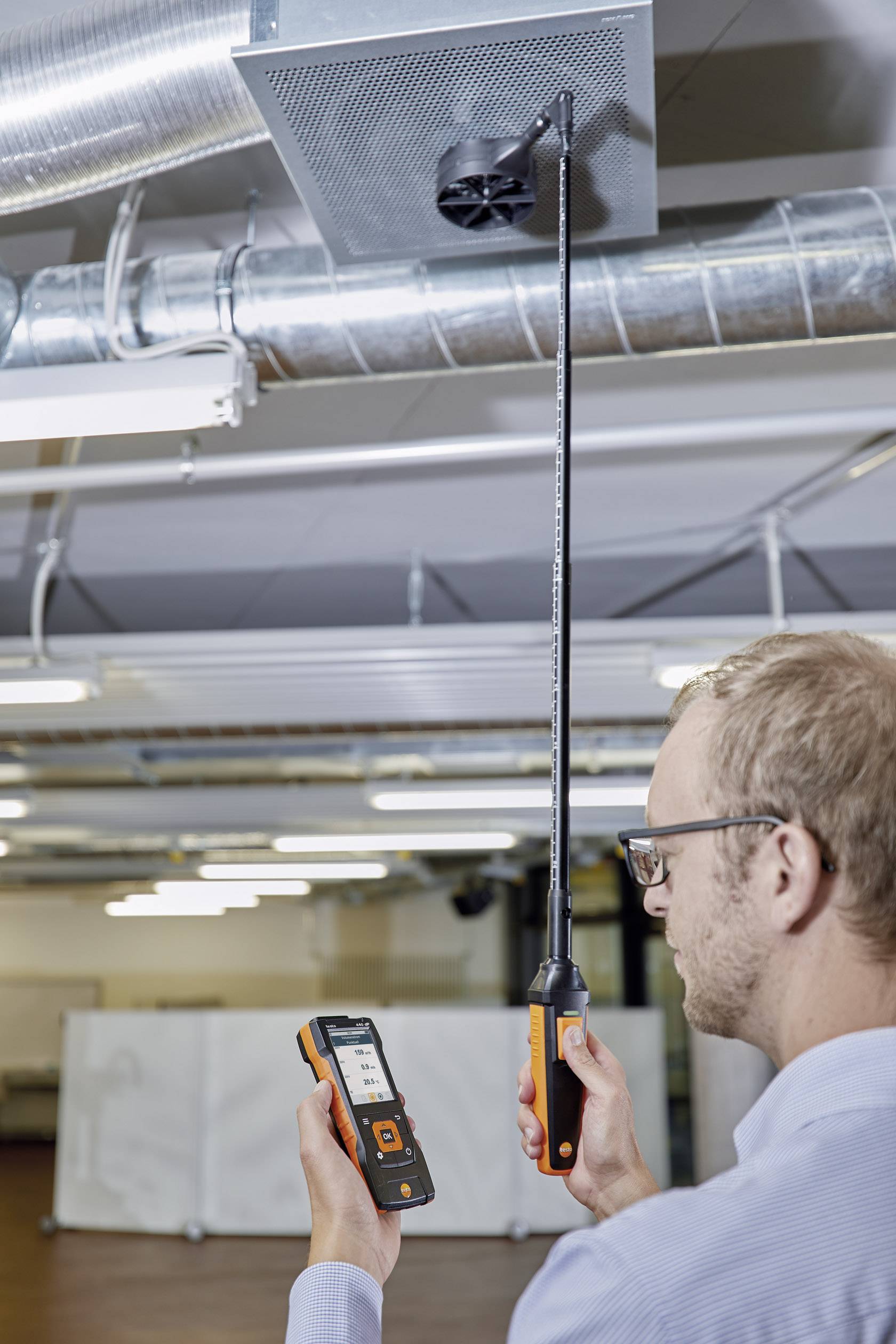

This set allows you to do all relevant measurements in the ventilation duct and the air/Ceiling outlet! The set includes a climate meter testo 440 dP including differential pressure sensor as well as the 100 mm vane probe head and hot-wire probe head (Ø 9 mm) for attaching to the supplied universal Bluetooth handle. For more comfortable measurements can both probe heads with the included in the set telescopic are combined. To Set a suitable combination case included.

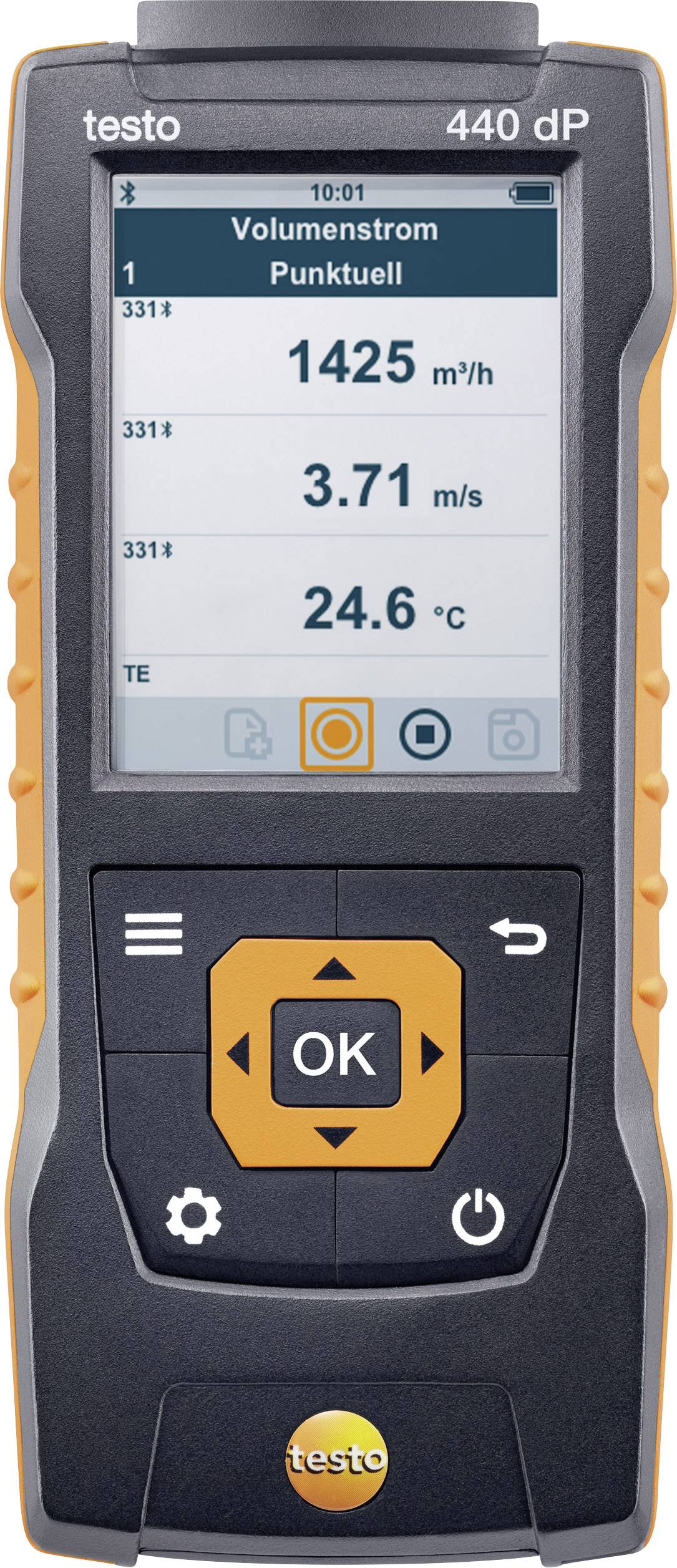

The meter has a large, illuminated color display and has a structured measurement menu by pressing and specific temporal averaging, average volume flow, current measured value, as well as min/max values are displayed. You can also dimension and geometry of the channel cross-section must be entered to calculate an exact calculation of the volume flow. Other measurement menus as long-term measurement and volume flow measurement with funnel are also possible.
The testo 440 meter collects and evaluates your measurement data and may be used up to 7,500 measurement protocols in its integrated measurement data memory.
Measurement protocols can be read via a USB-interface and as a CSV file on the computer (e.g. with Excel) can be processed further.
In the handheld meter are practical magnets to secure the device to metal surfaces (e.g. flow channel) are integrated. Automatic recognition of the probes, is available. Using the button on the handle, the individual measured values. The Bluetooth handle provides for more comfort for your measurement and less cable clutter in the bag!
This text is machine translated.
The meter has a large, illuminated color display and has a structured measurement menu by pressing and specific temporal averaging, average volume flow, current measured value, as well as min/max values are displayed. You can also dimension and geometry of the channel cross-section must be entered to calculate an exact calculation of the volume flow. Other measurement menus as long-term measurement and volume flow measurement with funnel are also possible.
The testo 440 meter collects and evaluates your measurement data and may be used up to 7,500 measurement protocols in its integrated measurement data memory.
Measurement protocols can be read via a USB-interface and as a CSV file on the computer (e.g. with Excel) can be processed further.
In the handheld meter are practical magnets to secure the device to metal surfaces (e.g. flow channel) are integrated. Automatic recognition of the probes, is available. Using the button on the handle, the individual measured values. The Bluetooth handle provides for more comfort for your measurement and less cable clutter in the bag!
This text is machine translated.
Scope of delivery
- Testo 440 DP climate meter incl. differential pressure sensor, connection hose, 3 x AA batteries, USB cable
- Impeller probe (Ø 100 mm) with Bluetooth incl. temperature sensor (consisting of 100 mm impeller probe head, handle adapter and Bluetooth handle), holder for testevent measuring funnel, 4 x AA batteries
- Hot wire probe head (Ø 9 mm) incl. temperature and humidity sensor

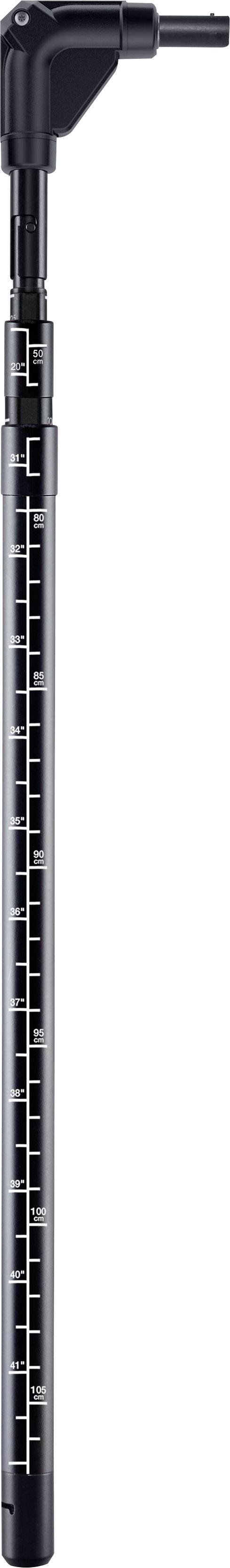

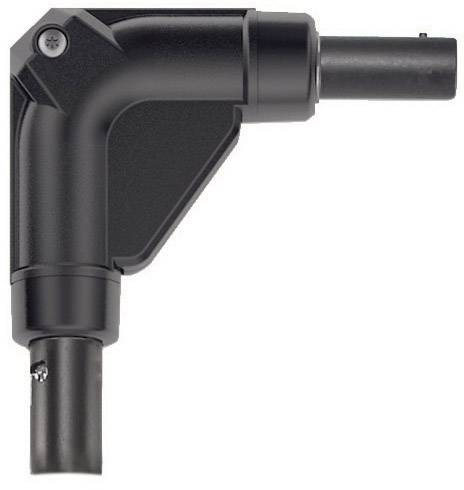

- Extendable telescope (length up to 1 m) for flow probes with universal handle including 90° angle (0554 0960)
- Combination case for Testo 440 and several probes (0516 4401)
