testo 510i Smart Probes Pressure gauge Pressure Magnetic rear panel
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
Differential Pressure meter testo 510 i
- Measurement of Gasfliess-/standby pressure and volume flow
- Data Analysis and shipping via testo Smart Probes App
- Magnetic holder for easy fixing
Technical specifications
- Storage temperature: -20 to +60 °C
- Operating temperature -20 up to +50 °C
- Product type
Pressure gauge
- Unit of measurement
Pressure
- Reading range - air pressure
-150 to 150 hPa
Manufacturer's standards (no certificate)
- Print resolution
0.01 hPa
- Accuracy
±0.05 hPa (0 to 1 hPa)
± (0.2 hPa + 1.5% of Mw.) (1 to 150 hPa)
- Dim
(L x W x H) 148 x 36 x 23 mm
- Features
Magnetic rear panel
- Width
36 mm
- Height
23 mm
- Length
148 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1406225 testo 510i Smart Probes Pressure gauge Pressure Magnetic rear panel
User & Safety Instructions
User & Safety Instructions 1406225 testo 510i Smart Probes Pressure gauge Pressure Magnetic rear panel
Information
Information 1406225 testo 510i Smart Probes Pressure gauge Pressure Magnetic rear panel
Description

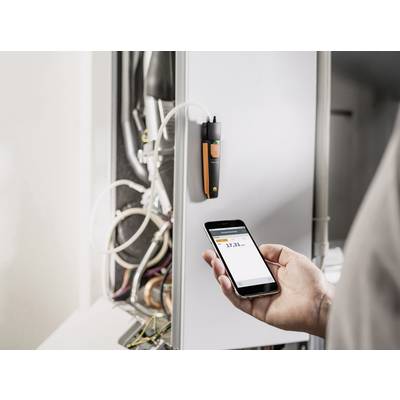

Compact professional measuring device from the Testo Smart probes series for use with smartphones/tablets. The Differential Pressure meter testo 510 i is suitable for use in combination with a smartphone or tablet for the measurement of the gasfliess and rest pressure, from pressure waste to fans and filters as well as the pressure drop test on gas lines. In addition, the compact measuring device for determining air speed and the flow rate can be used.
This text is machine translated.
This text is machine translated.
Features
- For use with smartphones/tablets
- Measuring menu for pressure drop testing including alarm
- Simple configuration and determination of the volume flow.
System requirements
- IOS 8.3 or later
- Android 4.3 or later
- Mobile device with Bluetooth ® 4.0
