Buy testo 512-1 Pressure gauge Air pressure 0 - 200 hPa

Handheld pressure measuring device with digital display showing '450 Pa' and '86 m/s'. Contains buttons for mode and menu. Modification device for air flow measurements.

Rear view of a digital measuring device, showing verification mark, serial number, and manufacturer's contact information.

Handheld pressure and flow measurement device, displaying '450 Pa' and '86 m/s' on the screen. Control buttons visible underneath.

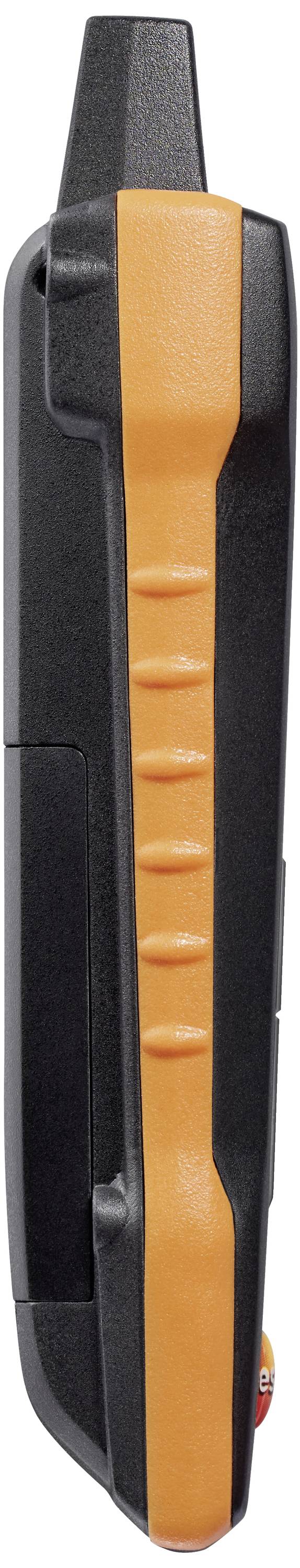

Side view of a black device with an orange handle and textured design.

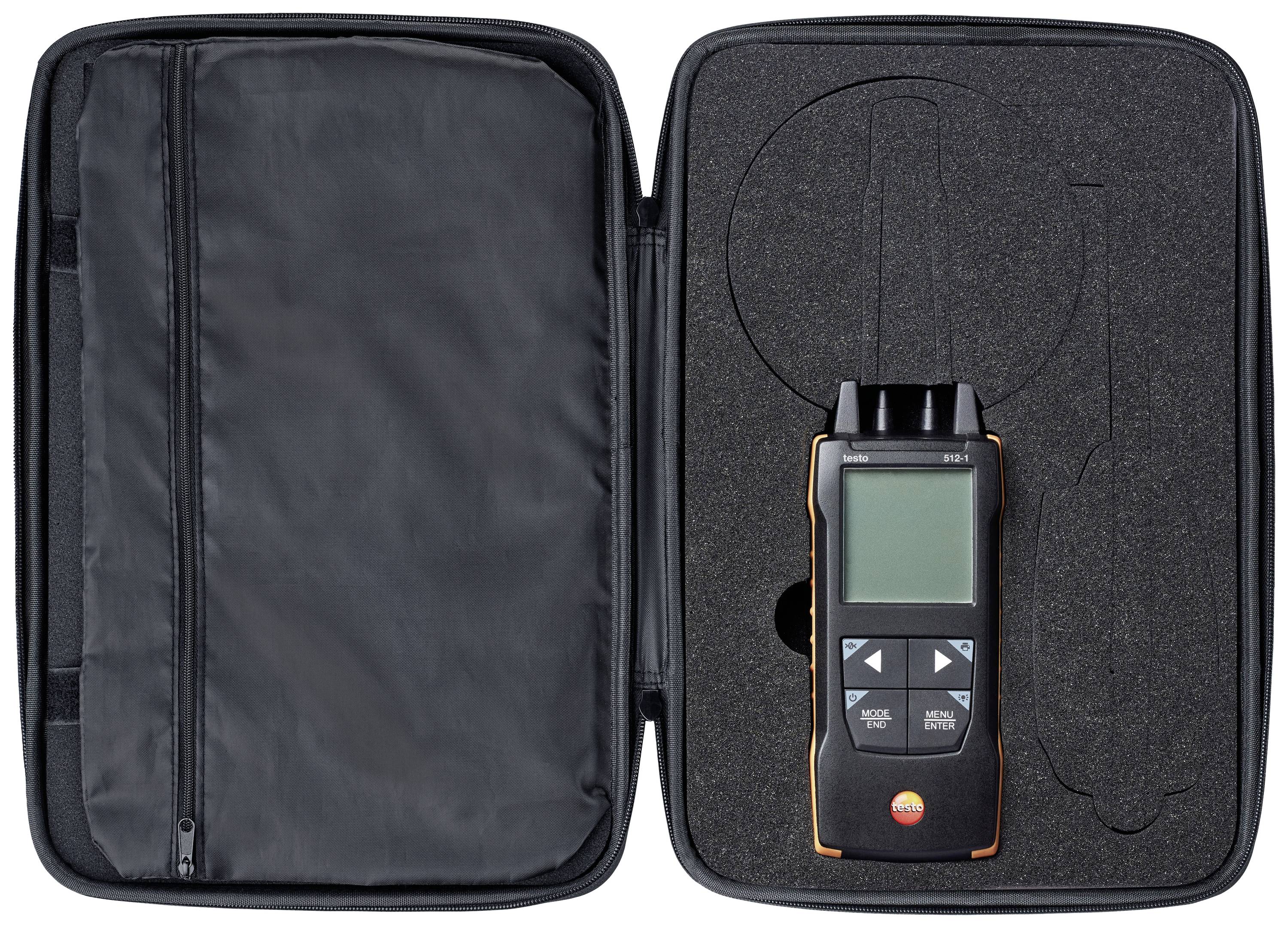

Portable electronic measuring device tester in an open black case. The device has a display and functional buttons.

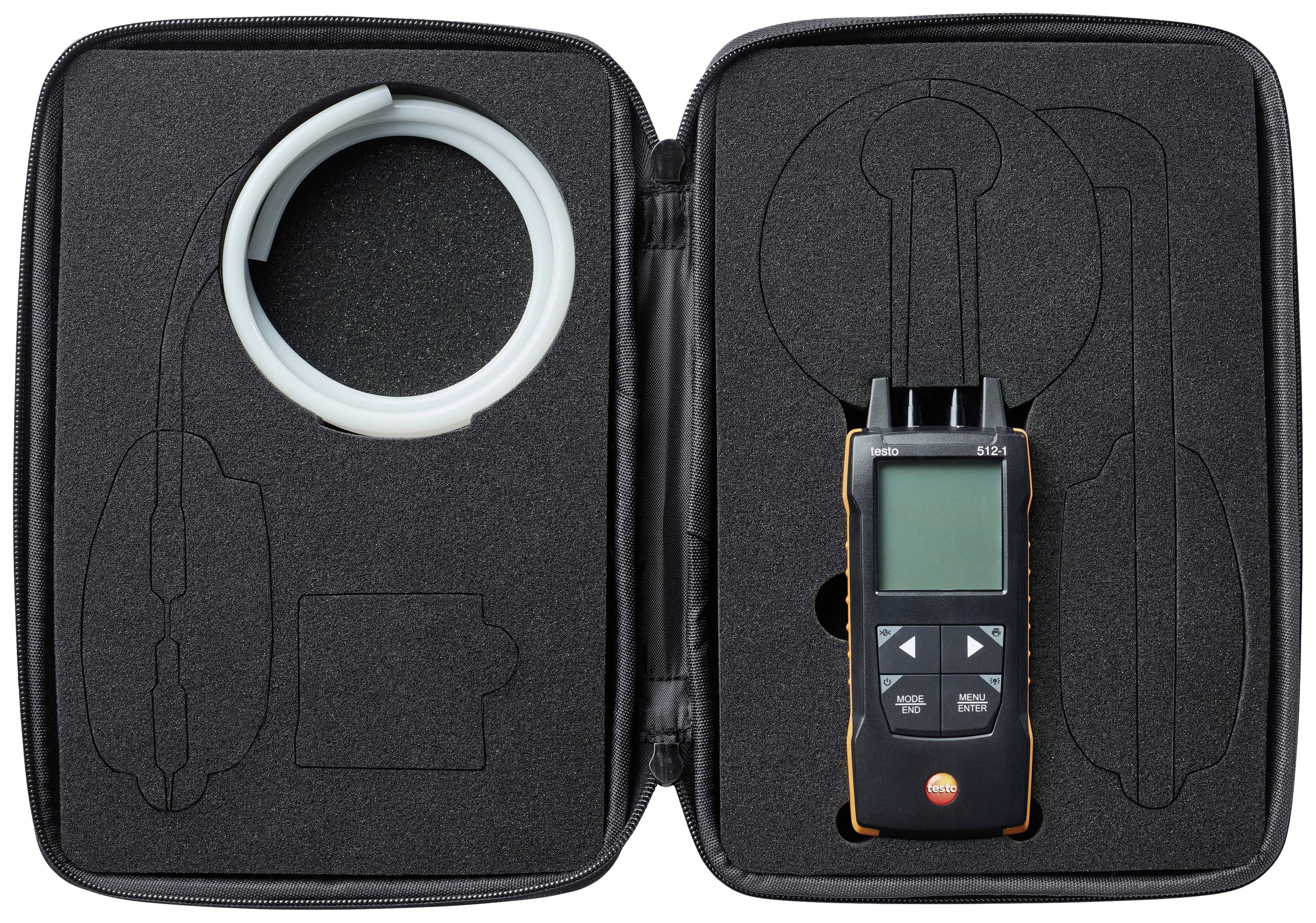

'Measuring device for electrical resistance in a protective case with foam lining, oval coil on the left side.'

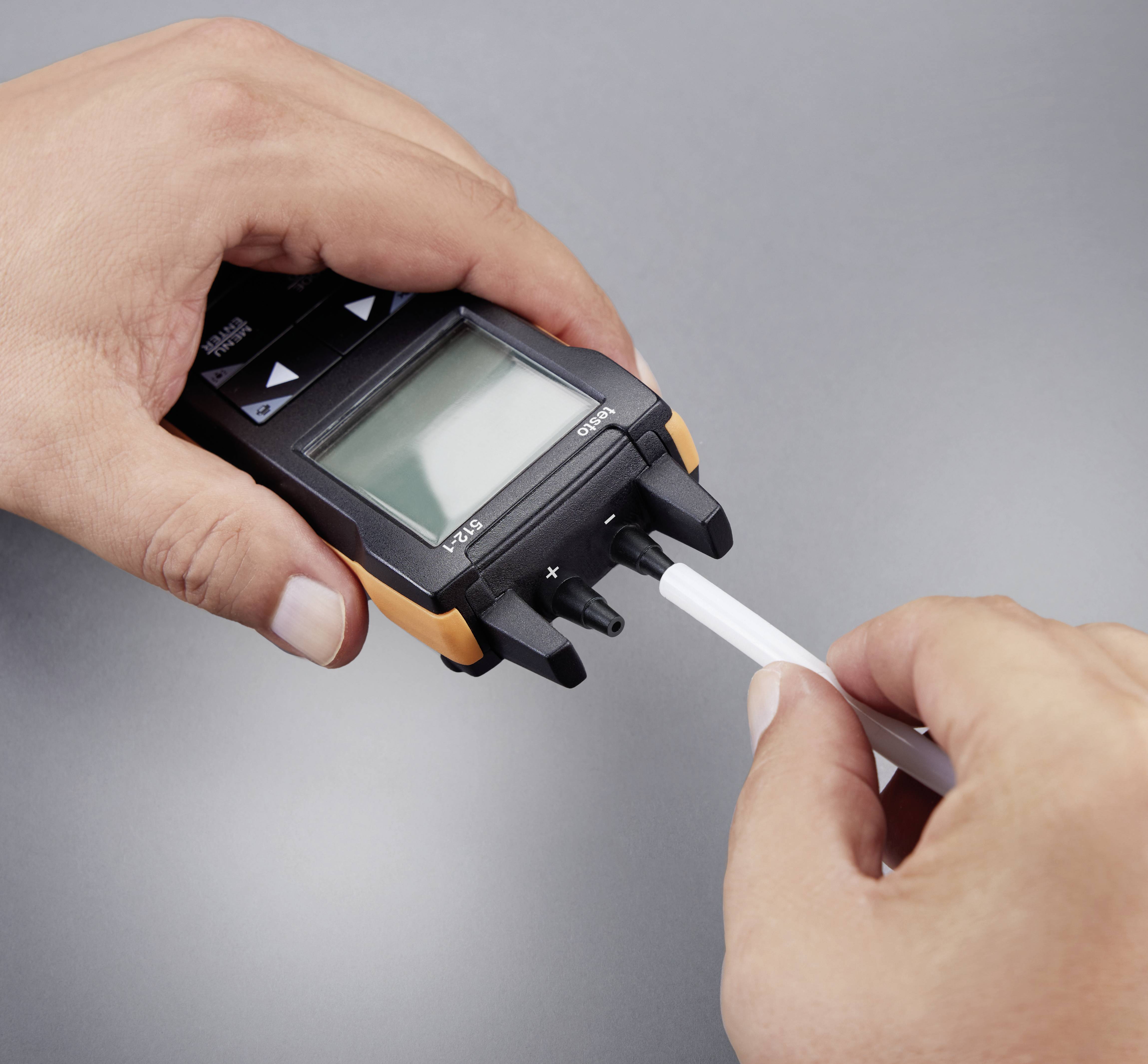

A person is holding a digital measuring device in their left hand, while their right hand connects a sensor to the device.

1/7

Datasheet (PDF)

Fast track dispatch on Thu, 24 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 508.40 / piece)

€ 508.40

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

testo 512-1 – Digital differential pressure meter with app-enabled connection

Simple, fast and precise differential pressure measurement (0…200 hPa) for checking filters and for measuring tailpipe in the ventilation ductReliable measurement results through position-independent differential pressure sensor with high accuracyFast in-app (channel) configuration, graphics history, second screen and data storage in the testo Smart APP Volume flow calculation in measuring instrument and APP

Technical specifications

Power supply (details): 3x AA battery

Product type: Pressure gauge

Reading range: 0 - 200 hPa

Unit of measurement: Air pressure

Reading range - air pressure: 0 - 200 hPa

: Manufacturer's standards (no certificate)

Temp.: -20 °C to 50 °C

: IP40

Dim: (L x W x H) 146 x 60 x 28 mm

Weight: 190 g

Reading range (max.): 200 hPa

Reading range (min.): 0 hPa

Width: 60 mm

Height: 28 mm

Length: 146 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2757533 testo 512-1 Pressure gauge Air pressure 0 - 200 hPa

User & Safety Instructions

User & Safety Instructions 2757533 testo 512-1 Pressure gauge Air pressure 0 - 200 hPa

Description

Differential pressure measurement fast, simple and precise: This is what the compact testo 512-1 measuring device stands for, which measures pressures up to 200 hPa. In practice, it is convincing due to its flexibility and application diversity. This means that the gas pressure at the burners can be controlled just as quickly and precisely by measuring the gas flow pressure and the gas rest pressure, as is the testing of filters and the tailpipe measurement in the ventilation duct. The position-independent differential pressure sensor provides for reliable and highly exact results of measurement. The testo Smart APP for smartphones and tablets can help you with these features: Configuring the meter, displaying graphs of measurements, saving measurement data, managing customers and measuring points, on-site documentation, emailing the report.

This text is machine translated.

Features

The compact differential pressure measuring device testo 512-1 (0…200 hPa) with app connection is Ideal suitable for the simple, fast and precise determination of the pressure at gas heating systems, as well as for checking the filters on air-conditioning systems.

Scope of delivery

testo 512-1 - Differential pressure measuring device with app connection, measuring range 0 ... 200 hPa, audible AlarmBagCalibrated protocol3x AA battery
