testo 513 Gas leak detector 0.0001 - 1 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 256.30 / piece)
€ 256.30
plus VAT.
Highlights & Details

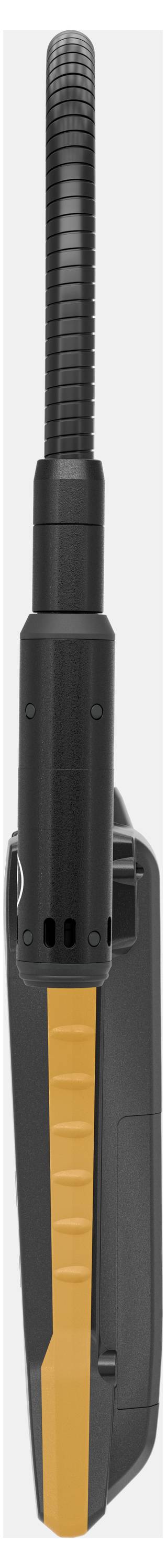

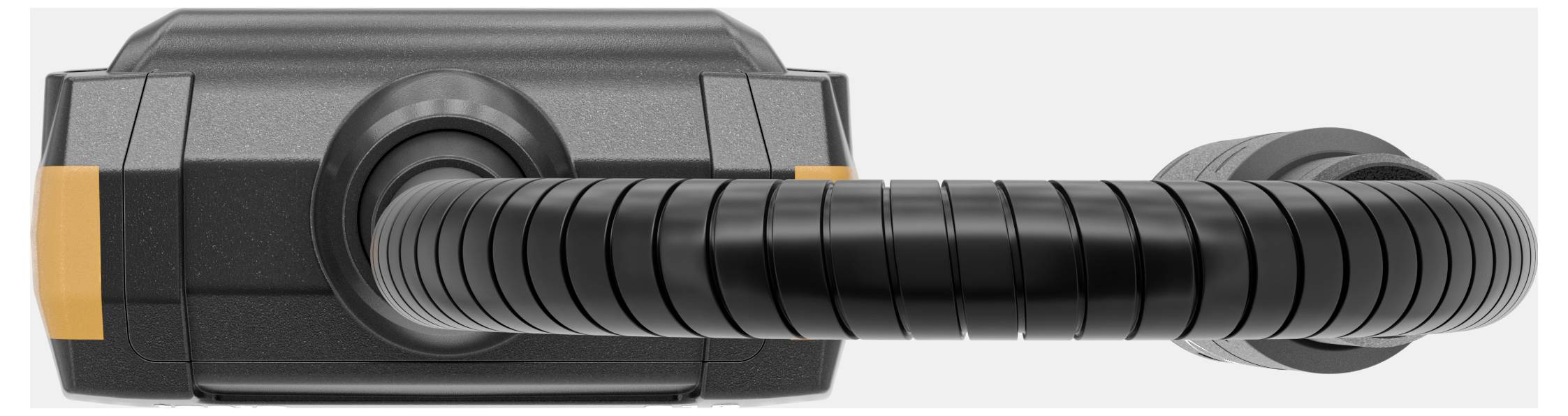

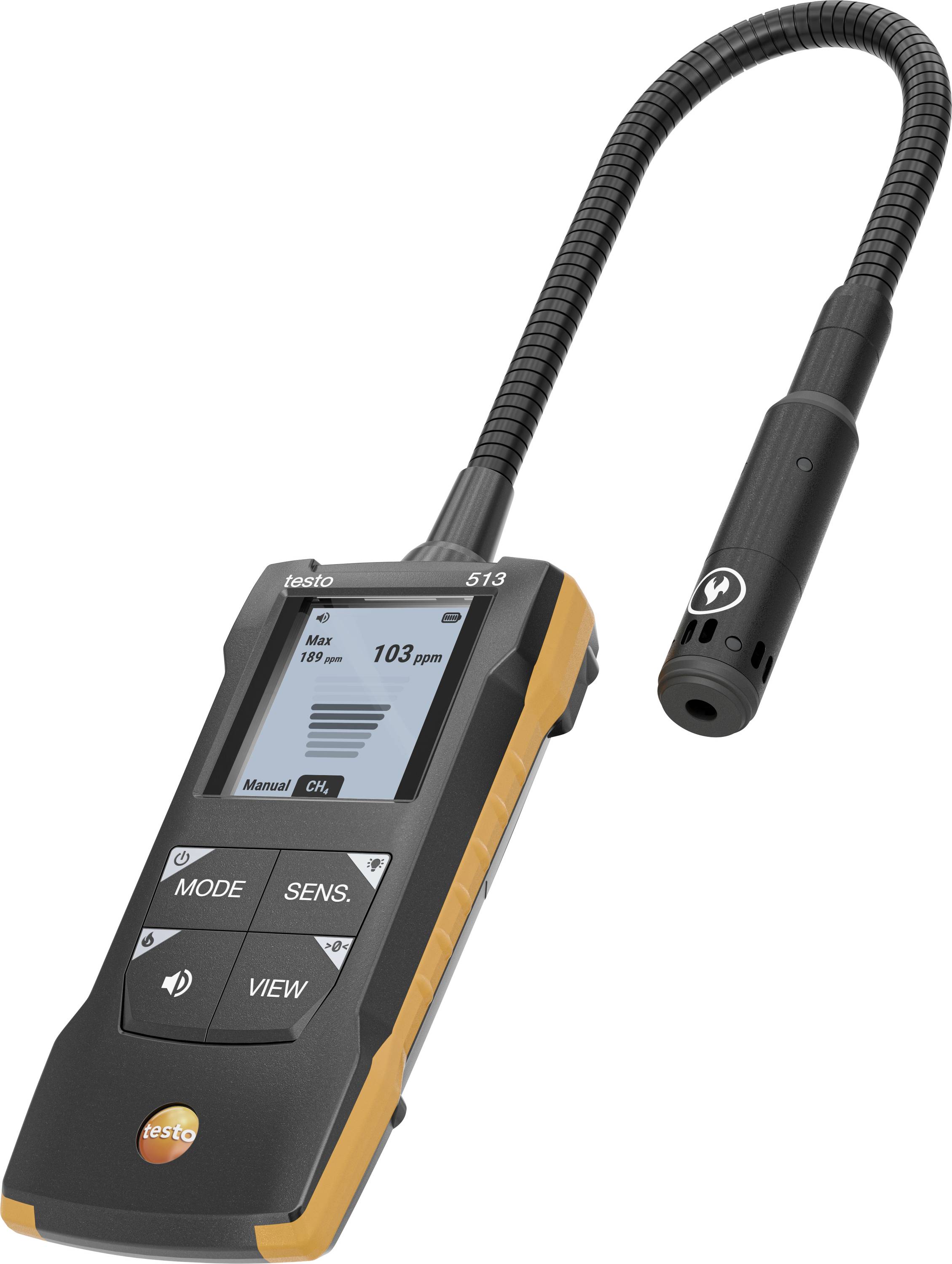

testo 513 - Gas leakage detector
- High sensitivity: A sensitivity of u. 3 g/a enables the detection of even the smallest leakages
- Fast: Leak detection with a response time of and 2 sec.
- Measurement parameters: Ppm, Vol. %
- Comfortable: Leak detection with the help of a flexible and robust gooseneck
- Simple and safe: Selectable display modes (numerical and column chart) for reliable leak detection
- Zero setting: Automatic zero setting for fast and accurate location Manual zero setting option for individual adjustment
Technical specifications
- Reading range
1ppm ... 1.0 %
- Product type
Gas leak detector
- Unit of measurement
Hydrogen
Propane
Methane
- Reading range
0.0001 - 1 %
- Dim
(L x W x H) 135 x 60 x 28 mm
- Resolution
1 ppm, 0.1% vol
- Weight
296 g
- Cable length
330 mm
- Reading range (max.)
1 %
- Reading range (min.)
0.0001 %
- Width
60 mm
- Height
28 mm
- Length
135 mm
- Power supply (details)
3x AA alkaline batteries
Documents & Downloads
Datasheet
Datasheet 3787099 testo 513 Gas leak detector 0.0001 - 1 %
User & Safety Instructions
User & Safety Instructions 3787099 testo 513 Gas leak detector 0.0001 - 1 %
Description
The testo 513 is an easy to use and reliable gas leakage detector, which has been developed for the detection of flammable gases such as methane, propane, butane and hydrogen at gas boilers in residential and industrial buildings as well as similar systems. The leak detector is designed for daily use and is characterized by reaction and recovery times in seconds. Leaks can be located in precision mode thanks to the adjustable display modes and the automatic zero-position function. The sensor can be replaced by the user, which minimizes downtime and reduces operating costs.
This text is machine translated.
This text is machine translated.
Scope of delivery
- testo 513 - Gas leakage detector with gas sensor
- Transport bag
- Batteries
- Protective cover
