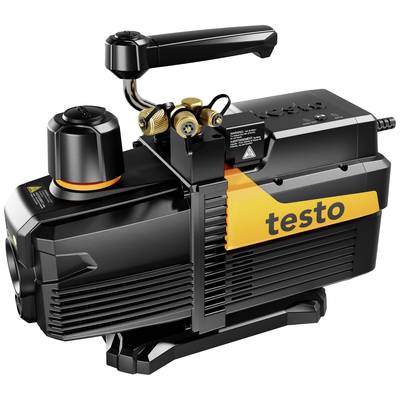

Buy testo 565i Vacuum pump 198 l/min

Black, rectangular device with an orange stripe, lever, and gold valve connection. Instruction label on the front.

Black electric switch on powerful industrial equipment, top fitted with brass valve and black lever, robust metal construction.

The image depicts a black, rectangular motor or technical device with a visible screw structure and a connection point at the bottom.

A technician is standing next to an air conditioning unit, holding a smartphone. A diagnostic device is connected to the air conditioning unit, and a vacuum pump is positioned in front of it.

A technician is working on an air conditioning unit. In the foreground, a testing device sits on a case.

A man is inspecting an air conditioning unit outdoors. He is using a testing device and is kneeling in front of the unit on a paved surface.

A technician is checking an opened external unit of an air conditioning system with a tablet. A testing device is connected.

1/12

Datasheet (PDF)

24 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 486.55 / piece)

€

Report legal concerns

Technical specifications

Final vacuum: 15 micrometer
REFRIGERANT: A2L, A2, A3
Pump type: Rotary slide pump
Number of steps: 2-stage pump

Max. feed rate: 198 l/min

Weight: 12 kg

Product type: Vacuum pump

Documents & Downloads

Datasheet

Datasheet 3191939 testo 565i Vacuum pump 198 l/min

User & Safety Instructions

User & Safety Instructions 3191939 testo 565i Vacuum pump 198 l/min

Description

The testo 565i vacuum pump makes evacuations very easy. Thanks to smart technology and connection to the testo 552i vacuum probe, the testo 565i automatically stops the evacuation when the desired target value was reached and starts a vacuum holding test independently. The entire process is thus completely done by itself. Can be used with A3 and A2L refrigerants as intended. For details see user manual.

This text is machine translated.

Features

Fully automated evacuations with integrated hold test when used in combination with the testo 552i vacuum probe
Can be used with A3 and A2L refrigerants as intended. For details see user manual.
APP for everything: Configure measurements, monitor and manage data with the testo Smart APP
Easy oil change and sight glass for a quick assessment of the oil level
Check valve to prevent vacuum loss if power is interrupted
Perfect interaction of the workflows through full connectivity to the entire testo cold portfolio
