Buy testo 860i Set IR camera -20 up to 350 °C 9 Hz

'Testo 860i Infrared Thermometer' with USB charging cable and storage pouch, suitable for precise temperature measurements.

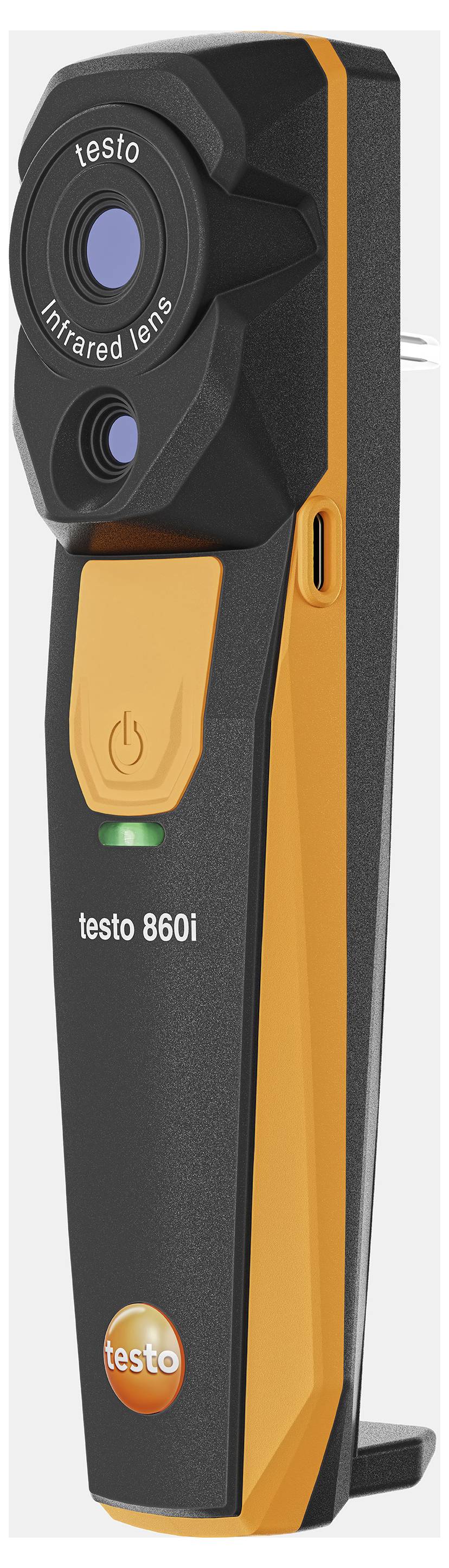

Infrared thermometer with display and two lenses for precise temperature measurement. Marking: 'testo 860i'. Black and orange casing.

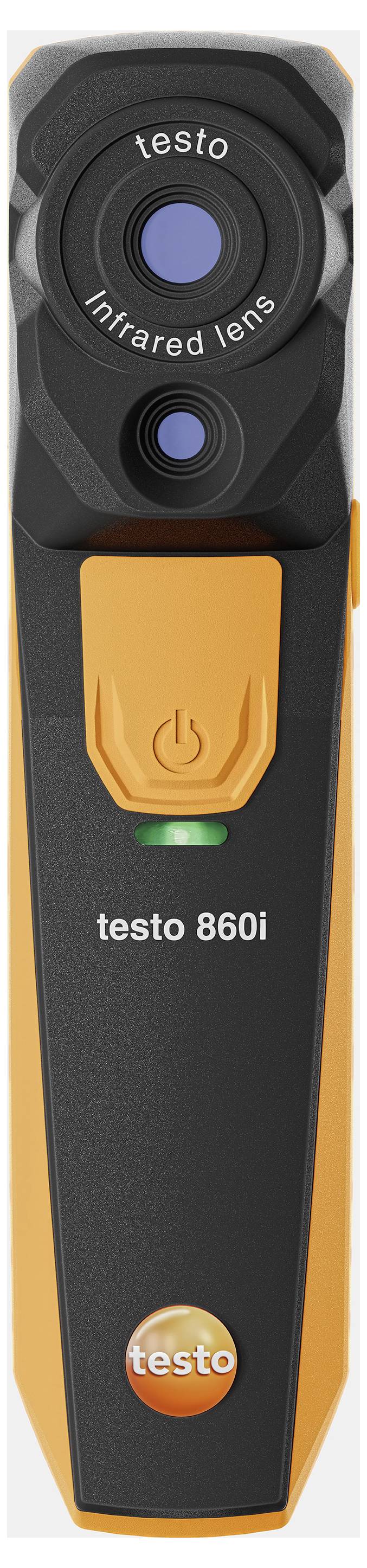

A portable infrared camera device by Testo, model 860i, with an orange button and two lenses for temperature measurements.

Black electric hair clipper with a slim design, rounded edges, and a silver cutting attachment on top.

Black electric telecommunications key with silver contacts at the top, vertically oriented.

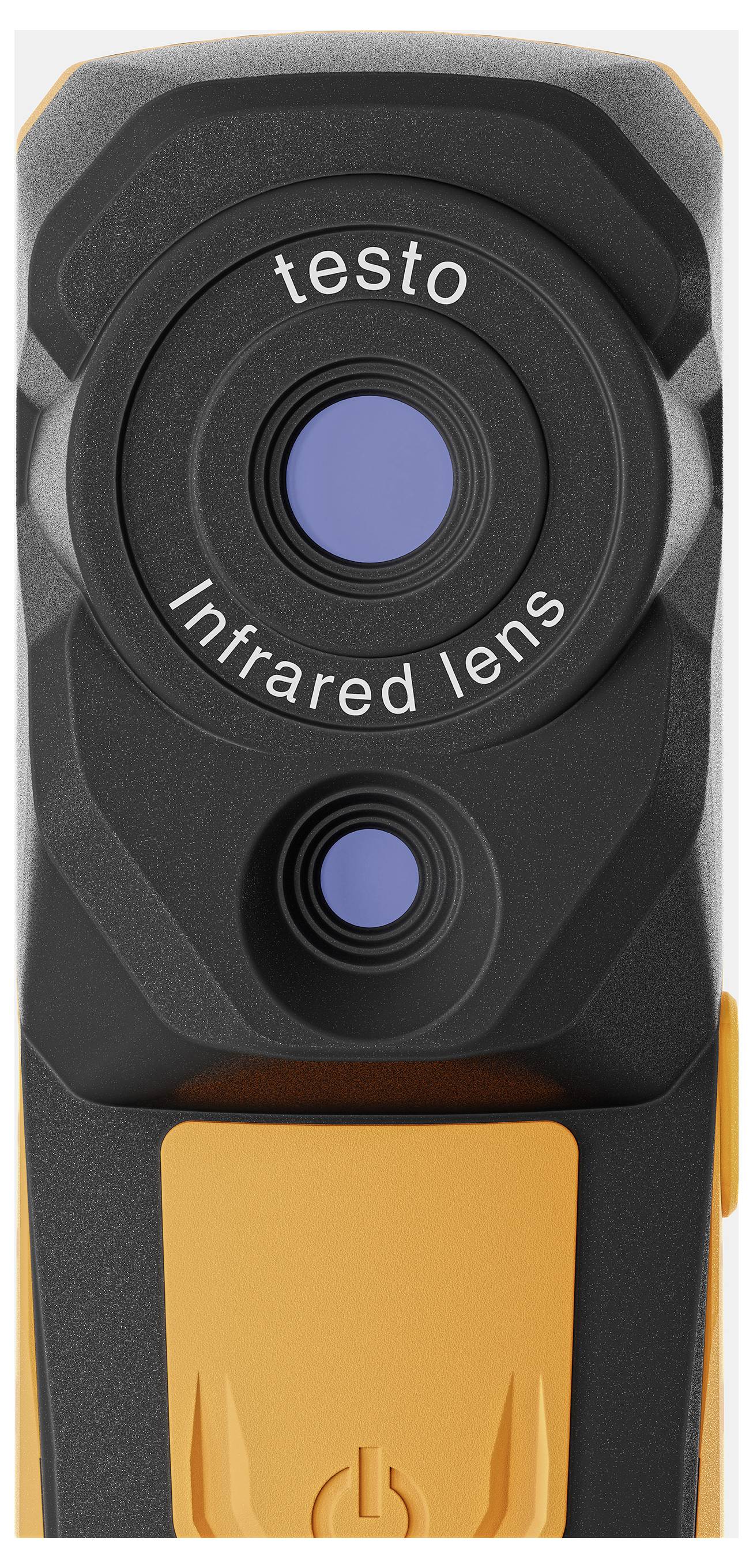

Infrared lens with two blue lenses and the inscription 'testo Infrared lens'.

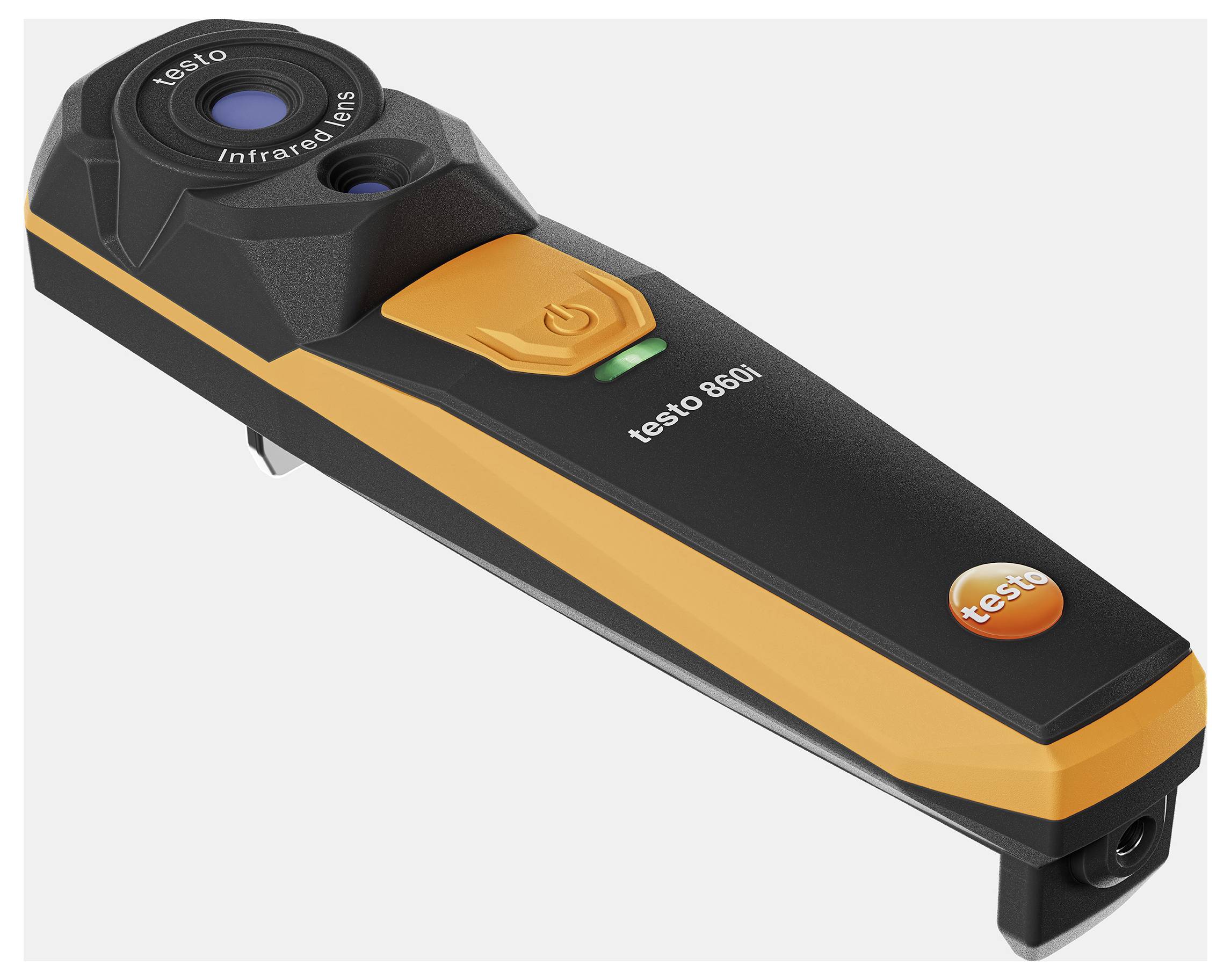

A black and orange infrared thermometer by Testo with two lenses and a power button on the top surface.

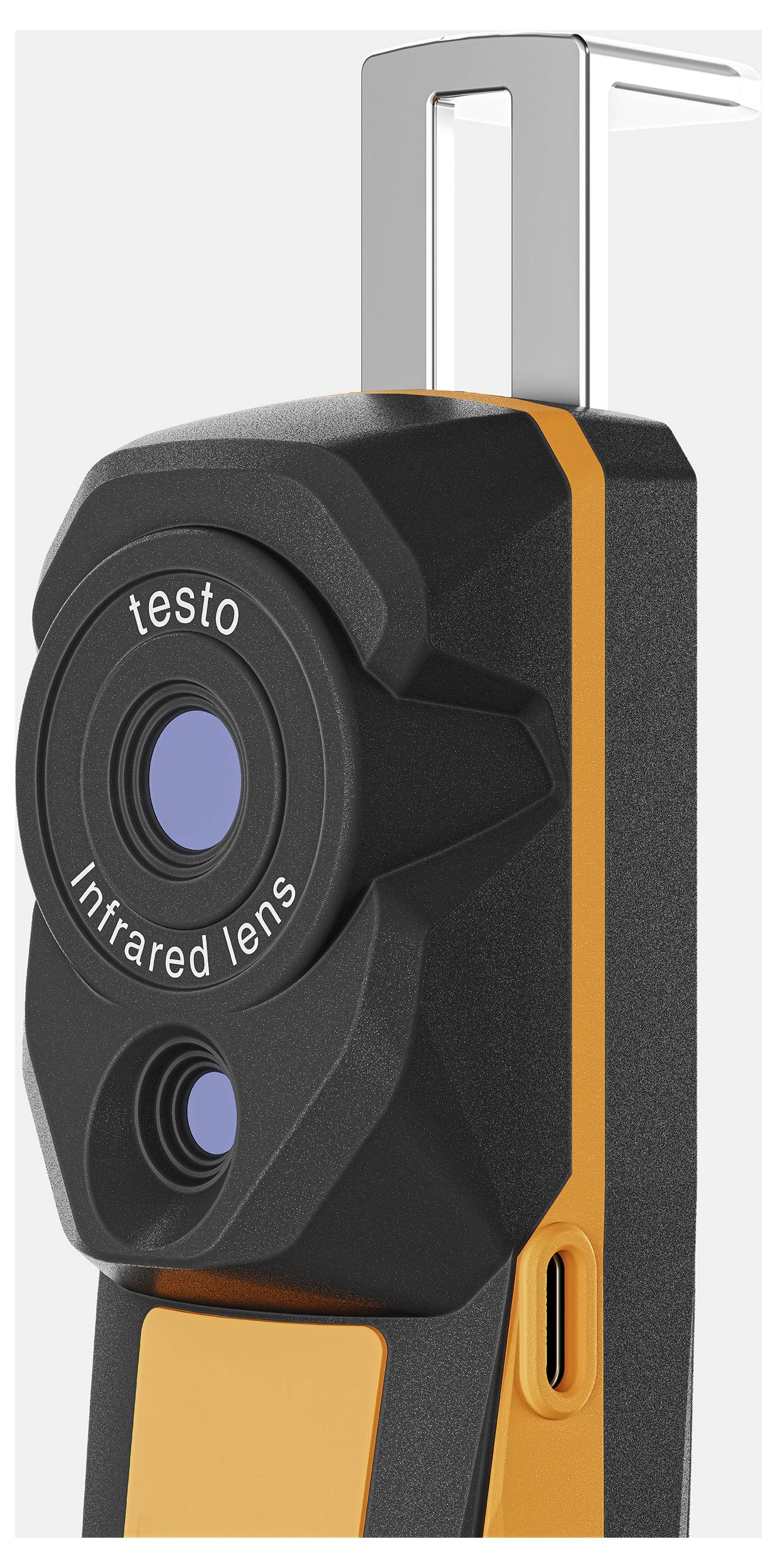

A handy infrared thermometer in black and orange with a built-in camera, suitable for precise temperature measurements.

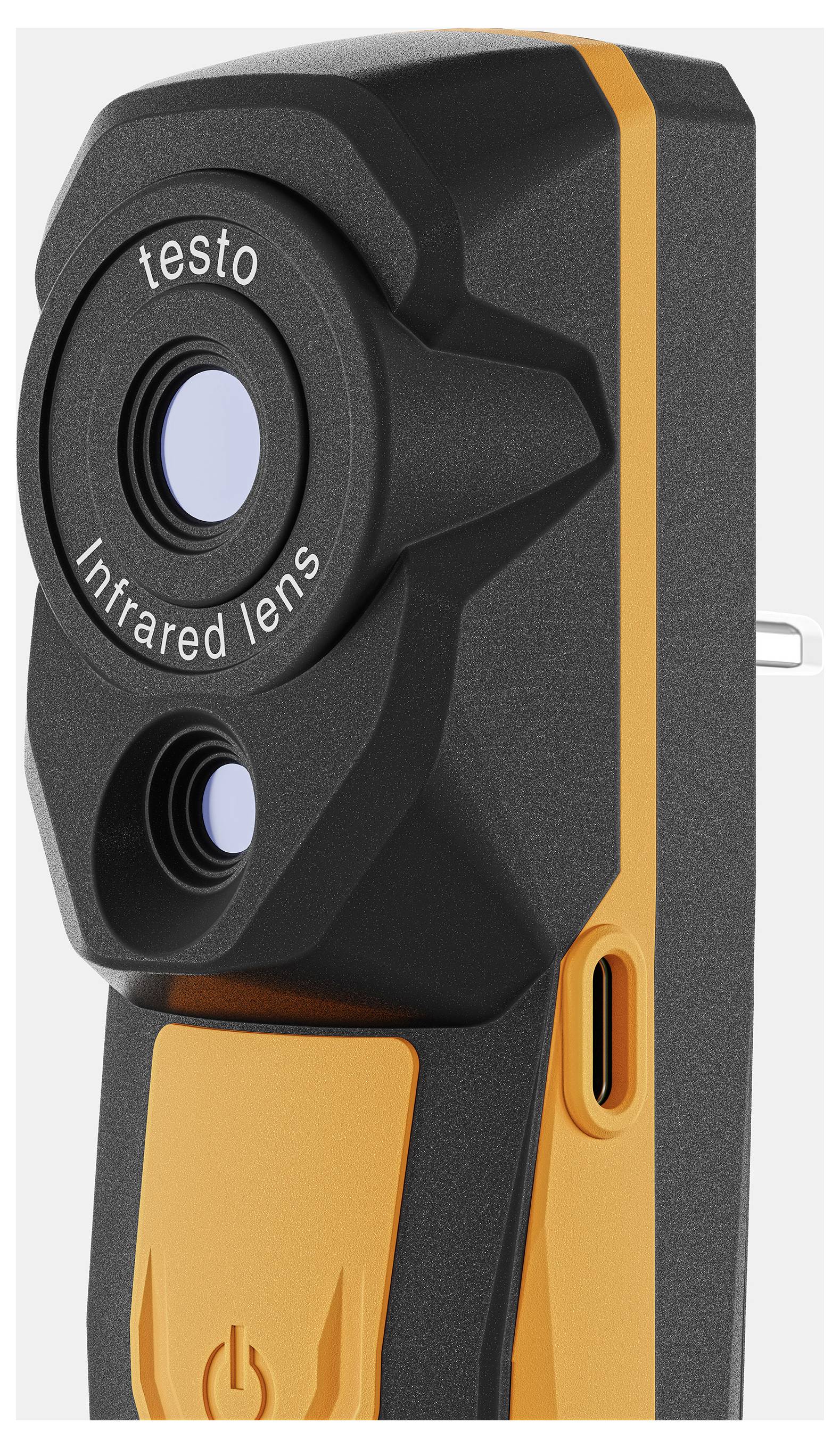

Entry of an infrared camera with a black and orange housing. Device has two lenses and a USB-C interface.

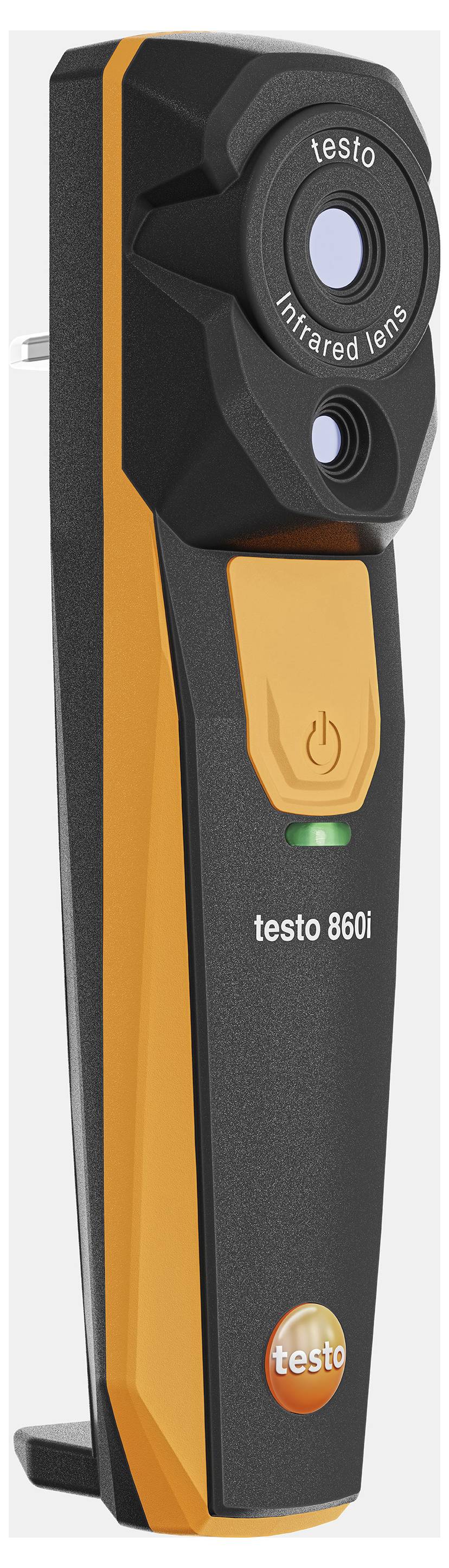

Thermal imaging camera in black and orange with infrared lens and marking 'testo 869i'.

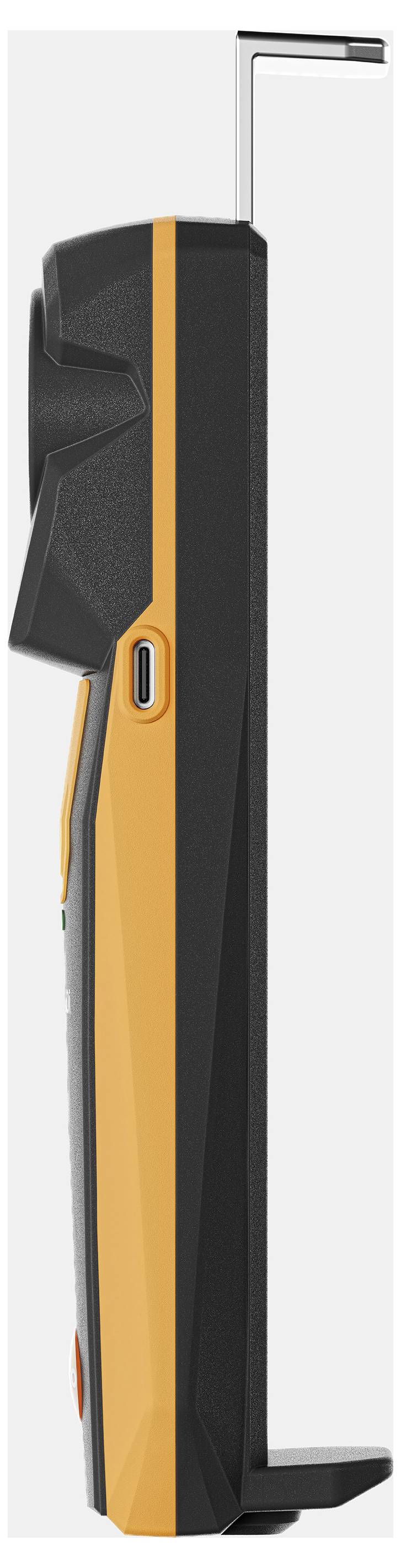

A modern, portable device in black and orange, possibly a measuring tool, displays a protruding, thin metal rod.

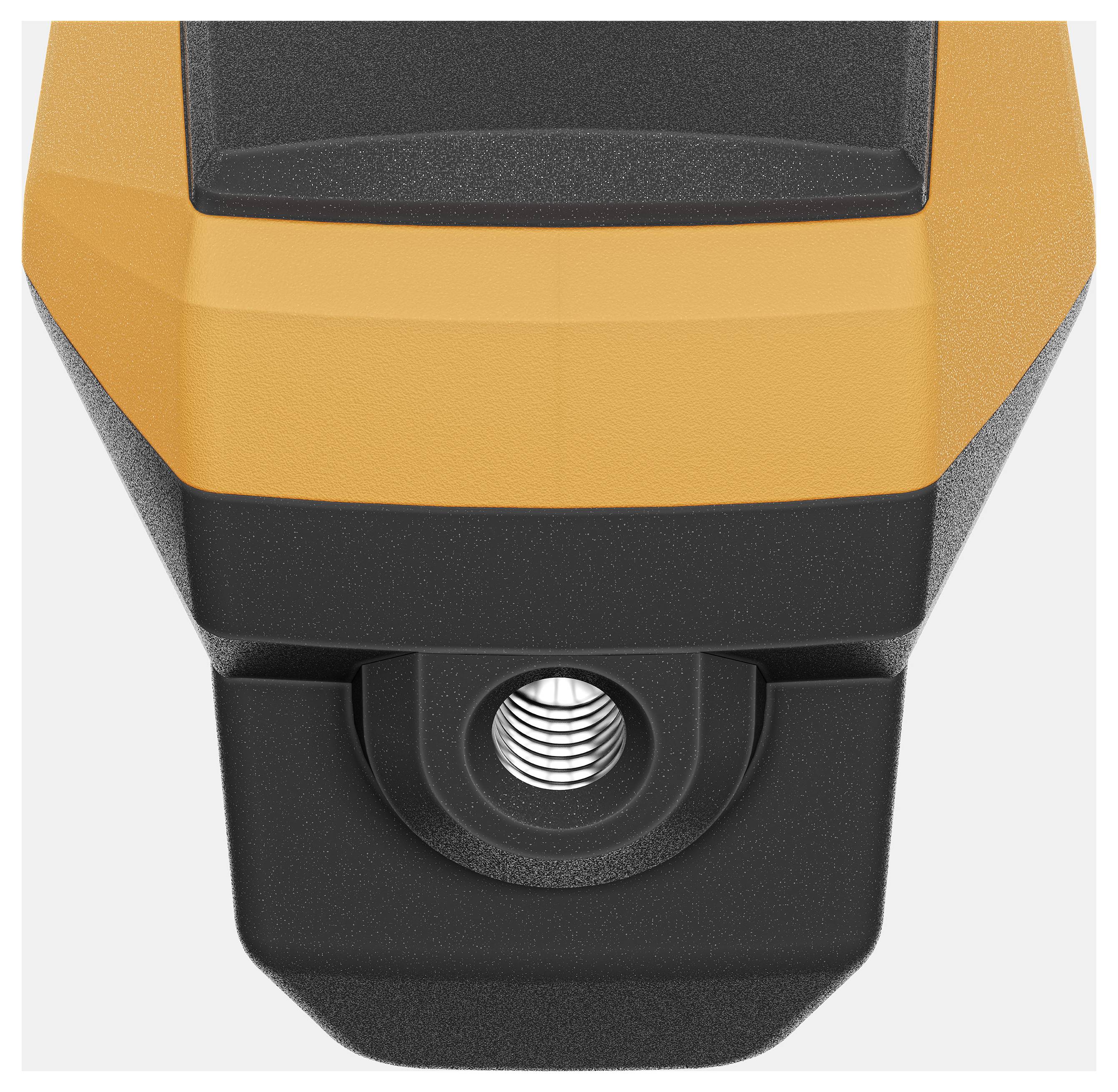

Close-up of a modern, orange-black device technology, possibly a sensor or measuring instrument, with a protruding lens.

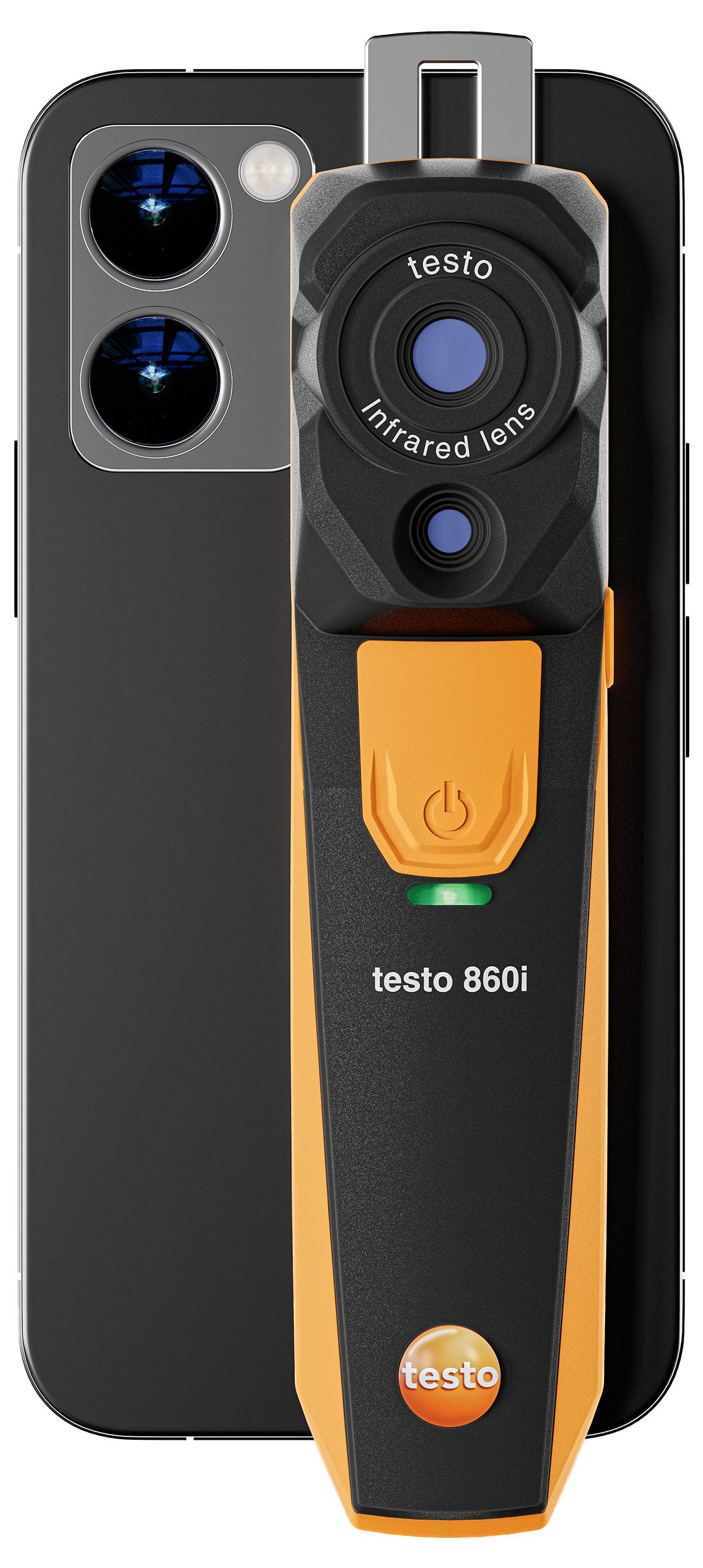

A mobile infrared thermometer, model testo 860i, with smartphone holder, shows temperature measuring device with design accents in orange and black.

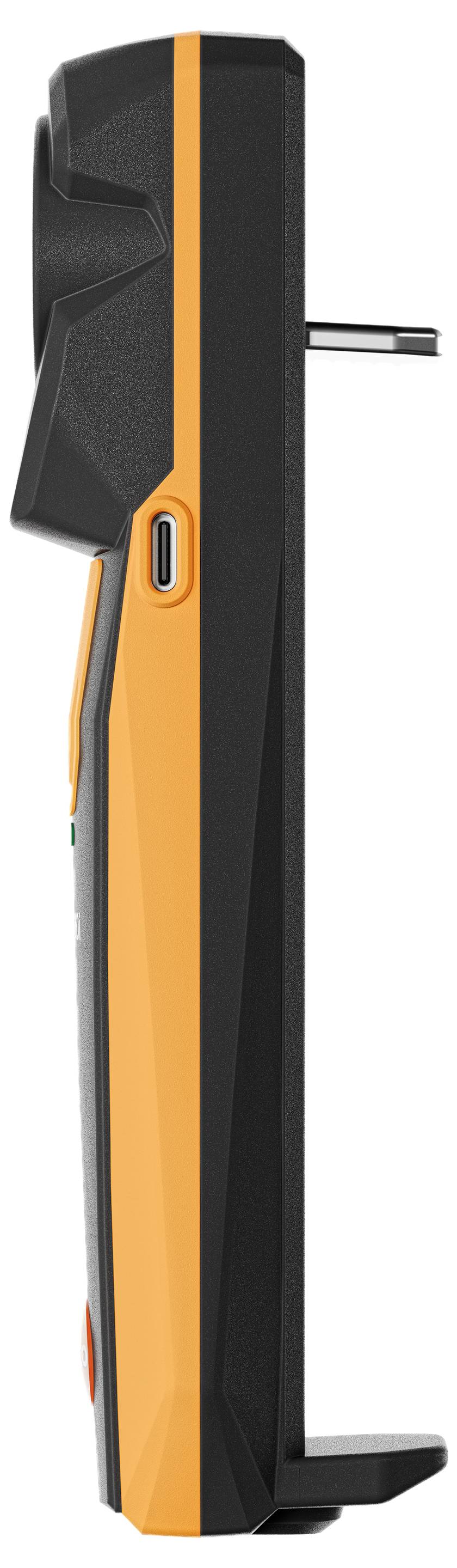

Black and orange portable device in side view with visible ports, possibly an electronic measuring instrument.

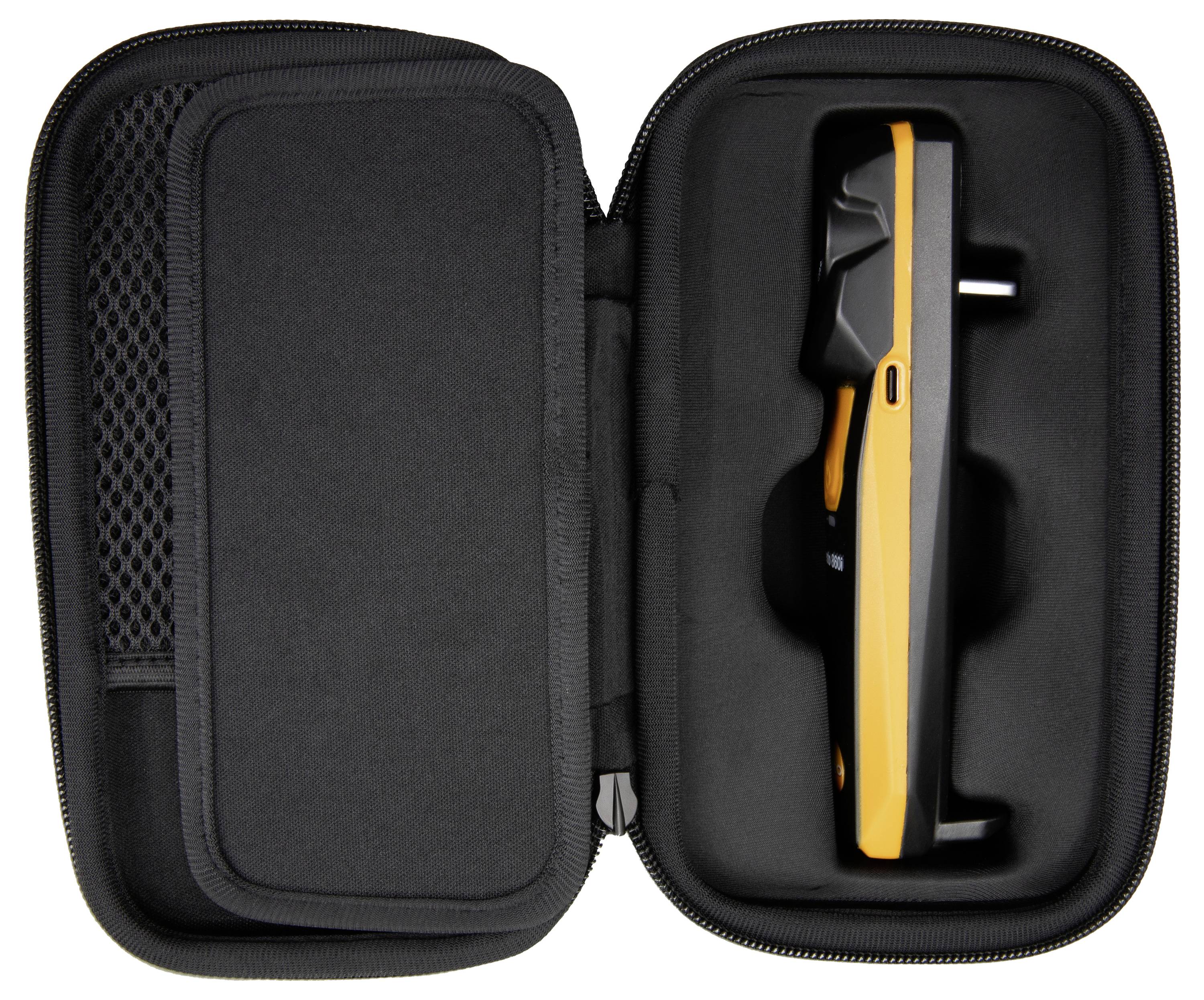

'A portable electronic device with orange accents, securely stored in a black hard-case pouch.'

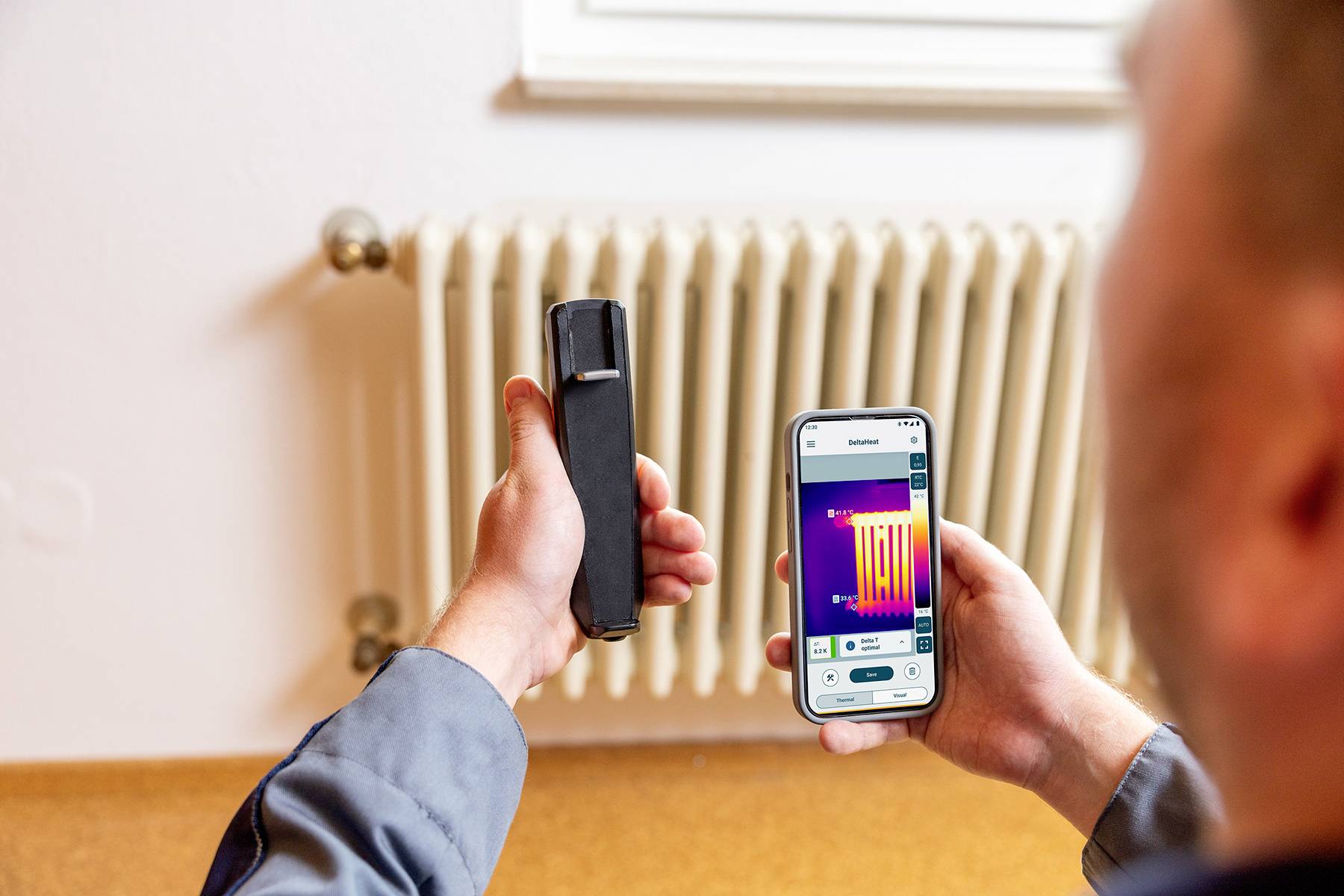

A person is measuring the temperature of a radiator using a thermal imaging camera. The thermal image is displayed on a smartphone.

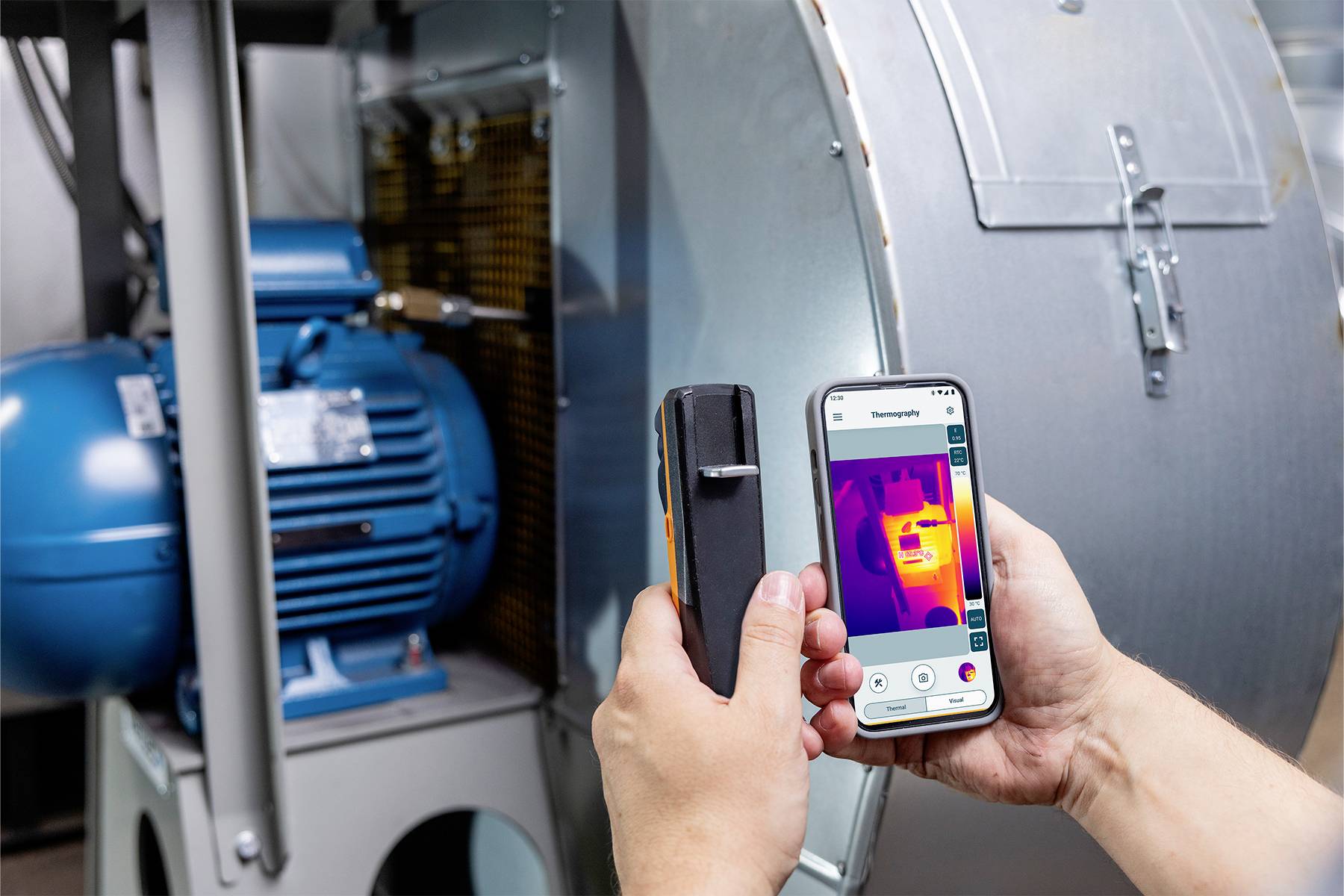

A person is using an infrared thermometer and displaying the result on a smartphone. The temperature of a large motor is being measured.

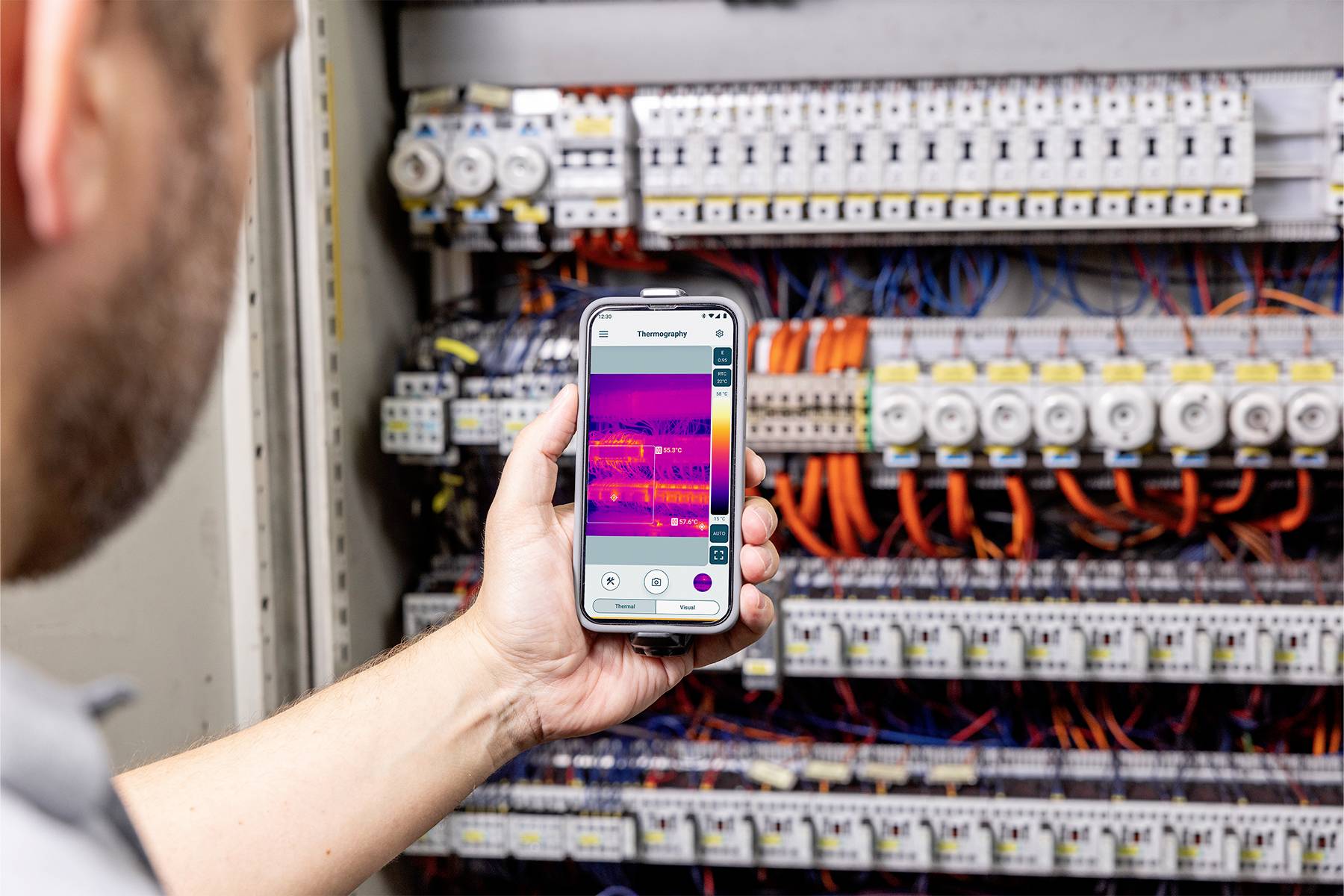

A person is holding a smartphone with thermal imaging camera functionality in front of an electrical cabinet. Temperature differences are visible on the screen.

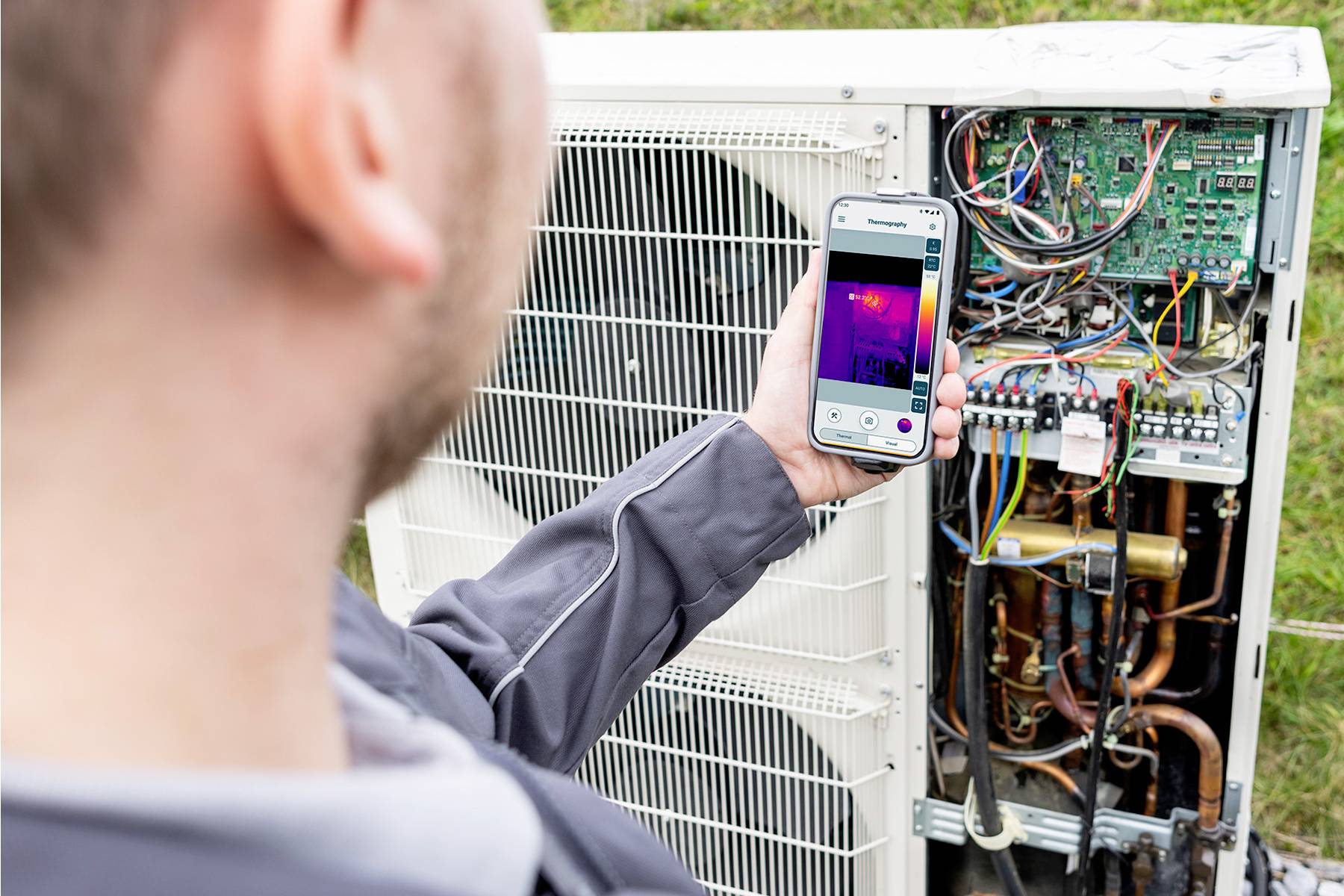

A technician uses a smartphone with a thermal imaging app to diagnose an open air conditioning unit in order to identify malfunctions.

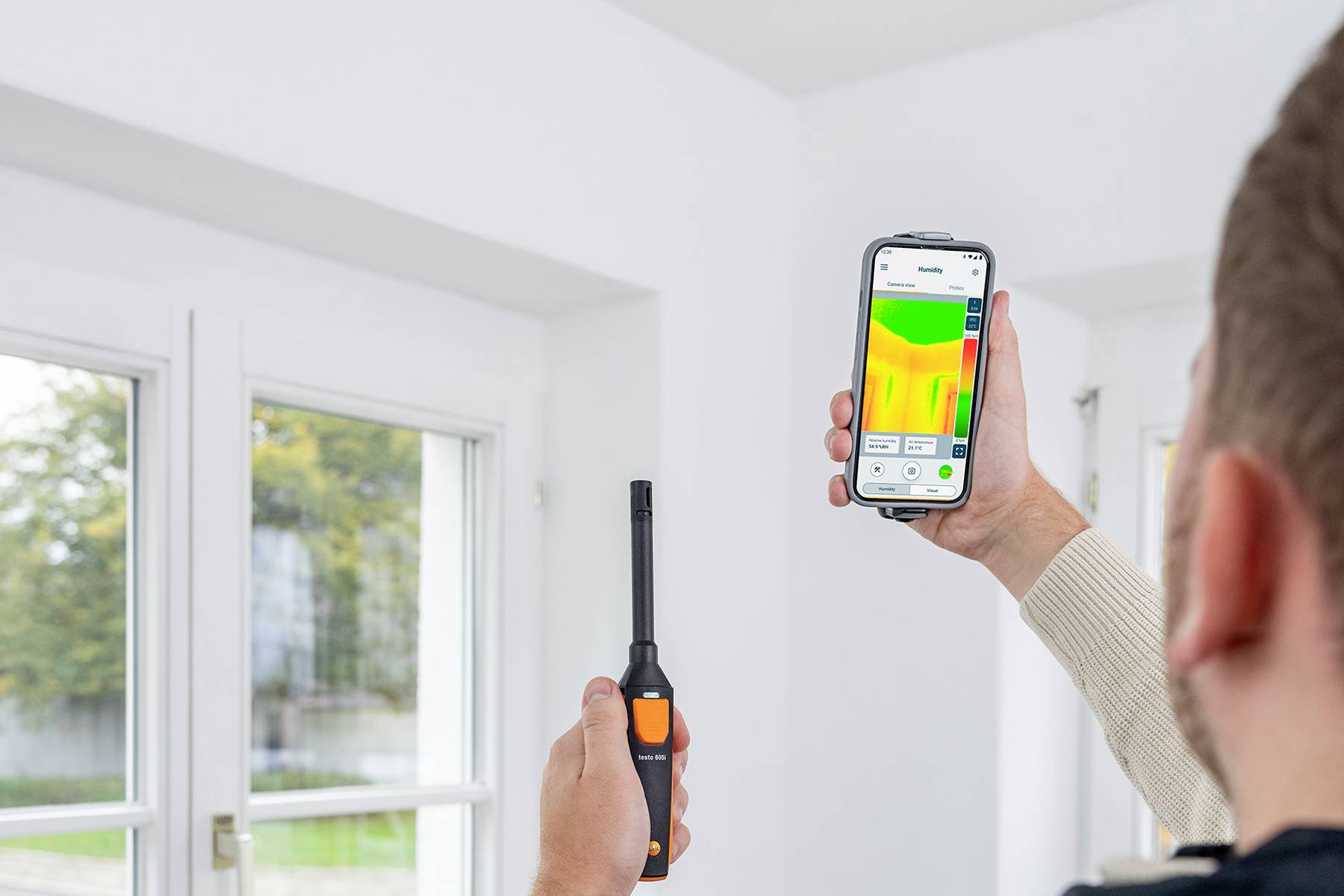

A person is using a digital measuring device and a smartphone to analyse heat losses at a window. A screen displays a temperature map.

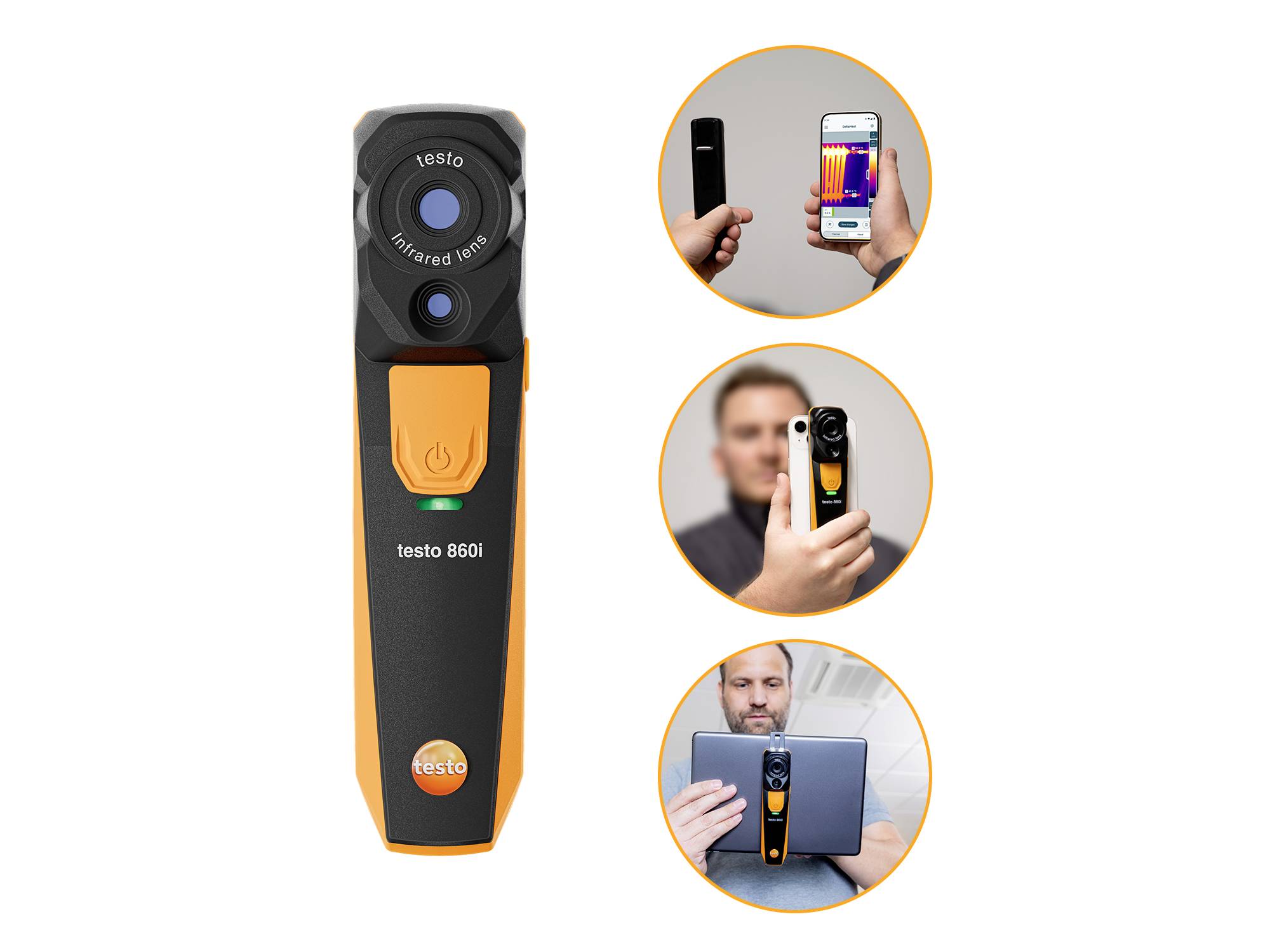

Hand scanner with camera shows buttons for temperature measurement. Small circles indicate steps for use with smartphone and tablet.

An orange-black infrared thermometer 'testo 865i' with USB-C connection and IP54 protection class. Resolution: 256 x 192 pixels.

1/22

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

78 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (€ 399.16 / piece)

€ 399.16

plus VAT.

14 days return policy included

Report legal concerns

Highlights & Details

testo 860i set – Wireless thermal imager for Smart phones

9 Hz Thermal imaging camera
Temperature reading range -20 up to 350 °C
Bolometer matrix
Thermal sensitivity 50 mK

Technical specifications

Type: 860i Set

Product type: IR camera

Interfaces: USB C®
Wi-Fi
Bluetooth

Temperature reading range (max.): 350 °C

Temperature reading range (min.): -20 °C

Frame rate: 9 Hz

Display resolution: 640 x 480 Pixel

: IP54

Thermal sensitivity: 50 mK

Dim: (L x W x H) 38 x 45 x 165 mm

Temperature resolution: 256 x 192

Focus: Automatic

Weight: 195 g

Basic accuracy: 3 %

Temperature reading range: -20 up to 350 °C

Min. focusing distance: 0.4 m

Width: 45 mm

Height: 165 mm

Length: 38 mm

Documents & Downloads

Datasheet

Datasheet 3389772 testo 860i Set IR camera -20 up to 350 °C 9 Hz

User & Safety Instructions

User & Safety Instructions 3389772 testo 860i Set IR camera -20 up to 350 °C 9 Hz

Description

The new wireless infrared camera for Smart phones testo 860i is ideal for fast Spot checks in SHK-crafts, maintenance, buildings and many other applications with its easy operation and display in the testo Smart app.
testo 860i enables easy and fast determination of Delta T (differential temperature) in the thermal image using application-specific measuring functions: Delta heat for quick determination of the spread of the feed and return temperature at radiators, Delta cool for fast determination of the differential temperature at refrigeration and air conditioning systems. The function humidity mode also helps in evaluating the risk of mold formation in interiors. In maintenance, the measurement function thermography quickly and easily shows hotspots and Delta T.
testo 860i is used to display thermal image and differential temperature, and also document scanning with the testo Smart app – easy, quick and smart. testo 860i can be used flexibly, either by one-hand operation directly attached to the Smart phone/tablet or separately. Furthermore, the high everyday compatibility, robustness and the rechargeable Li-ion battery with long operational time make testo 860i a reliable companion.

This text is machine translated.

Features

Flex-able use through wireless use or one-handed operation directly attached to the Smart-phone
High suitability for everyday use and robustness with IP54 and protection against accidental falls of up to 1.5 m.

Scope of delivery

testo 860i Wireless thermal imager for Smart phones
Bag for safe transport
USB-C cable
User manual.

Hints

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.

System requirements

testo Smart app: IOS version ≥ 17 / Android version ≥ 14
PC software: testo IRSoft: Windows 10, Windows 11
