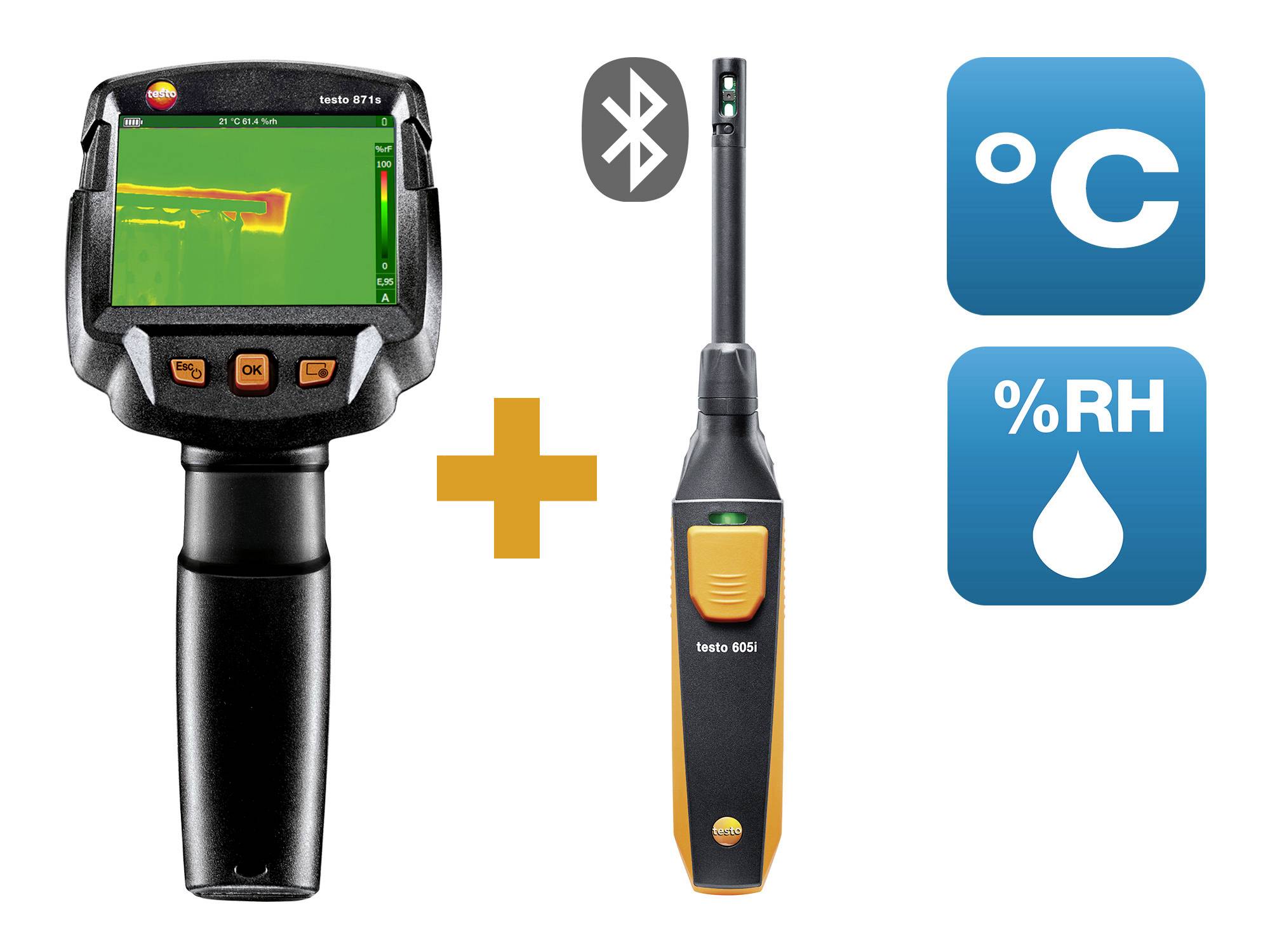

Two measuring devices: On the left, a thermal imaging camera with display, on the right a digital thermo-hygrometer. Bluetooth and symbols for temperature and humidity.

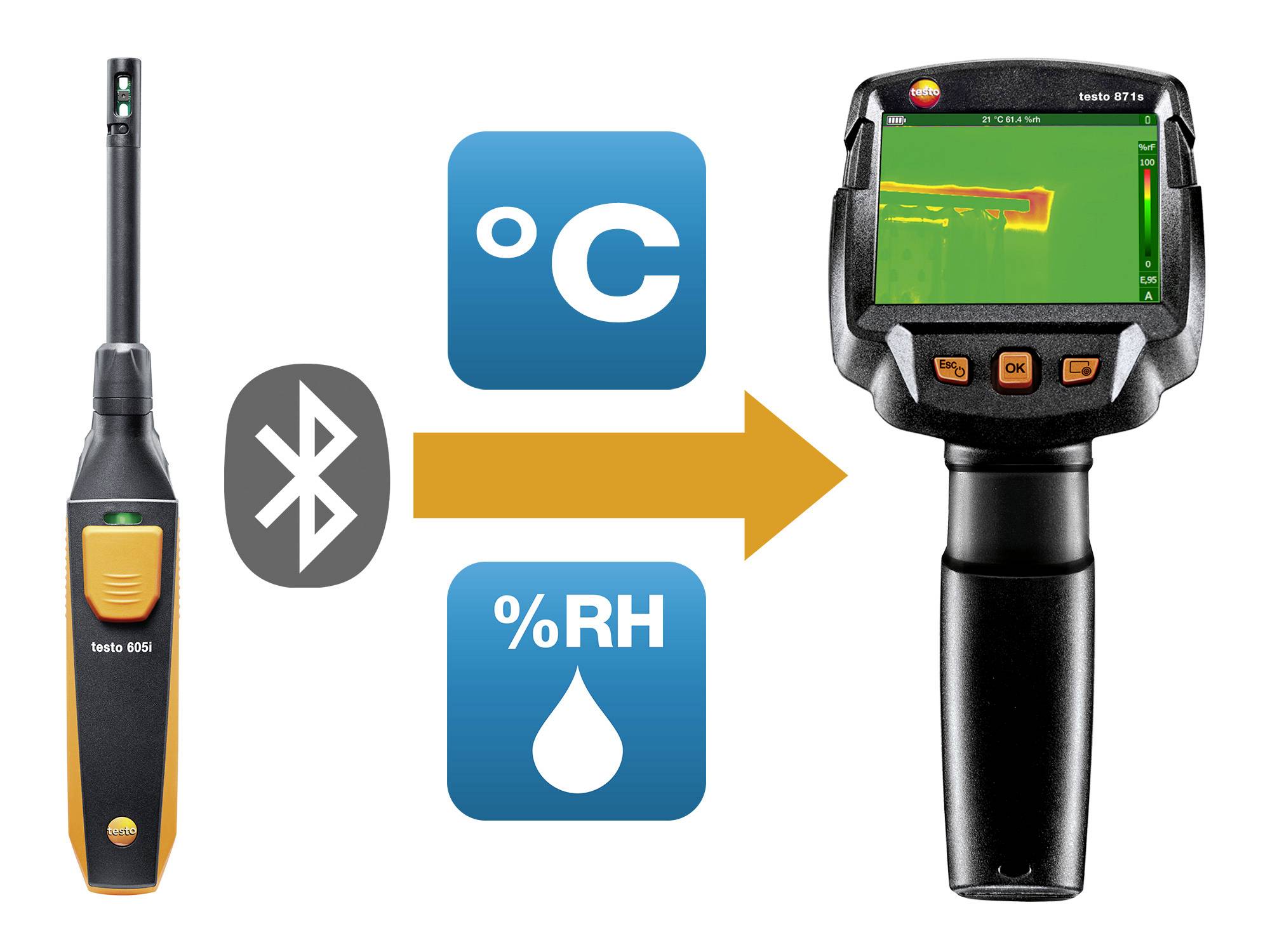

Humidity meter sends data via Bluetooth to thermal imaging camera. Symbols: Bluetooth, Temperature (°C), Humidity (%RH).

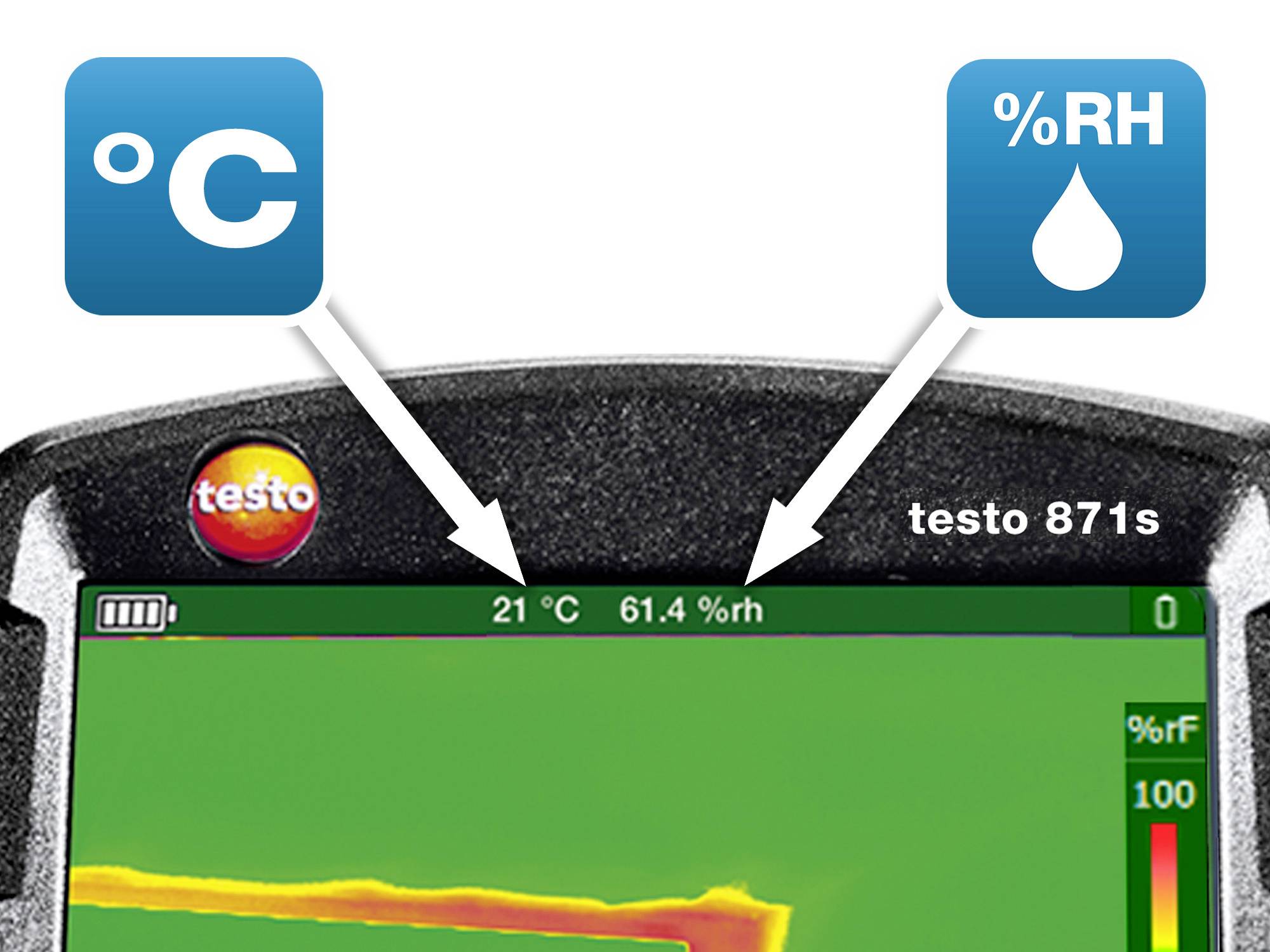

Display of a measuring device showing a temperature of 21 °C and relative humidity of 61.4 %RH. Device: testo 871s.

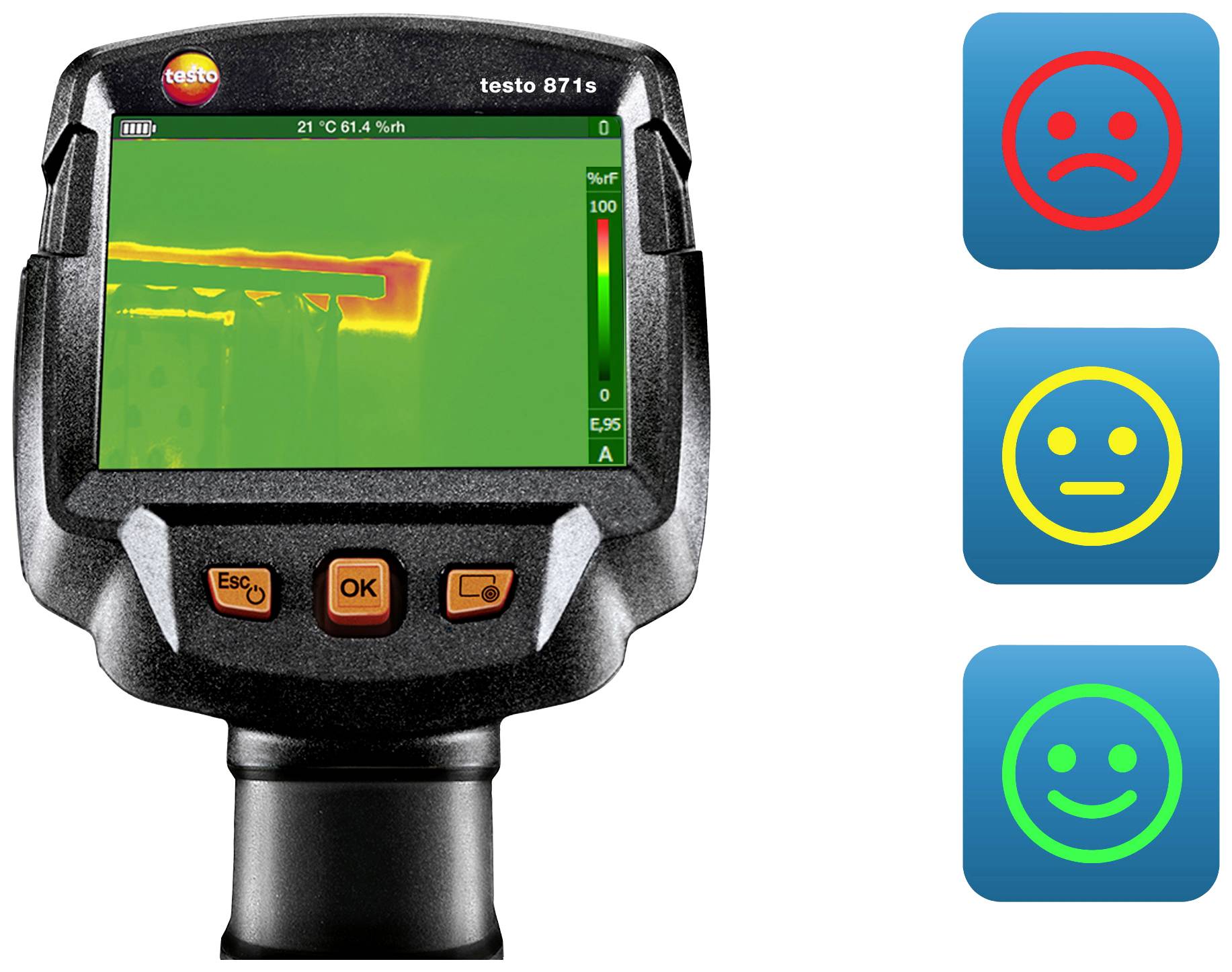

A thermal imaging camera shows an image with temperature differences. Next to it are three symbols: a red sad face, a yellow neutral face, and a green smiling face.

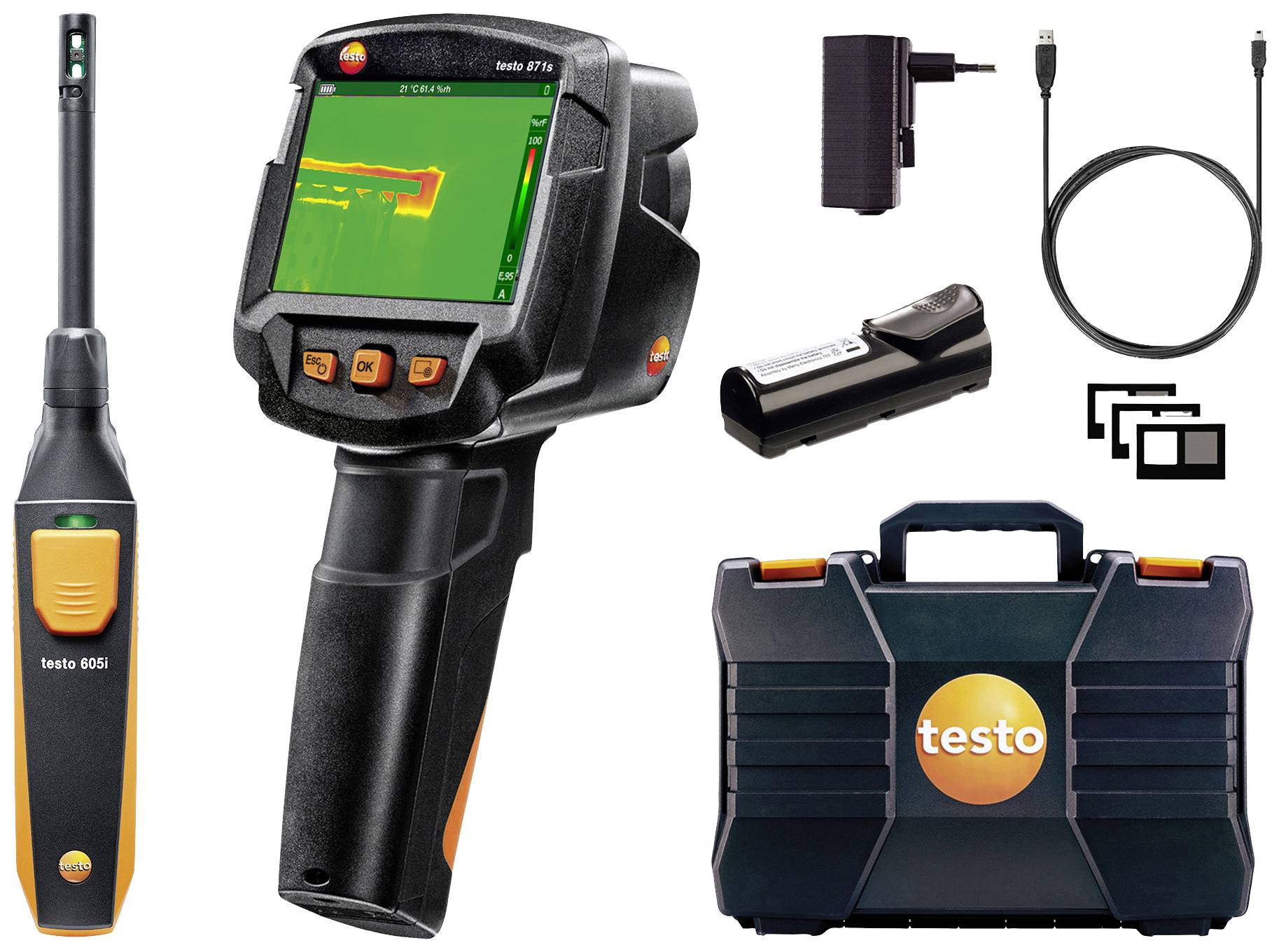

Thermography set with thermal imaging camera, moisture meter, charger, battery, USB cable and carry case. Ideal for building diagnostics.

A man is holding a thermal imaging device and another measuring instrument. A room can be seen in the background. The Bluetooth symbol is on the right.

1/6

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,819.33 / piece)

€ 1,819.33

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

testo 871s building diagnostics set – smart mold set

9 Hz Thermal imaging camera
Temperature reading range -30 up to +650 °C
240 x 180 Pixel Bolometer matrix
Thermal sensitivity 80 mK

Technical specifications

Type: 871s Baudiagnose-Set

Product type: IR camera

Bolometer array: 240 x 180 Pixel

Interfaces: USB
Wi-Fi

Temperature reading range (max.): +650 °C

Temperature reading range (min.): -30 °C

Optics: 35° x 26°

Frame rate: 9 Hz

Display resolution: 240 x 180 Pixel

: IP54

Thermal sensitivity: 80 mK

Dim: (L x W x H) 219 x 96 x 95 mm

Temperature resolution: 0.08 °C

Display: TFT 8.9 cm

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Fixed-focus

Geometric resolution (IFOV): 2.6 mrad

Weight: 510 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -30 up to +650 °C

Min. focusing distance: 0.5 m

Width: 96 mm

Height: 95 mm

Length: 219 mm

Power supply (details): 5 V DC

: Manufacturer's standards (with certificate)

Documents & Downloads

Datasheet

Datasheet 2749628 testo 871s Baudiagnose-Set IR camera -30 up to +650 °C 240 x 180 Pixel 9 Hz

User & Safety Instructions

User & Safety Instructions 2749628 testo 871s Baudiagnose-Set IR camera -30 up to +650 °C 240 x 180 Pixel 9 Hz

Description

Use the smart testo 871s mold set to detect mold-prone areas in buildings quickly and easily. The testo 605i thermo-hygrometer included in the set transmits the room parameters via Bluetooth® to the infrared camera testo 871s. Areas at risk of mold are shown on the camera display (according to the traffic light principle) orange or red. The infrared camera convinces along with its professional measuring performance with very good image quality, a thermal sensitivity of 0.08 °C and simple use. In a robust case the equipment can be transported comfortably and securely.

This text is machine translated.

Features

Image quality with IR resolution of 240 x 180 pixels (with testo SuperResolution technology 480 x 360 pixels)Thermal sensitivity of 0.08 °C.Includes Thermo-Hygrometer testo 605i: Real-time transfer of the measured values of room temperature and relative air humidity to the thermal imagerVisualisation of mold endangered places with traffic light colorsFree analysis software to create professional reportsUsage: Simple, intuitive, fast, modern look

Scope of delivery

testo 871s with 35° fixed-focus lens and wireless module for Bluetooth/WLANThermo/hygrometer Testo 605iSuperResolution technologyProfessional software IRSoft (free download)Robust carrying caseUSB cablePower supply unitLi-ion battery3 x testo ɛ markers for emission ratio assistantCalibration recordCommissioning instructionsQuick guide
