Buy testo 883-2 IR camera -30 up to 650 °C 27 Hz Wi-Fi, Touchscreen

Thermal imaging camera with accessories: Screen displays colourful temperature distribution. Includes case, mount, charger and cables.

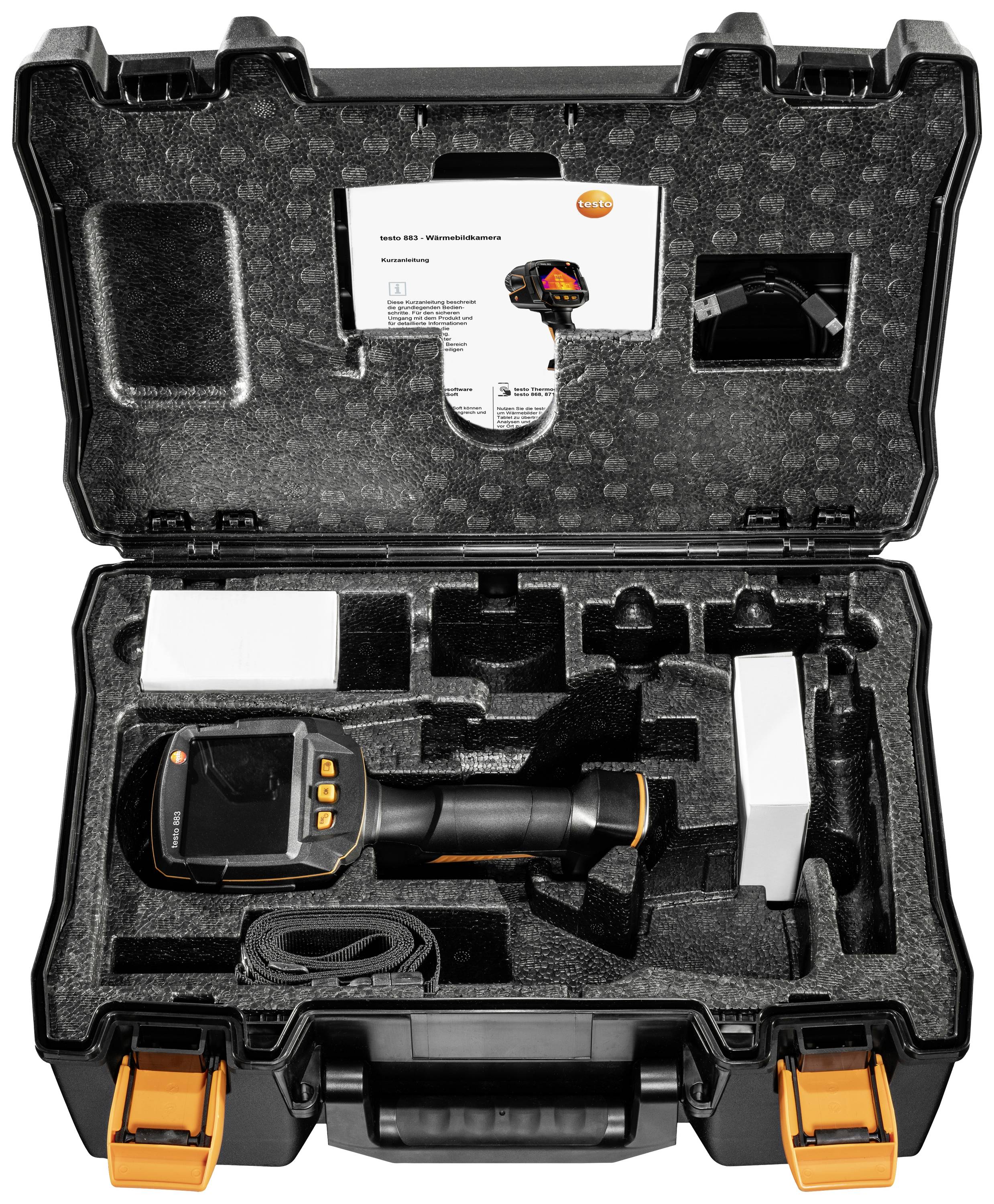

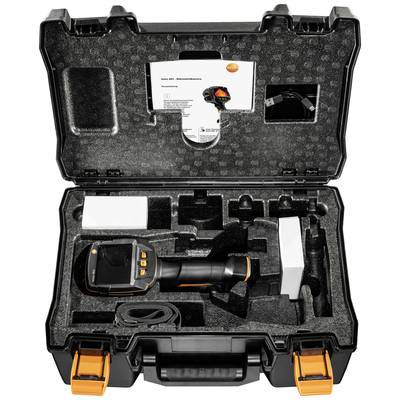

An open case with a thermal imaging camera and accessories in custom-cut foam. A manual is placed in the lid of the case.

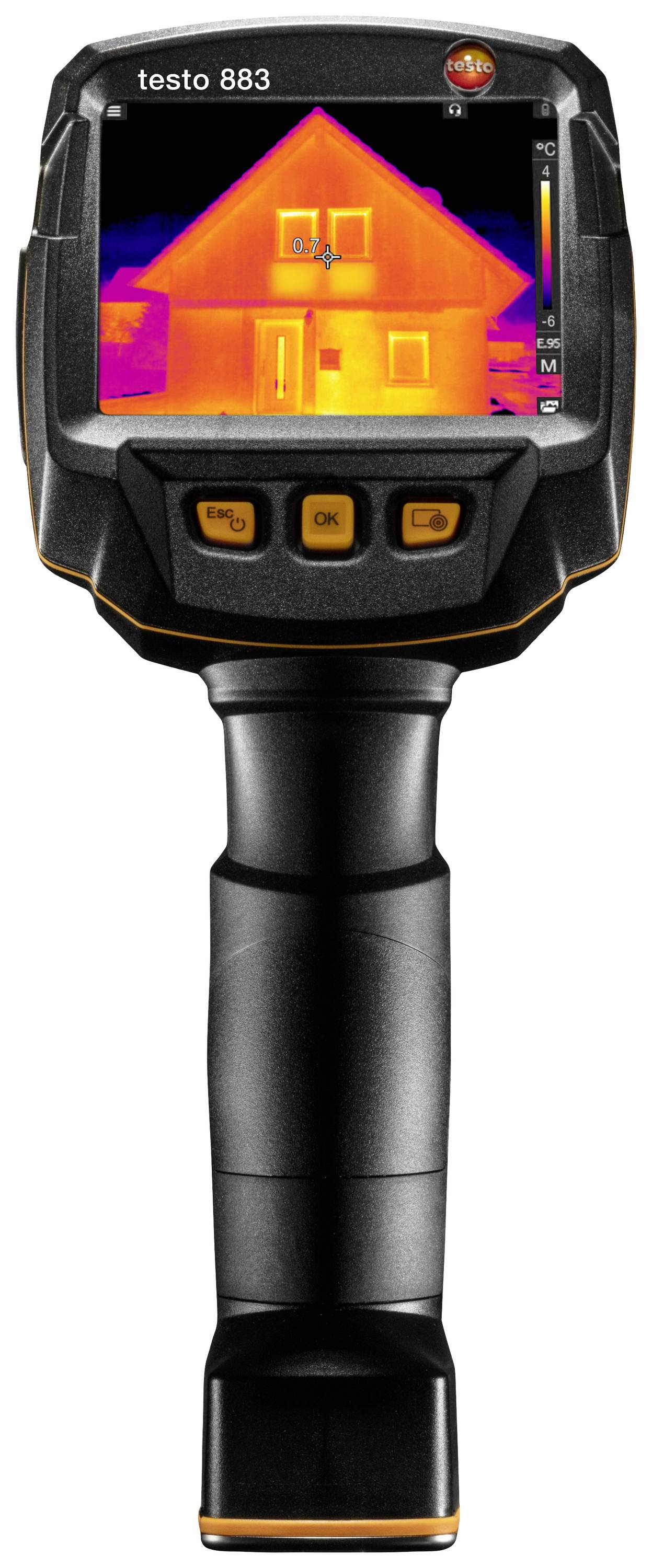

A thermal imaging camera shows a building with distinct colour variations to visualise temperature changes.

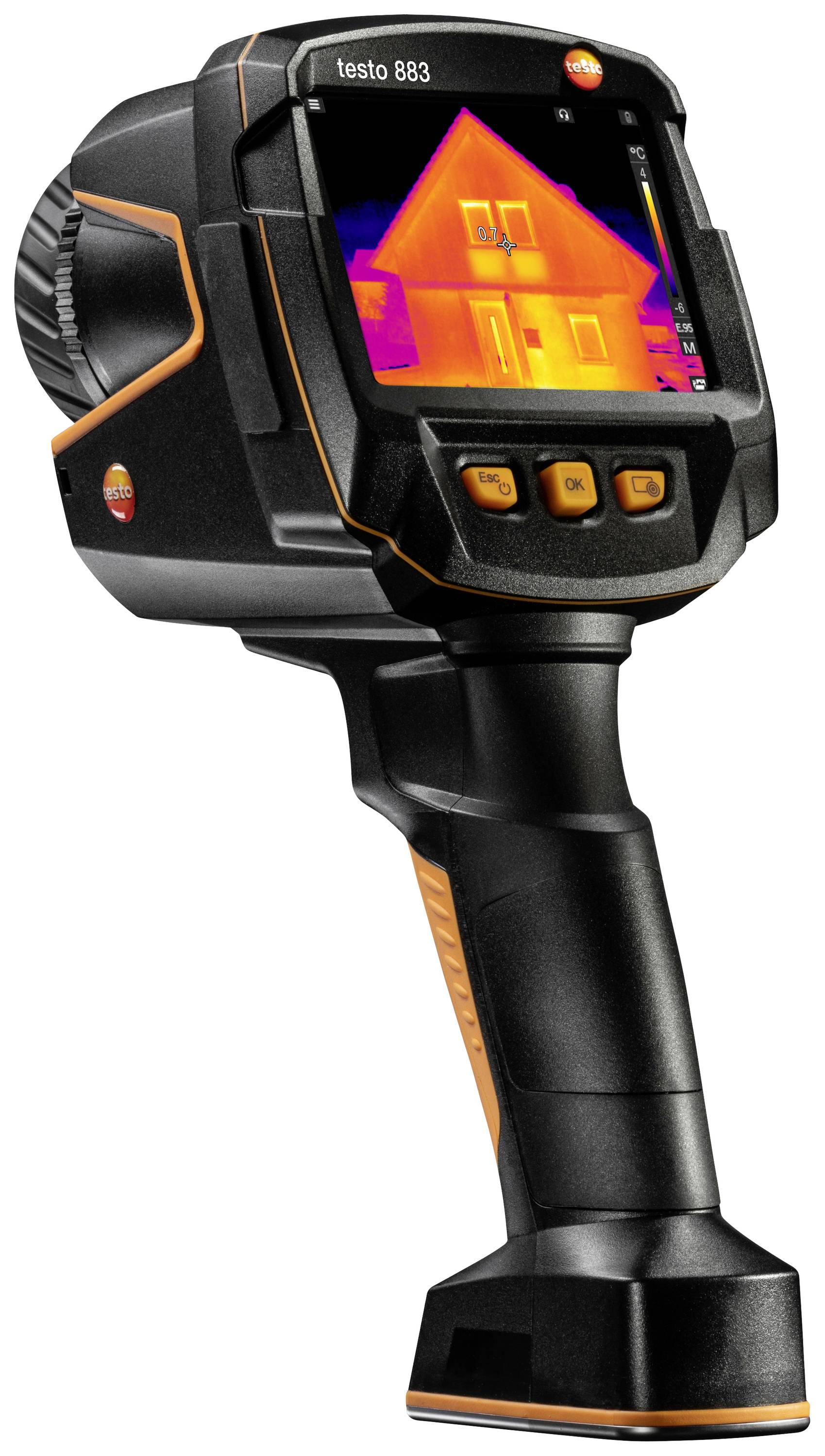

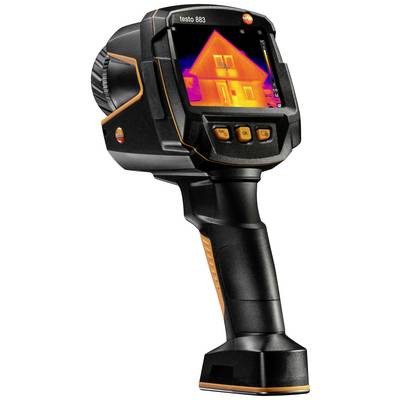

A black thermal imaging camera displays a coloured thermogram of a house on the display. The grip is ergonomically shaped.

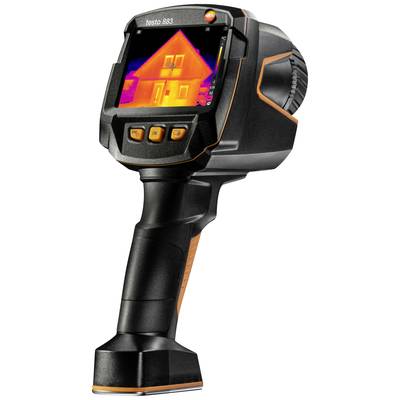

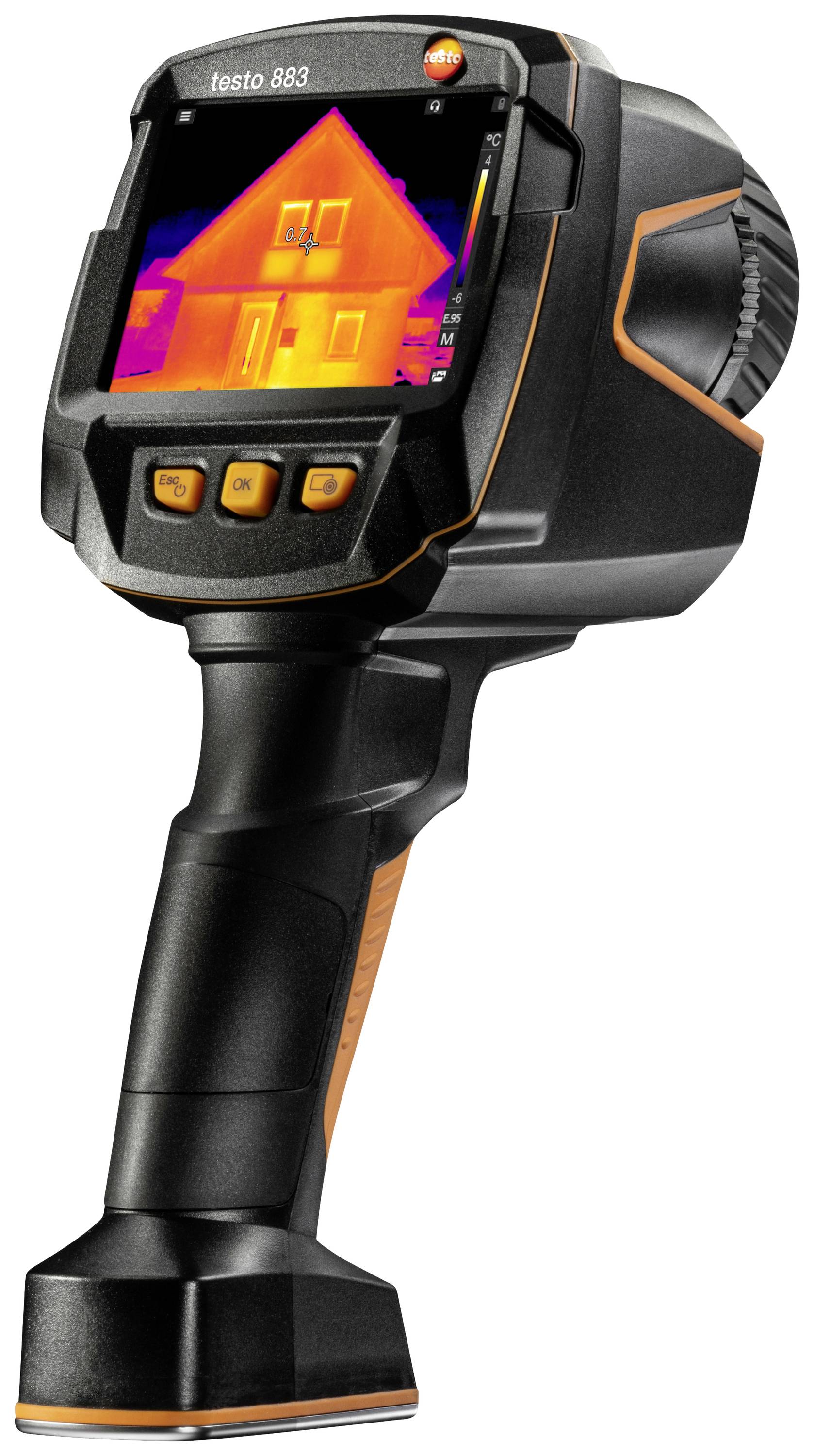

Thermal imaging camera displays a house with temperature variations in luminous colours, likely for insulation inspection.

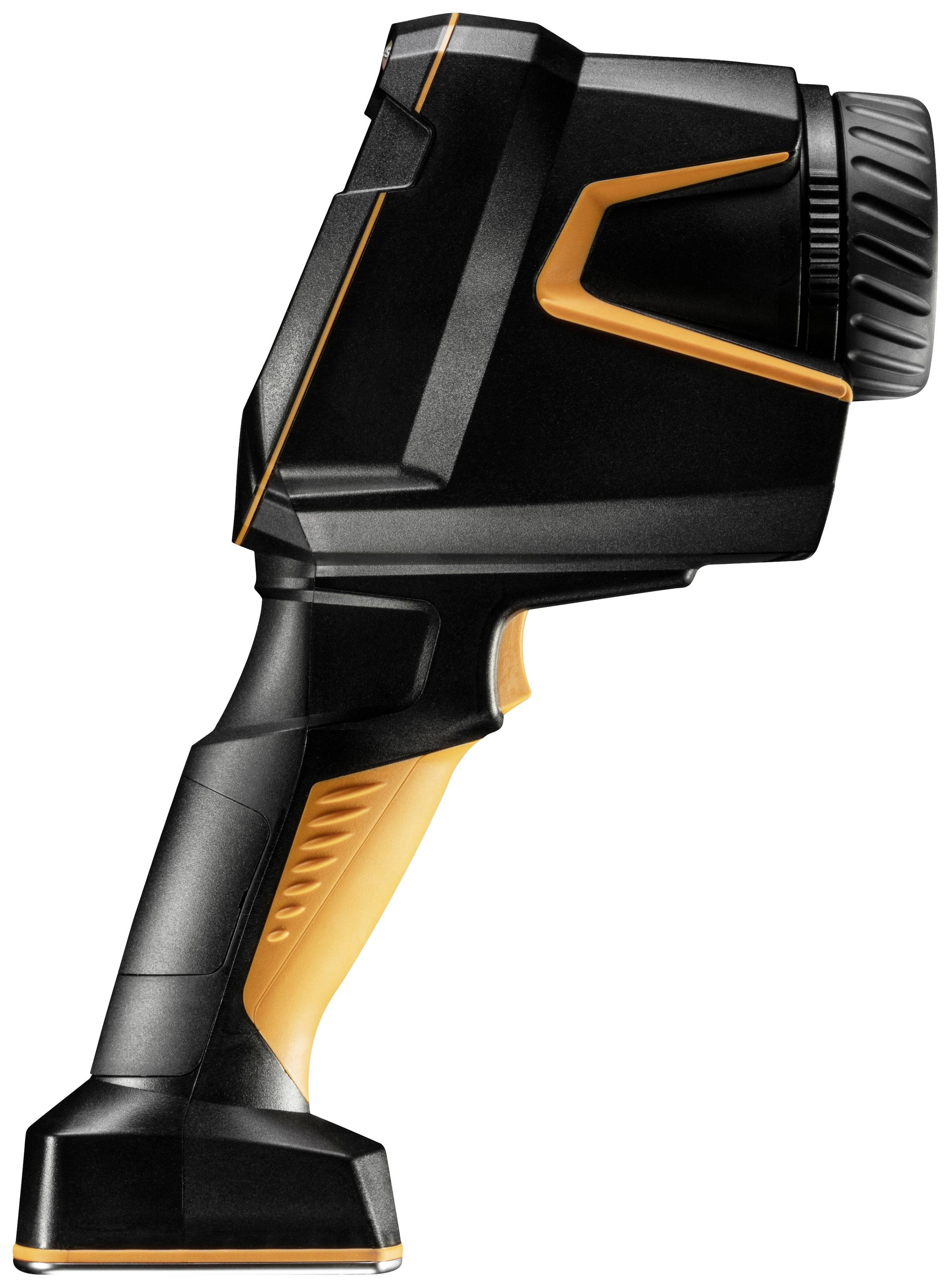

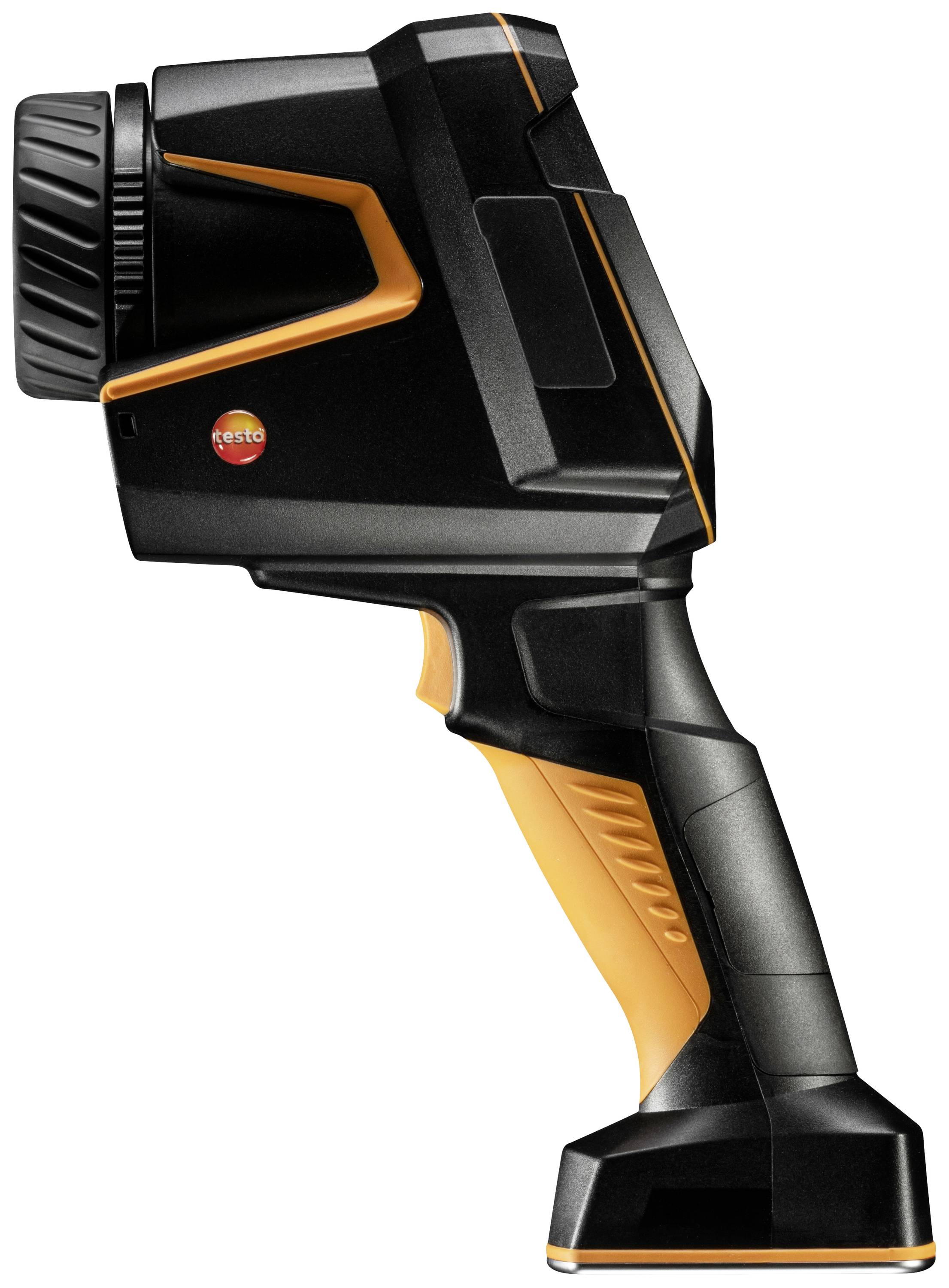

A black and orange thermal imaging camera with an ergonomic handle, viewed from the side.

Compact, black and orange laser distance measurer with coupling wheel, standing upright. Modern design for precise measurements.

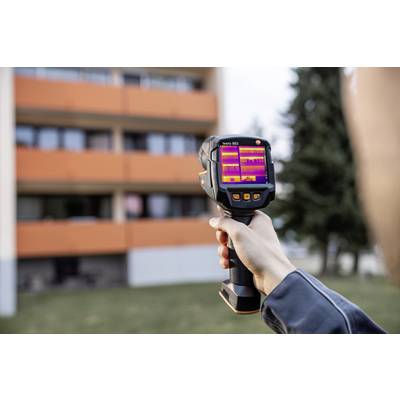

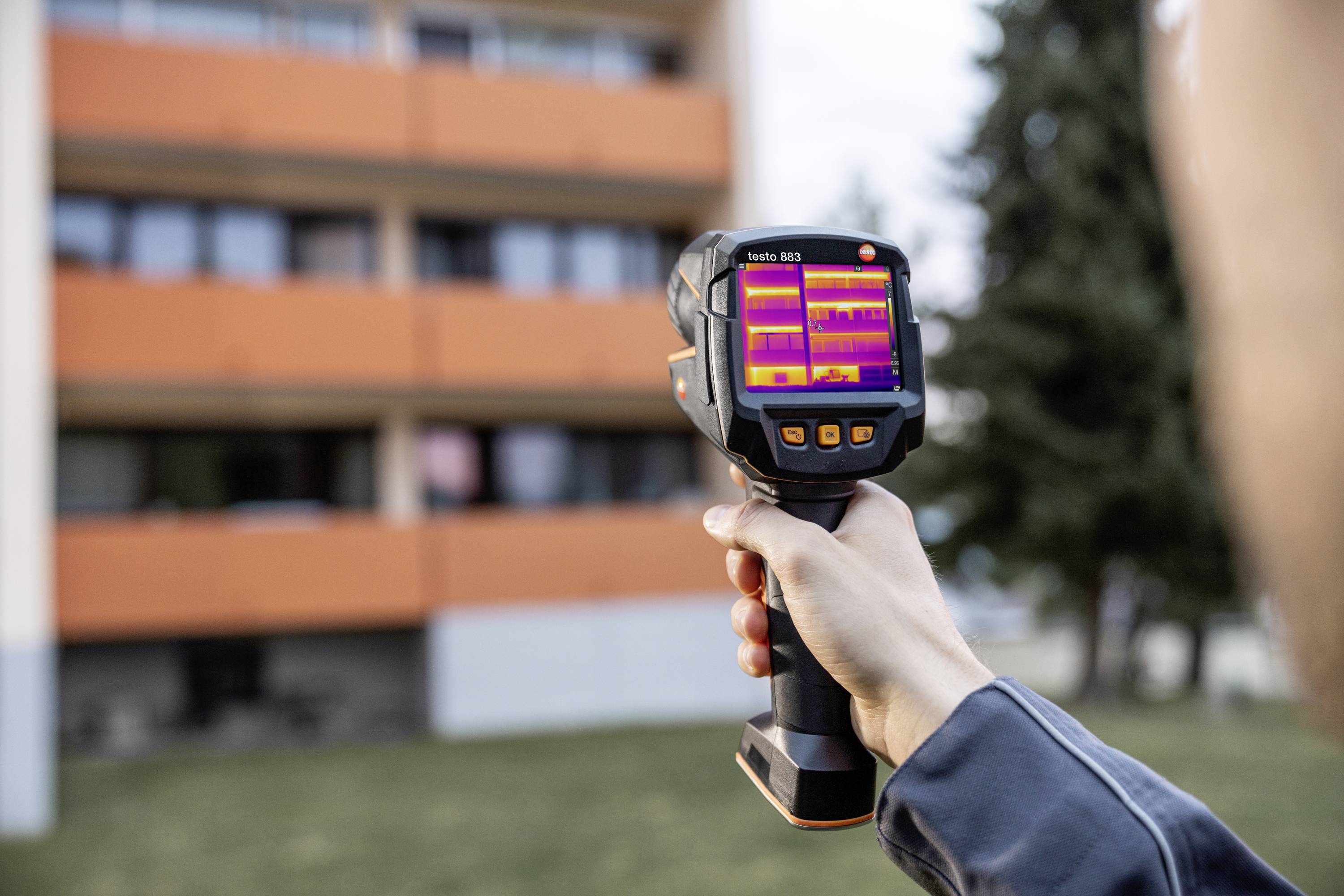

A person is holding a thermal imaging camera and measuring the temperature of a building from a distance.

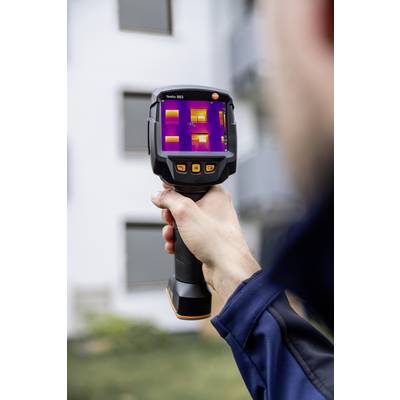

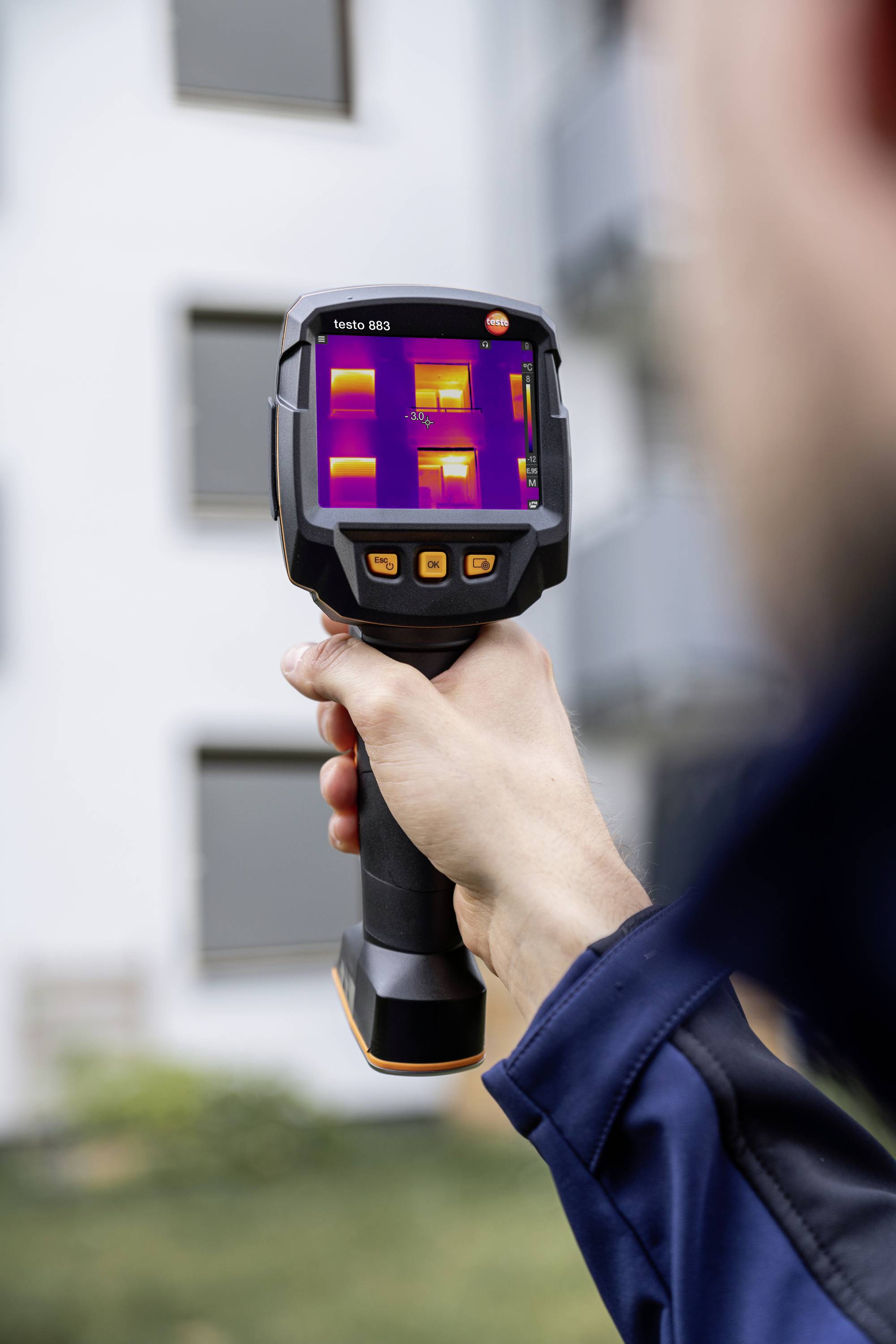

A person is holding a thermal imaging camera, showing a building with visible temperature variations on the display.

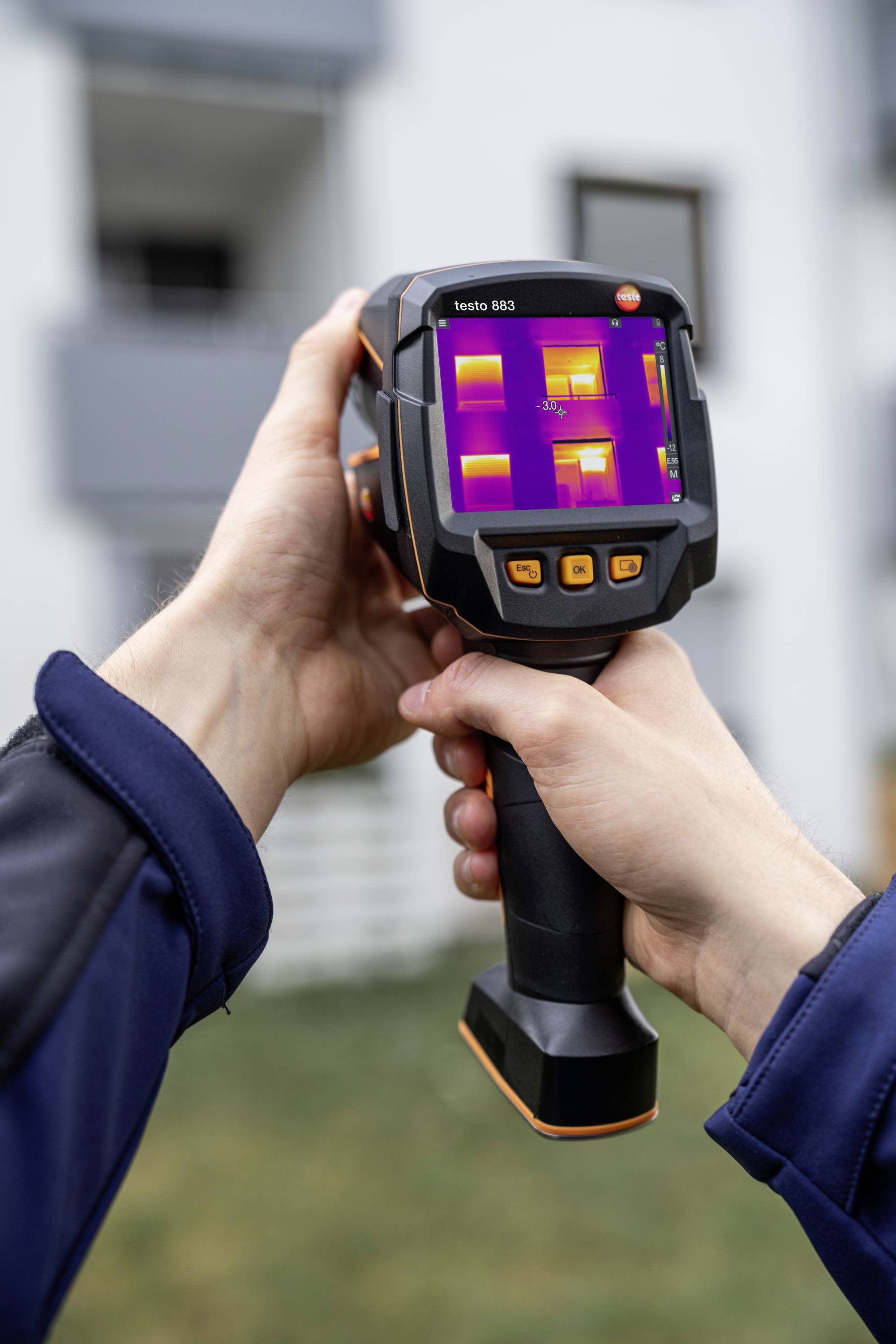

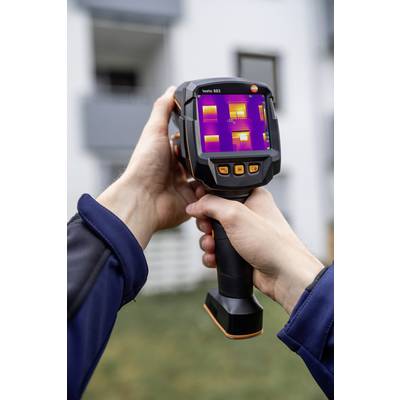

A person is holding a thermal imaging camera that displays the temperature distribution on a building surface. Coloured areas show temperature variations.

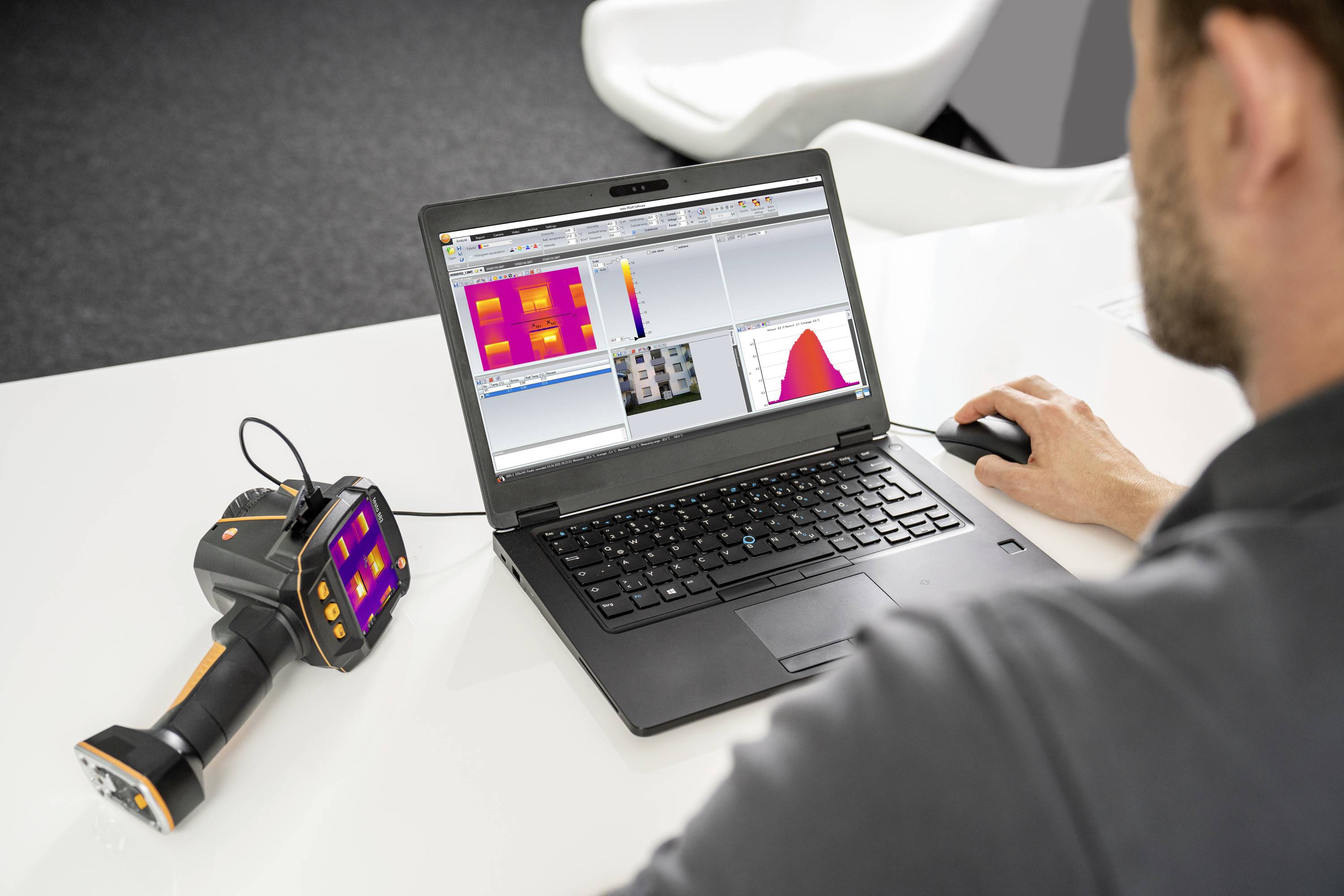

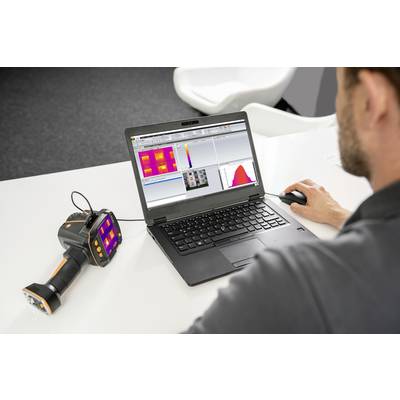

A man is analysing thermal images on a laptop. A handheld device, presumably a thermal imaging camera, is lying next to it on the table.

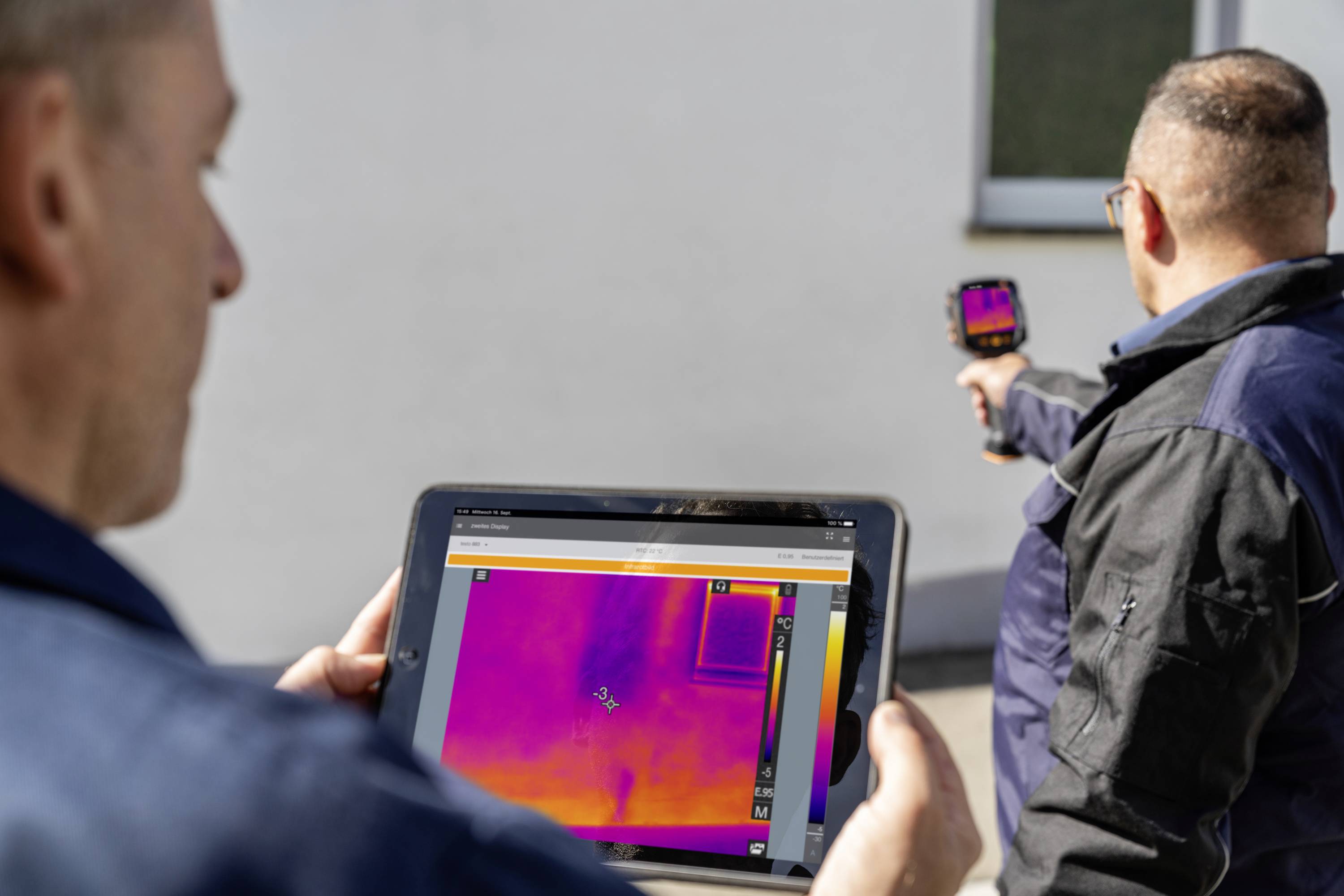

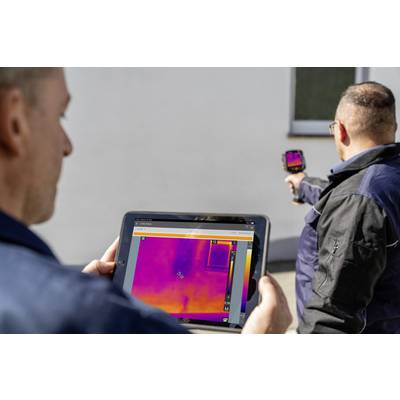

Two men are conducting a thermal imaging survey on a wall, with one holding a tablet displaying a coloured image, and the other holding a camera.

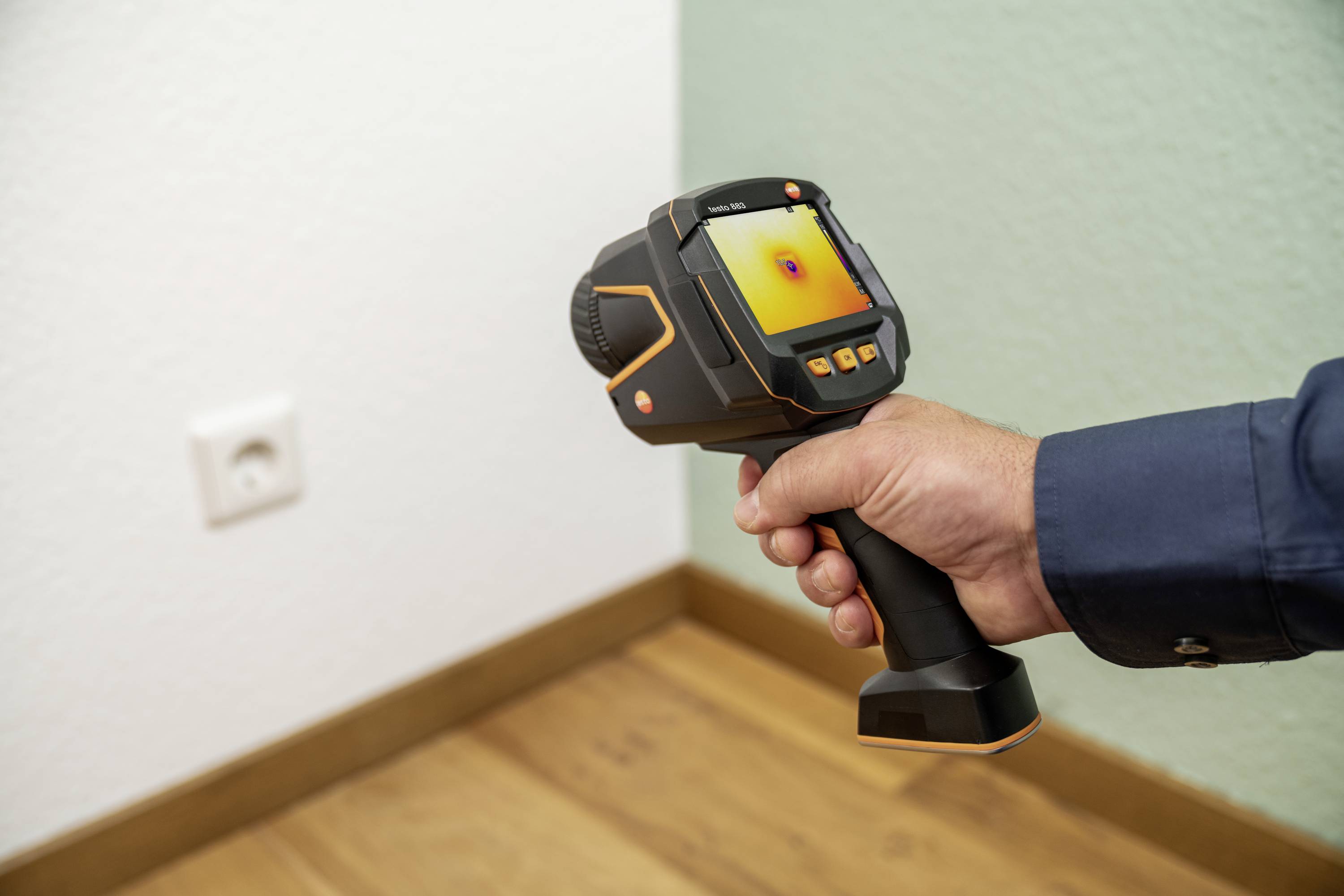

A person is holding a thermal imaging camera and pointing it at a wall near a power socket. A thermal image appears on the screen.

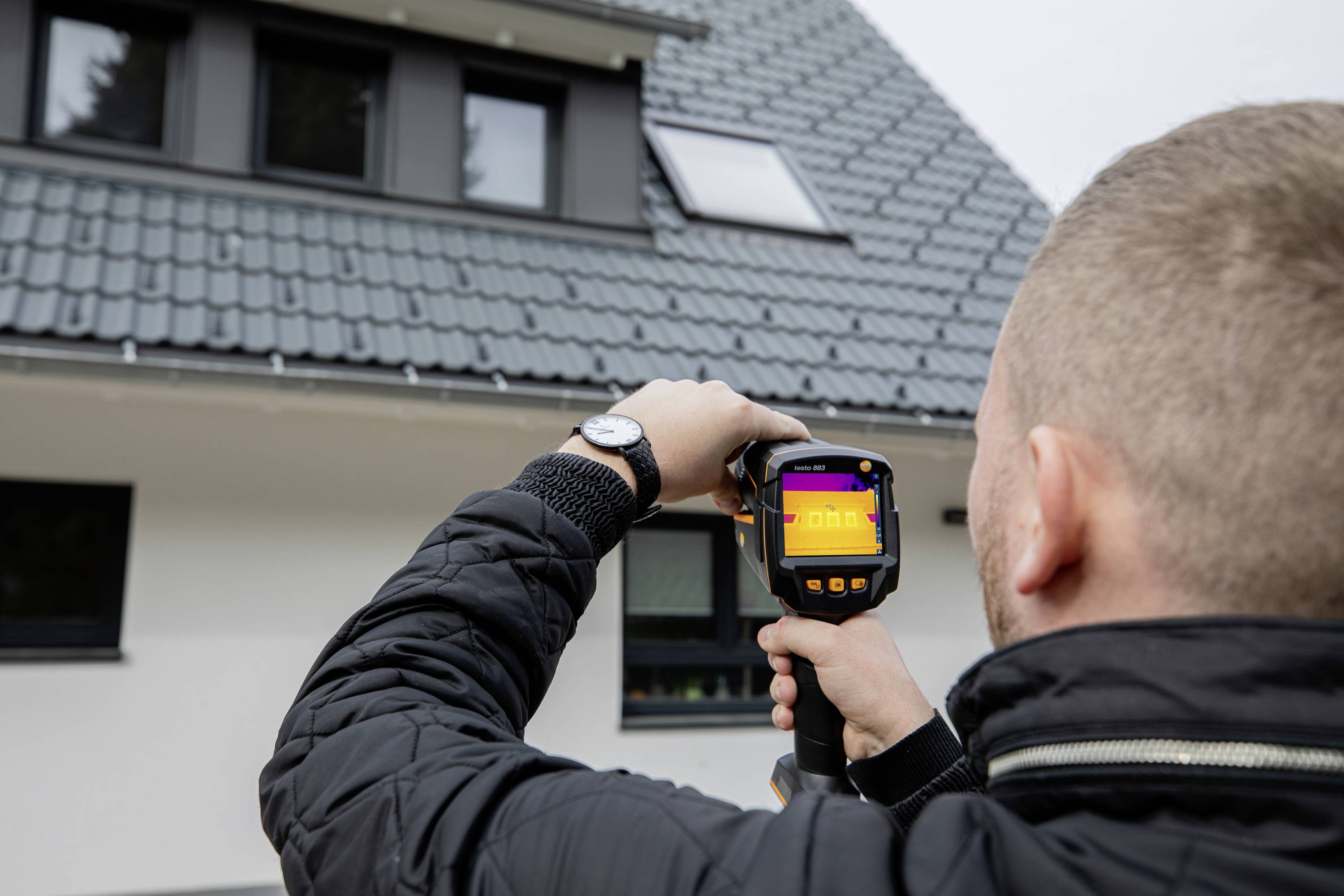

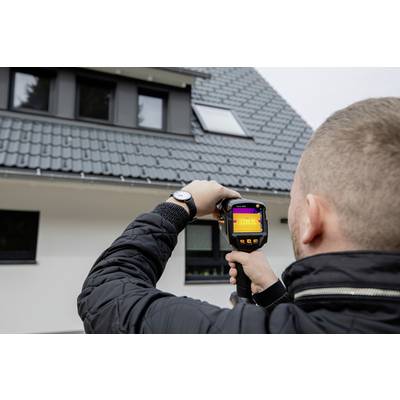

A person is holding a thermal imaging camera in front of a house and checking the roof's insulation.

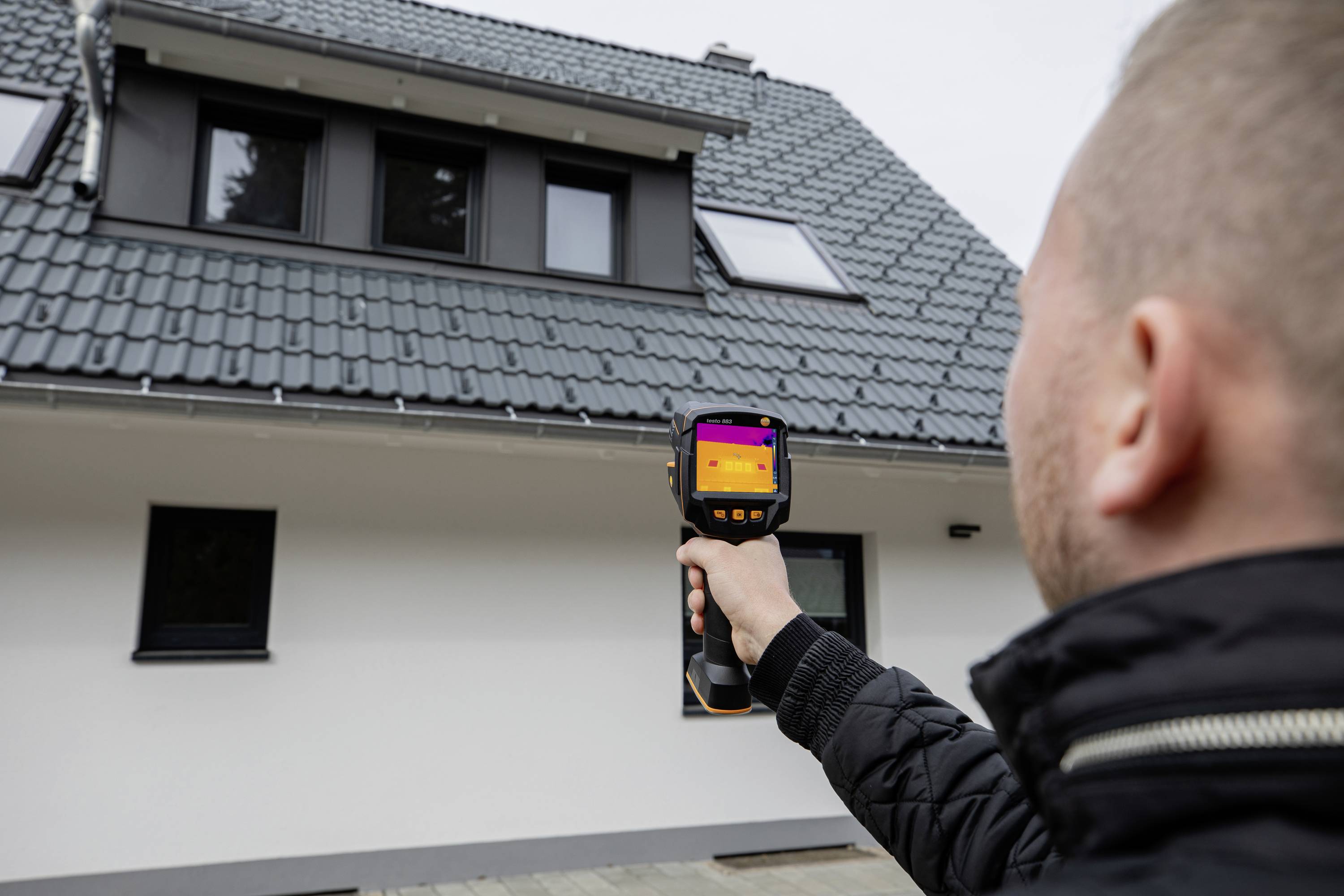

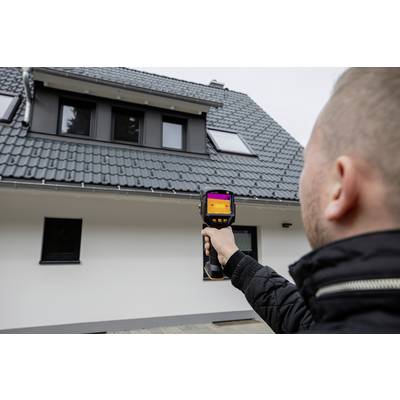

A person is holding a thermal imaging camera and checking the insulation on a modern house roof with roof windows.

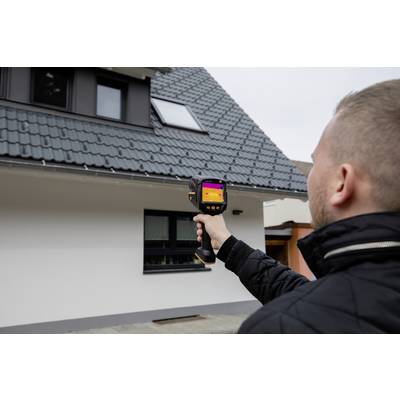

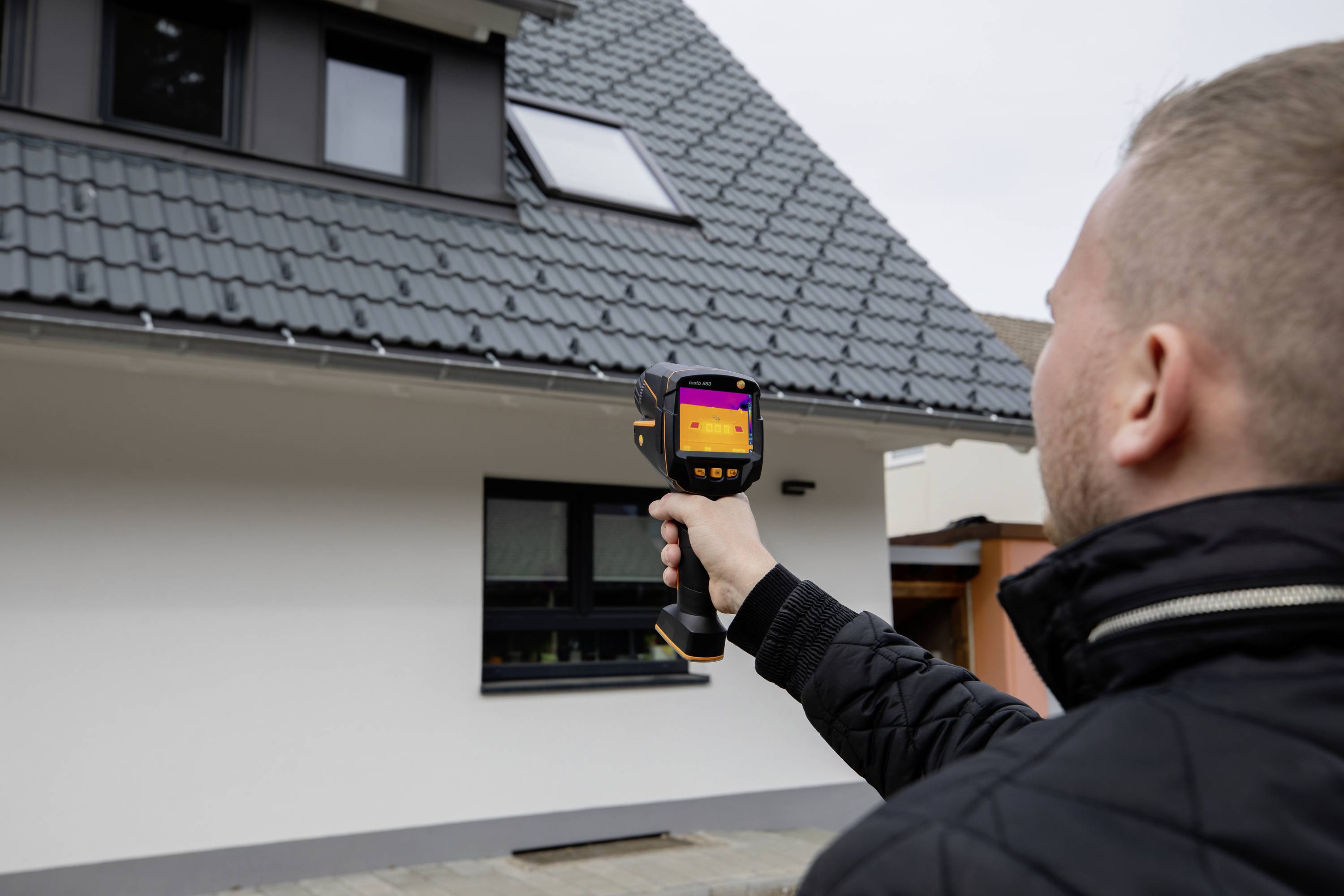

A man is using a thermal imaging camera to inspect a house. The camera reveals temperature variations on the facade.

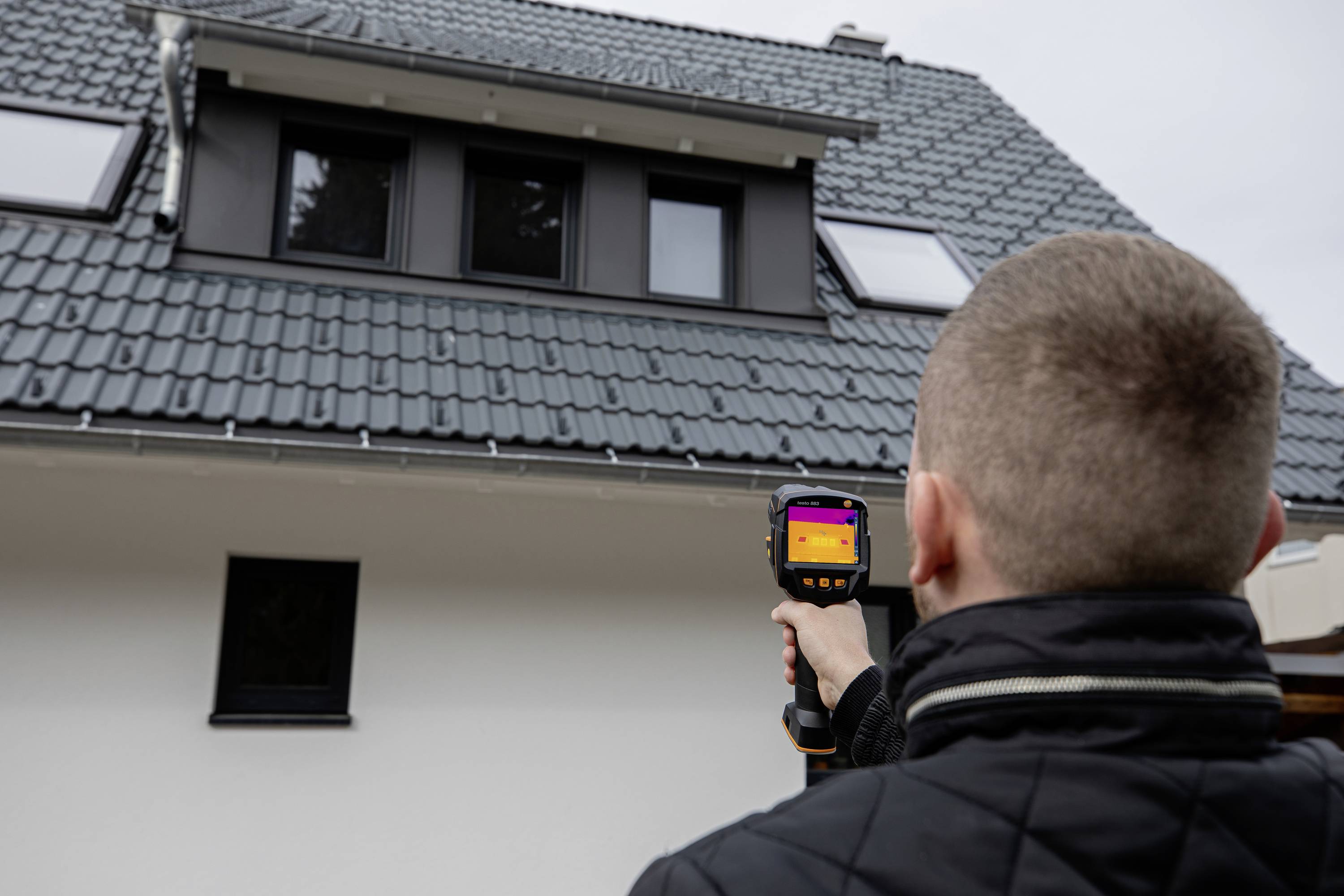

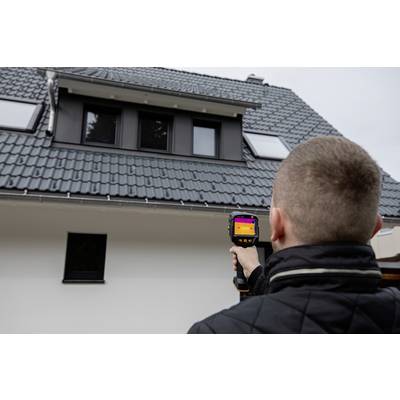

A person is pointing a thermal imaging camera at the roof of a house. The camera displays a thermal image to check the insulation.

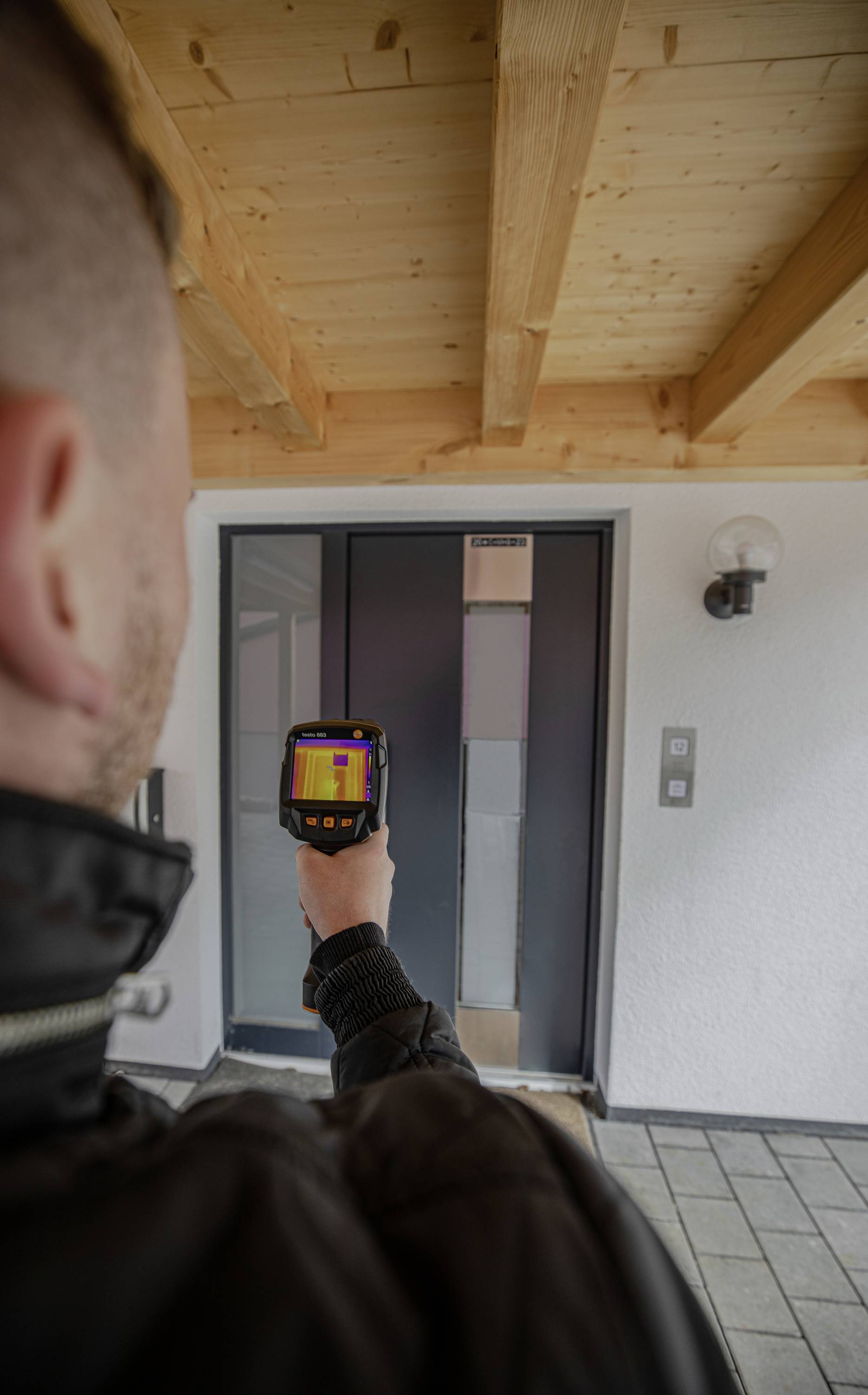

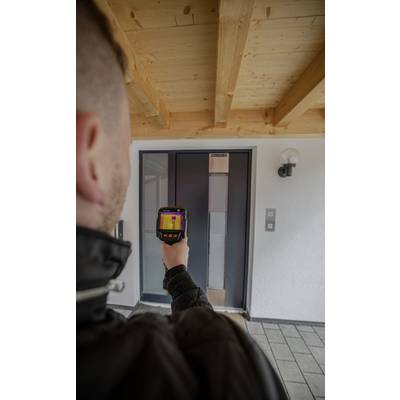

A person is using a thermal imaging camera to check the front door for heat loss. The camera shows colour changes.

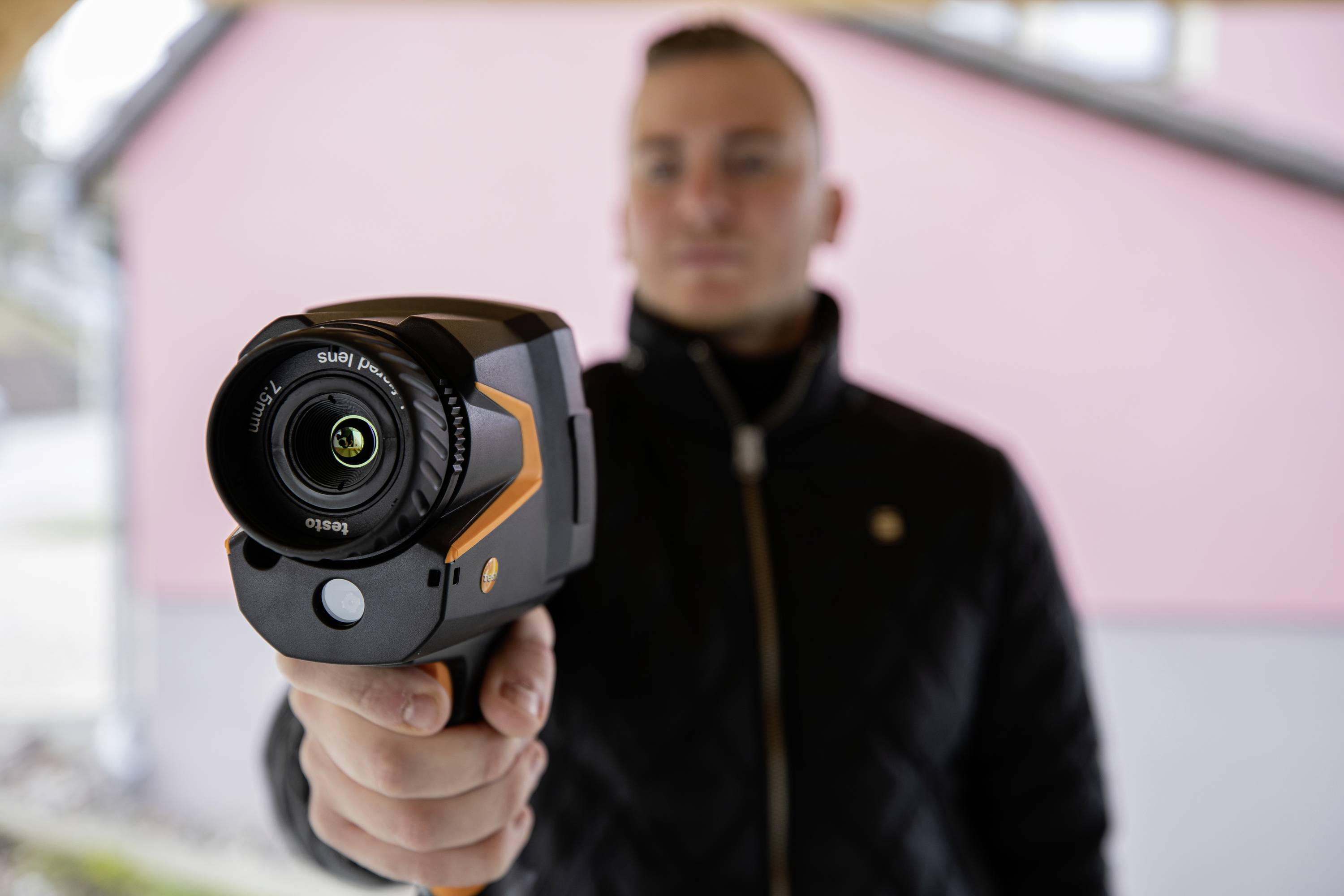

A person is holding a thermal imaging camera pointed at the viewer. A blurry pink wall is visible in the background.

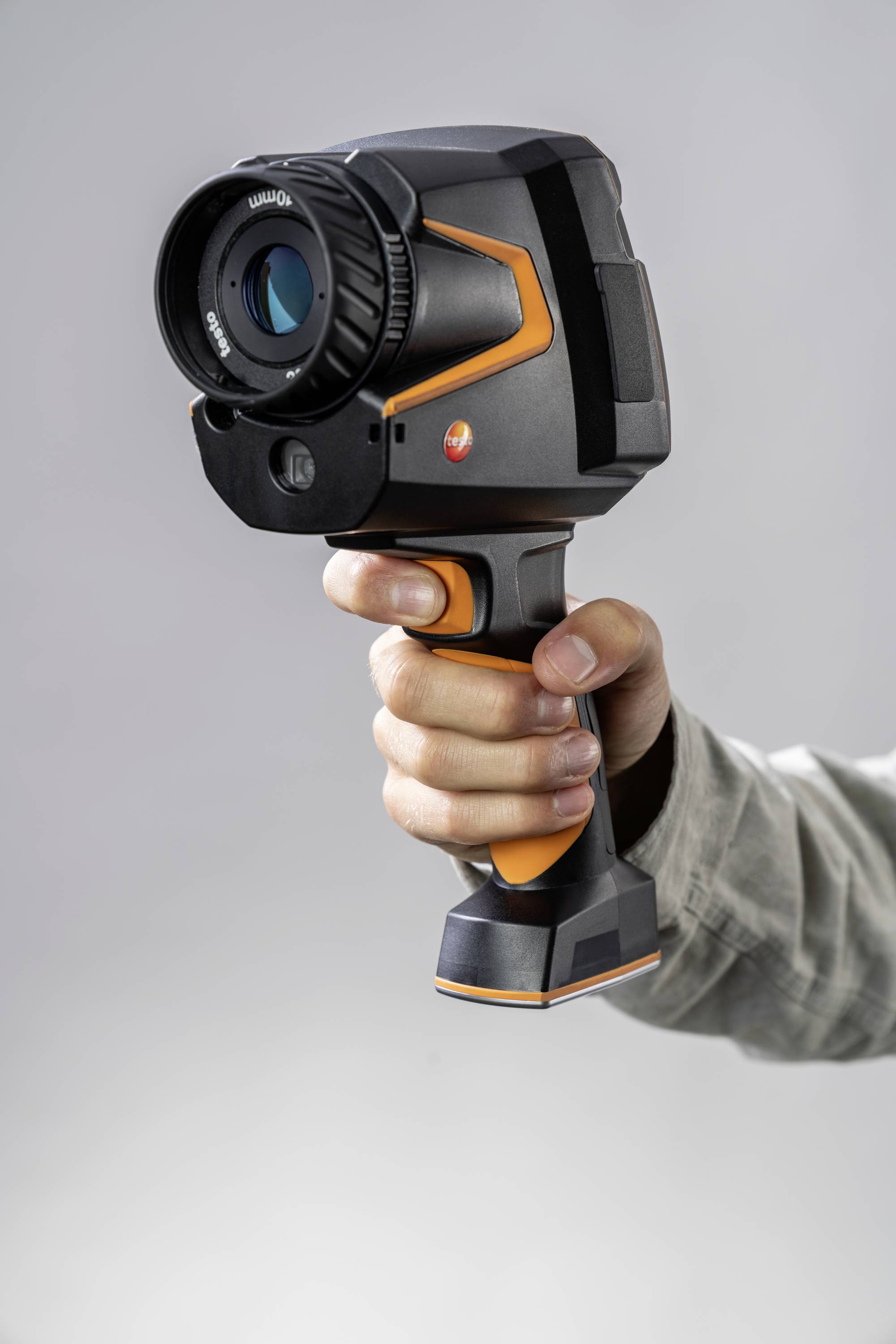

A hand is holding an infrared camera pointed at a grey background.

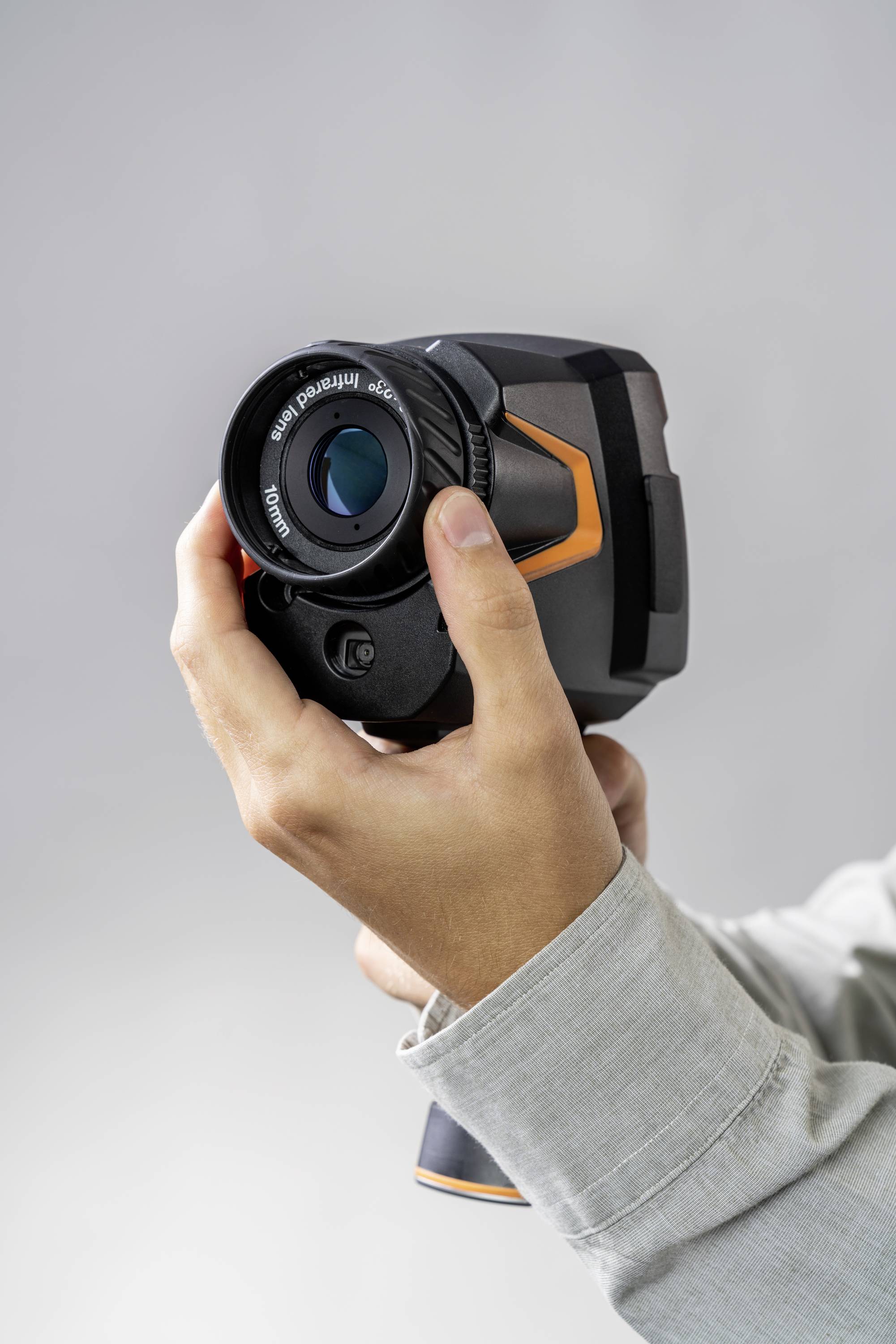

A person is holding a thermal imaging camera against a grey background. The camera has a large lens and orange accents.

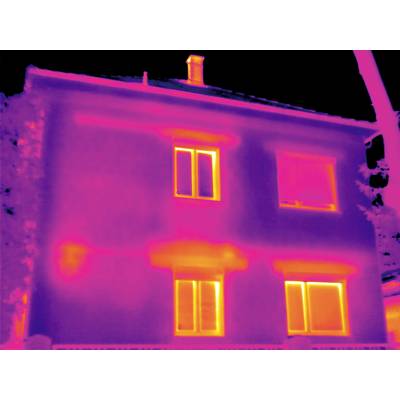

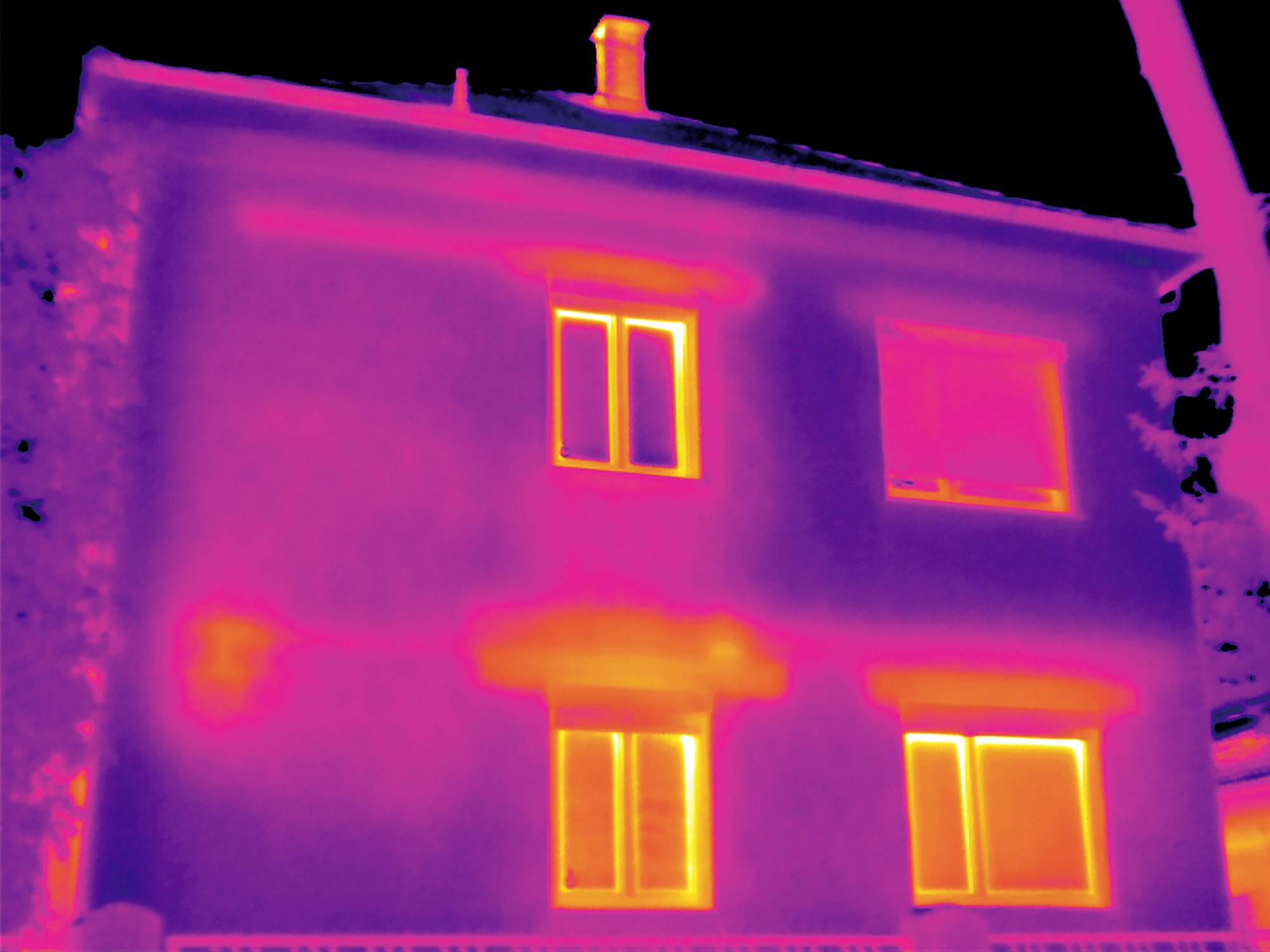

A thermal imaging photograph of a two-storey house. Bright areas indicate heat loss at windows and walls.

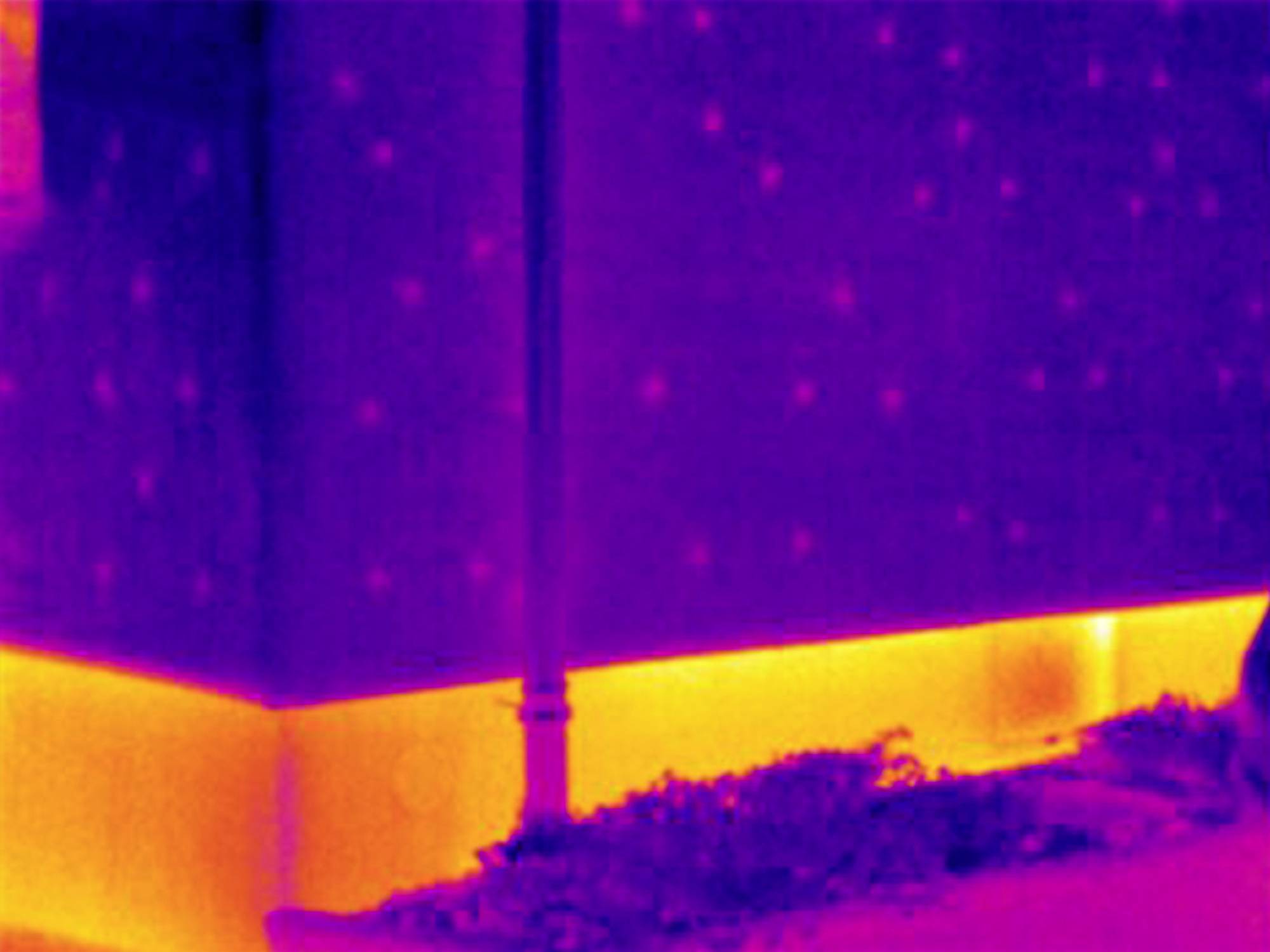

Thermal image of a building corner. The base shows intensive heat radiation in yellow; upper areas show less heat in violet.

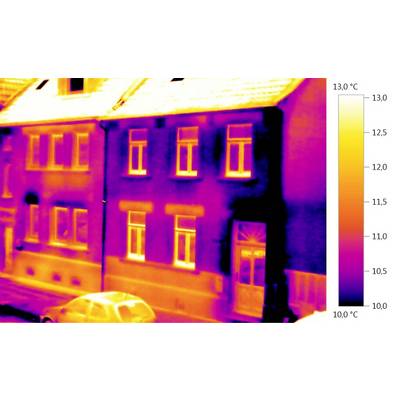

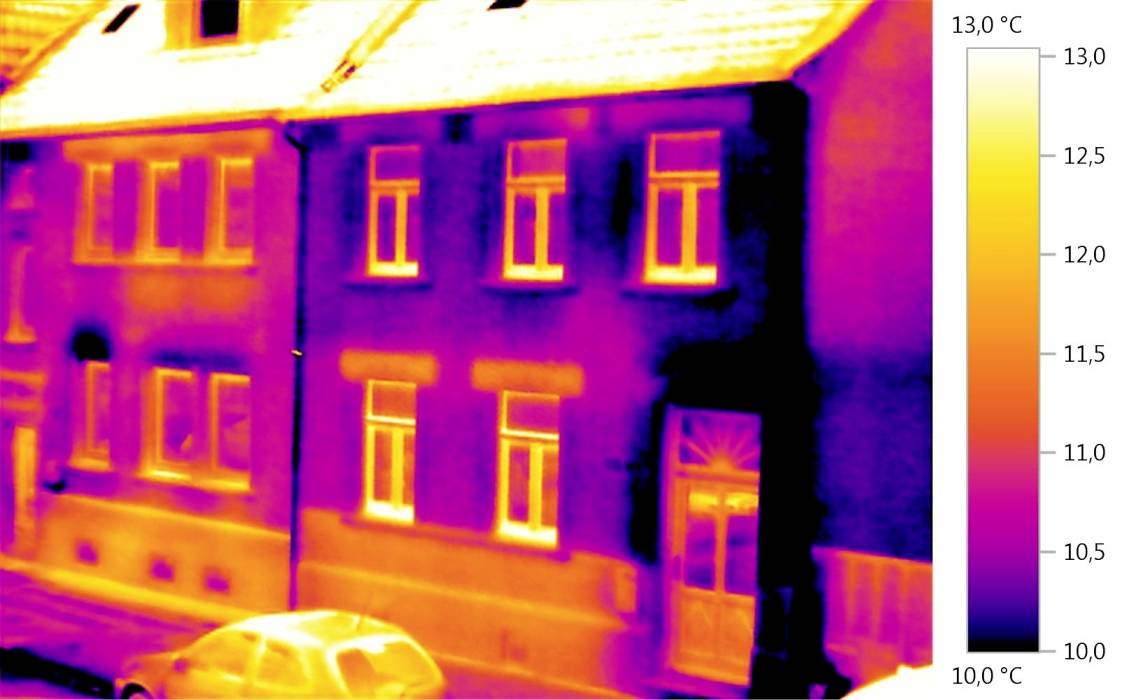

Thermographic image of a house shows heat loss at windows and doors. Colour scale on the right visualises temperature from 10 to 13 °C.

1/24

Datasheet (PDF)

4 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 4,335.29 / piece)

€

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

testo 883-2 thermal imager (42° lens, 320 x 240 pixels, 27 Hz, manual focus, APP, laser)

27 Hz Thermal imaging camera
Temperature reading range -30 up to 650 °C
Bolometer matrix
Thermal sensitivity 40 mK

Technical specifications

Display lighting: Bright / normal / dark
Geometric resolution (IFOV): 1.7 mrad (standard lens), 0.7 mrad (telephoto lens)
Spectral range: 7.5 to 14 µm
Colours: Iron, rainbow, rainbow HC, cold-hot, blue-red, Grey, gray inverted, sepia, testo, iron HT, Humidity palette
Single image file format: .Bmt; .jpg; export option to .bmp; .jpg; .png; .csv; .xls

Type: 883-2

Product type: IR camera

Interfaces: USB A (USB 2.0)
USB C®
Wi-Fi

Temperature reading range (max.): 650 °C

Colour schemes: 8

Temperature reading range (min.): -30 °C

Optics: 30° x 23°

Frame rate: 27 Hz

Display resolution: 320 x 240 Pixel

: IP54

Thermal sensitivity: 40 mK

Dim: (W x H) 95 mm x 236 mm

Memory units: 1

Digital zoom: 4 x

Display: 8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Manual

Weight: 824 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -30 up to 650 °C

Min. focusing distance: 0.1 m

Width: 95 mm

Height: 236 mm

Power supply (details): Li-Ion rechargeable battery or mains operation

Features: Wi-Fi
Touchscreen

: Manufacturer's standards (with certificate)

Documents & Downloads

Datasheet

Datasheet 2900975 testo 883-2 IR camera -30 up to 650 °C 27 Hz Wi-Fi, Touchscreen

User & Safety Instructions

User & Safety Instructions 2900975 testo 883-2 IR camera -30 up to 650 °C 27 Hz Wi-Fi, Touchscreen

Conformity certificate

Conformity certificate 2900975 testo 883-2 IR camera -30 up to 650 °C 27 Hz Wi-Fi, Touchscreen

Description

Best picture quality, professional picture analysis, simple creation of professional reports and the wide angle lens makes the infrared camera testo 883-2 the perfect partner for building energy advisors.

All important information about the testo 883-2 thermal imager
- IR resolution of 320 x 240 pixels (with SuperResolution 640 x 480 pixels), manual focus and a very good NETD of 40 mK ensure the best picture quality – in this way you can reliably detect thermal peculiarities in plants and buildings
- testo IRSoft: Extensive analysis of thermal images with the intuitive, professional PC software and creating impressive reports in a short time
- testo ScaleAssist: Automatic contrast adjustment for objectively comparable infrared images and easier detection of weak points
- testo Thermography APP: With the APP your smartphone/tablet becomes the second display and the remote control of your thermal imager. On-site, you can quickly create, send, or save reports
- Wide-angle lens for larger field of view in confined spaces
- Changeable telephoto lens for distant objects and outdoor shots
- Manual focus for sharp infrared images from a distance of 10 cm
- Can be operated via touch screen and joystick
- Wireless transmission of the measured values from the clamp-on ammeter or humidity sensor directly into the thermal image via Bluetooth®

Further benefits for building energy consultants
- Quick and easy to access professional report: The report wizard guides you through the report generation step by step with standard templates stored. Or use the report designer to create custom templates
- Clever: The moisture mode visualizes the risk of mold formation at thermal weak points directly in the thermal image with traffic light colors (red, yellow, green)
- Smart: Thermography and live streaming - with the testo Thermography APP your customer can comfortably follow the measurement on the smartphone/tablet
- Networked: Wireless transmission of readings of the optional humidity sensor live in the humidity mode – your values are always up-to-date, e.g. when you change the room
- Flexible: Changeable lenses and manual focus for sharper images and more accurate results from different distances

This text is machine translated.

Features

Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 x 480 pixels); NETD smaller 0.04°C.
Full control: Manual focus, wide-angle lens and interchangeable telephoto lens (optional)
Free analysis software to create professional reports
APP for on-site analysis and measurement reporting

Scope of delivery

Thermal imaging camera testo 883-2 with wide-angle lens 42° x 32°
Rugged case
Professional software IRSoft (free download)
USB-C cable
USB power adapter
Lithium-ion rechargeable battery
Carrying strap for the infrared camera
Bluetooth headset
Quick guide
Calibrated protocol

System requirements

IRSoft Windows® 8
Windows® 10
Thermography APP: Android Version 4.3 or later, IOS 8 or later

Description

Features

Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 x 480 pixels); NETD smaller 0.04°C.
Full control: Manual focus, wide-angle lens and interchangeable telephoto lens (optional)
Free analysis software to create professional reports
APP for on-site analysis and measurement reporting
