testo IR camera -30 up to +650 °C 640 x 480 Pixel 33 Hz Built-in digital camera
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 34,192.44 / piece)
€ 34,192.44
plus VAT.
14-day return policy included
Highlights & Details

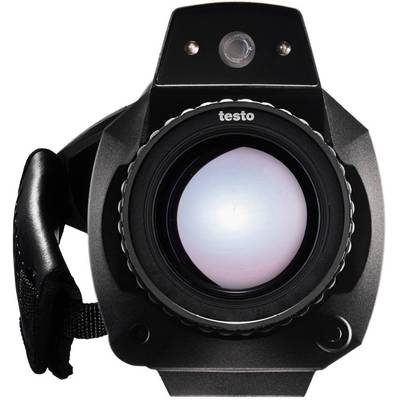

Testo 890 Set heat-imaging camera with super-telephoto lens and two lenses
- 33 Hz Thermal imaging camera
- Temperature reading range -30 up to +650 °C
- 640 x 480 Pixel Bolometer matrix
- Thermal sensitivity 40 mK
Technical specifications
- Spectral range: 7.5 to 14µm
- Type
0563 0890 X6
- Product type
IR camera
- Bolometer array
640 x 480 Pixel
- Temperature reading range (max.)
+650 °C
- Colour schemes
9
- Temperature reading range (min.)
-30 °C
- Frame rate
33 Hz
- Display resolution
1280 x 960 Pixel
IP54
- Thermal sensitivity
40 mK
- Dim
(L x W x H) 253 x 111 x 132 mm
- Display
4.3" LCD touch-screen with 480 x 272 p
- Emission level (max.)
1
- Emission level (min.)
0.01
- Focus
Automatic
Manual
- Weight
1630 g
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Temperature reading range
-30 up to +650 °C
- Min. focusing distance
0.5 m
- Width
111 mm
- Height
132 mm
- Length
253 mm
- Features
Built-in digital camera
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2180004 testo IR camera -30 up to +650 °C 640 x 480 Pixel 33 Hz Built-in digital camera
Description
This professional infrared camera with super-telephoto lens and two lenses (free choice between standard, 25° and telephoto lens) can be used for the following tasks:
Inspection of high-voltage lines: with the super telephoto lens can be even the smallest connections from a large safety distance check
Localization of HotSpots in solar parks (for detecting defective cells)
Detection of abnormalities of large industrial plants
Secure high-temperature measurement
Analysis of building envelopes at a glance
Discover critical temperatures on printed circuit boards
Regularly check the electrical maintenance
Analysis of energy distribution systems
Perform detailed energy discussions
This text is machine translated.
Inspection of high-voltage lines: with the super telephoto lens can be even the smallest connections from a large safety distance check
Localization of HotSpots in solar parks (for detecting defective cells)
Detection of abnormalities of large industrial plants
Secure high-temperature measurement
Analysis of building envelopes at a glance
Discover critical temperatures on printed circuit boards
Regularly check the electrical maintenance
Analysis of energy distribution systems
Perform detailed energy discussions
This text is machine translated.
Features
- Up to 307.200 temperature measuring points: a detector size of 640 x 480 pixels provides for precise detection. Thanks to the Super Resolution technology increases the image quality even on 1280 x 960 pixels
- Thermal sensitivity< 40 mK: even the smallest differences in temperature will be visible
- Thermal images can be stored either as a JPEG
- Process analysis package (optional): With the combination of vollradiometrischem video and sequence storage in the device wirelessly, measure and benefit from a simplified handling at the point of measurement
- Camcorder design with wrist strap as well as rotation and swivel display facilitate the recording. A wide range of recording angle and single-handed operation will be as comfortable as possible
- Panoramic picture wizard: frames are directly in the recording to make a panorama image are combined. In this way, you can, for example, complete building envelopes thermography, without having to use intermediaries or individually must evaluate the pictures bother
- Site recognition technology: the infrared camera detects the objects to be measured directly at the same measurement locations, arranges them automatically to form and archived according to
- High-temperature option: the measuring range is up to 1 200°C can be extended
- Special measuring mode for the Detection endangered: by manual input of ambient temperature and air humidity, the dew point is calculated in the room. The camera measured surface temperature value is then compared with the dew point. Now, the display shows the mold risk in traffic light colors (red, yellow, green). It is easier with the optional wireless humidity sensor: by the automatic measuring value transmission avoids the need for manual input of the air humidity and ambient temperature
- Fever detection (optional): People in public places and in means of transport with the wizard on increased body temperature check, for the protection of public health.
- Lens is replaceable
- Voice recording (as a comment to the recordings) with headset possible headset included in delivery
- Built-in digital camera with power LEDs: For each thermal image, you can well-lit real taking pictures-the documentation and mapping easier
- Auto-focus for easy one-handed and less blurred recordings
- Minimum focus distance 10 cm
- Objectives:
- In this set, in addition to the super telephoto lens two more from a total of 3 lenses can be selected freely
- 6.6° x 5° super telephoto lens (included in the set):
- Small field of vision (5° x 3.7°) for highest resolution on especially remote objects
- Easy handling: No additional lens holder necessary
- 42° x 32° standard objective (either as a 2 or 3. Lens included in the set):
- Ideal for the inspection of closer objects to be measured
- Large field of view
- 25° x 19° Lens (either as a 2 or 3. Lens included in the set):
- Ideal for use in applications in the field of preventive maintenance
- 15° x 11° tele-objective (either as a 2 or 3. Lens included in the set):
- Enables excellent recordings from the objects to be measured in the medium and further distance
Scope of delivery
- Infrared camera testo 890 with 6.6° super telephoto lens and Super Resolution
- 2x lenses (choice between standard, 25° and tele-objective)
- Robust case for the infrared camera
- Professional software for image processing on the PC
- SD memory card
- USB cable for data transfer to the PC
- Carry strap for the infrared camera
- Lens cleaning cloth
- Power supply unit
- Lithium-ion rechargeable battery
- Lense protection glass
- Additional battery
- Fast charging station
- Headset for voice recording
- Lens bag
Hints
Please specify the desired objective at the time of ordering.
